Drive Belt: Service and Repair
Accessory Drive Belt, Tensioner and Pulley 1.
Remove the parts in the order indicated in the illustration and table.
To remove individual parts, only carry out the listed steps: 2.
To install, reverse the removal procedure.

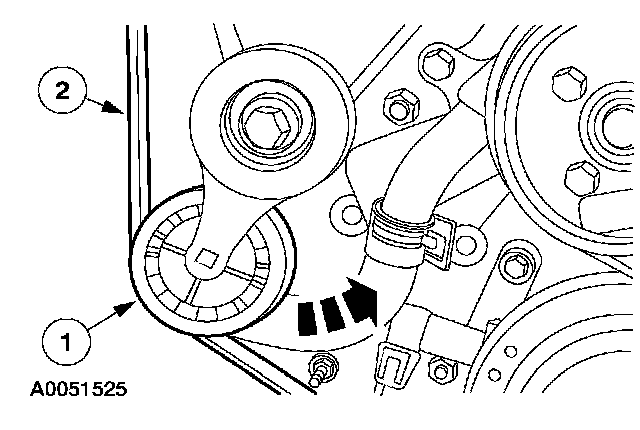

Item 1: Accessory Drive Belt Removal Note 1.
Remove the accessory drive belt.
1.
Rotate the accessory drive belt tensioner counterclockwise.
2.
Remove the accessory drive belt.
