Test E

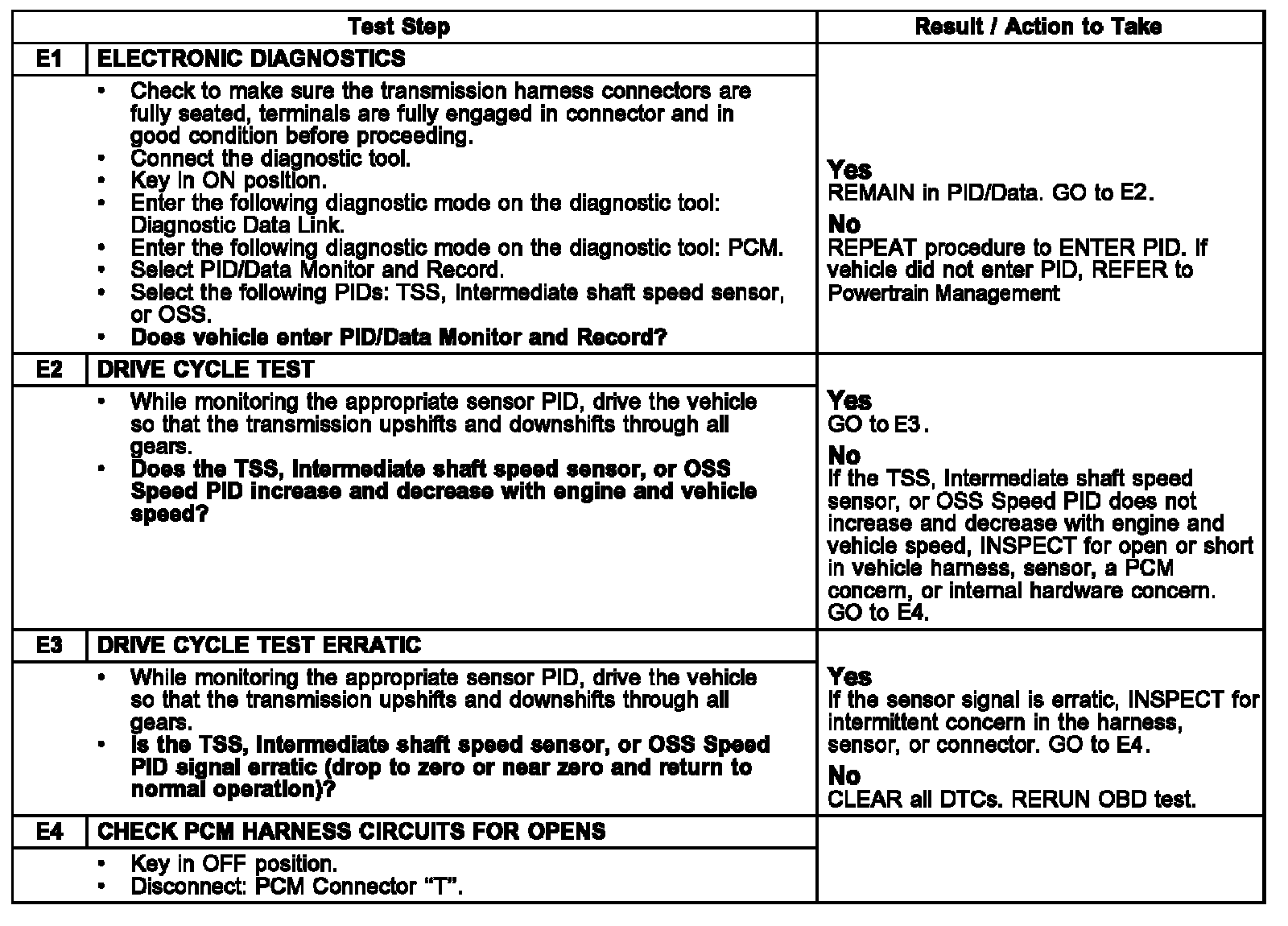

PINPOINT TEST E: TURBINE SHAFT SPEED (TSS), INTERMEDIATE SHAFT SPEED, AND OUTPUT SHAFT SPEED (OSS) SENSORS NOTE: Refer to the turbine shaft speed
(TSS), intermediate shaft speed, and output shaft speed
(OSS) sensor connector illustrations.

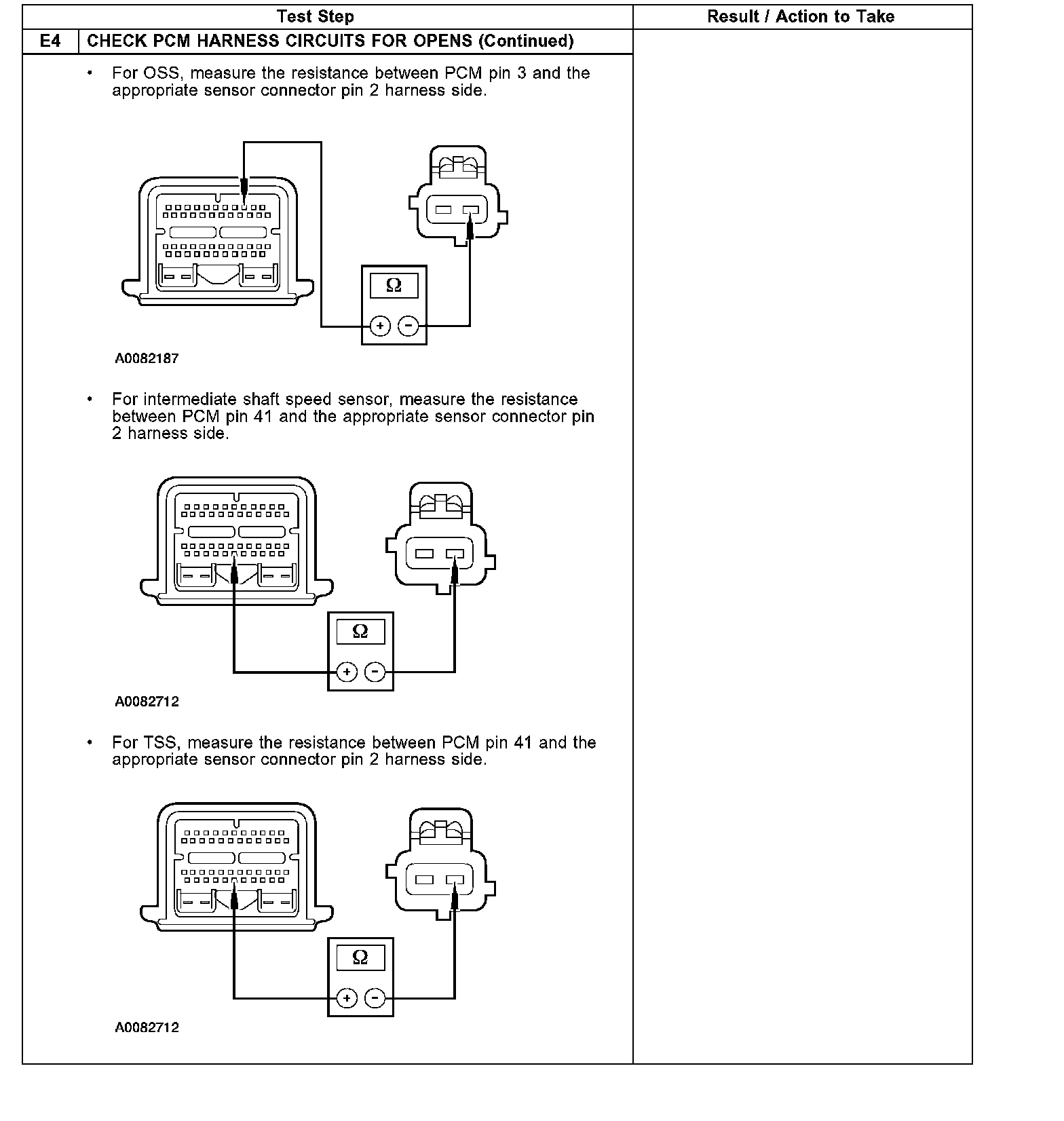

Test E4 (Continues):

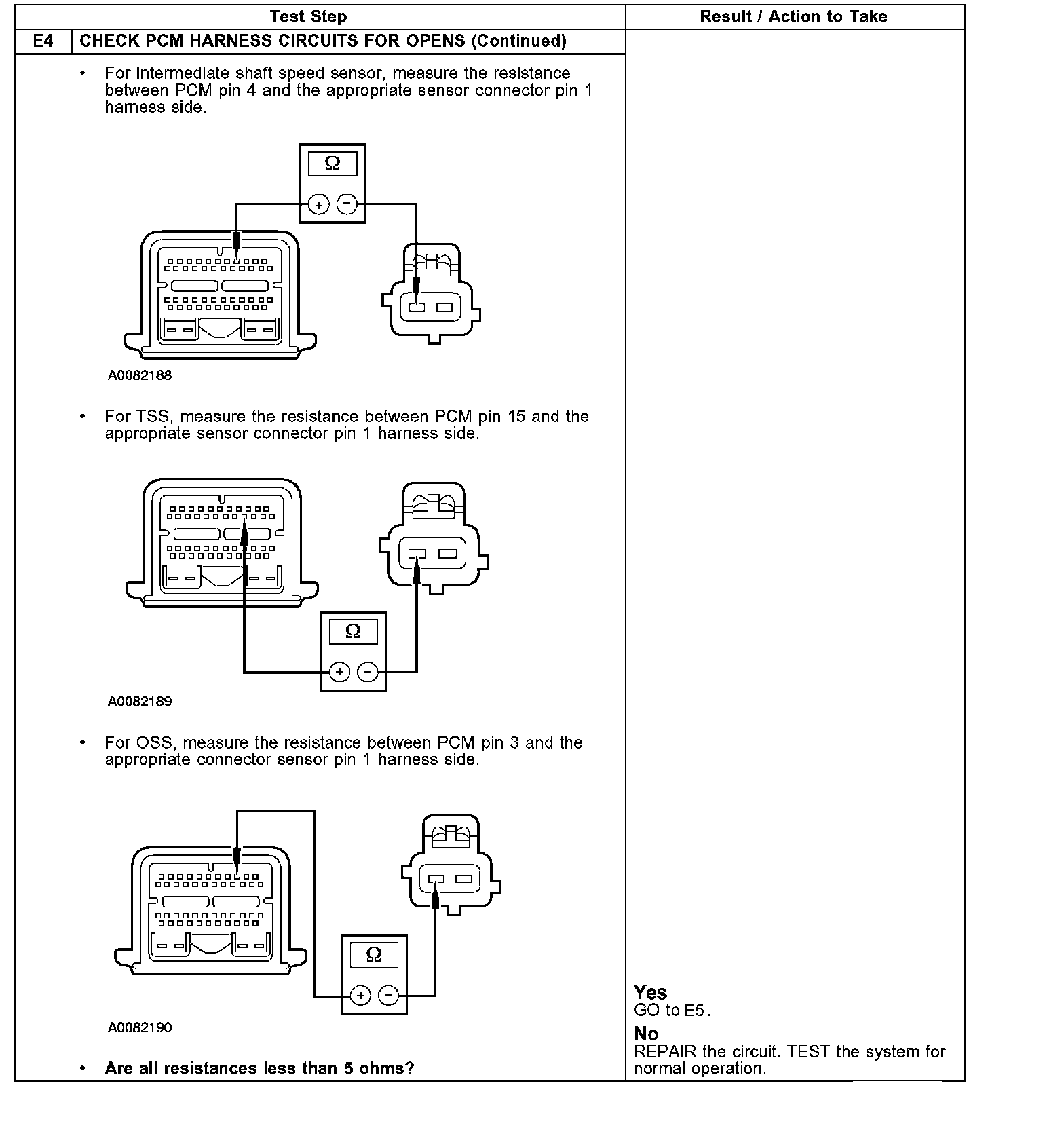

Test E4:

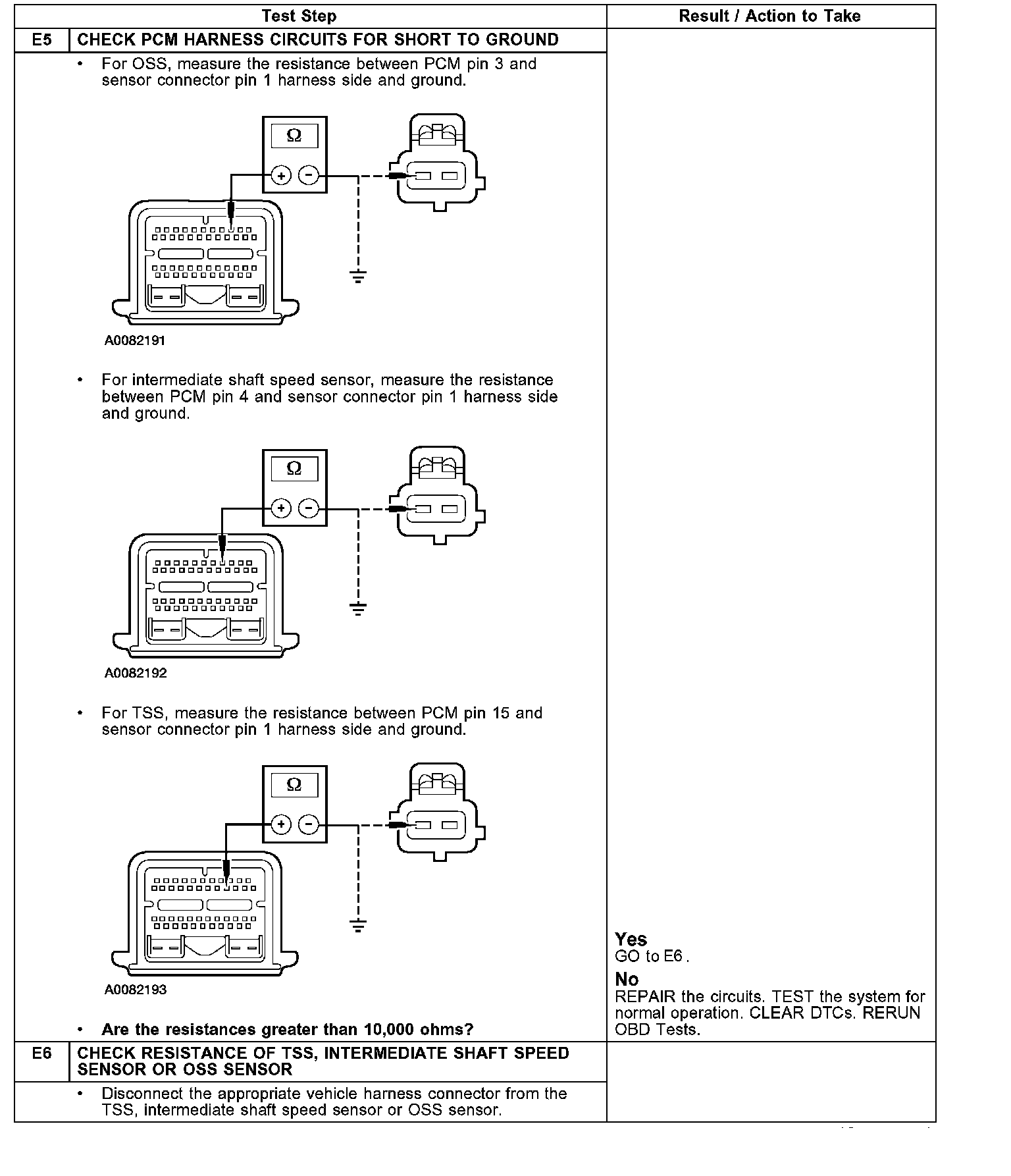

Tests E5-E6 (Continues):

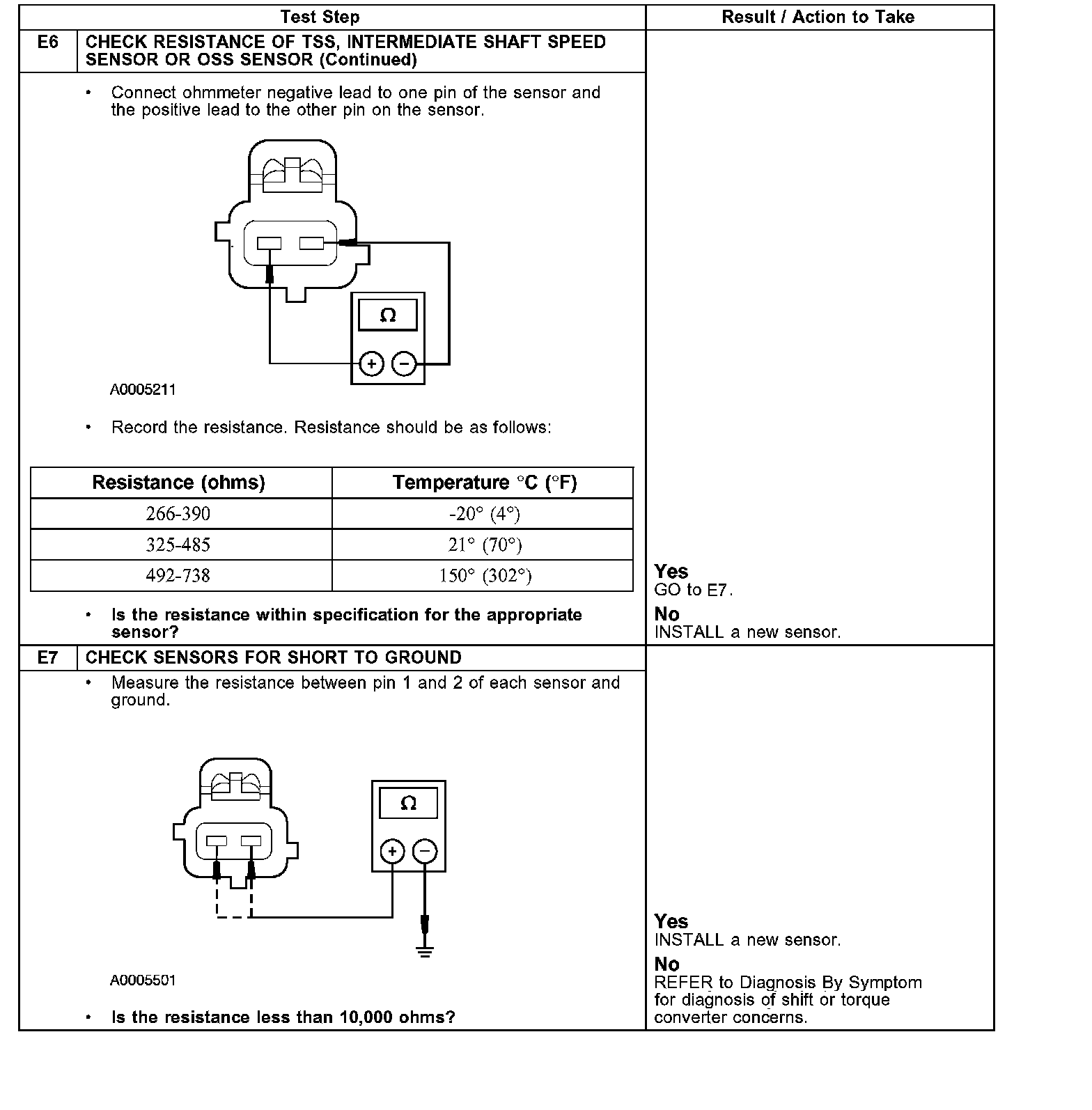

Tests E6-E7:
