Fuel Tank Pressure Sensor: Service and Repair
FUEL TANK PRESSURE SENSORREMOVAL
1. Remove the spare tire.
2. With the vehicle in NEUTRAL, position it on a hoist.
3. NOTE: The evaporative emission canister tray is lowered for clarity. The tube is located at the right front of the tray.
Disconnect the fuel tank pressure sensor tube at the vapor canister.

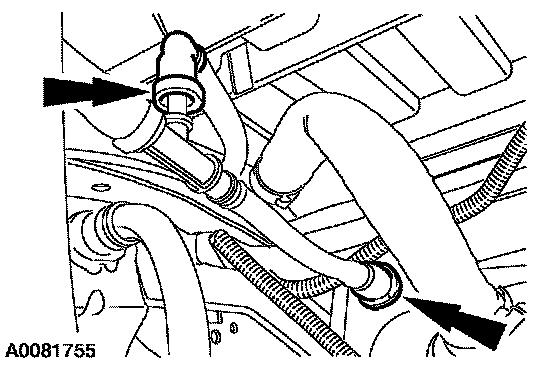

4. Disconnect the fuel tank pressure sensor tube at the fuel tank and vent tube.

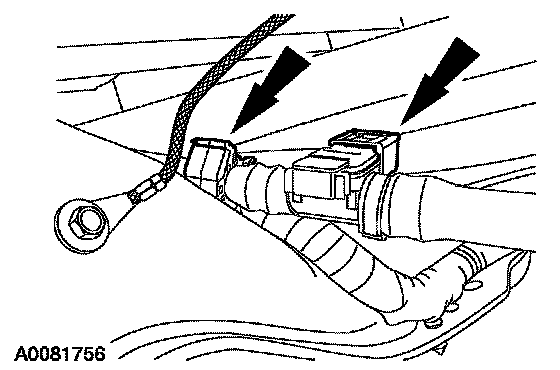

5. Disconnect the fuel tank pressure sensor electrical connector and relase the tube clip. Remove the fuel tank pressure sensor and tube assembly.
INSTALLATION
1. To install, reverse the removal procedure.
- Leak test. Evaporative Emission System Leak Test
- Carry out the evaporative emissions repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
