Body Control Module: Service and Repair
VEHICLE SECURITY MODULEREMOVAL
CAUTION: Prior to removal of the module, it is necessary to upload the module configuration information to the appropriate diagnostic equipment. This information needs to be downloaded into the new module once installed
1. Disconnect the battery.
2. Remove the passenger side airbag.
3. Remove the screws and position the vehicle security module forward.
4. Remove the vehicle security module.

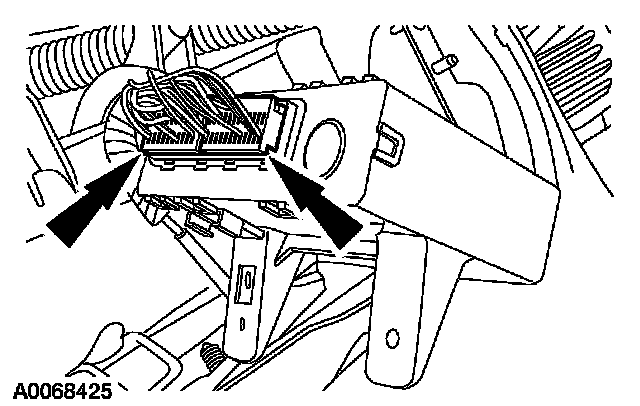

- Disconnect the electrical connectors.
INSTALLATION
1. To install, reverse the removal procedure.
