Torque Specifications

Torque Specifications

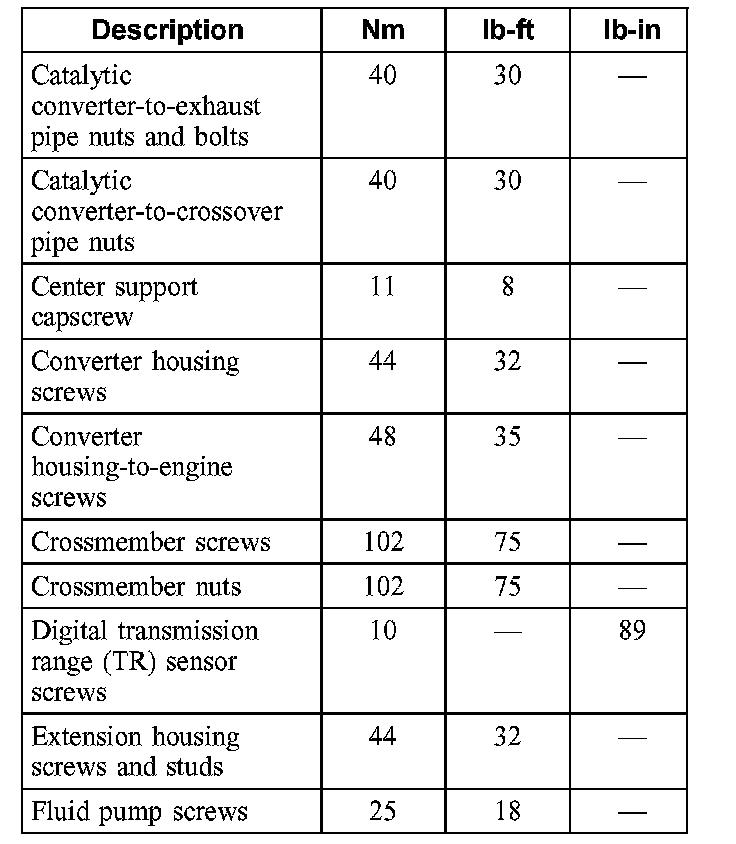

Part 1 Of 4:

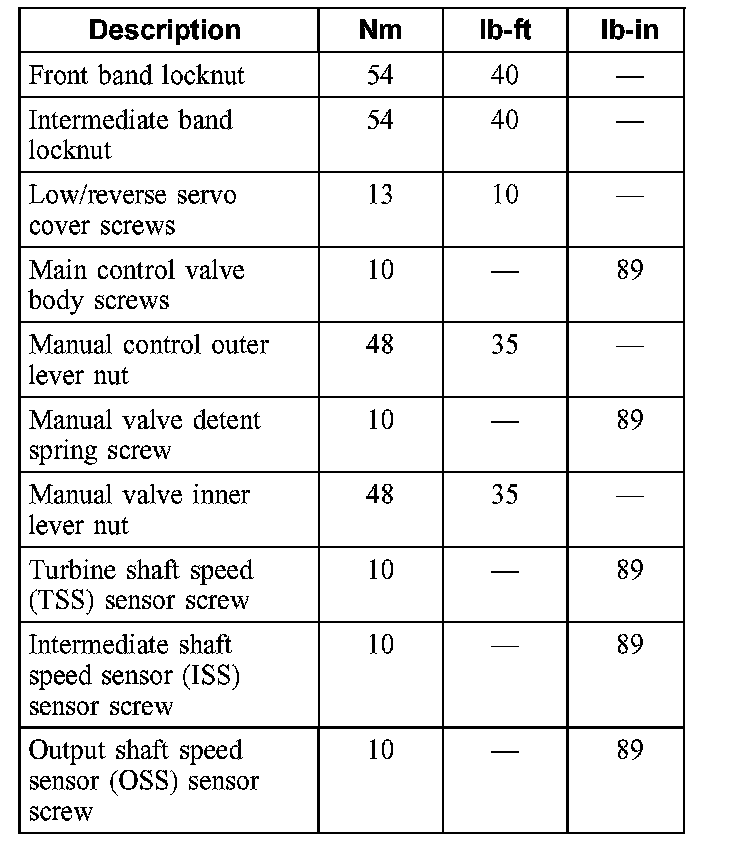

Part 2 Of 4:

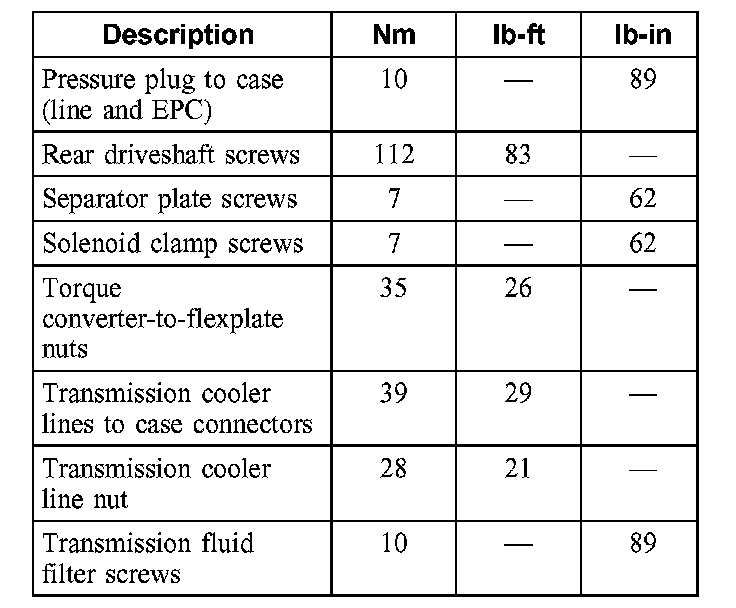

Part 3 Of 4:

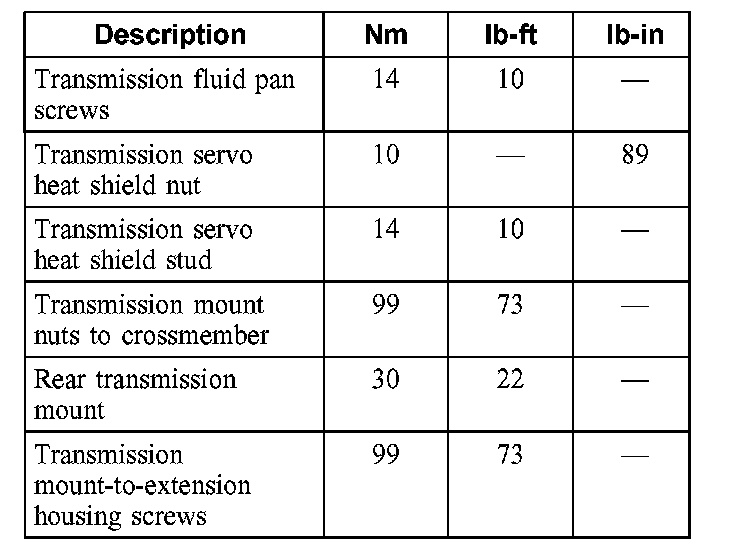

Part 4 Of 4:

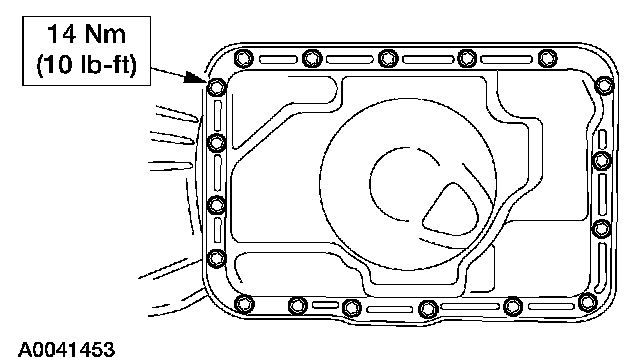

Tighten transmission fluid pan screws.
Tighten transmission fluid pan screws in a crisscross sequence.

Converter Housing-to-Case Bolts
Bolt Torque 44 N.m (32 lb-ft)
Tighten bolts in a star pattern.
