Oil Temperature Sensor For ECM: Service and Repair
OIL TEMPERATURE SENSORREMOVAL 1.
Disconnect the battery ground cable.
2.
With the vehicle in neutral, position it on a hoist.
3.
Drain the engine oil.
4.

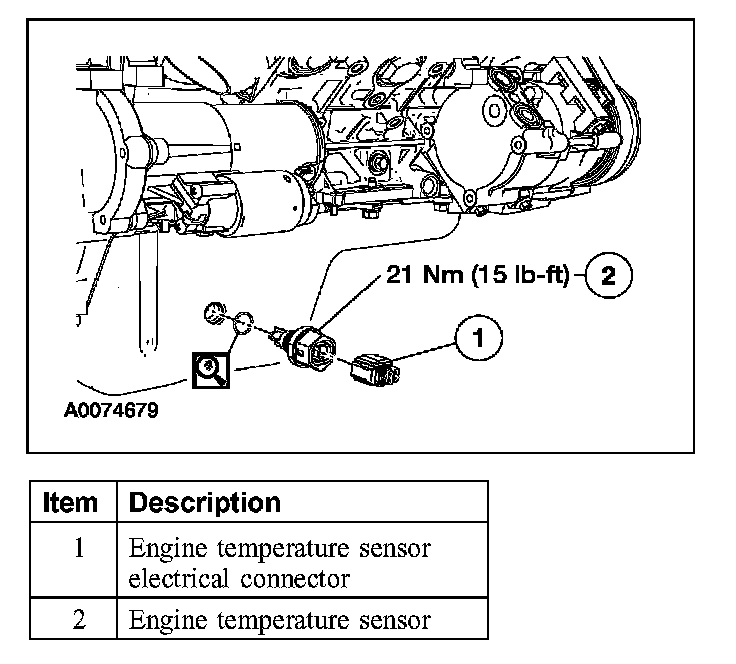

Remove the components in the order indicated in the illustration and table.
INSTALLATION 1.
To install, reverse the removal procedure.
2.
Fill the engine with clean engine oil.
