Transmission Position Sensor/Switch: Service and Repair

Digital Transmission Range (TR) Sensor-4x2

Special Tools And Equipment:





Special Tool(s)

Removal and Installation

CAUTION: Do not pry on the swivel tube to disconnect the transmission shift linkage.

CAUTION: Discard outer manual control lever shaft nut. Do not reuse. The old nut will not retain torque specification.

NOTE: Manual shift lever must be in the NEUTRAL position.

1. With the vehicle in NEUTRAL, position it on a hoist.

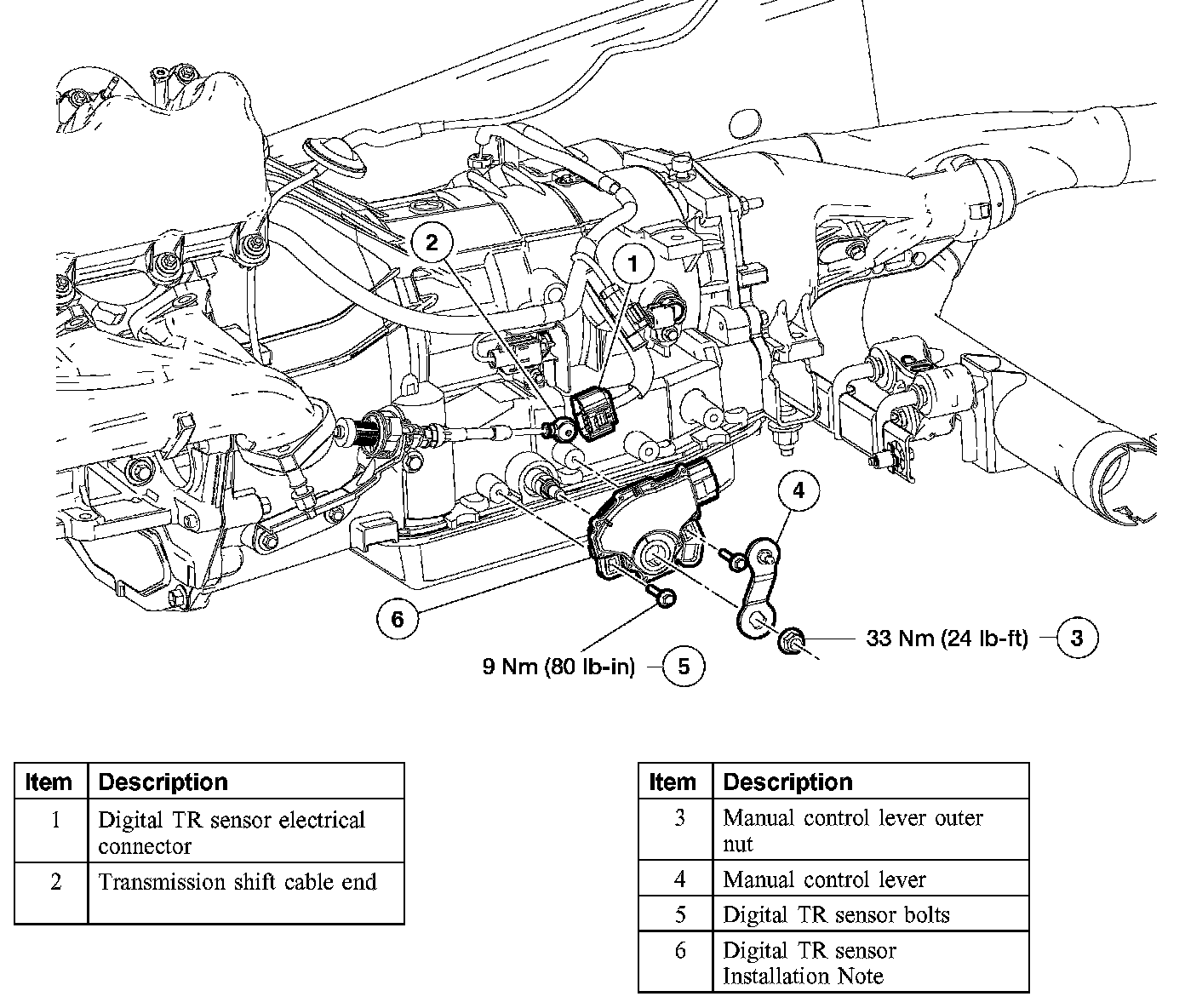

2. Remove the parts in the order listed in the illustration and table.
3. To install, reverse the removal procedure.

Item 6: Digital TR Sensor Installation Note

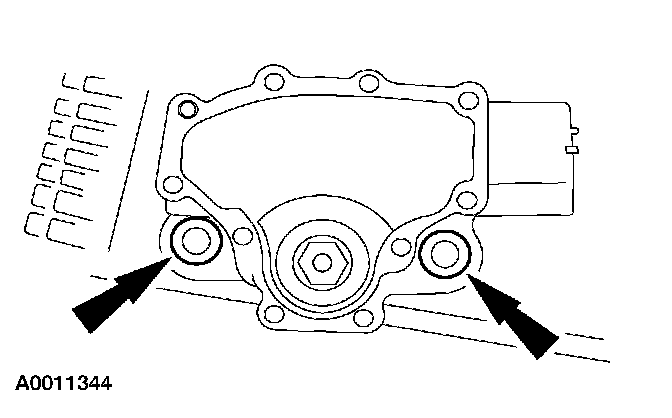

1. Install the digital TR sensor and loosely install the bolts.






2. NOTE: The manual lever must be in the NEUTRAL position.

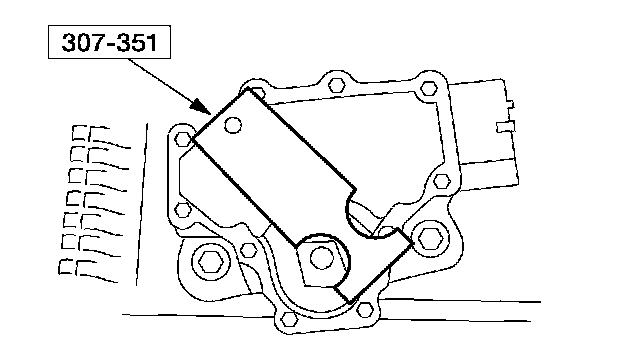

Using the special tool, align the digital TR sensor slots. The tool is designed to fit snug.






3. CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

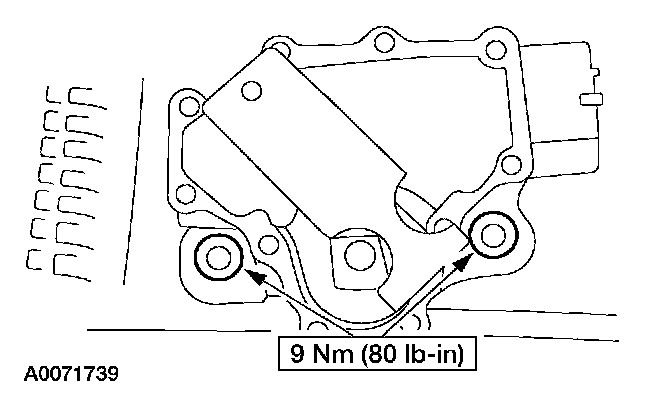

Tighten the bolts.
