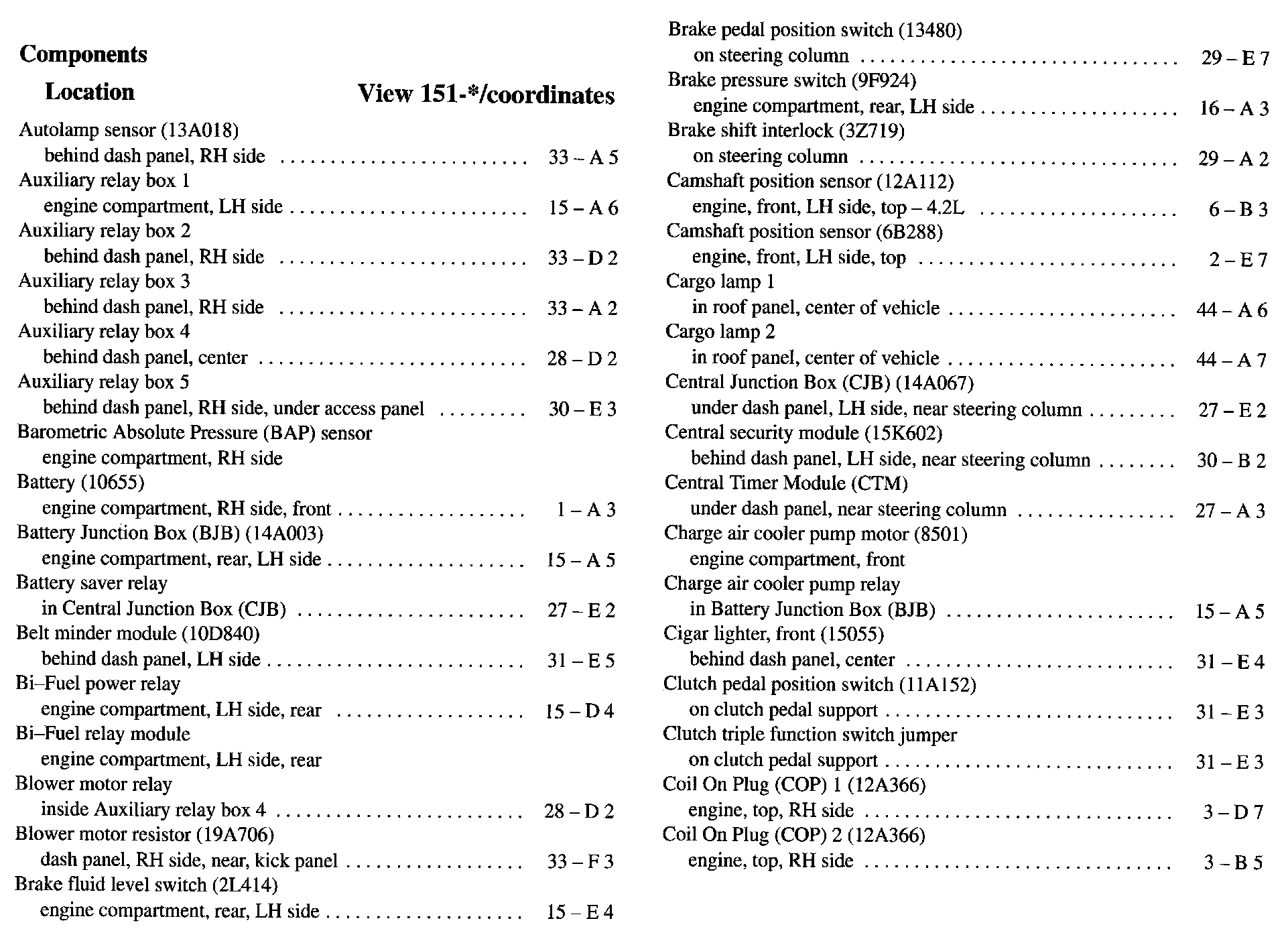

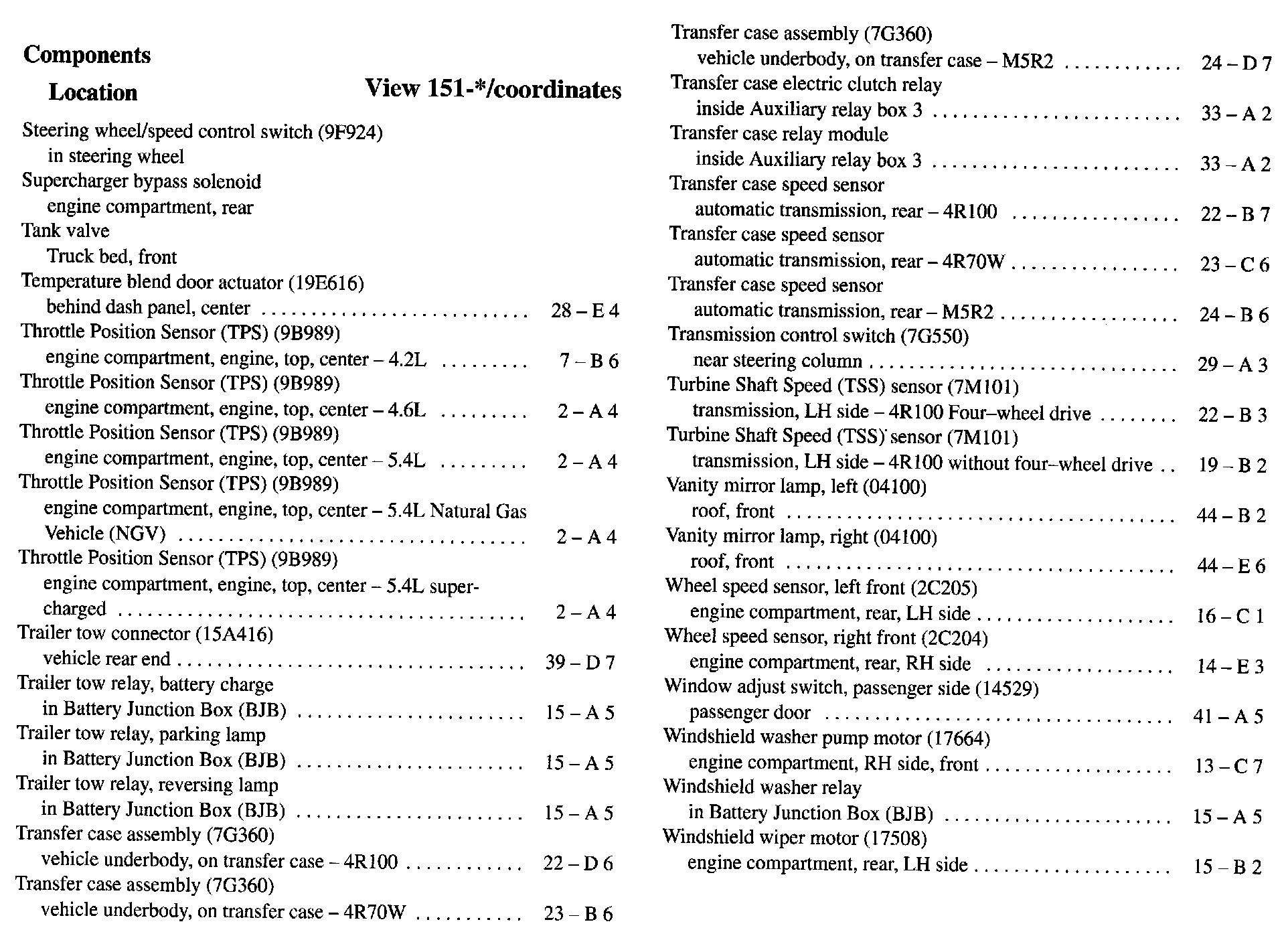

Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

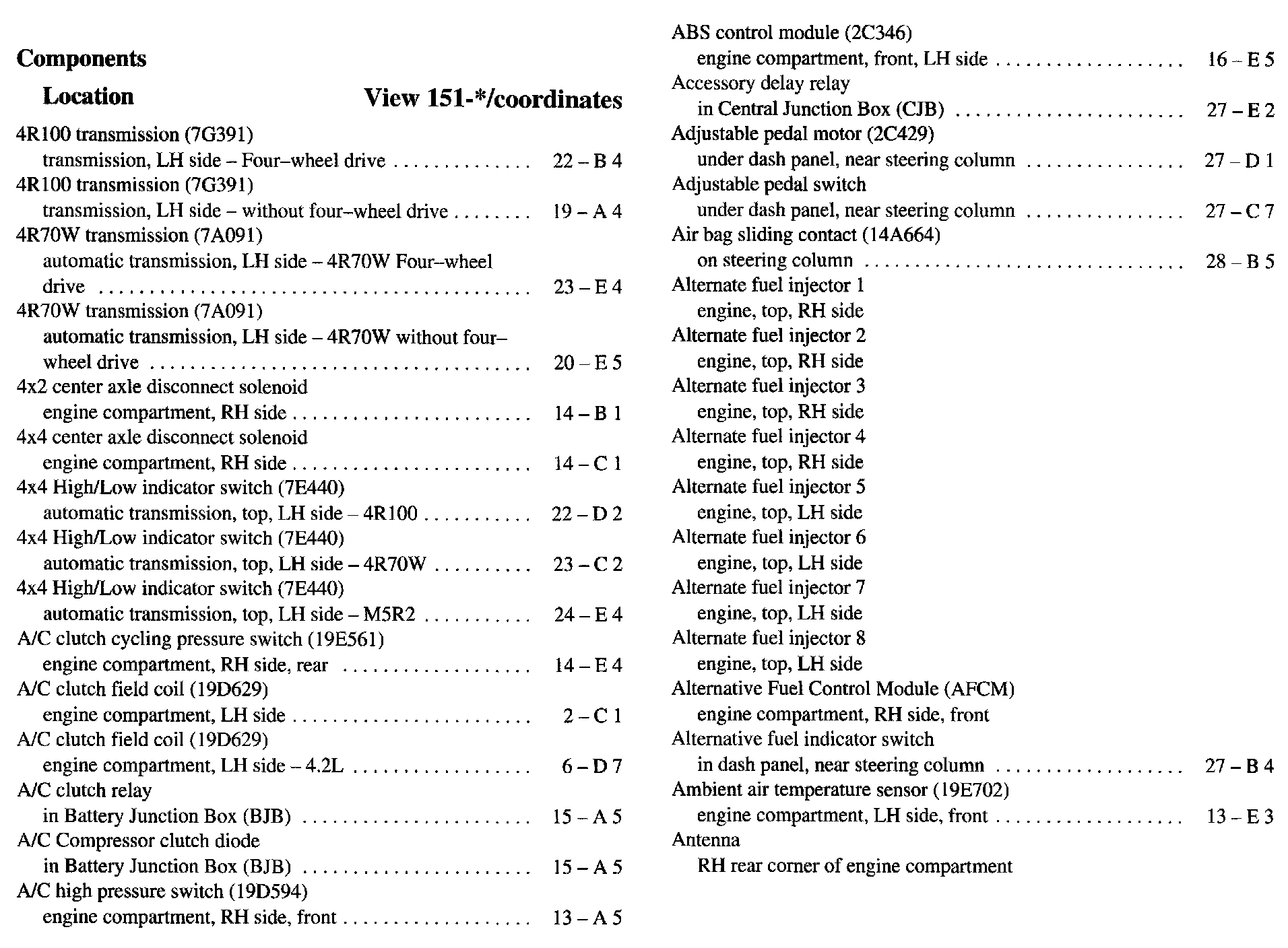

4R-An:
Au-Co:

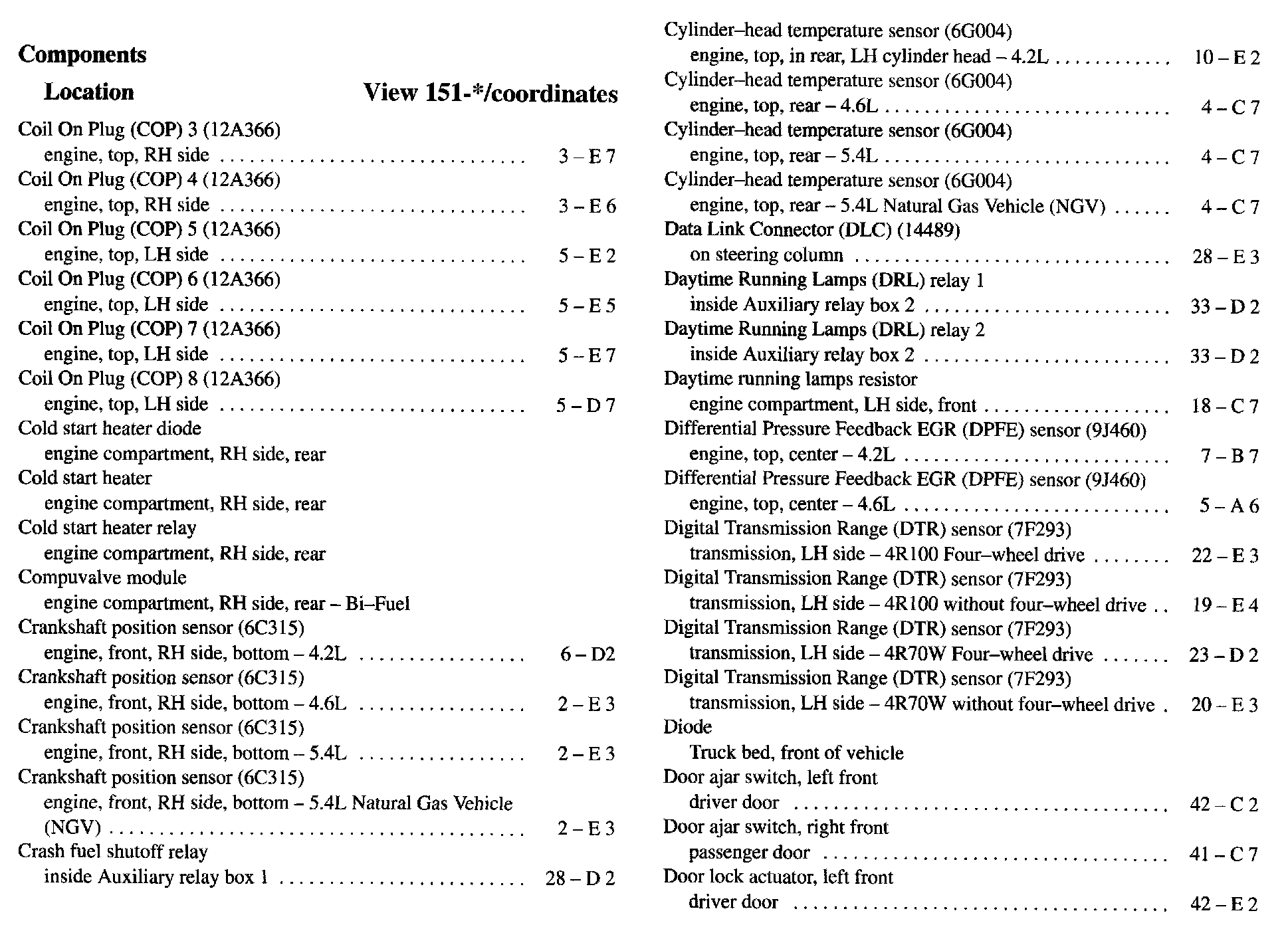

Co-Do:

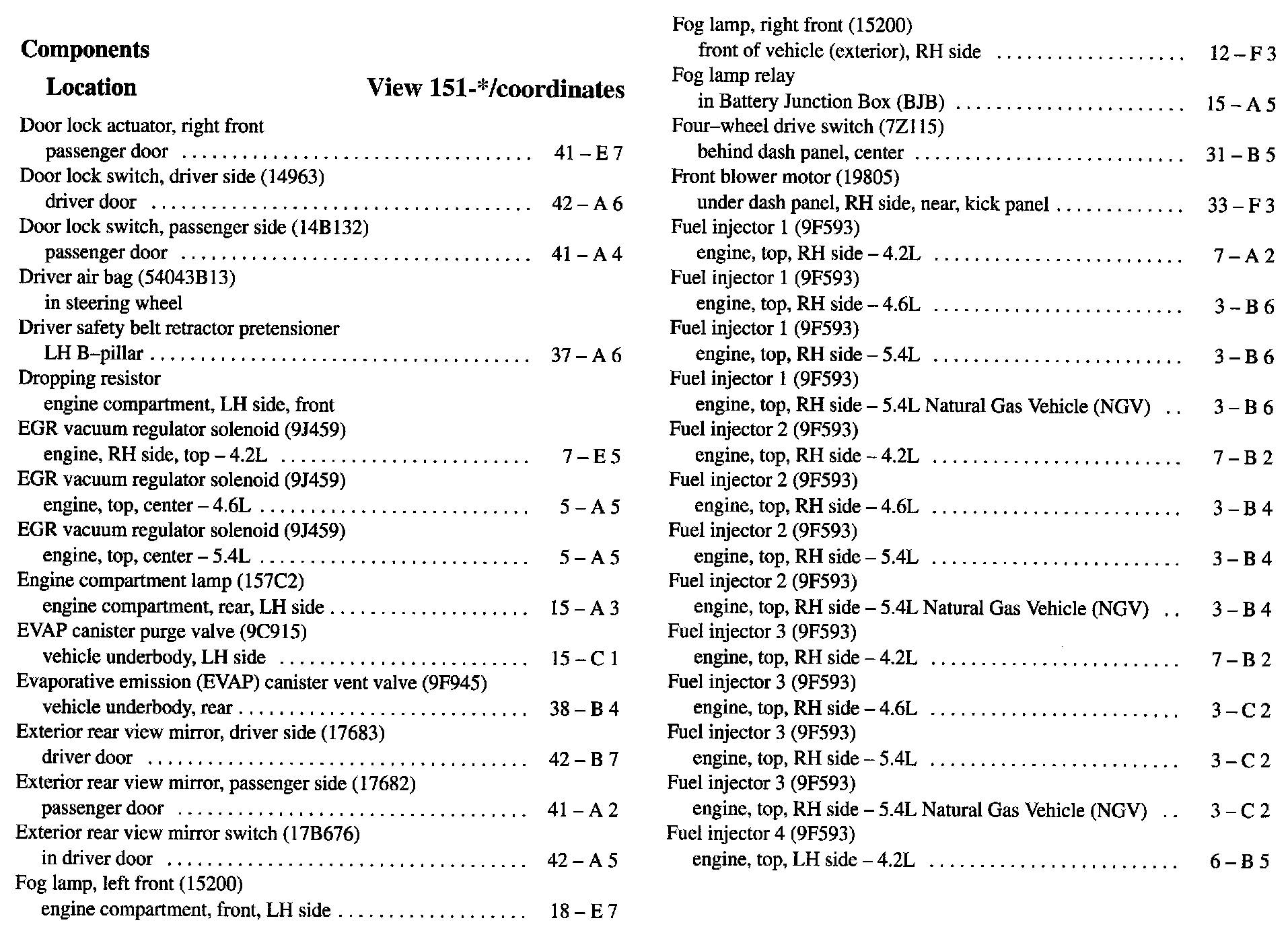

Do-Fu:

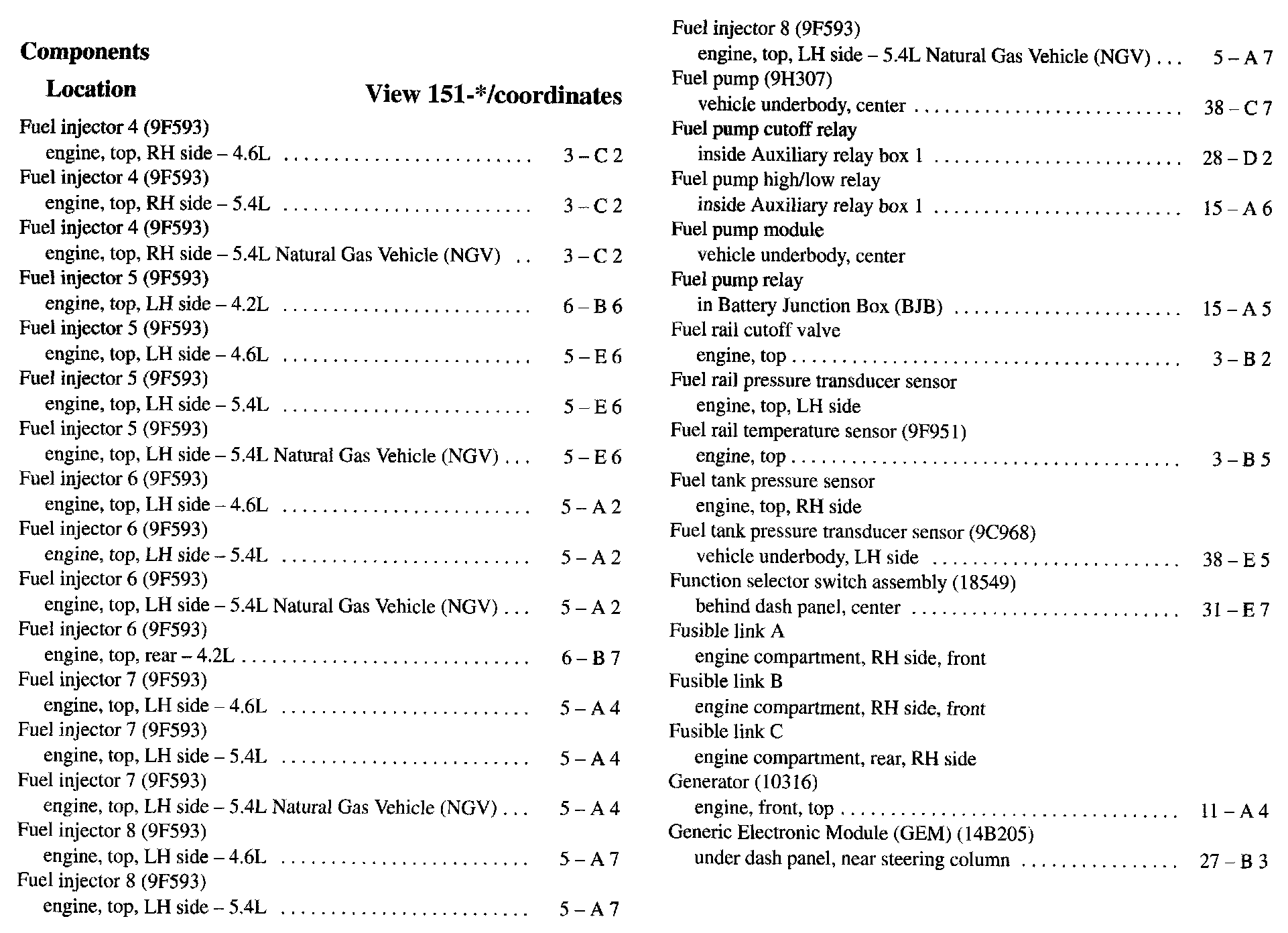

Fu-Ge:

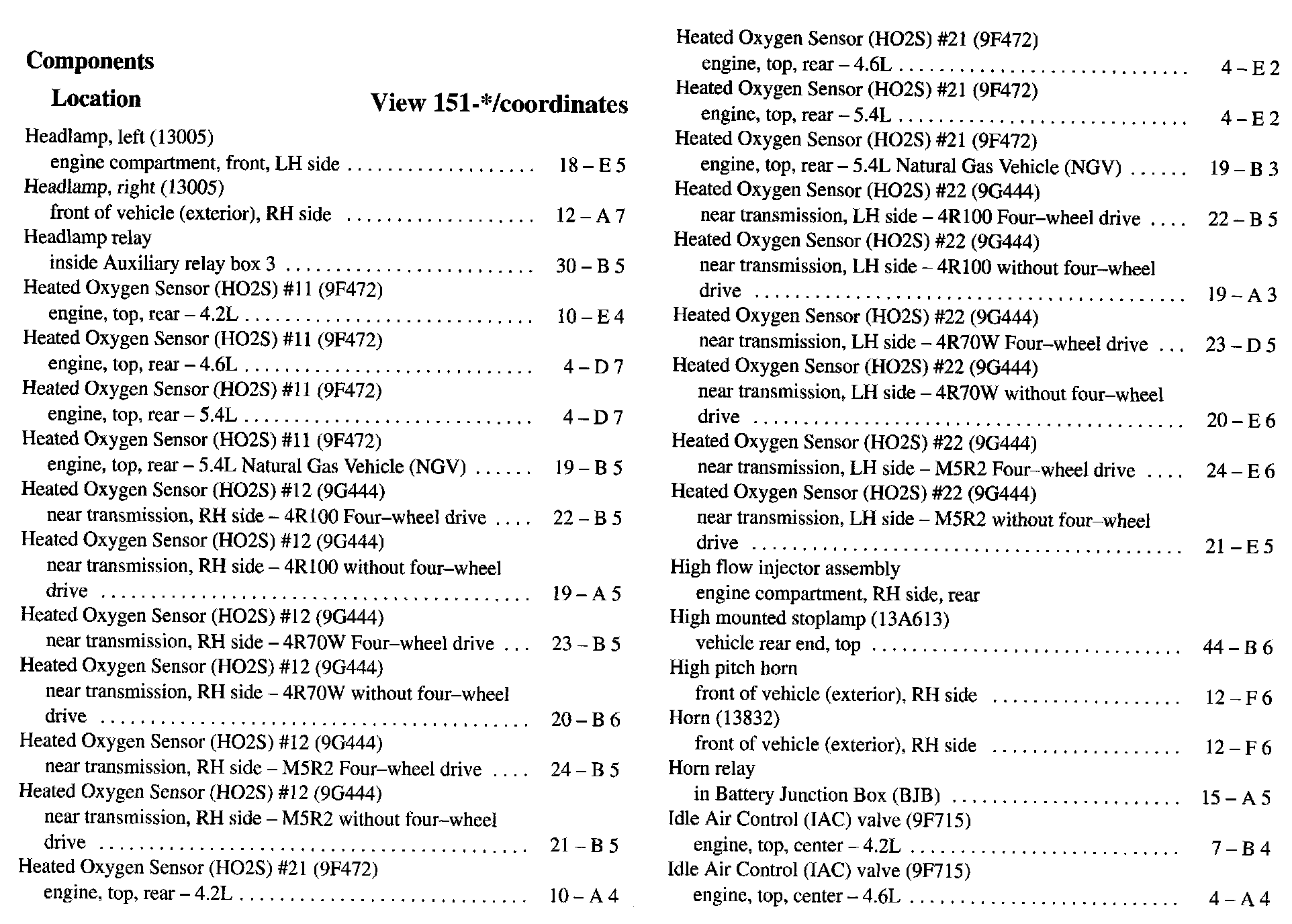

He-Id:

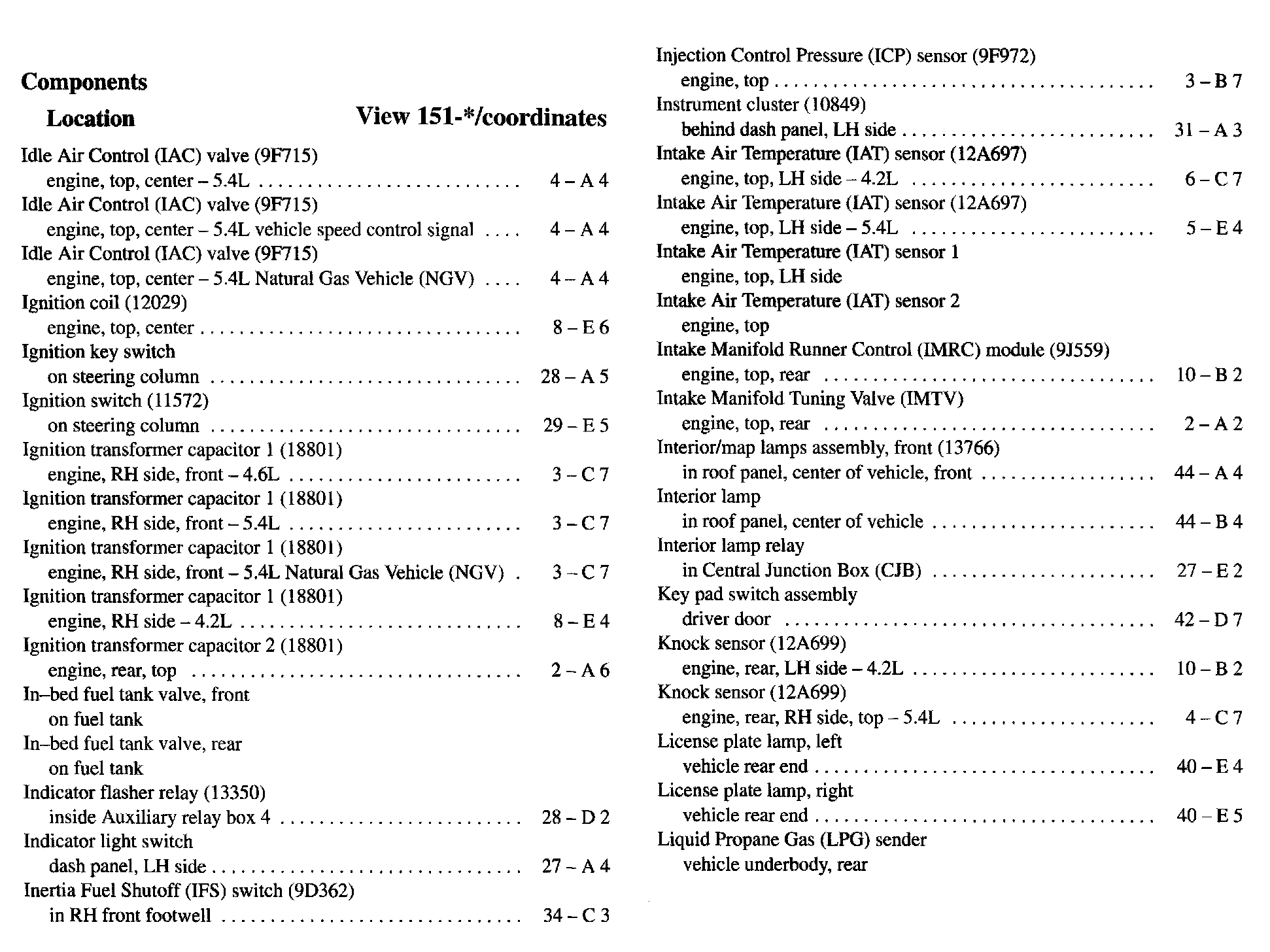

Id-Li:

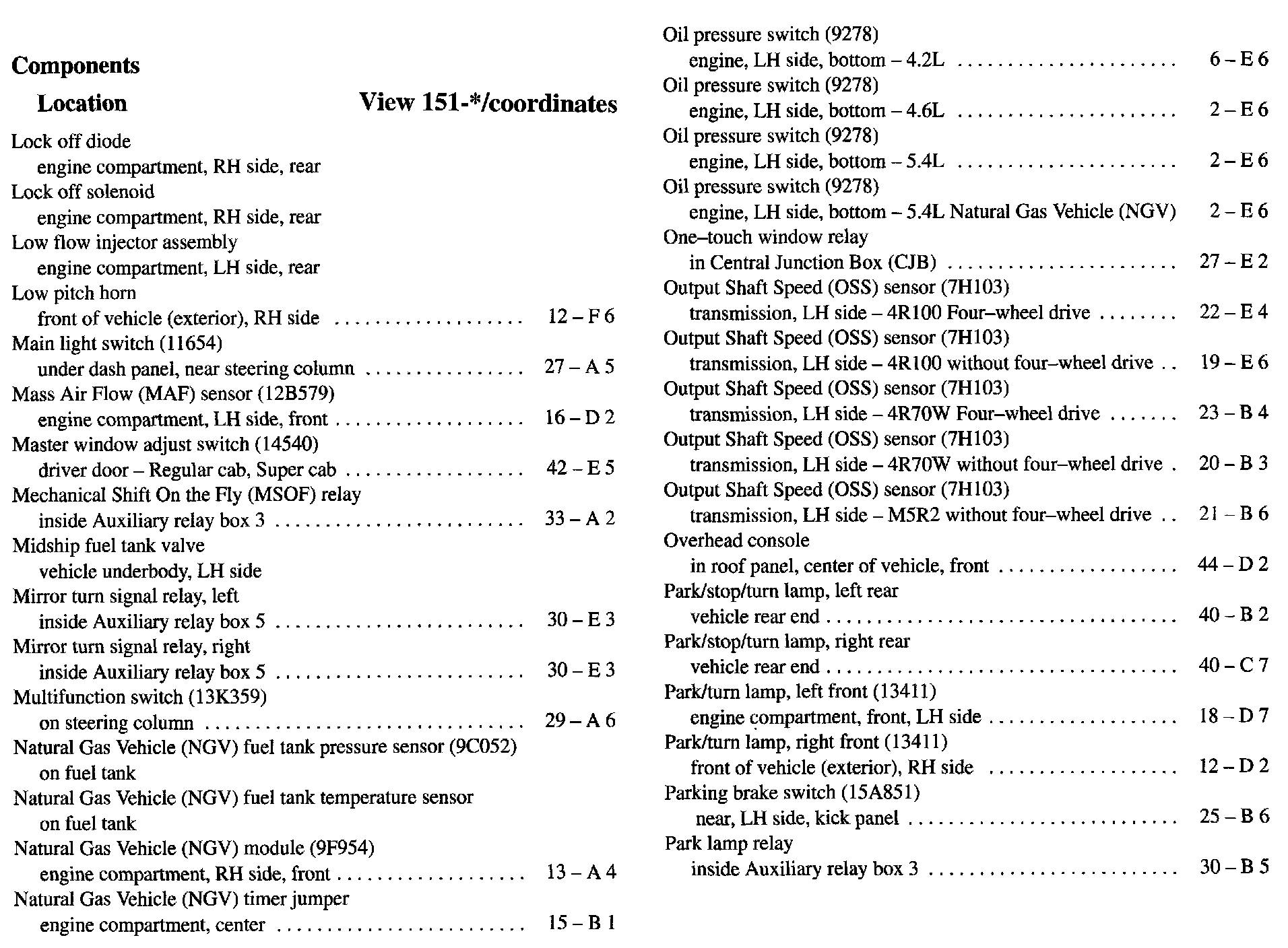

Lo-Pa:

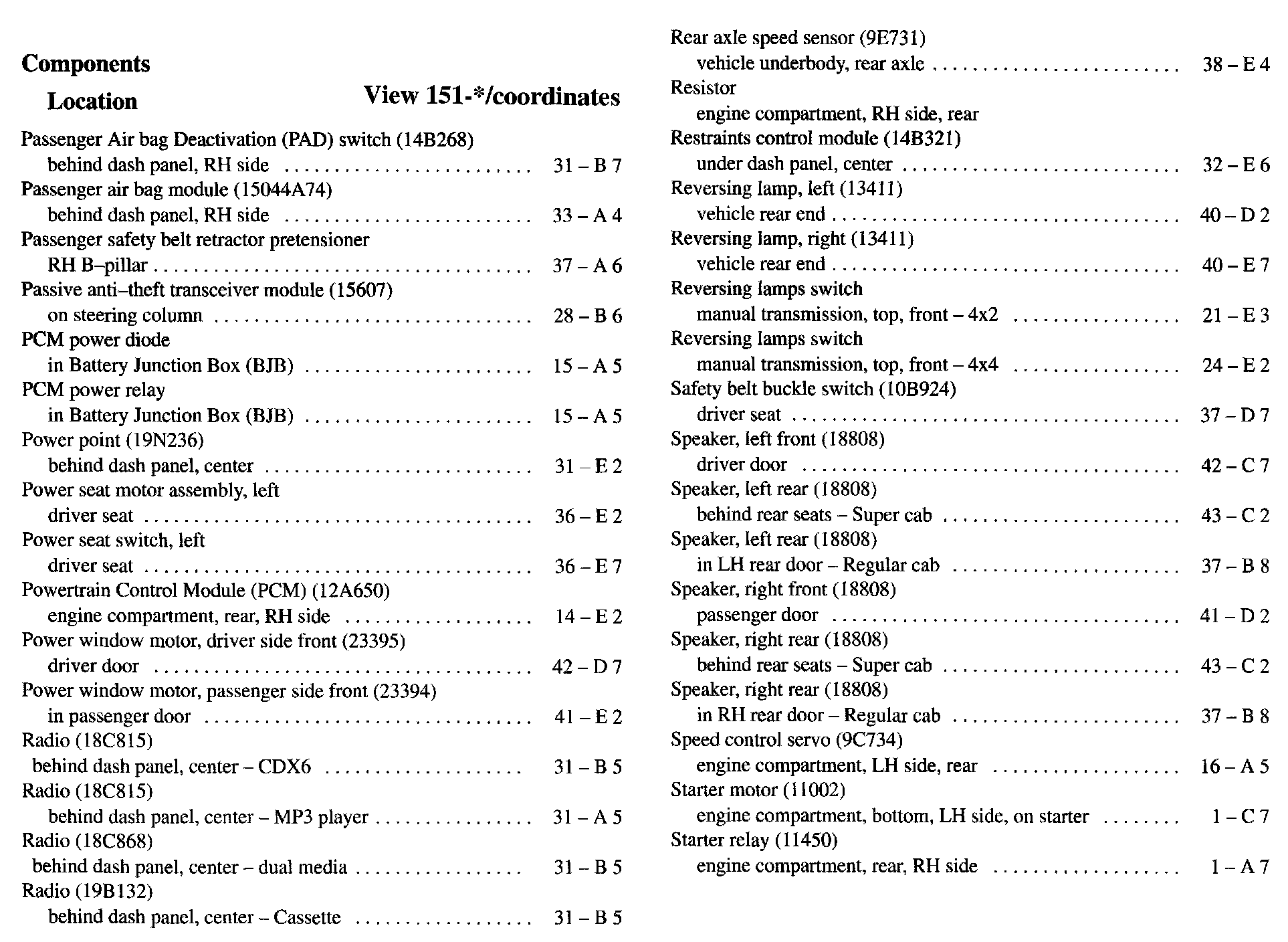

Pa-St:
St-Wi:
Wi-Wi:
