Front
Brake Disc - SVT Removal 1.
Remove the wheel and tire.
2.
Detach the brake hose from the suspension strut.
3.
CAUTION: Suspend the
brake caliper and anchor plate to prevent load being placed on the brake hose.

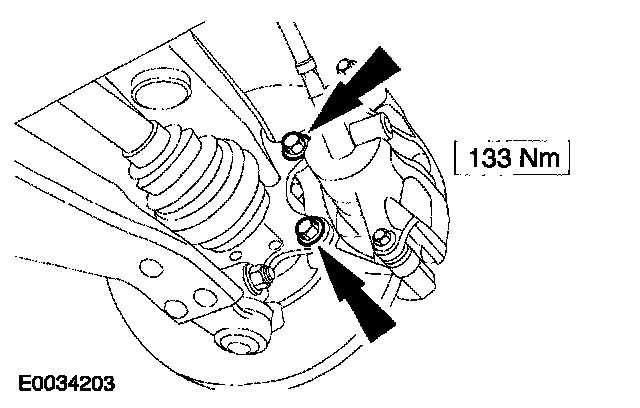

Detach the
brake caliper and anchor plate from the wheel knuckle.
4.
Remove the brake disc.
^
Remove the retaining clip (if equipped).
Installation 1.
To install, reverse the removal procedure.
