Seats: Description and Operation

SEATS

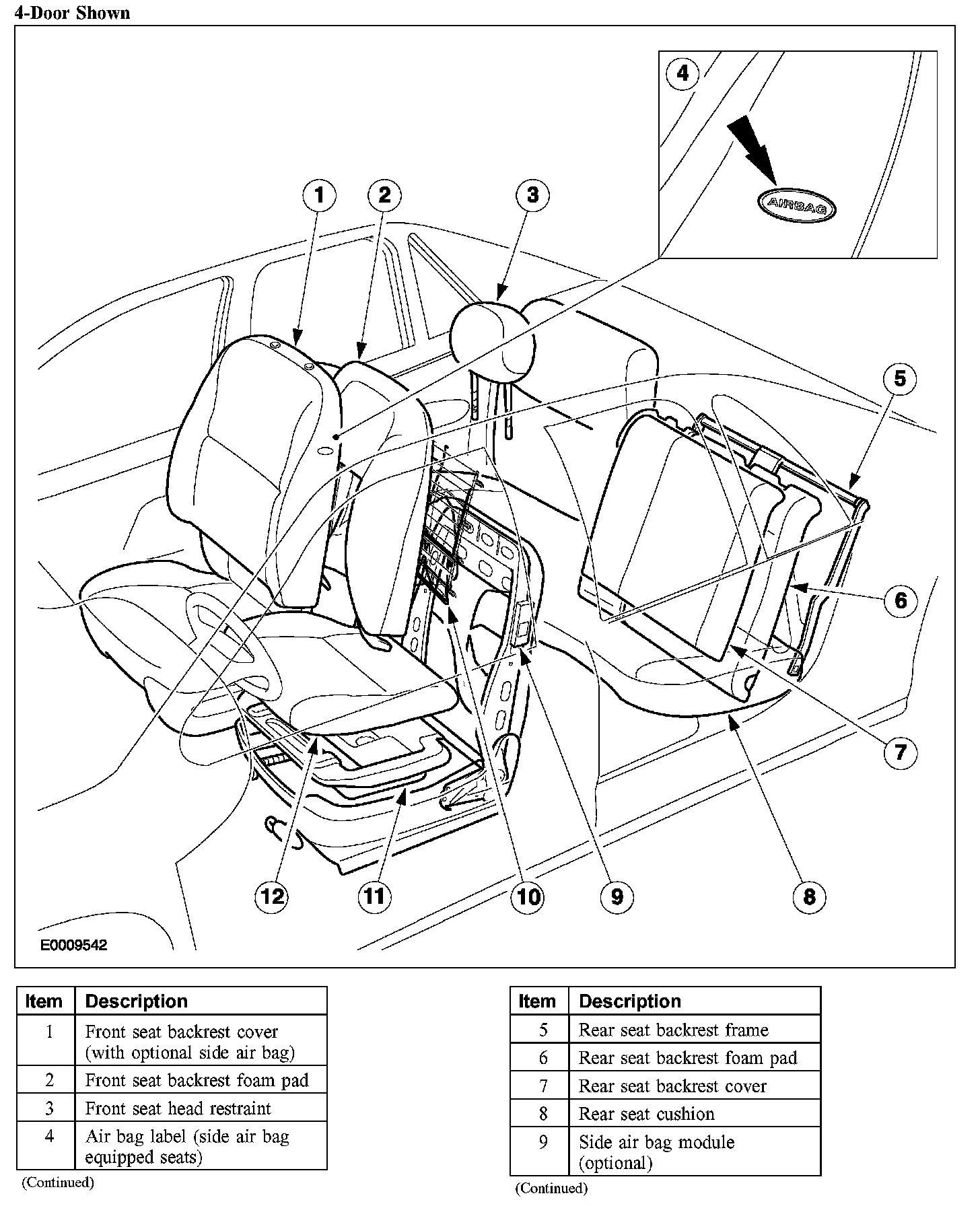

4-Door, Part 1:

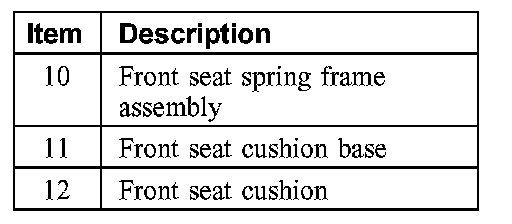

4-Door, Part 2:

The vehicle is equipped with a manual adjust 4-way driver seat. Lumbar adjustment is standard on luxury seats and available as an option in some markets. The passenger seat is a manual adjust 2-way seat.

Side air bags are optional on those vehicles with driver and passenger air bags.

The rear seats are of the split 60/40 design, with the 60 rear seat backrest incorporating the safety belt retractor on 3-door and wagon variants.

PRINCIPLES OF OPERATION

The operation of the seat is controlled by a bi-directional switch which controls the power seat height adjustment.

Seats with power height adjustment retain manual adjustment controls to attain seat adjustment. The bi-directional switch controls the operation of a single bi-directional motor which depending on switch operation will either operate the motor to raise the seat height or lower the seat height through a series of mechanical linkages.
