Radiator

Removal

All Vehicles
1. Remove the cooling fan motor and shroud.
2. Drain the cooling system.

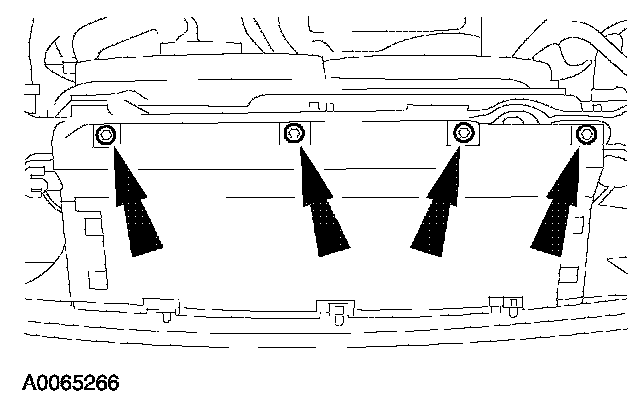

3. Remove the four pin-type retainers from the radiator air deflector.
4. Lower the vehicle.

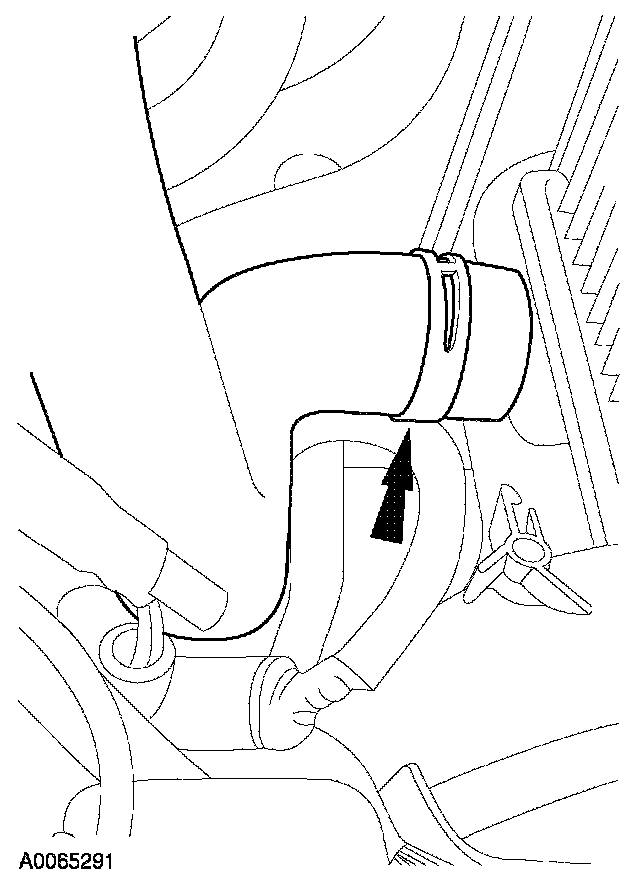

5. Disconnect the upper radiator hose.
6. Raise the vehicle.

Vehicles with air conditioning
7. Support the condenser and transaxle oil cooler (if equipped).





All Vehicles

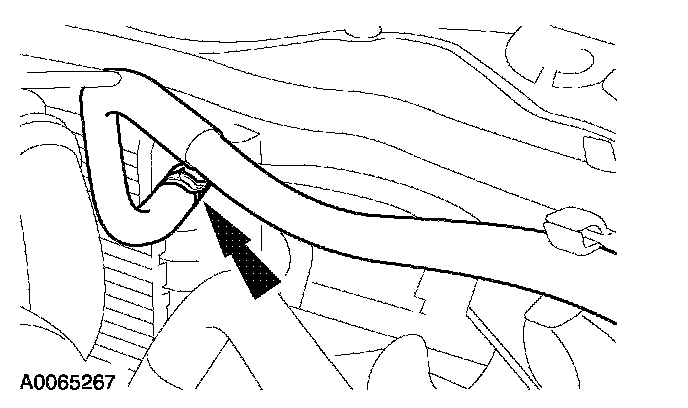

8. Disconnect the radiator upper coolant hose.

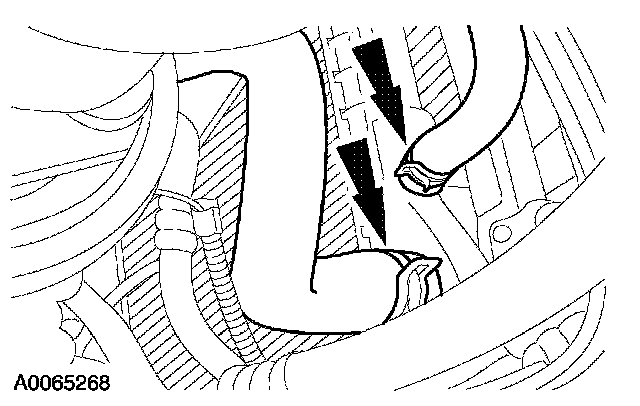

9. Disconnect the radiator lower coolant hoses.

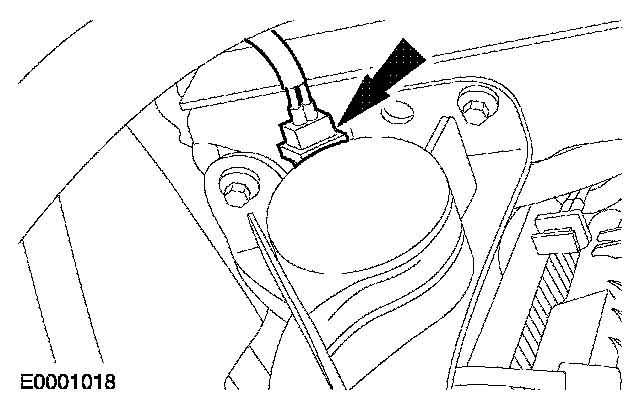

10. Disconnect the horn electrical connector.

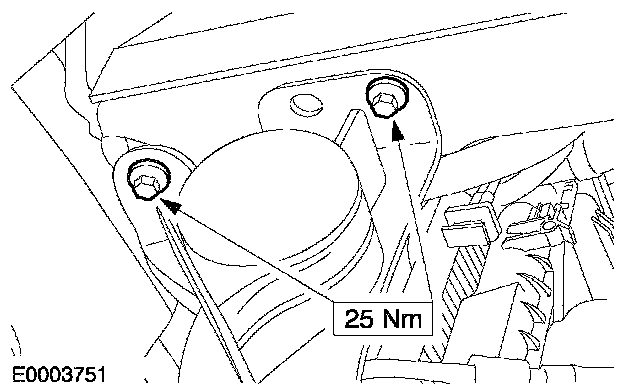

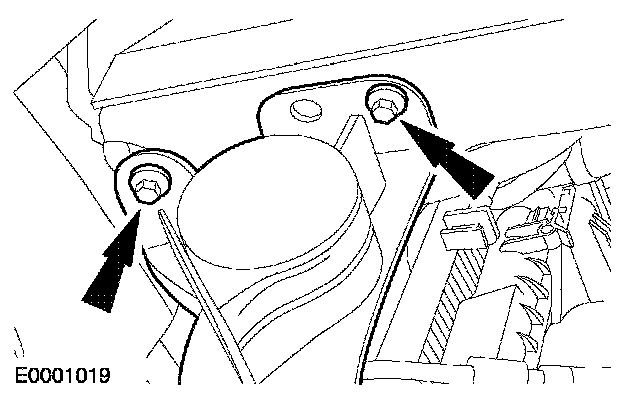

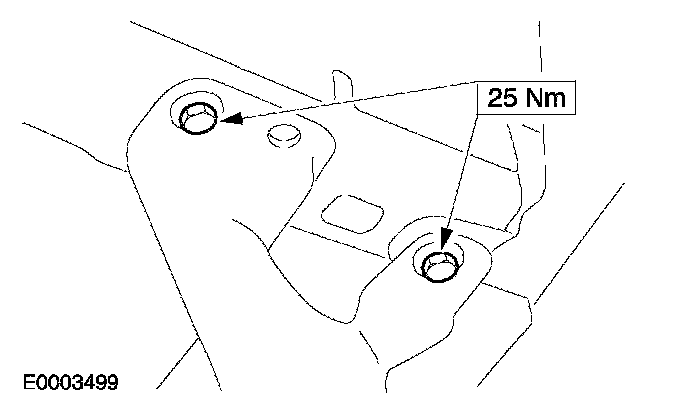

11. Remove the radiator support bracket bolts.





12. Remove the radiator support bracket.

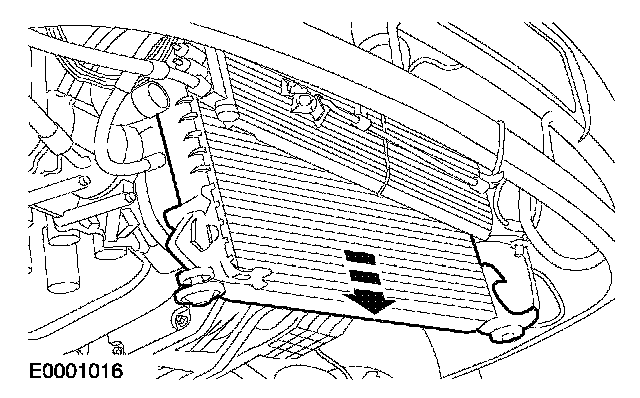

13. Remove the radiator.








Installation
1. To install, reverse the removal procedure.
2. Fill and bleed the cooling system.
