Test D

PINPOINT TEST D: THE COOLING FAN(S) IS INOPERATIVE

NOTE: Before carrying out the following test, diagnose any PCM DTCs.

Tests D1 - D2 (continues):

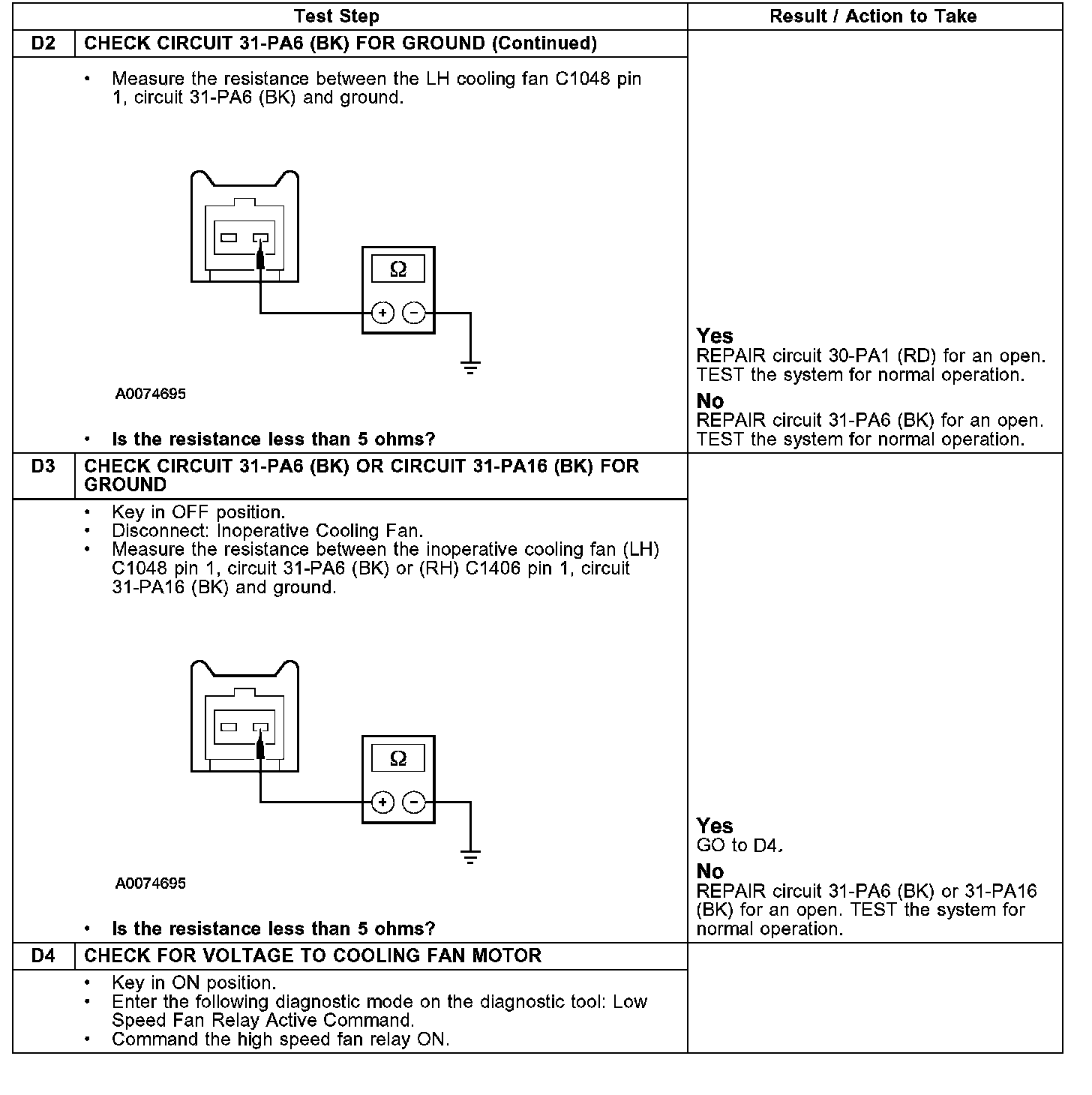

Tests D2 - D4 (continues):




Test D4:
