Test F
PINPOINT TEST F: THE COOLING FANS OPERATE IN ONE SPEED ONLY NOTE: Before carrying out the following test, diagnose any PCM DTCs.

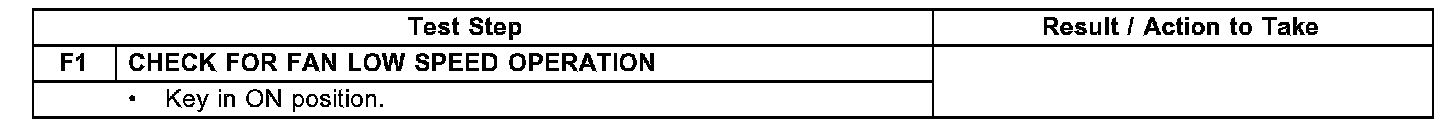

Test F1 (Continues):

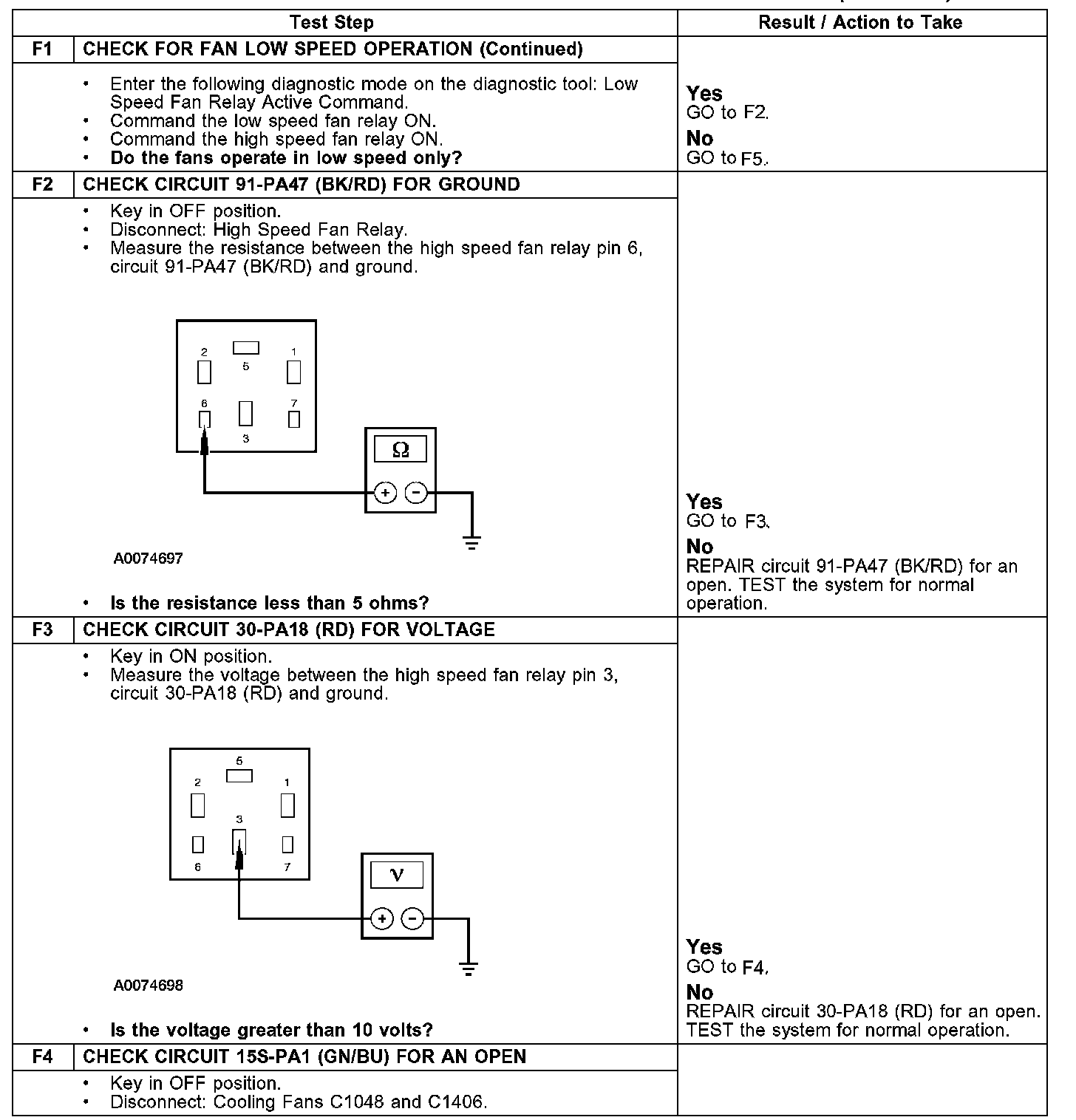

Tests F1 - F4 (continues):

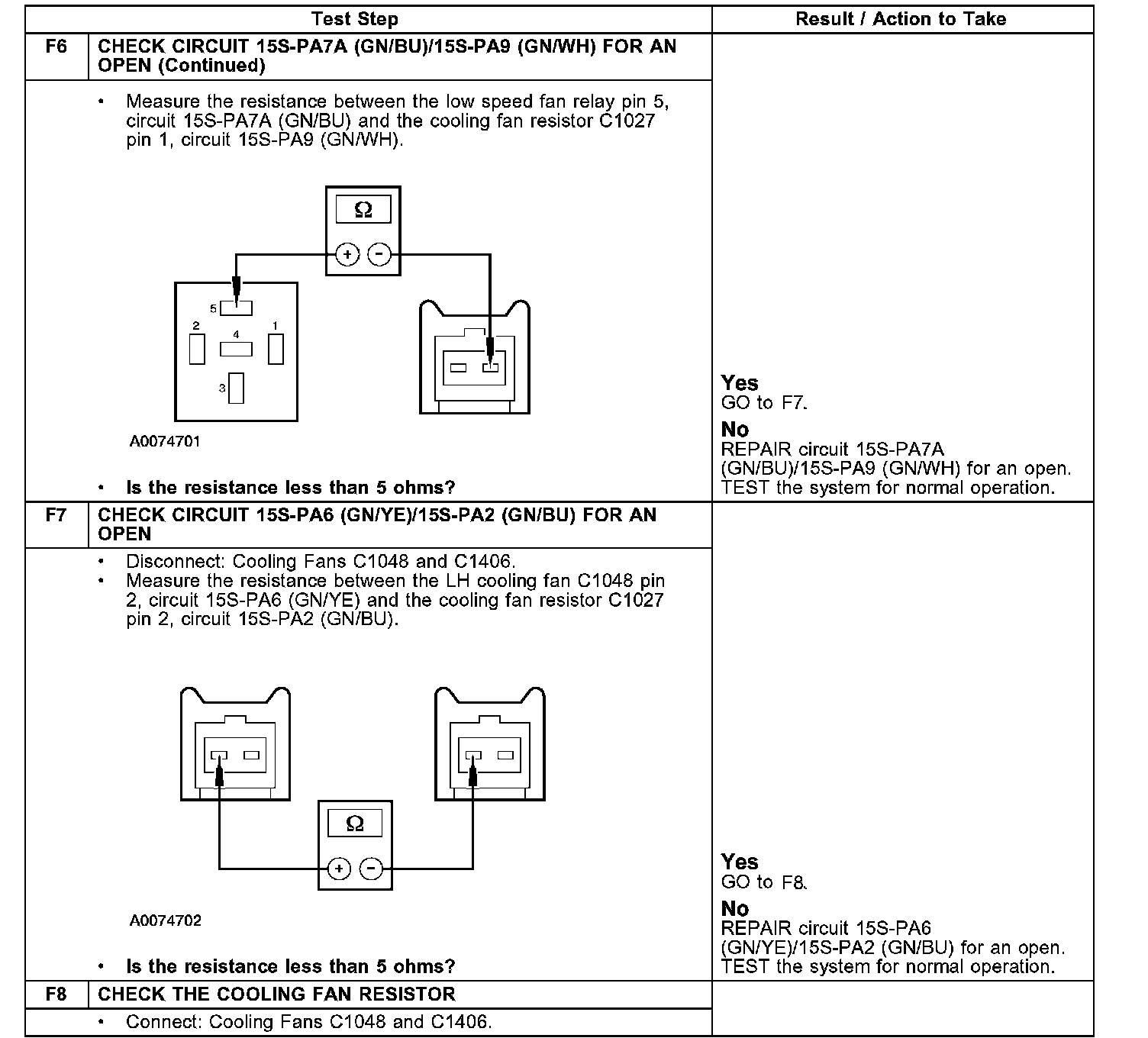

Tests F4 - F6 (continues):
Tests F6 - F8 (continues):

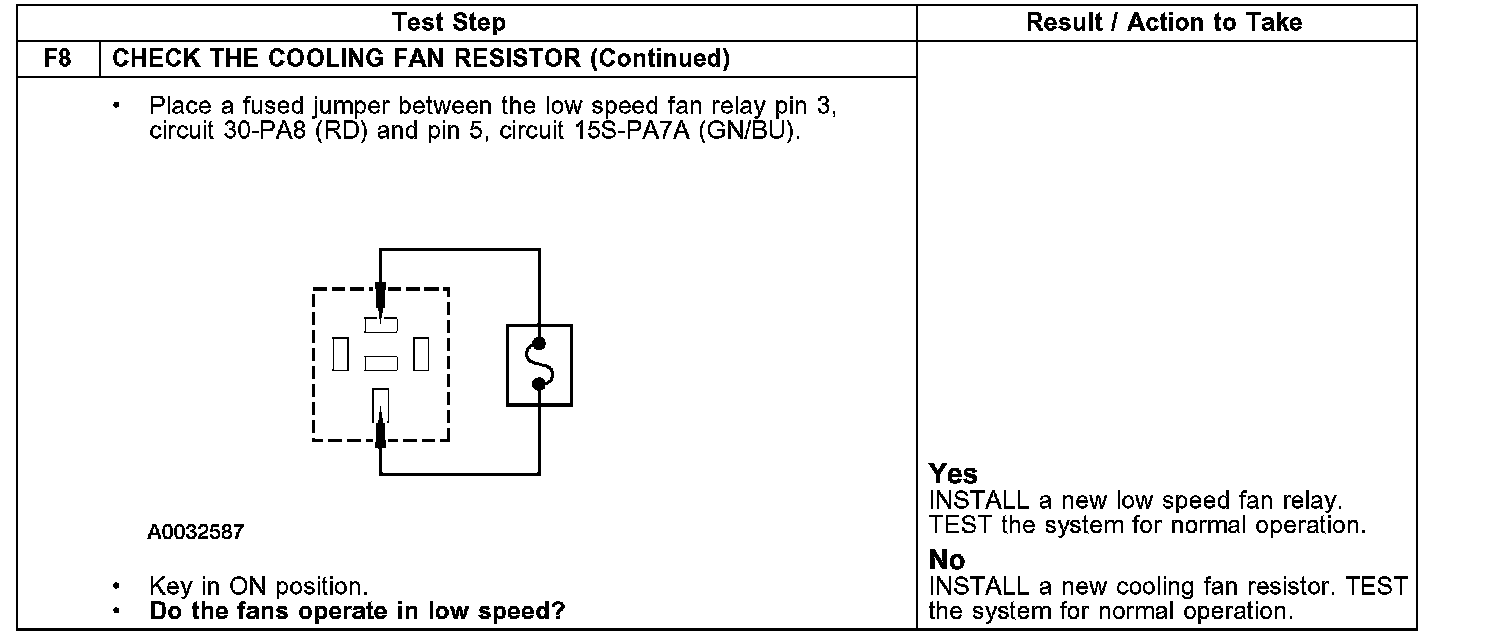

Test F8:
