Cabin Air Filter / Purifier: Service and Repair

POLLEN FILTER

REMOVAL

NOTE:
- The pollen filter is positioned on the passenger side below the cowl grille.
- Position the wipers in vertical position.

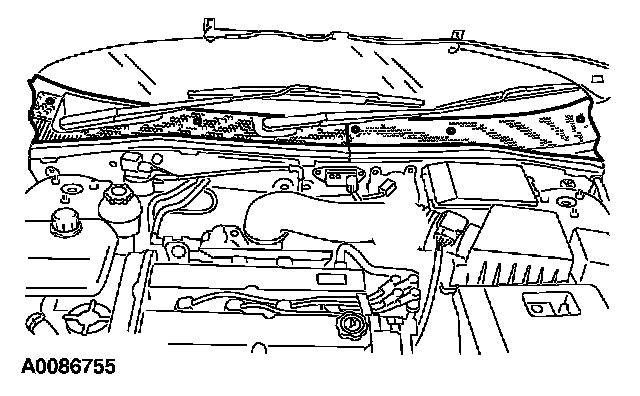

1. Remove the passenger side half of the air cowl grille.
- Pull the air cowl grille out of the retaining groove.

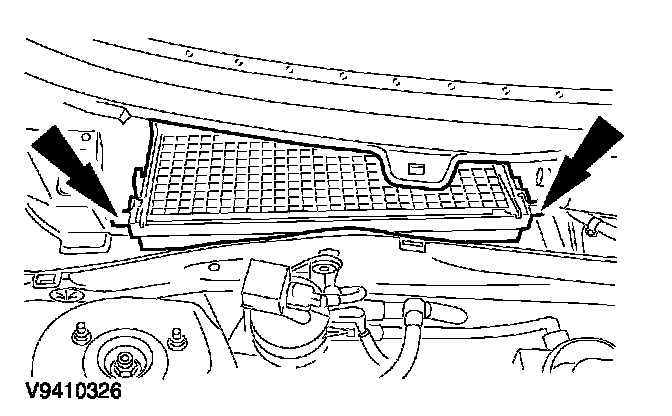

2. Detach the pollen filter retaining flap.







3. Remove the pollen filter.

INSTALLATION

NOTE: Note the direction of flow of the pollen filter.

1. NOTE: A grille with rubber edging is inserted between the wiper motor and the filter housing. This must be cleaned of dirt every time the filter is changed.

To install, reverse the removal procedure.
