Fill Procedure
Fill ProcedureMaterial 1.
Raise and support the vehicle.
2.

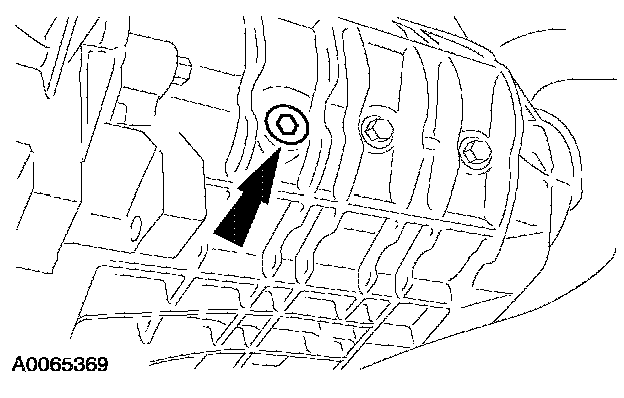

Remove the fill plug.
3.

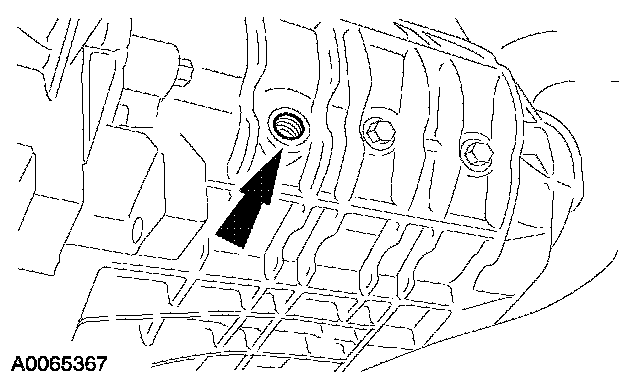

Fill the transaxle to 0-5mm below the lower edge of the filler plug bore.
-

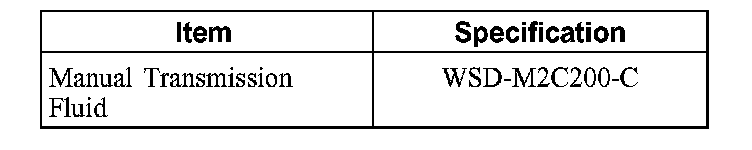

Fill with manual transmission fluid.
4.

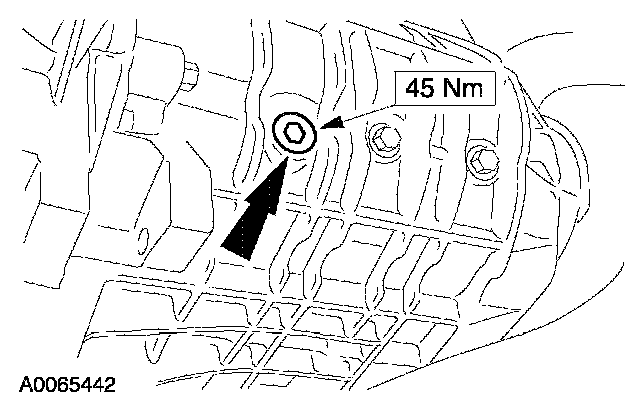

Install the fill plug.
5.
Lower the vehicle.
