Console: Service and Repair

FLOOR CONSOLE

REMOVAL

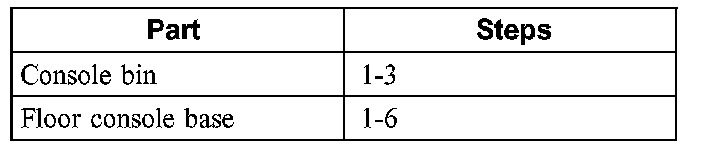

1. Remove the parts in the order indicated in the illustration and table.

To remove individual parts, only carry out the listed steps.

Item 4: Console Gasket/Mat Removal Note
1. The gasket mat is held in place by the sides of the console bin pressing against the console bracket. It can only be removed after the console bin has been removed.

INSTALLATION
1. To install, reverse the removal procedure.
