Exterior Mirror
EXTERIOR MIRRORREMOVAL
1. Remove the door trim panel.

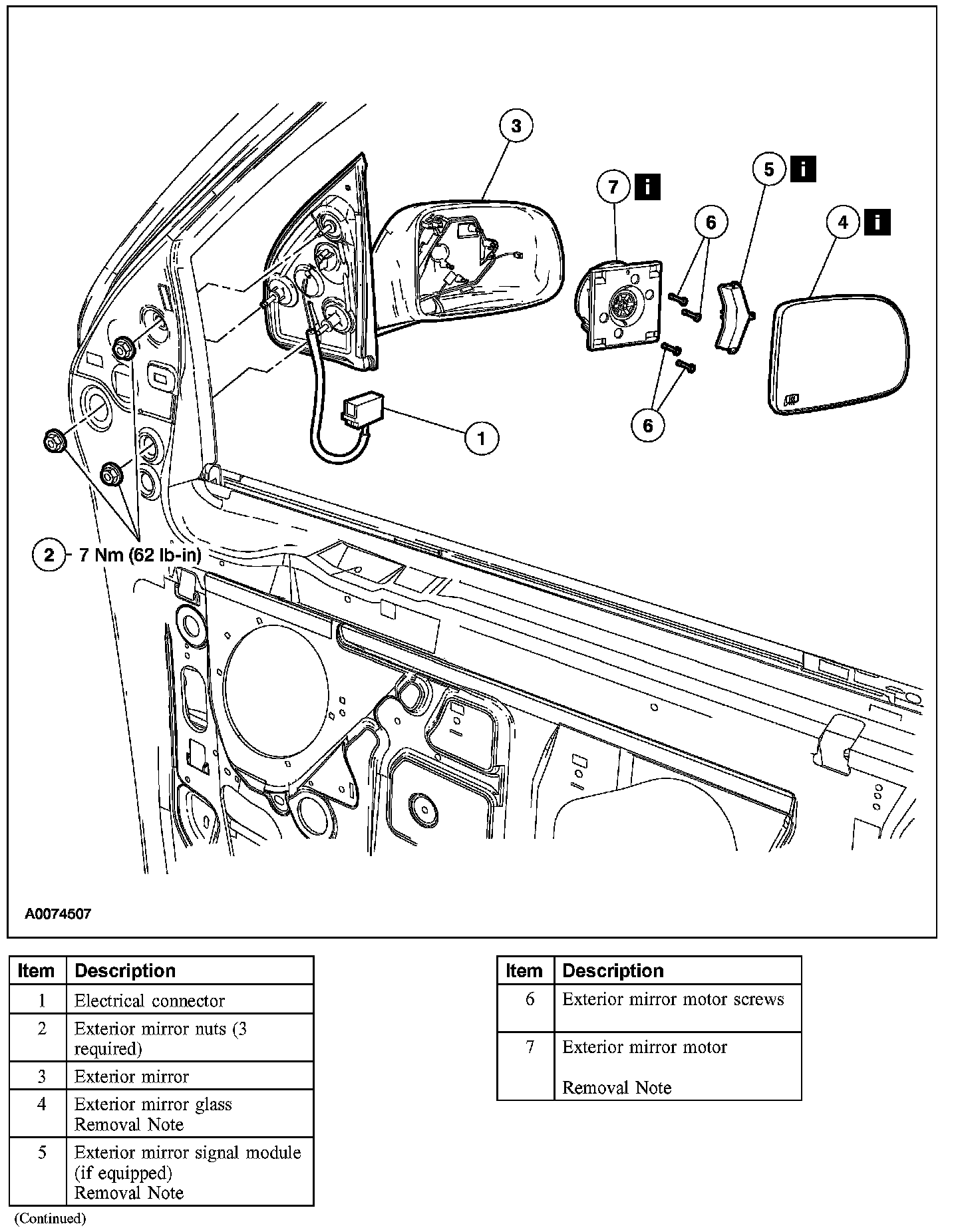

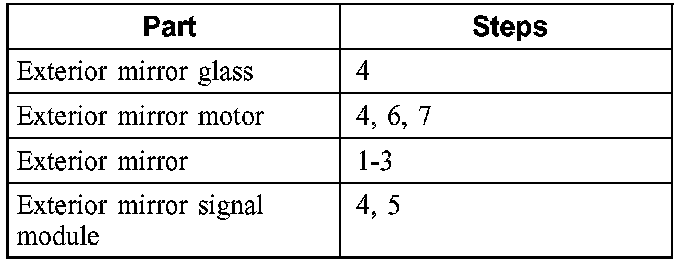

2. Remove the parts in the order indicated in the illustration and table.
To remove individual parts, only carry out the listed steps.
Item 4: Exterior mirror Glass Removal Note
1. Position the exterior mirror glass to the full down position.
2. Release the exterior mirror glass from the upper portion of the exterior mirror motor and then lift upwards to remove the glass.
3. If equipped, disconnect the exterior mirror glass electrical connectors.
Item 5: Mirror Signal Module Removal Note
1. Disconnect the exterior mirror glass.

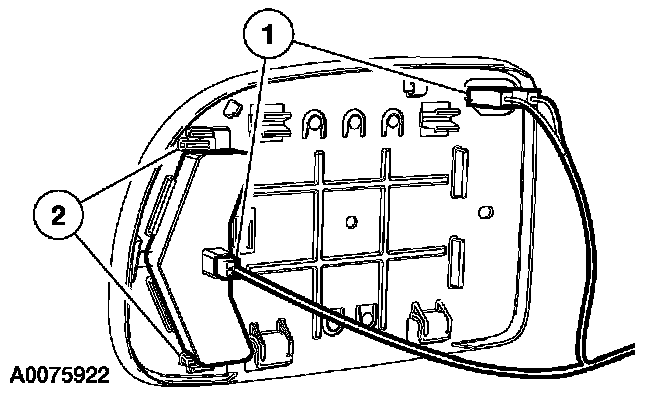

1 Disconnect the heated mirror electrical connectors and the mirror signal module electrical connector.
2 Unclip the mirror signal module.
Item 7: Exterior Mirror Motor Removal Note
1. Disconnect the electrical connector.
INSTALLATION
1. To install, reverse the removal procedure.
