Steering Angle Sensor: Service and Repair
Steering Wheel Rotation Sensor NOTE: When installing a new steering wheel rotation sensor, the ABS module must be configured (using vehicle as-built data) and calibrated. Follow the diagnostic tool directions for the configuration procedures.
1.

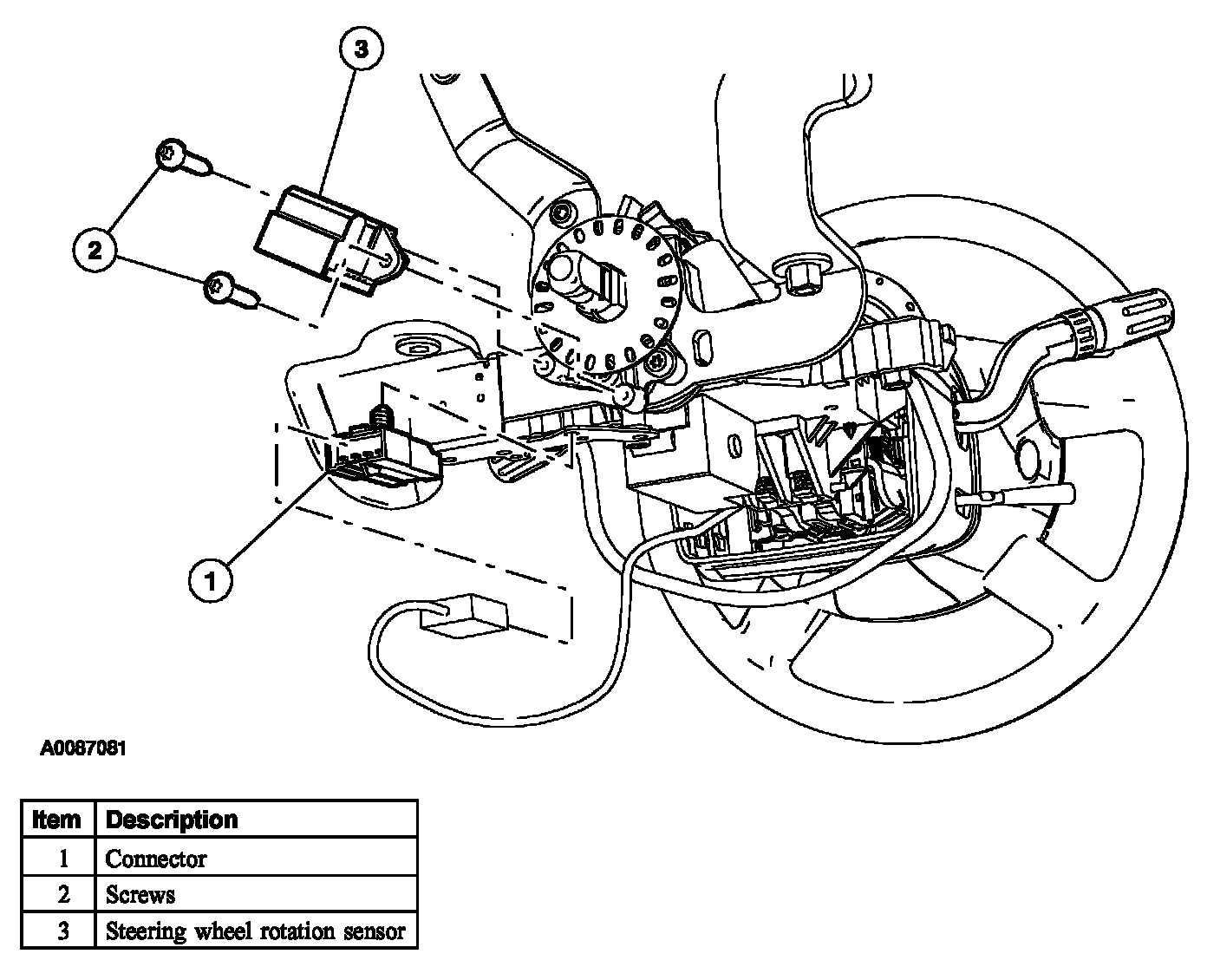

Remove the parts in the order indicated in the following illustration and table.
