EVAPORATIVE EMISSION CANISTER AND PURGE VALVEREMOVAL
WARNING:
- The evaporative emission system contains fuel vapor and condensed fuel vapor. Although not present in large quantities, it still presents the danger of explosion or fire. Disconnect the battery ground cable from the battery to minimize the possibility of an electrical spark occurring, which can cause a fire or explosion if fuel vapor or liquefied fuel are present in the area. Failure to follow these instructions can result in personal injury.
- Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.
1. If removing the canister purge valve, remove the cowl panel.
2. If removing the evaporative emission canister, with the vehicle in NEUTRAL, position it on a hoist.
3. Disconnect the battery ground cable.

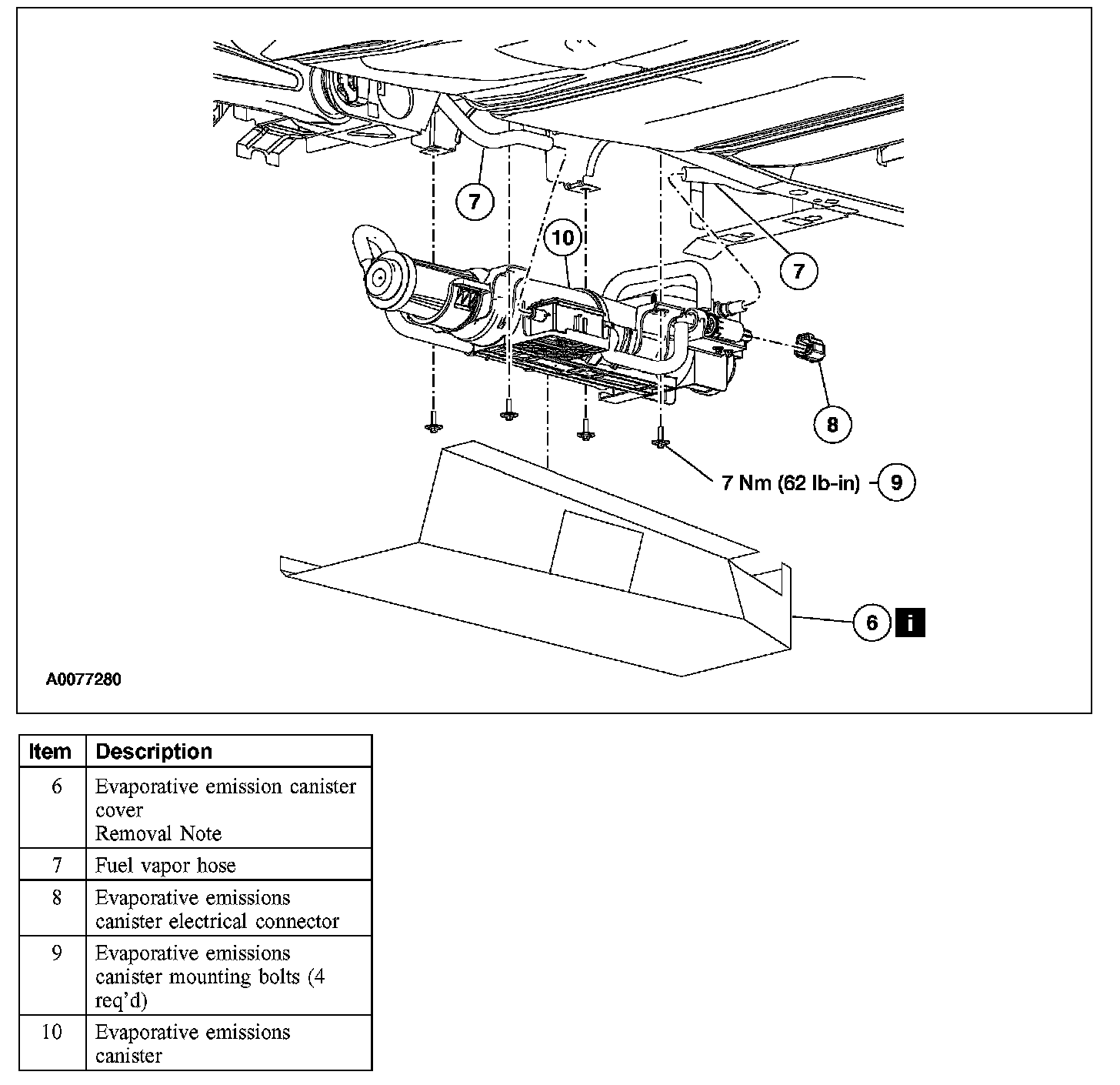

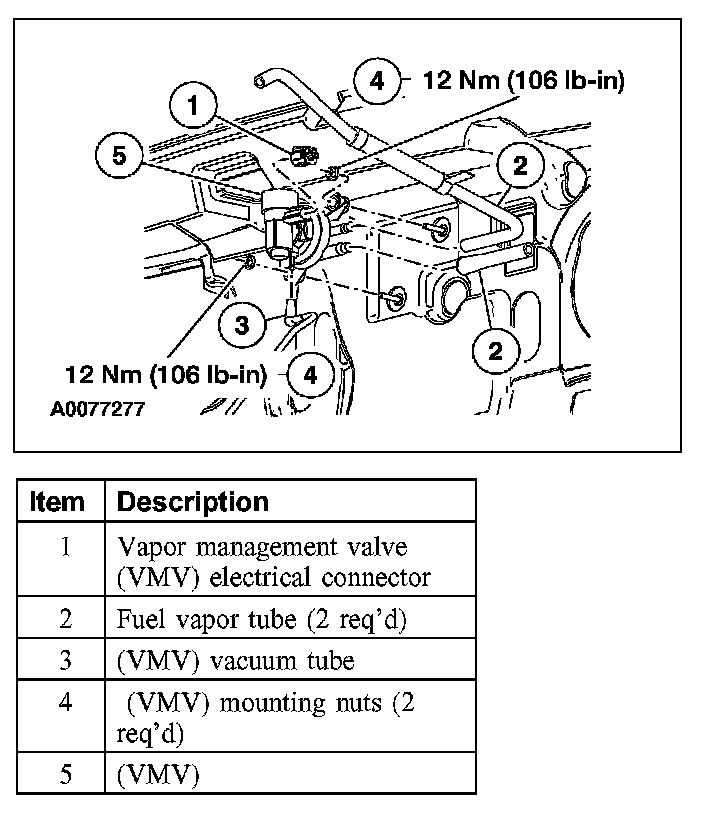

4. Remove the parts in the order indicated in the illustrations and tables.
To remove individual parts, only carry out the listed steps.
Item 6: Evaporative Emission Canister Cover Removal Note
1. Remove the pin-type retainers and evaporative emission canister cover.
INSTALLATION
1. To install, reverse the removal procedure.
2. Carry out a leak test. Evaporative Emission System Leak Test
3. Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
