Test Z

PINPOINT TEST Z: DTC C1947 - DRIVER SEAT TRACK POSITION SENSOR CIRCUIT SHORT TO GROUND

Lamp Fault Codes (LFCs)







The lamp fault code (LFC) indicates the specific fault associated with diagnostic trouble code (DTC) C1947.

Test Z1:

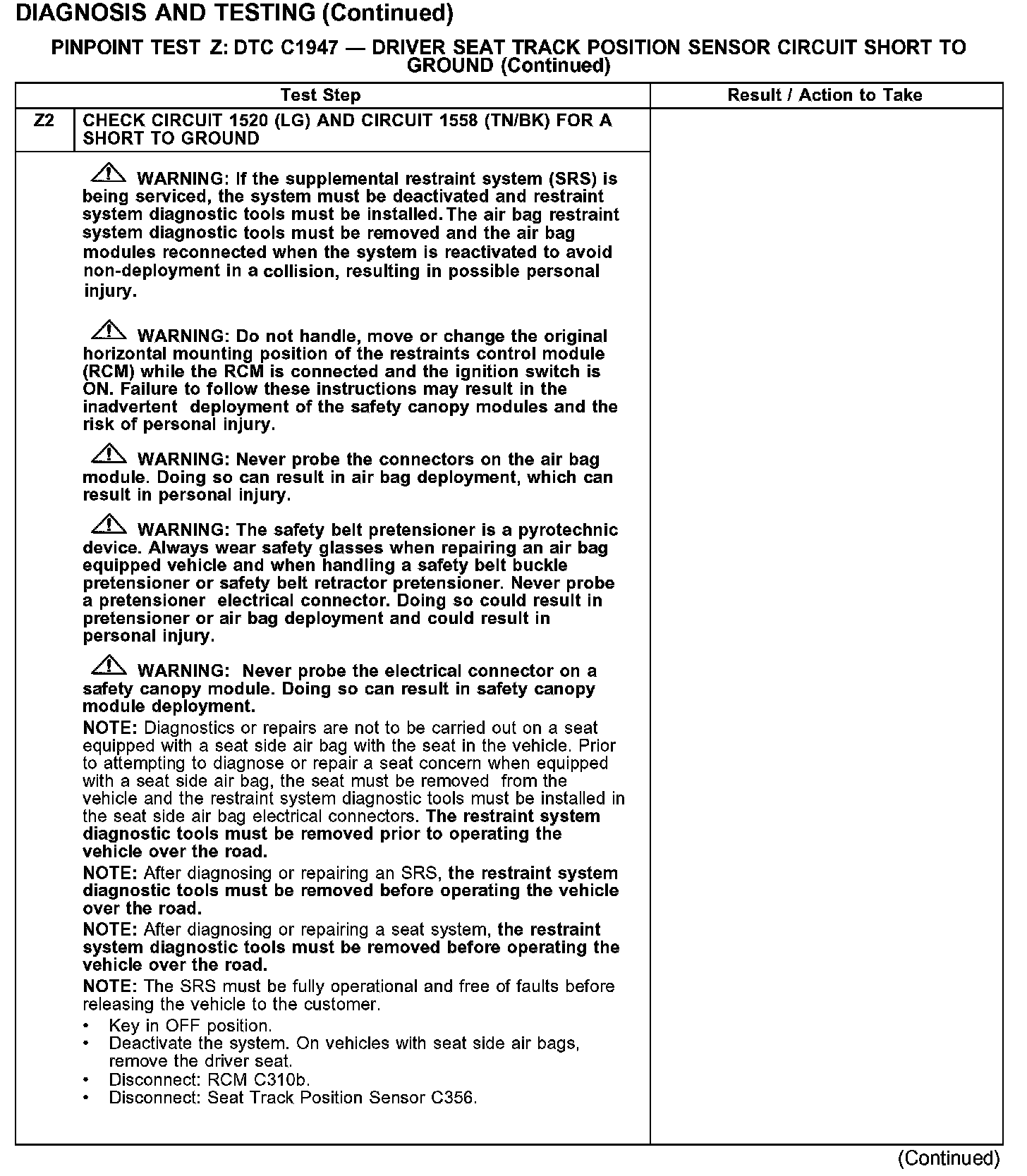

Test Z2:

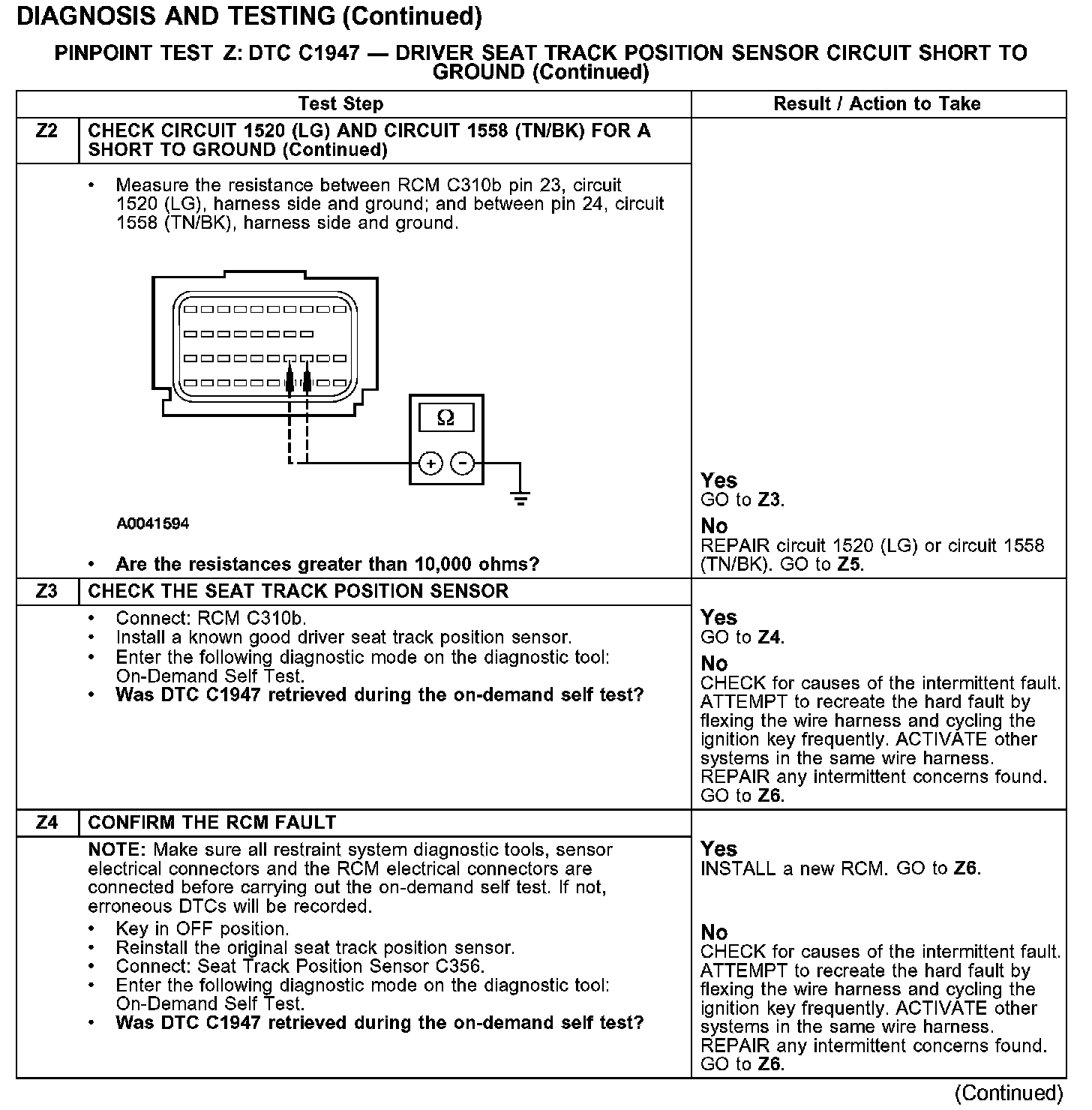

Test Z2-Z4:

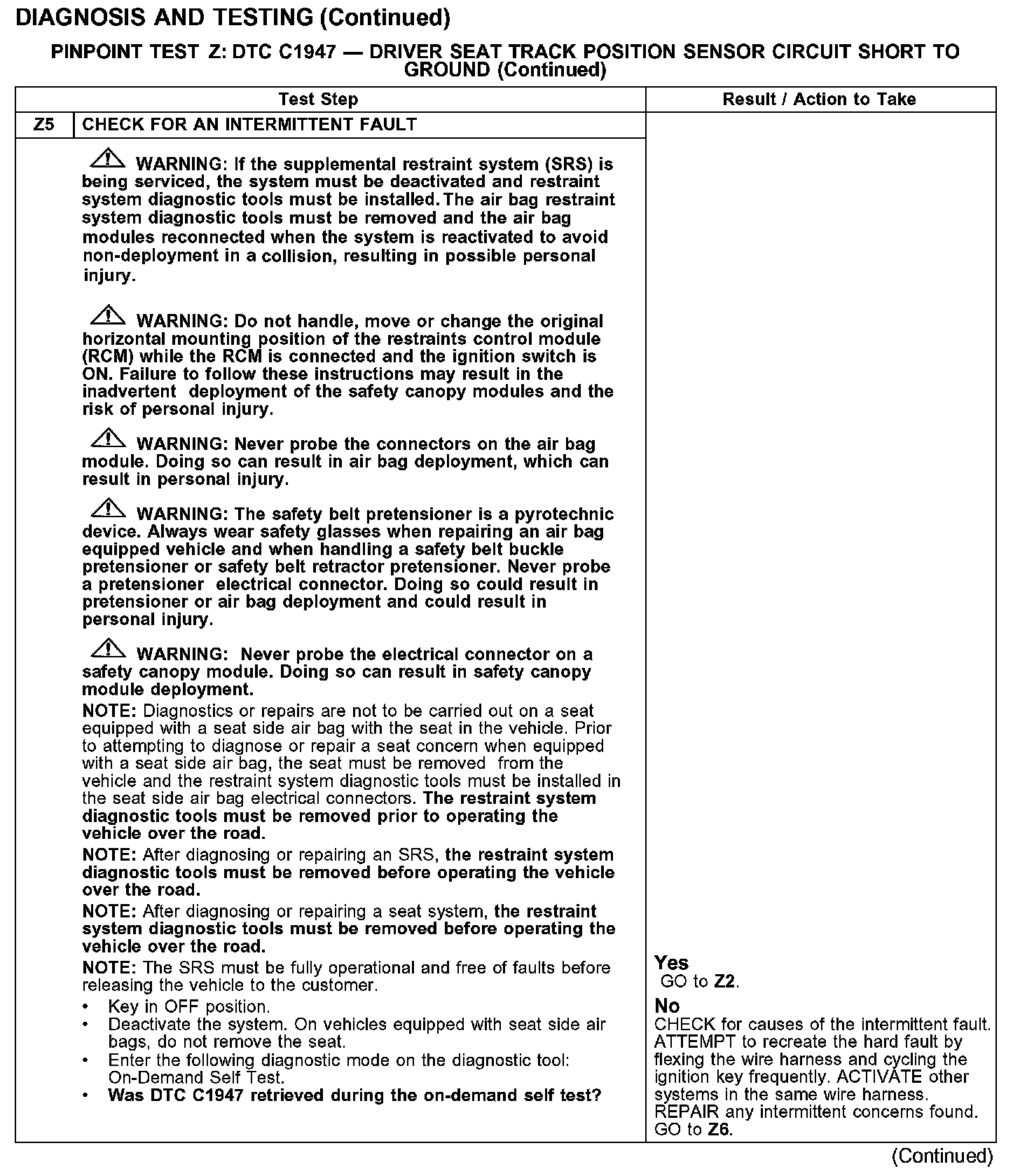

Test Z5:

Test Z6:

Normal Operation
The seat track position sensor informs the RCM of the drivers seat position.

The restraints control module (RCM) monitors the driver seat track position sensor circuits. If the RCM detects a short to ground, it will store diagnostic trouble code (DTC) C1947 in memory and, depending on the fault, flash a lamp fault code on the air bag indicator.

Possible Causes
A driver seat track position sensor short to ground fault can be caused by:
- faulted wiring, terminals, or connectors.
- a faulty driver seat track position sensor.
- a faulted RCM.
