Rear Window Wiper

REAR WINDOW WIPER

REMOVAL
1. Remove the liftgate trim panel.

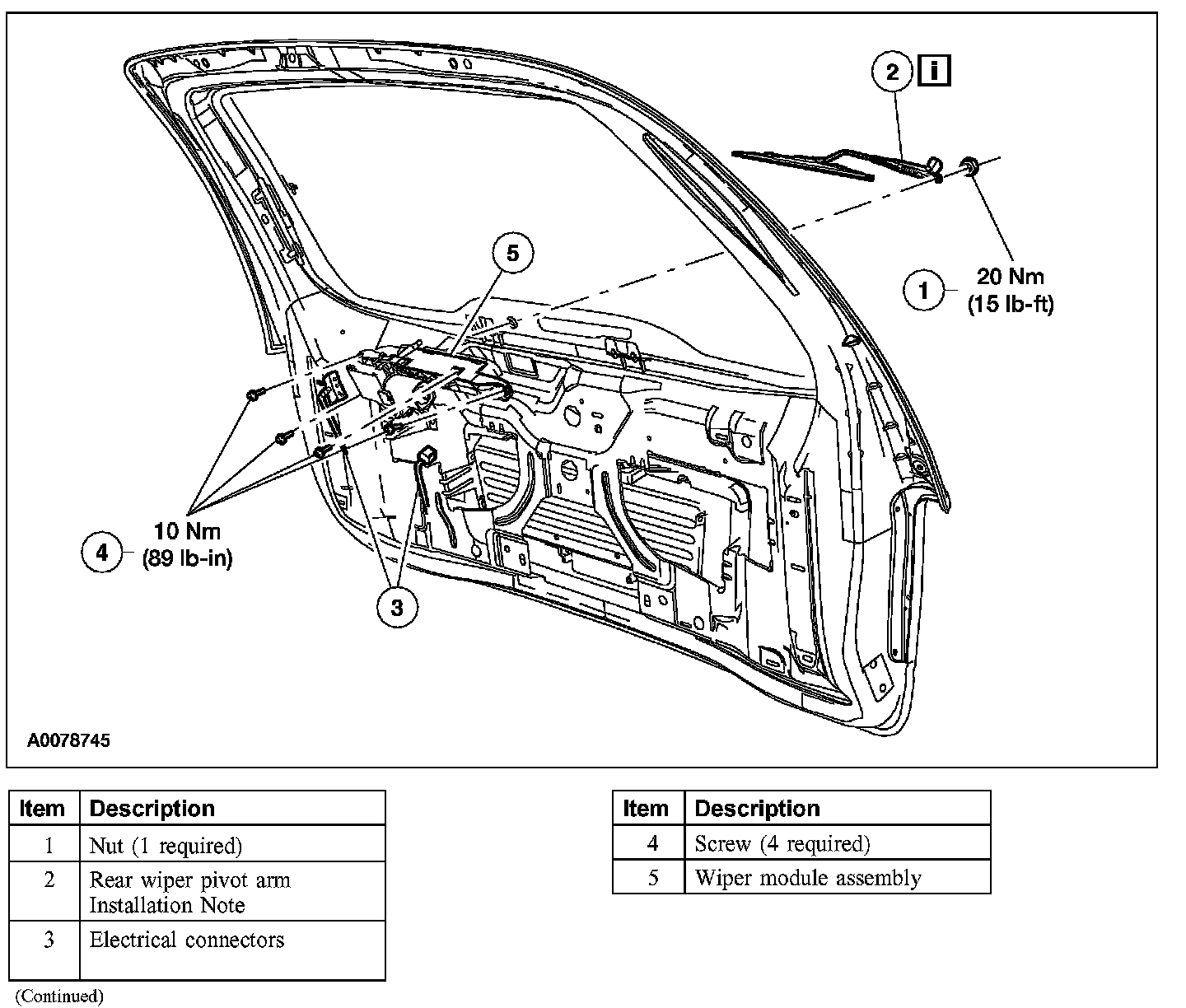

2. Remove the parts in the order indicated in the illustration and table.

To remove individual parts, only carry out the listed steps.

INSTALLATION
1. To install, reverse the removal procedure.

Item 2: Rear Wiper Arm Installation Note

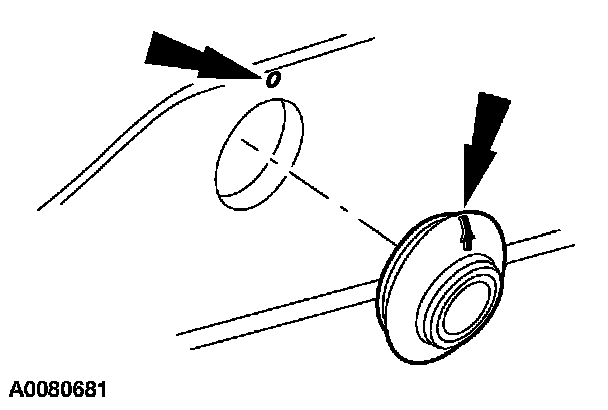

1. NOTE: Install the wiper seal on the inside the glass, alining the indicator on the glass seal with the white dot on the window glass.

Install the wiper arm seal.

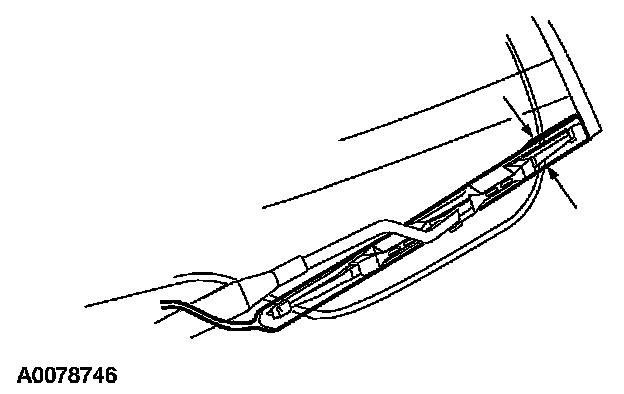

2. Cycle and park the rear windshield wiper.
- The wiper blade must rest between the defogger lines.
