Transmission Support Crossmember
Removal and Installation 1.
Raise and support the vehicle.
2.
Support the transmission with a suitable transmission jack.
3.

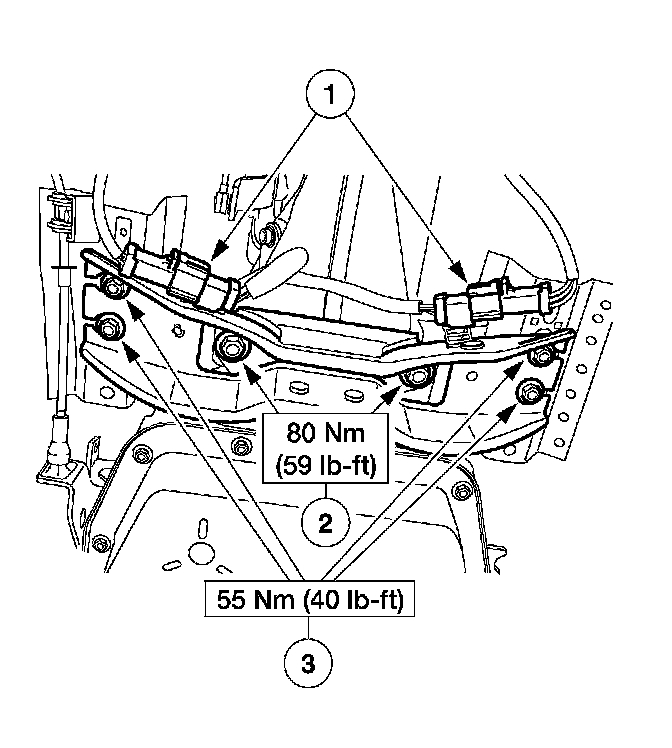

Remove the crossmember.
1
Disconnect the HO2S sensors and position them aside.
2
Remove the bolts from the crossmember to the extension housing.
3
Remove the bolts from the crossmember to the body and remove the crossmember.
4.
To install, reverse the removal procedure.
