Sensor Ring, Front

Sensor Indicator - Rear

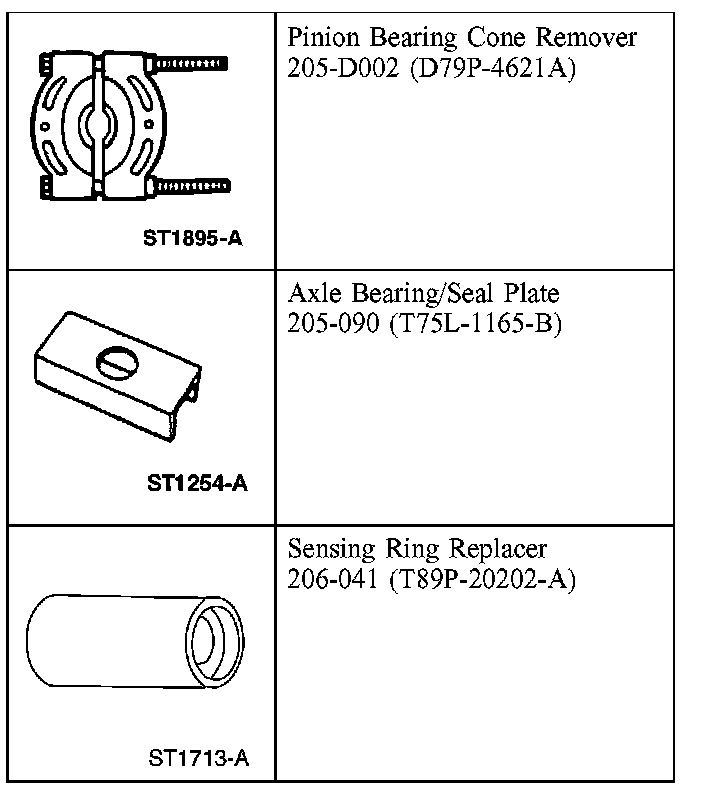

Special Tool(s)

Removal
1. Remove the rear axle shaft bearing.

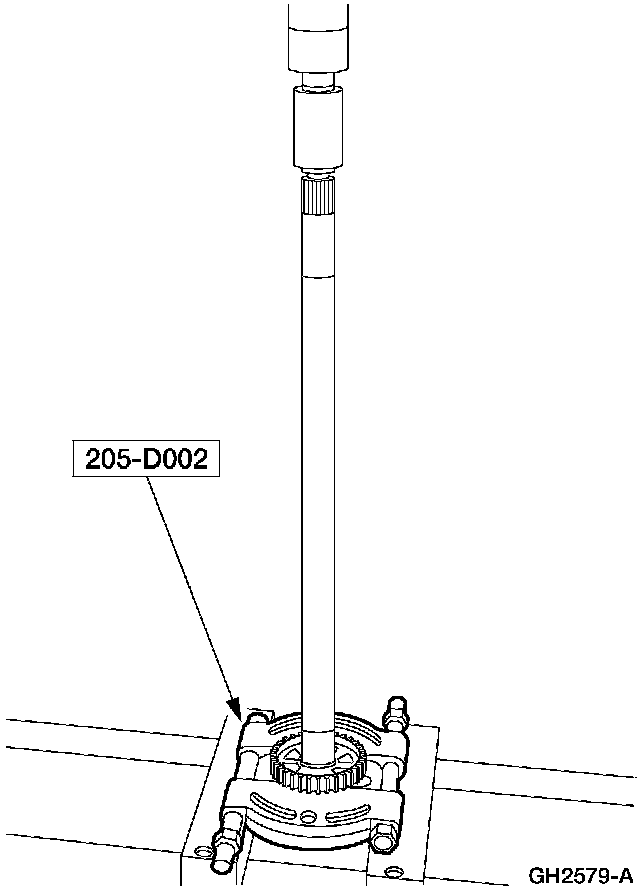

2. Using the special tool, remove the anti-lock brake sensor indicator from the axle shaft.

Installation

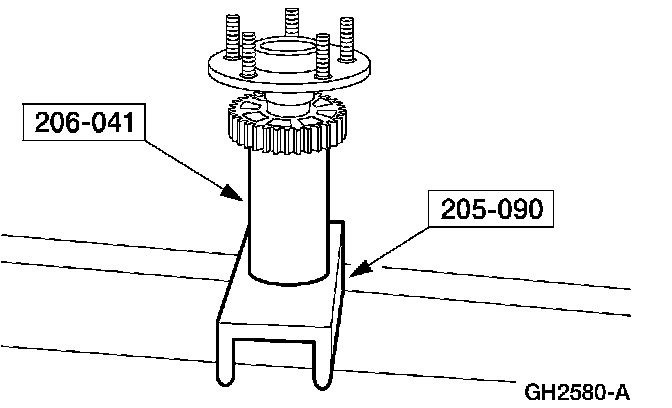

1. Using the special tools, align the rear anti-lock brake sensor indicator to the rear axle shaft.

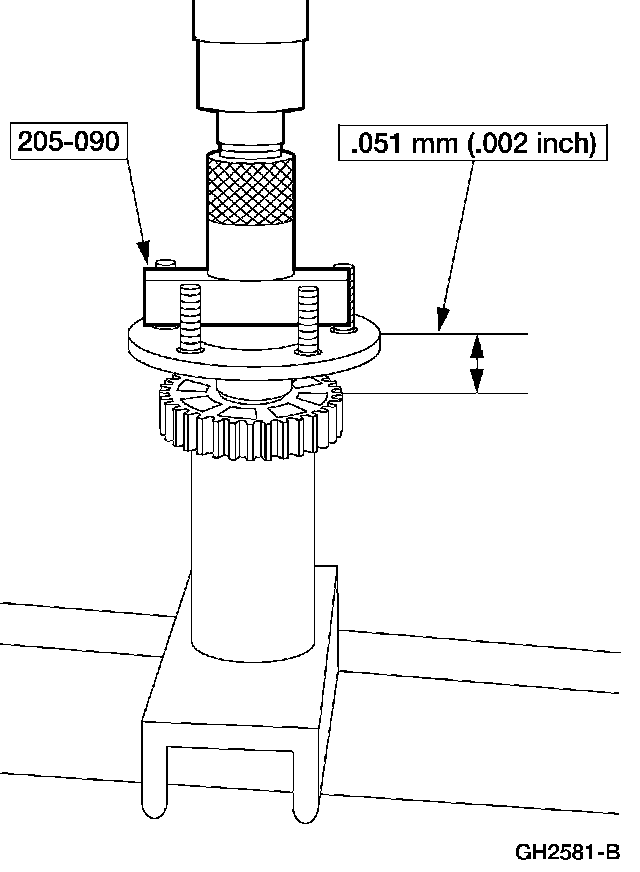

2. Using the special tools, press the rear anti-lock brake sensor on the rear axle shaft to specification.
3. Install the rear axle shaft bearing.
