Connector Location Index
PLEASE NOTE: If a link on the Connector Location Index to a View is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.
C100-C124:

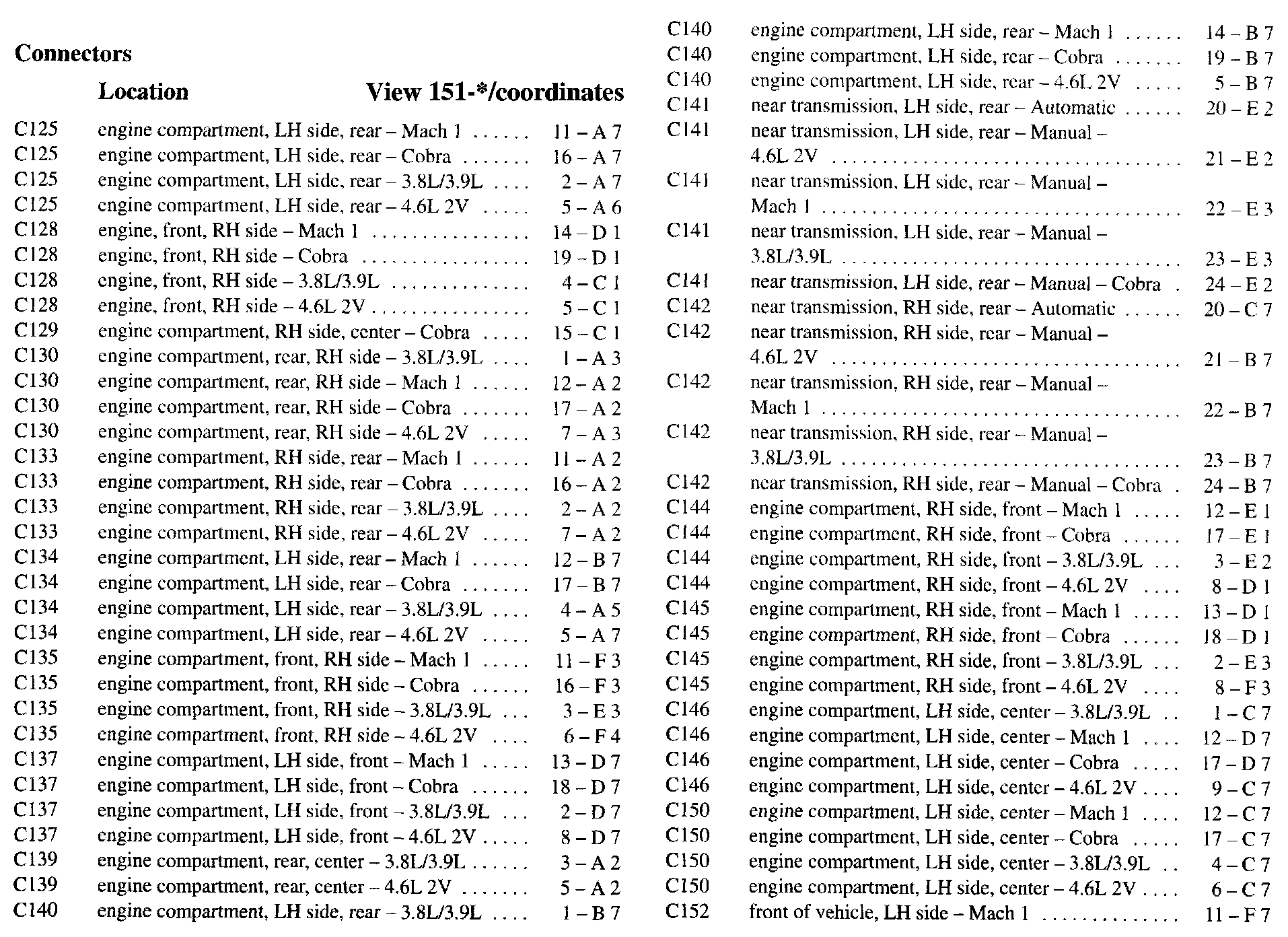

C125-C152:
C152-C202b:

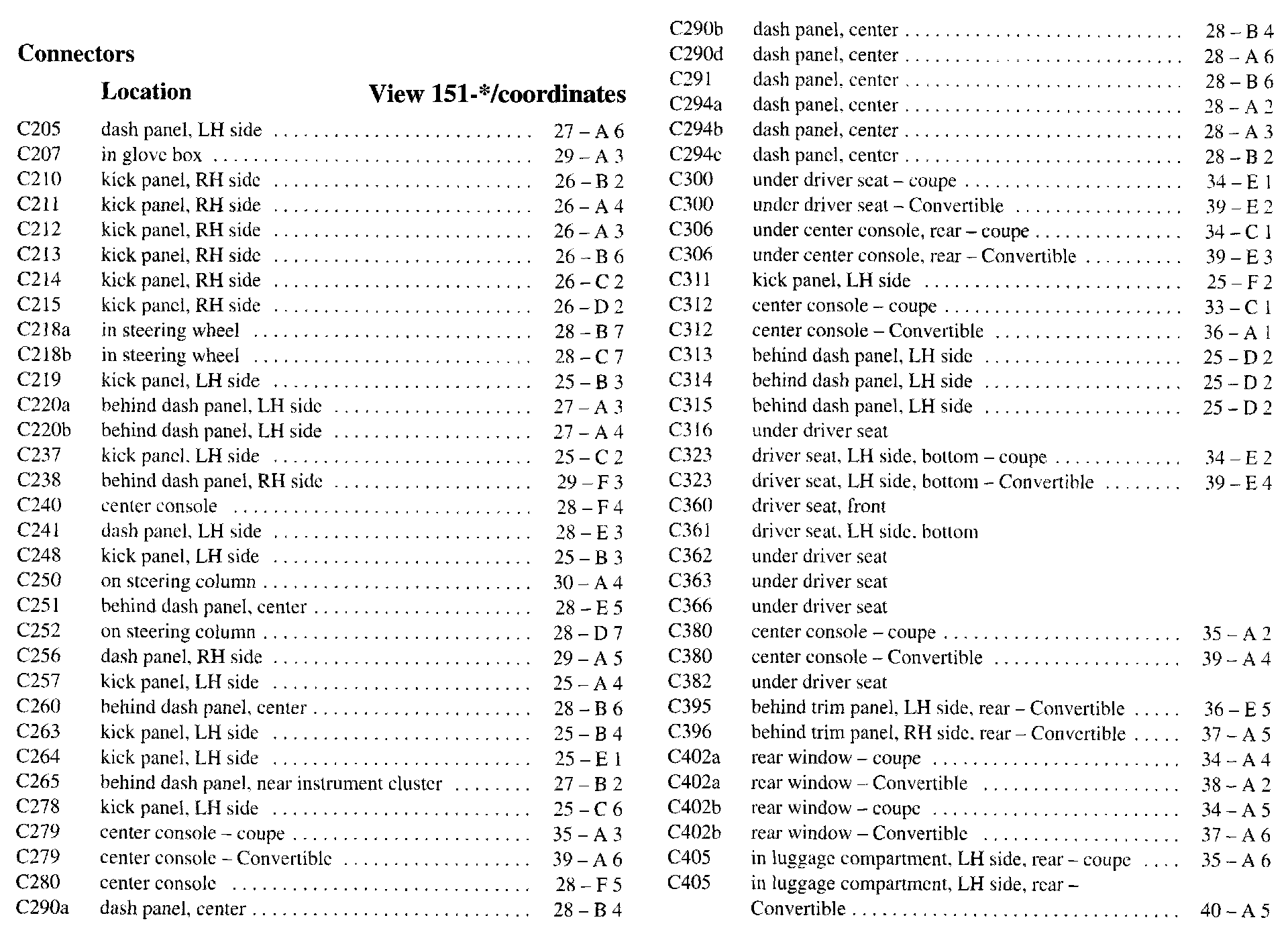

C205-C405:

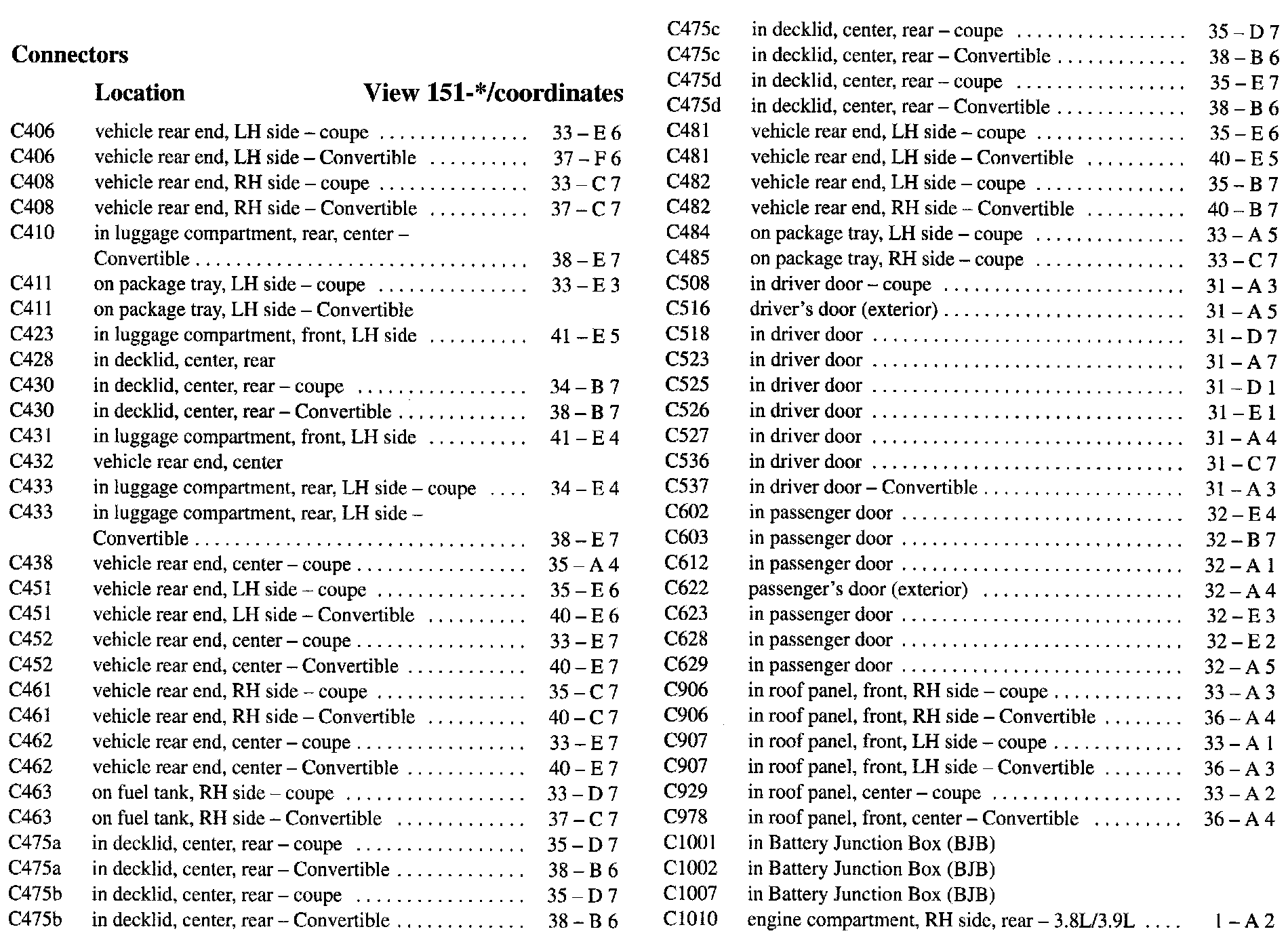

C406-C1010:

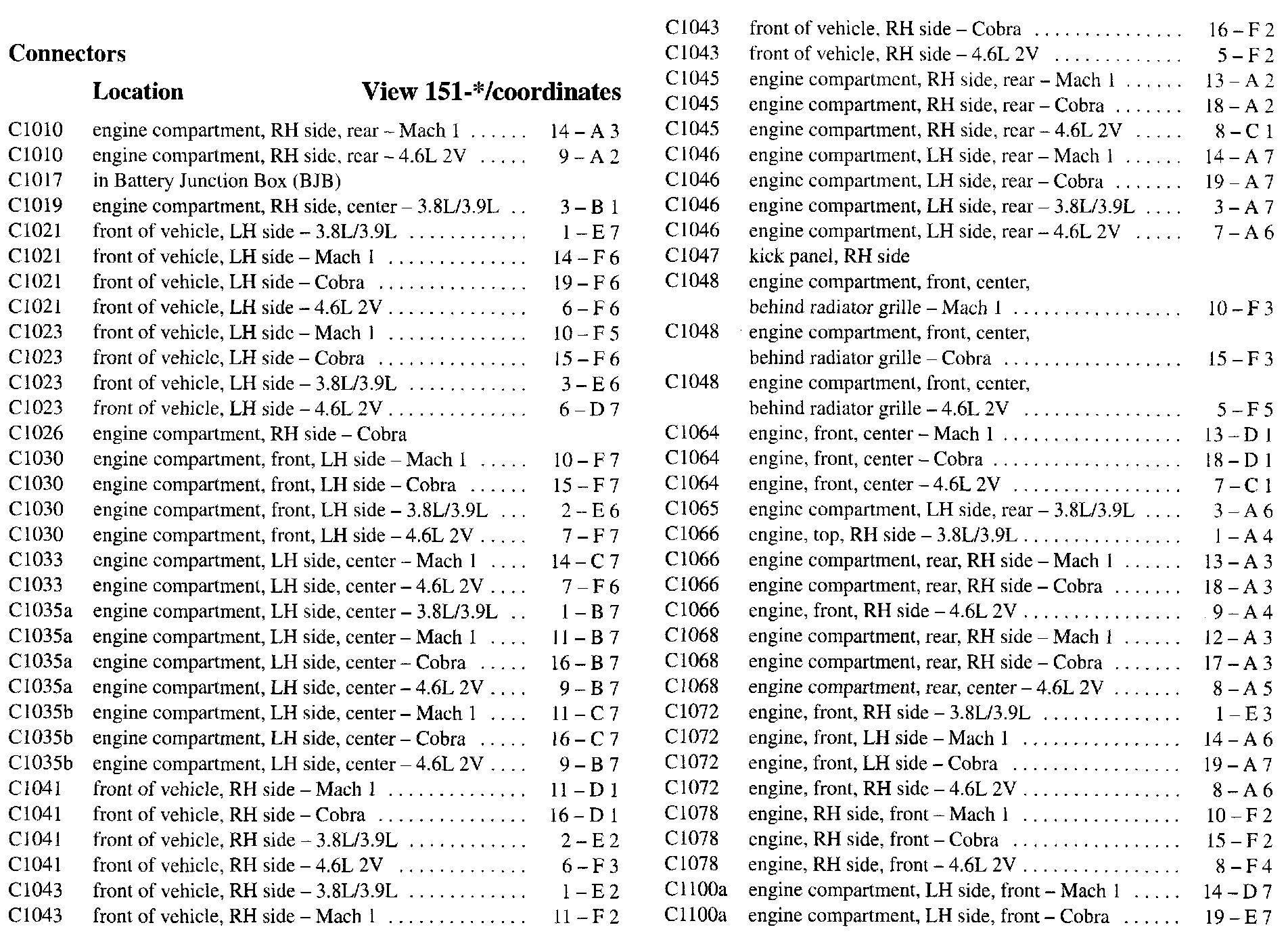

C1010-C1100a:

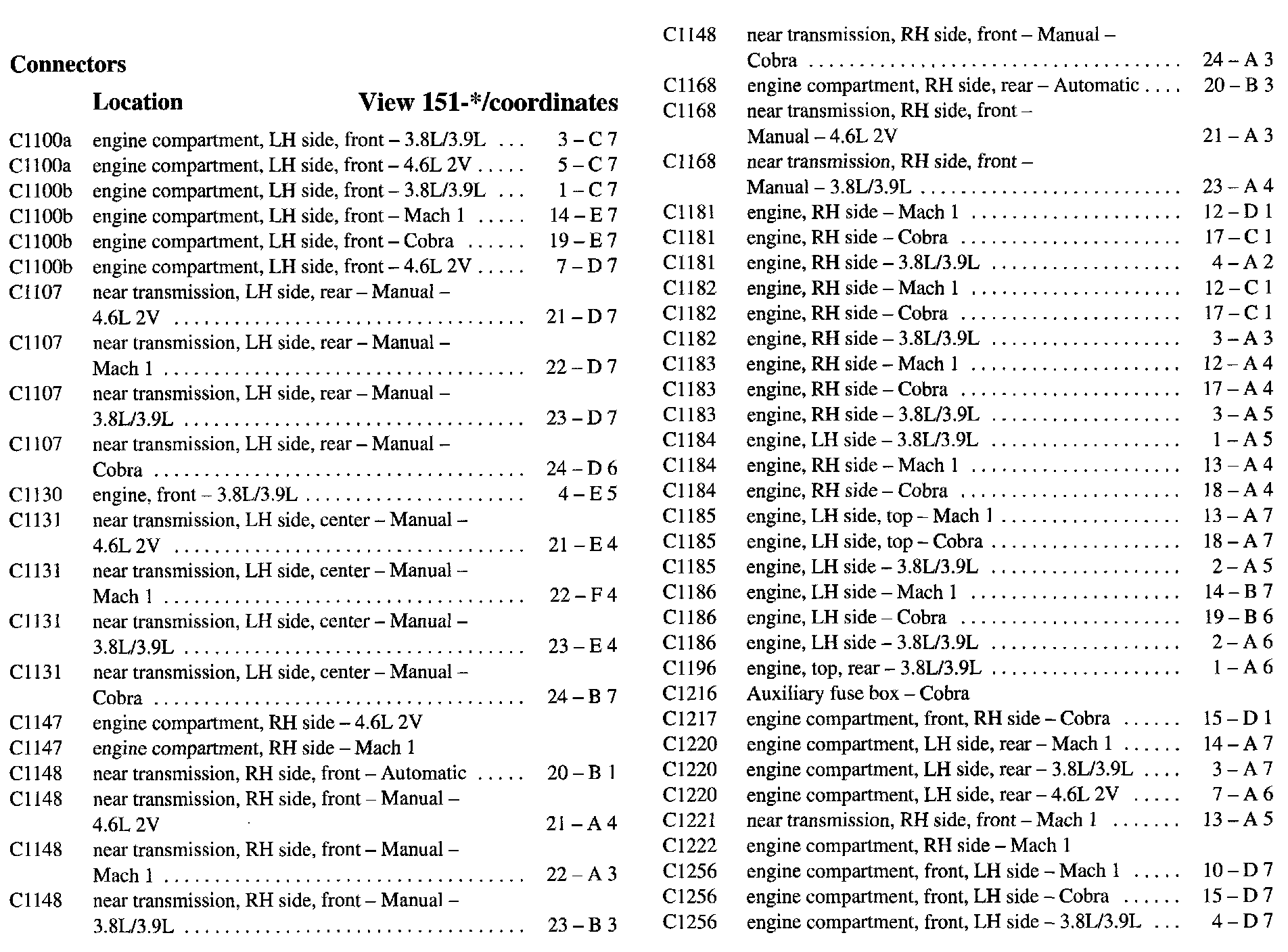

C1100a-C1256:

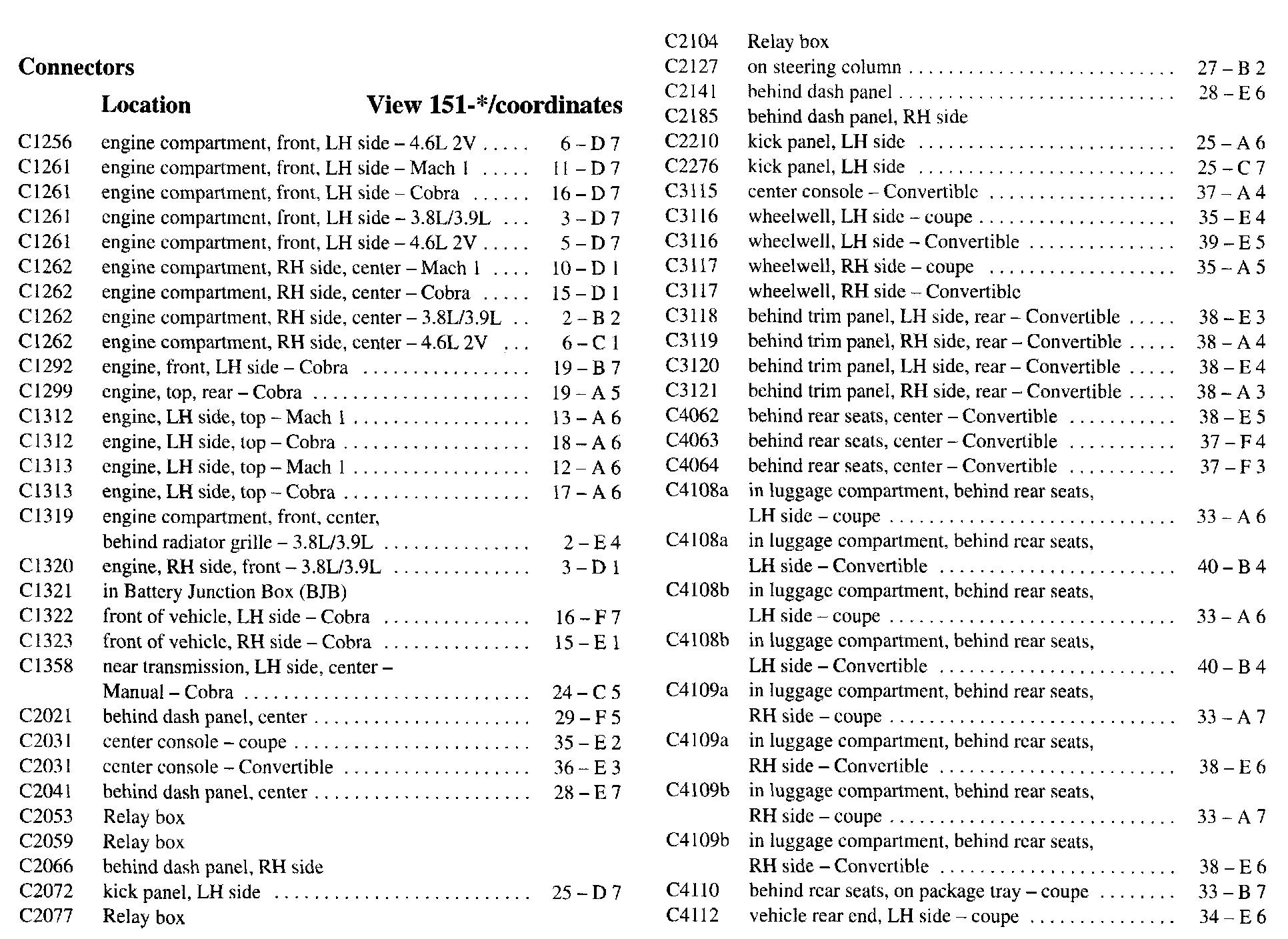

C1256-C4112:

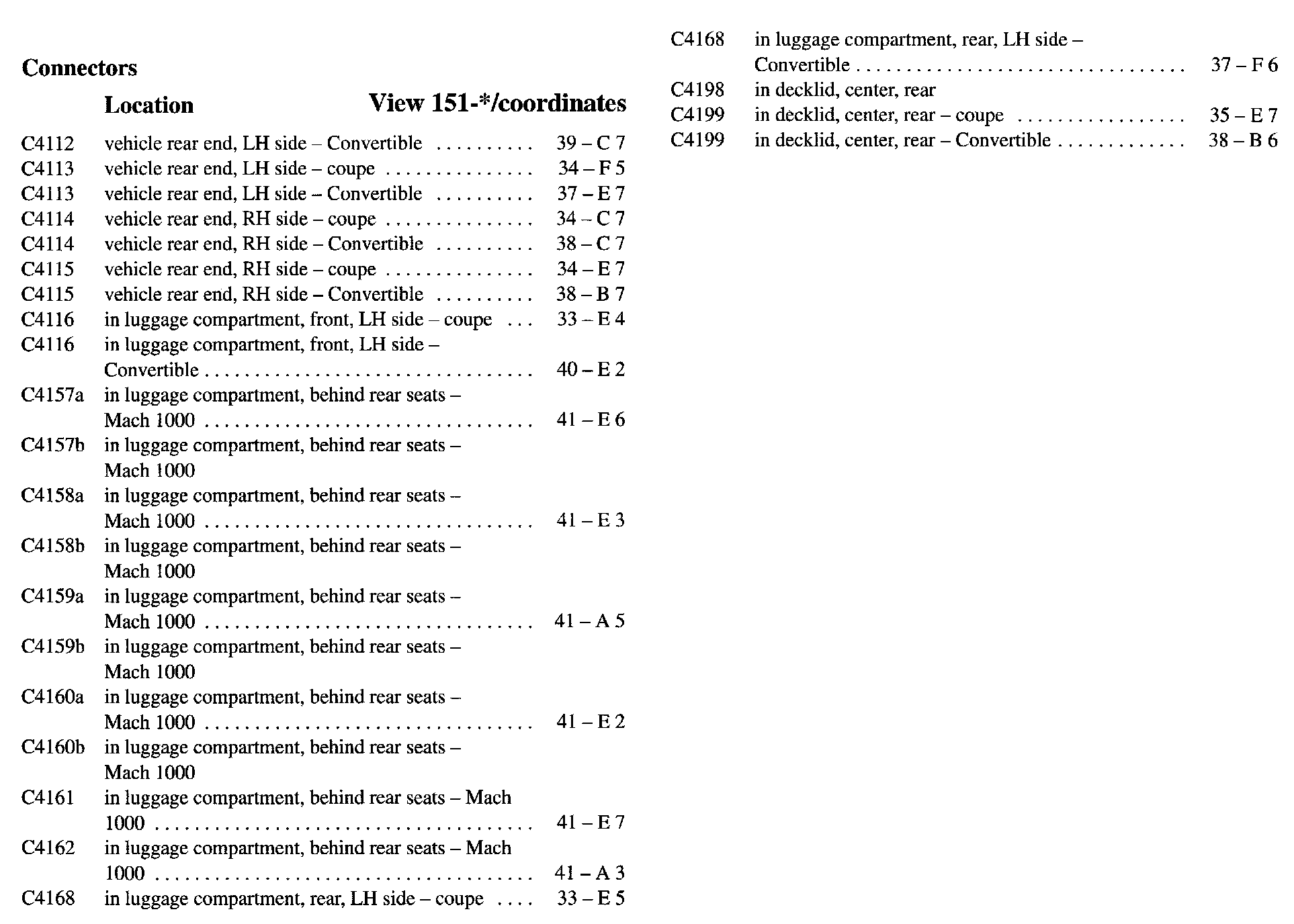

C4112-C4199:
