EGR Tube: Service and Repair

EXHAUST MANIFOLD TO EXHAUST GAS RECIRCULATION (EGR) VALVE TUBE

REMOVAL

NOTE: 3.8L shown, 4.6L (2V) similar.

1. With the vehicle in NEUTRAL, position it on a hoist.







2. Disconnect the exhaust gas recirculation (EGR) valve tube from the exhaust manifold.

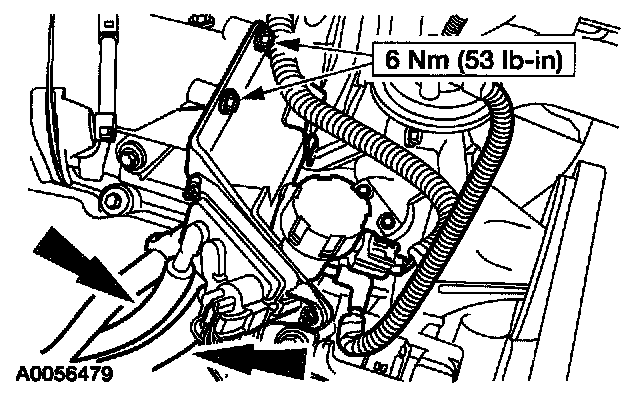

3. Remove the differential feedback exhaust gas recirculation (EGR) system vacuum hoses and the bracket bolts. Position the bracket assembly aside.







4. Disconnect the EGR tube from the EGR valve.
5. Remove the exhaust manifold-to-EGR valve tube.

INSTALLATION
1. To install, reverse the removal procedure.
