Front Door Window Motor: Service and Repair
MOTOR - WINDOW REGULATORREMOVAL 1.
Remove the door
trim panel.
2.

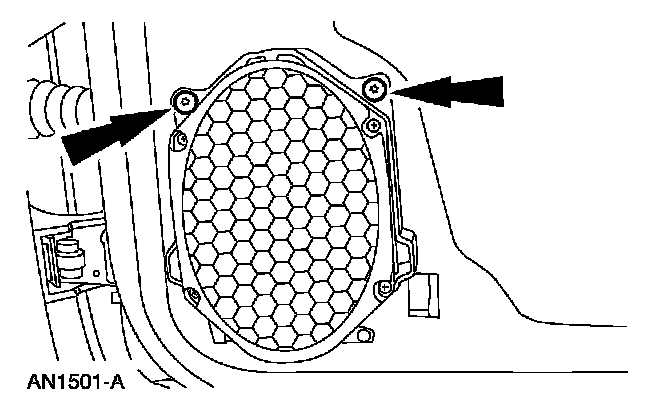

Remove the screws and the speaker.
3.

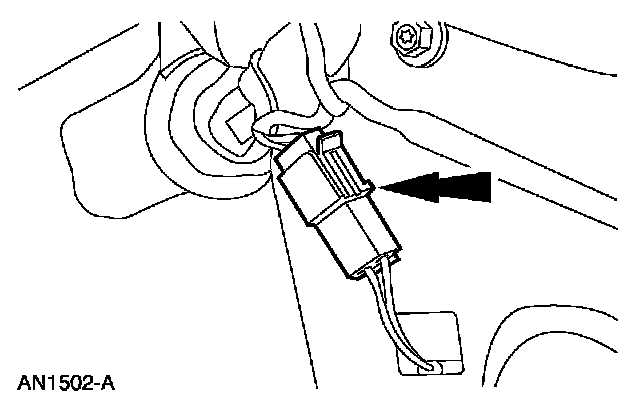

Disconnect the electrical connector.
4.

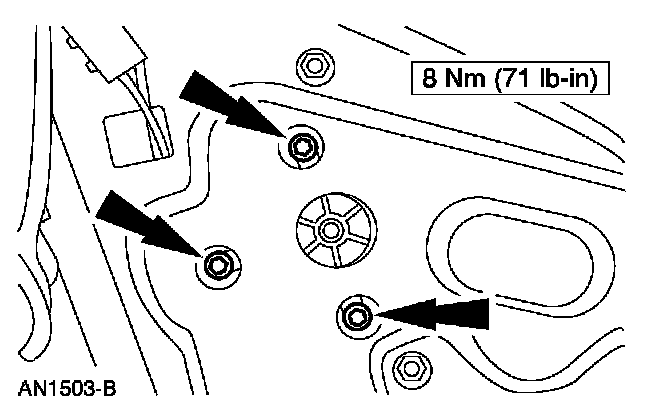

Remove the screws and the window regulator motor.
INSTALLATION 1.
To install, reverse the removal procedure.
