Windshield Washer Pump: Service and Repair

WASHER PUMP

REMOVAL
1. Remove the LF wheel and tire.
2. Position the front portion of the LF inner splash shield aside.

3. WARNING: Windshield washer solution contains methanol, which is poisonous. Observe all cautions and warnings indicated on label of washer solution container.

NOTE: To prevent spilling windshield washer fluid, drain the windshield washer reservoir before removal.

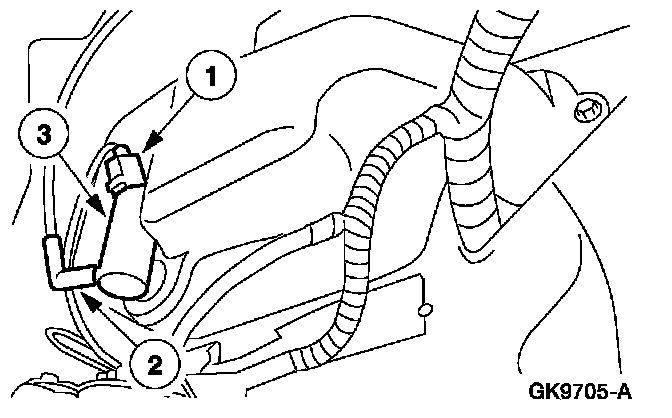

Remove the washer pump.
1 Disconnect the electrical connector.
2 Disconnect washer hose from the washer pump.
3 Remove the washer pump.

INSTALLATION

1. WARNING: Windshield washer solution contains methanol, which is poisonous. Observe all cautions and warnings indicated on label of washer solution container.

CAUTION: Do not operate the windshield washer pump prior to filling the windshield reservoir.

To install, reverse the removal procedure.
- Fill the windshield washer reservoir.
