Ignition Coil: Service and Repair

IGNITION COIL-ON-PLUG

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the air cleaner outlet pipe.

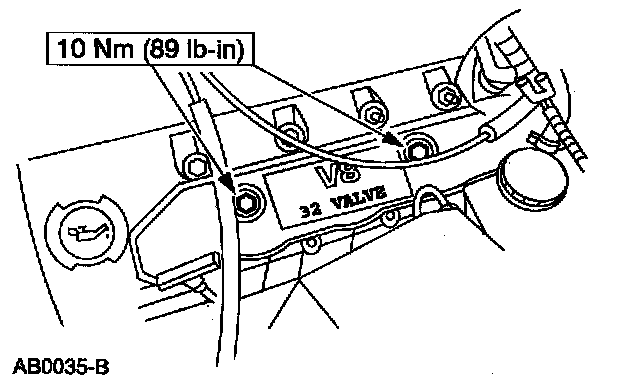

3. Remove the RH ignition coil cover bolts and the cover.

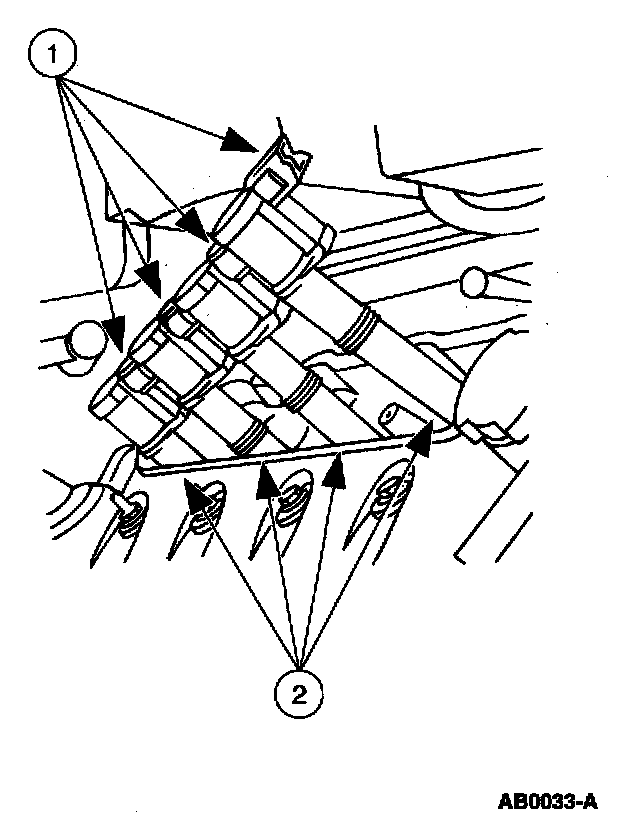

4. Remove the ignition coils.
1 Disconnect the electrical connectors.
2 Remove the ignition coils.

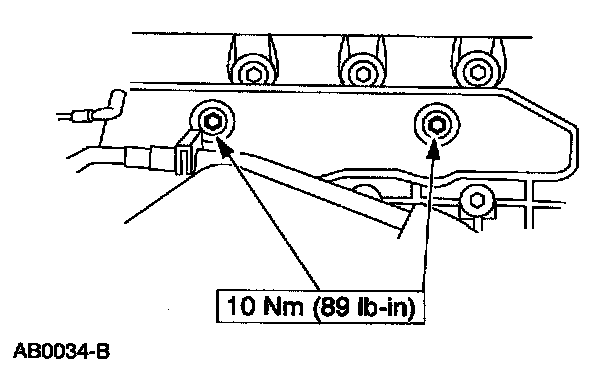

5. Remove the LH ignition coil cover bolts and the cover.

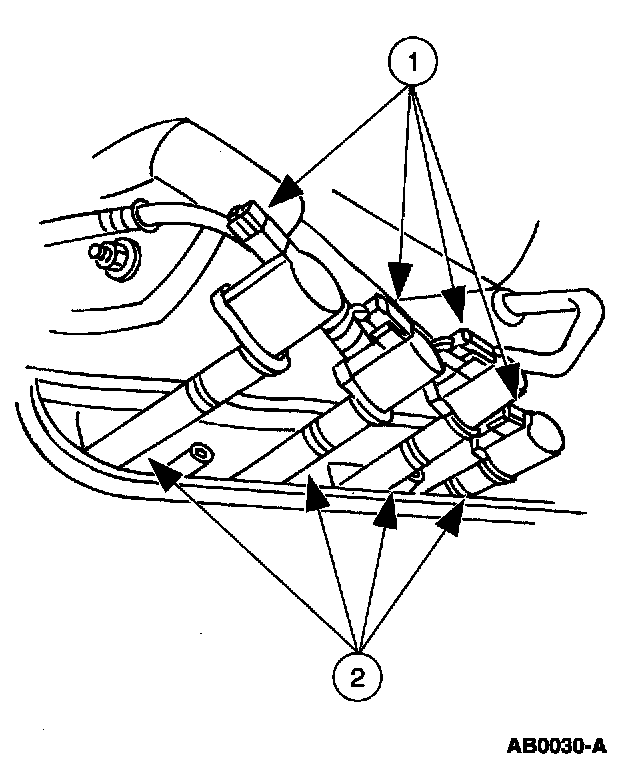

6. Remove the ignition coils.
1 Disconnect the connectors.
2 Remove the ignition coils.

INSTALLATION

1. NOTE: Verify that the ignition coil spring is correctly located inside the ignition coil boot and that there is no damage to the tip of the boot.

To install, reverse the removal procedure.
- Apply a light coat of dielectric grease to the inside of the ignition coil boots.
