Ignition Coil: Service and Repair

IGNITION COIL - COIL ON PLUG

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the air cleaner outlet tube.

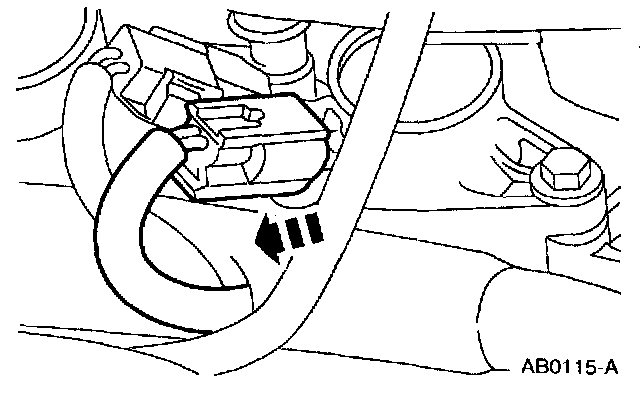

3. NOTE: One ignition coil is shown, and the others are similar.

Disconnect the connector from the ignition coil.

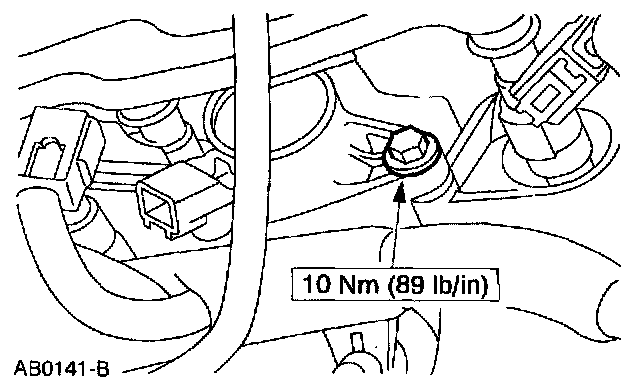

4. Remove the bolt and the ignition coil.

INSTALLATION

1. NOTE: Verify the ignition coil spring is correctly located inside the ignition coil boot and there is no damage to the tip of the boot.

To install, reverse the removal procedure.
