System Specifications

Crankshaft Pulley bolt
Stage 1: Tighten the bolt to 90 Nm (66 ft. lbs.).
Stage 2: Loosen the bolt one full turn.
Stage 3: Tighten the bolt to 50 Nm (37 ft. lbs.).
Stage 4: Tighten the bolt an additional 90 degrees

Part 1 Of 2:




Part 2 Of 2:

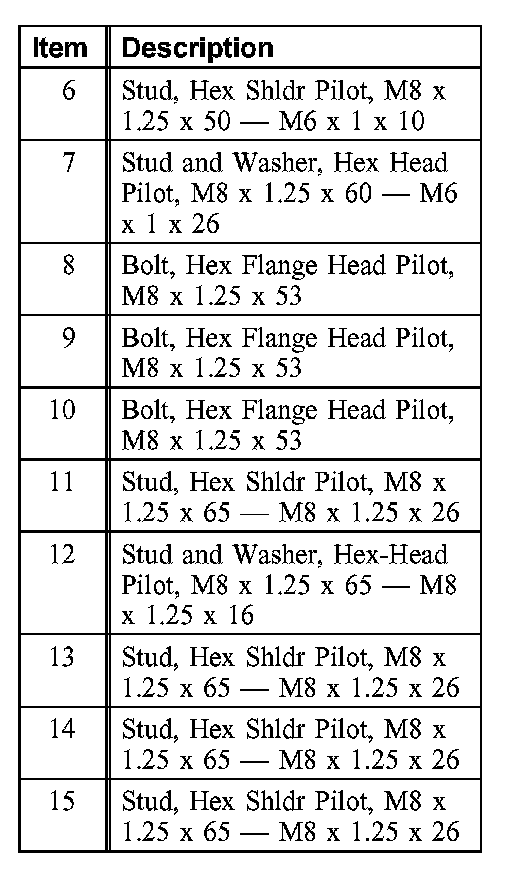

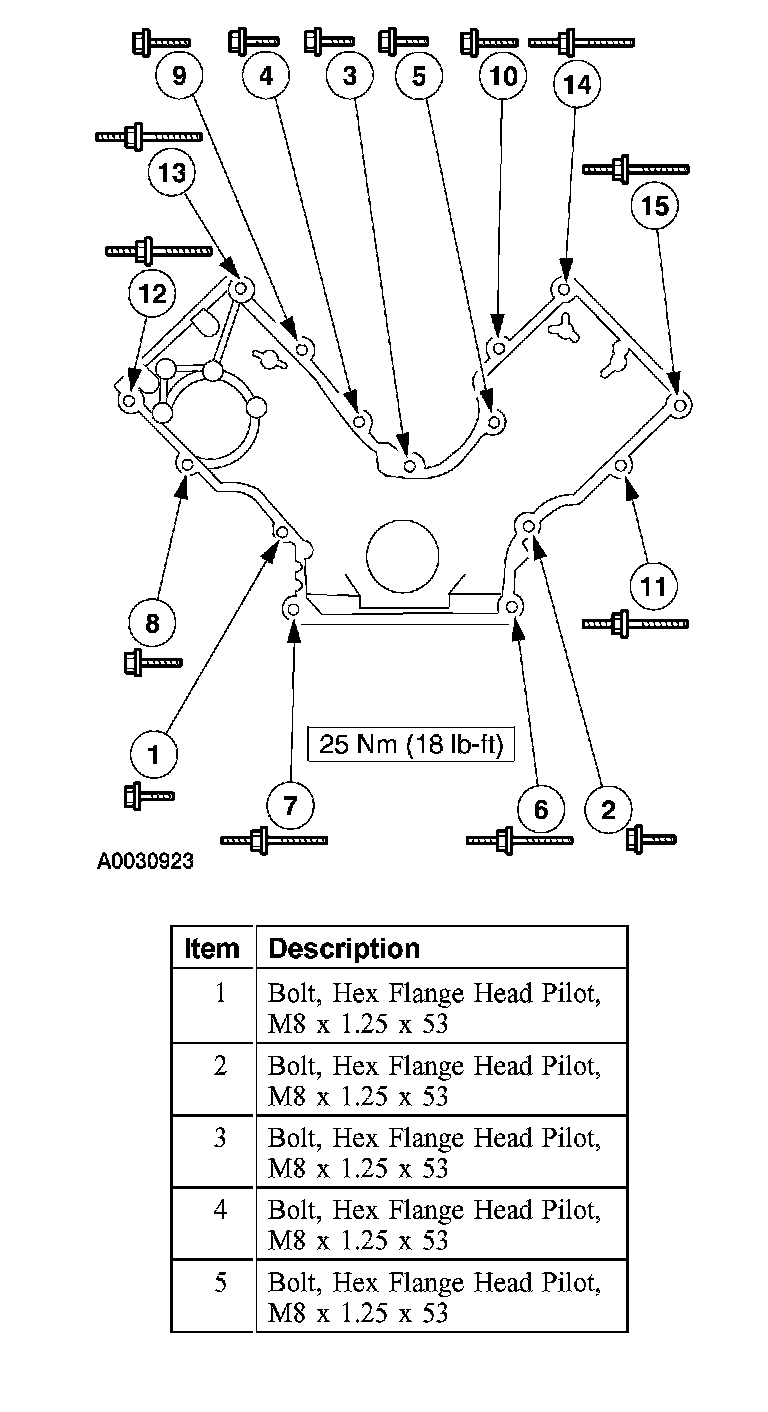

Front Cover bolts 25 Nm (18 ft.lbs.)

Timing chain tensioner bolts 25 Nm (18 ft. lbs.)
