System Specifications
Timing Chain Guide Bolts 10 Nm (89 inch lbs.)Timing Chain Tensioner Bolts 10 Nm (89 inch lbs.)
Camshaft Bolts 65 Nm (48 ft. lbs.)

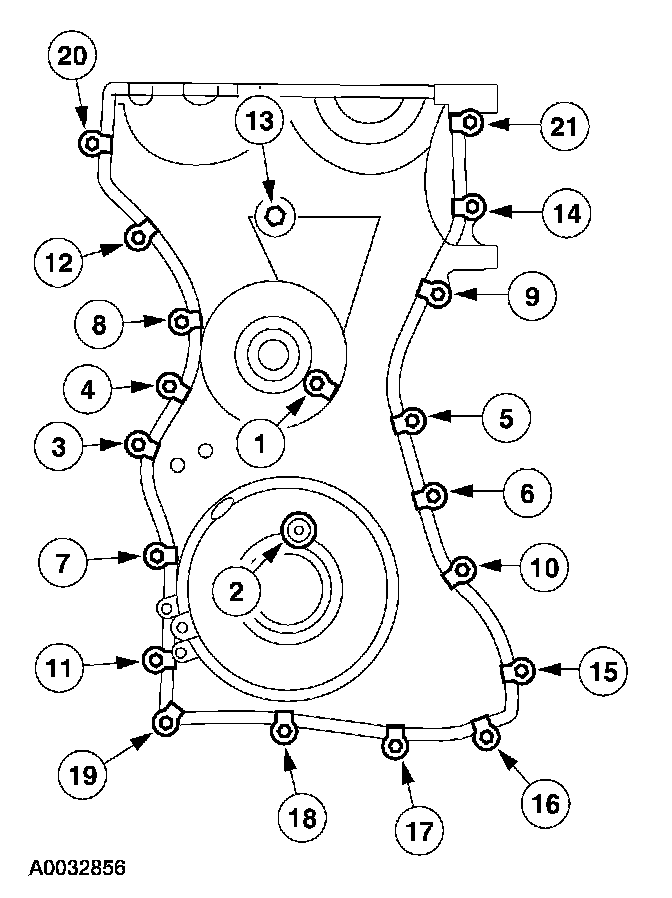

Front Cover Bolts:
8 mm bolts 10 Nm (89 inch lbs.)
10 mm bolts 25 Nm (18 ft. lbs.)
13 mm bolts 48 Nm (35 ft. lbs.)
