Rear
Rear Toe Adjustment 1.
Start the engine and center the steering wheel.
2.
Turn the engine off, and hold the steering wheel in the "straight forward" position using a suitable holding device.
3.

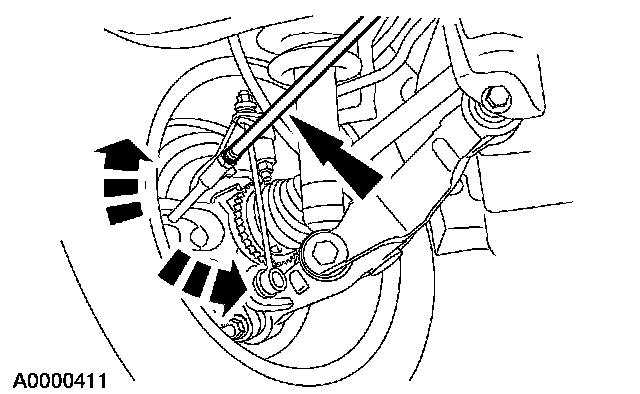

Loosen the nut.
^
Clean the nut and toe link threads.
4.

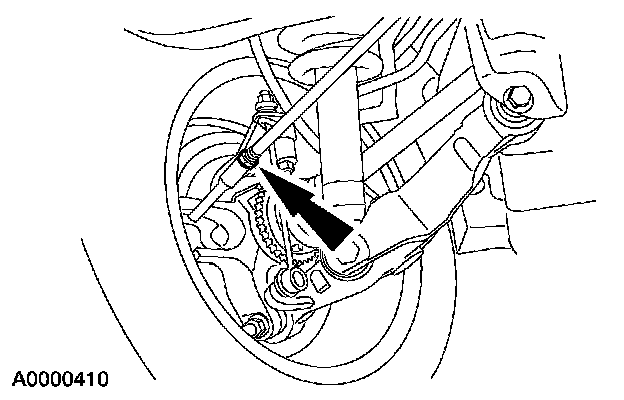

Rotate the toe link to adjust the toe.
5.

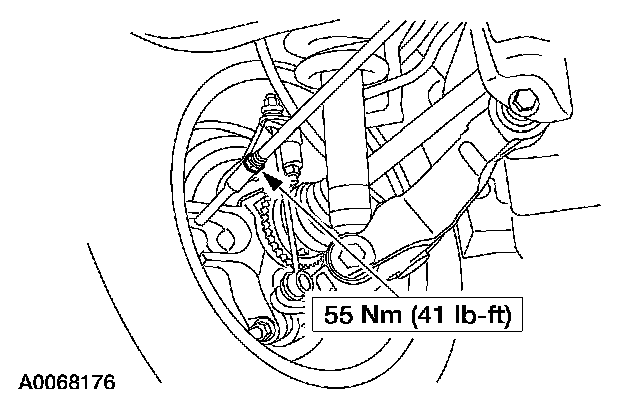

Tighten the nut.
6.
Recheck the toe settings and adjust if necessary.
