Diagnostic Trouble Code Tests and Associated Procedures

DIAGNOSTIC TROUBLE CODE CHART

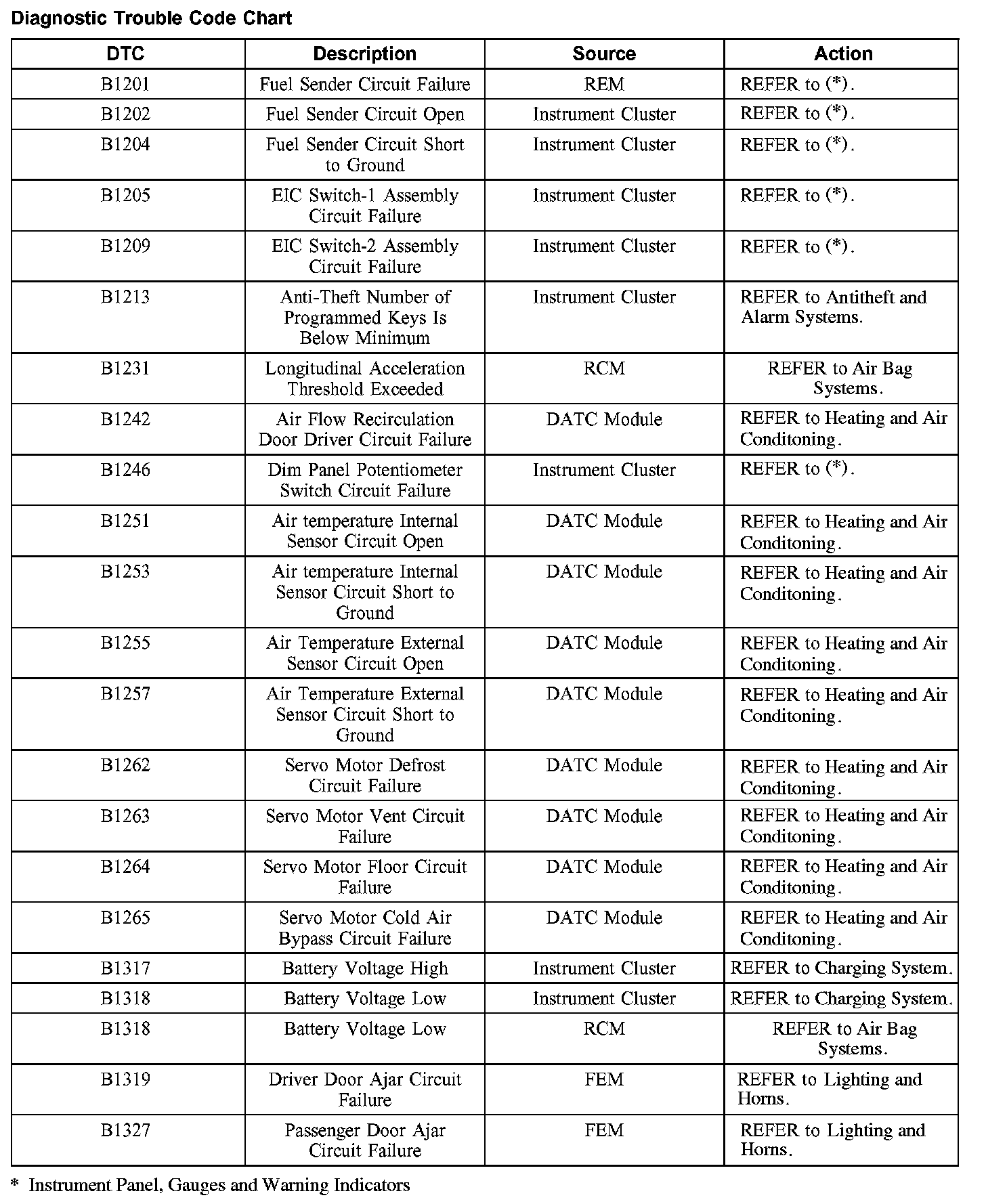

DTC Chart B1201 - B1327:

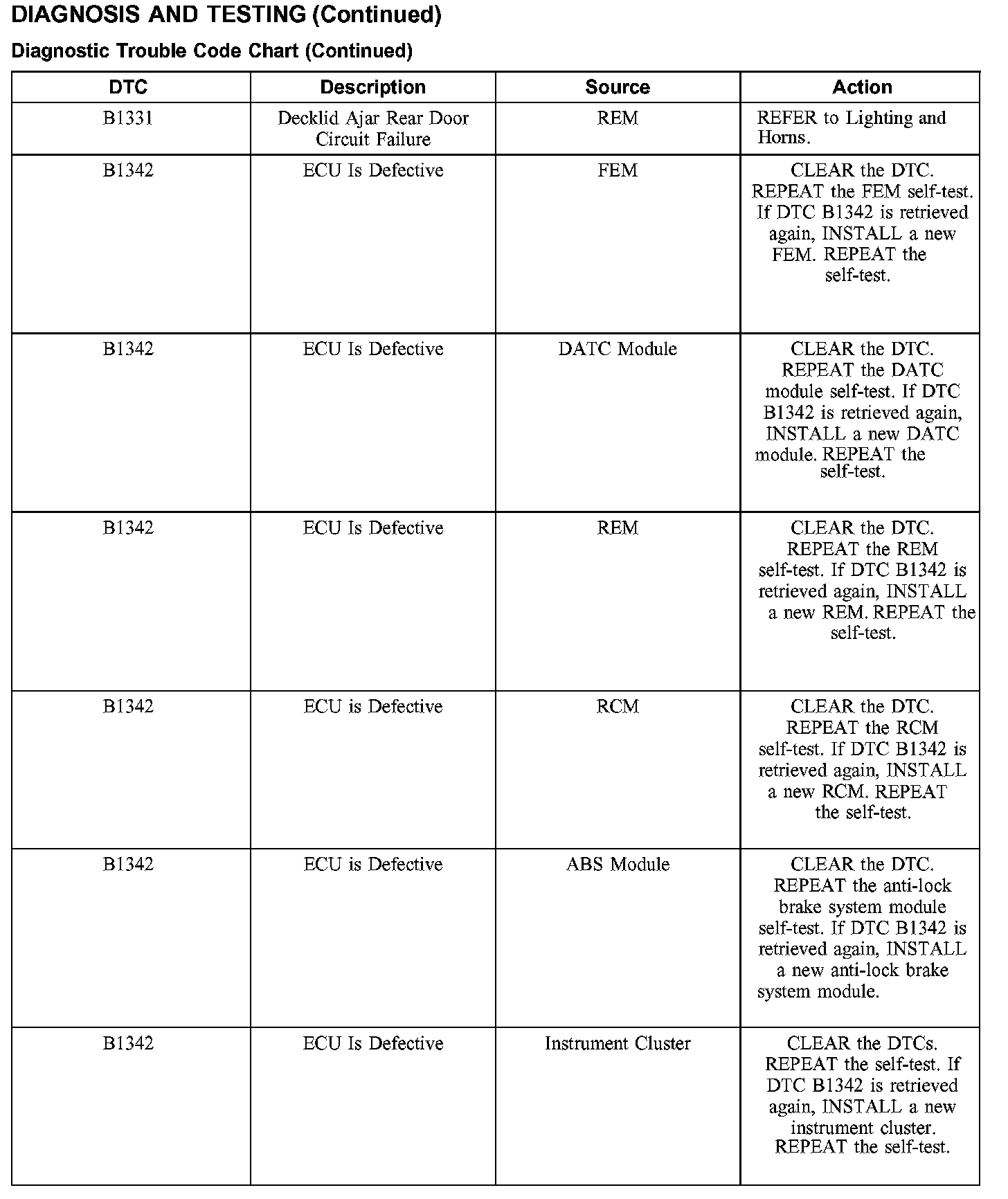

DTC Chart B1331 - B1342:

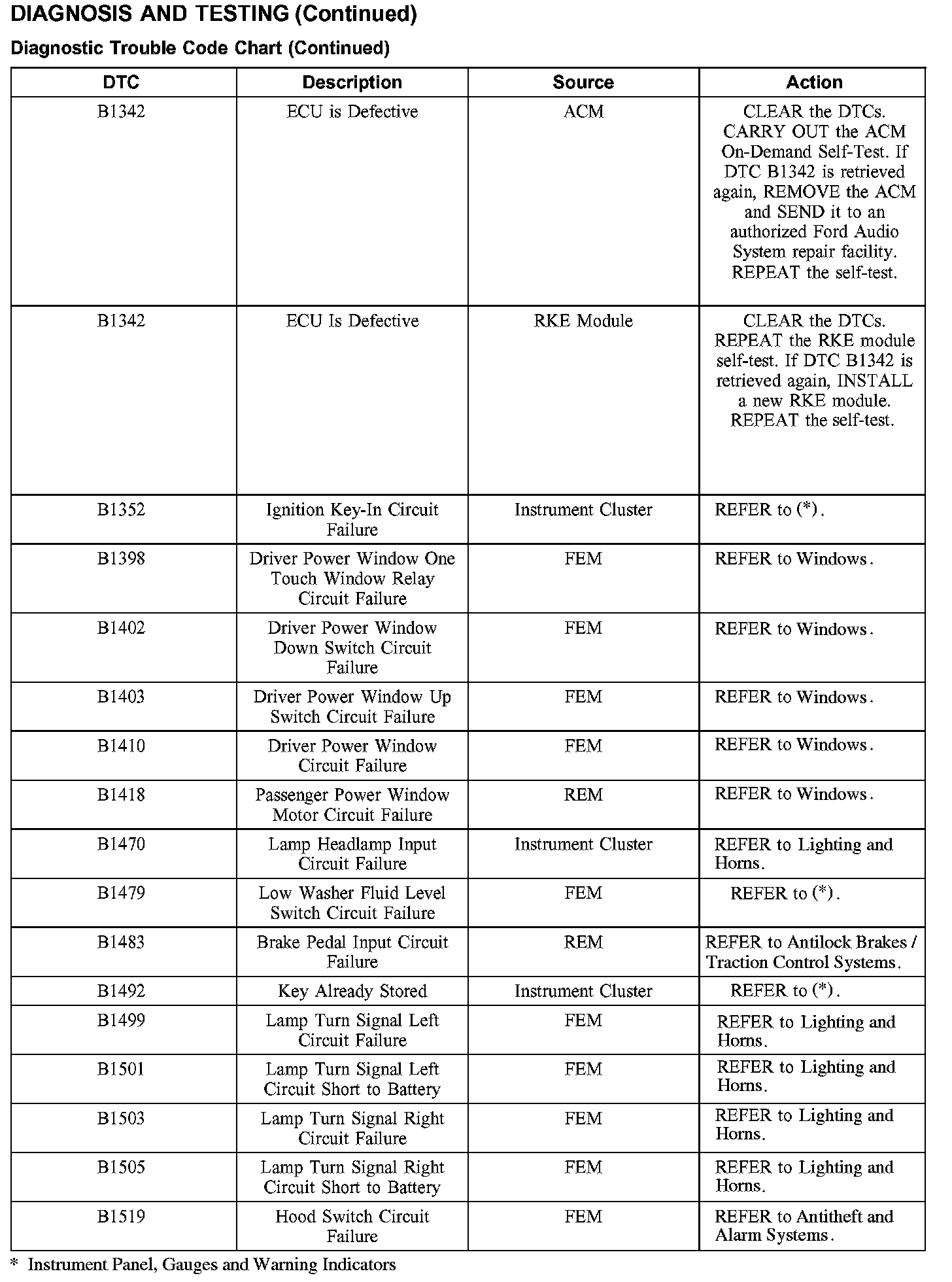

DTC Chart B1342 - B1519:

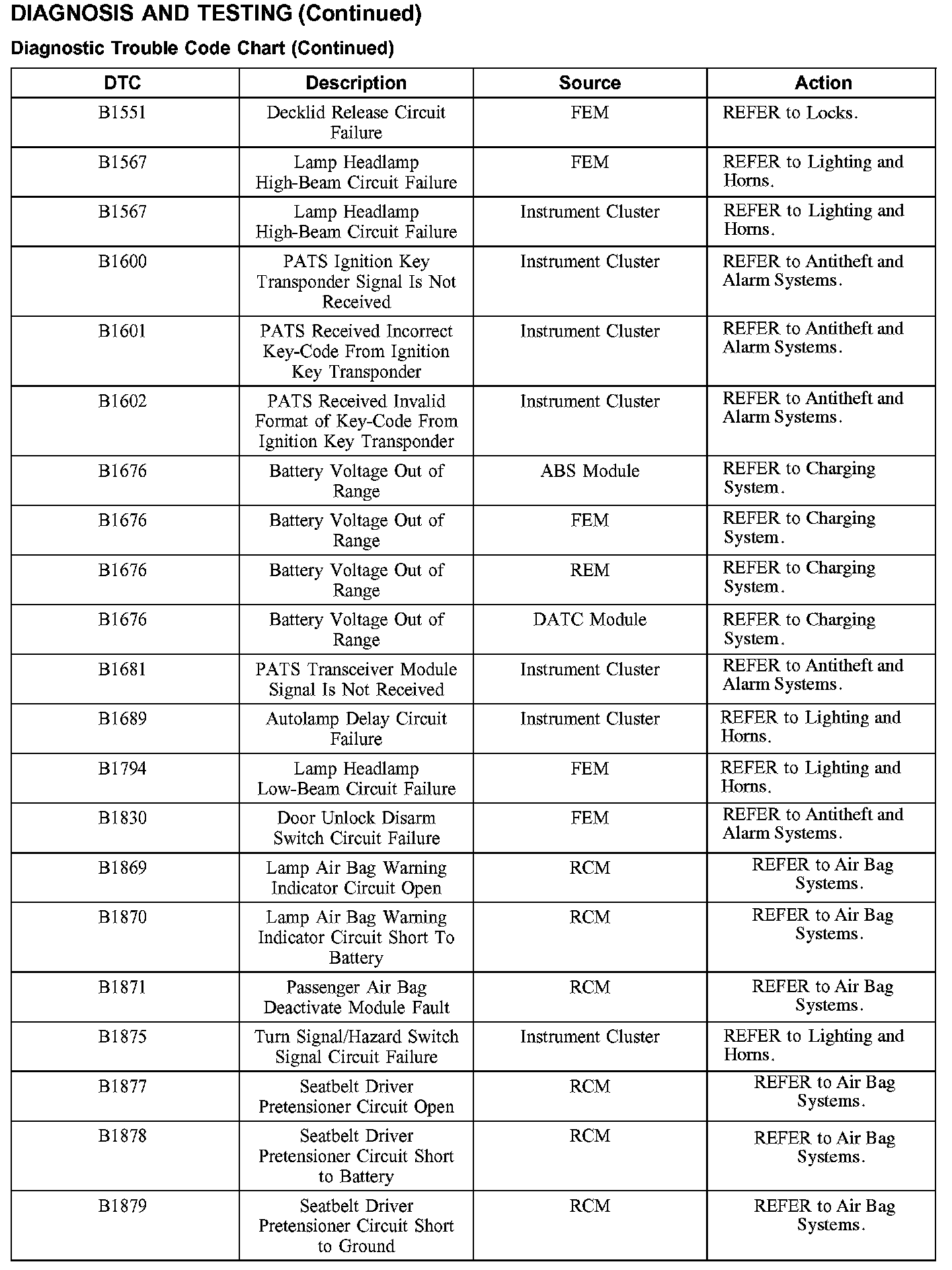

DTC Chart B1551 - B1879:

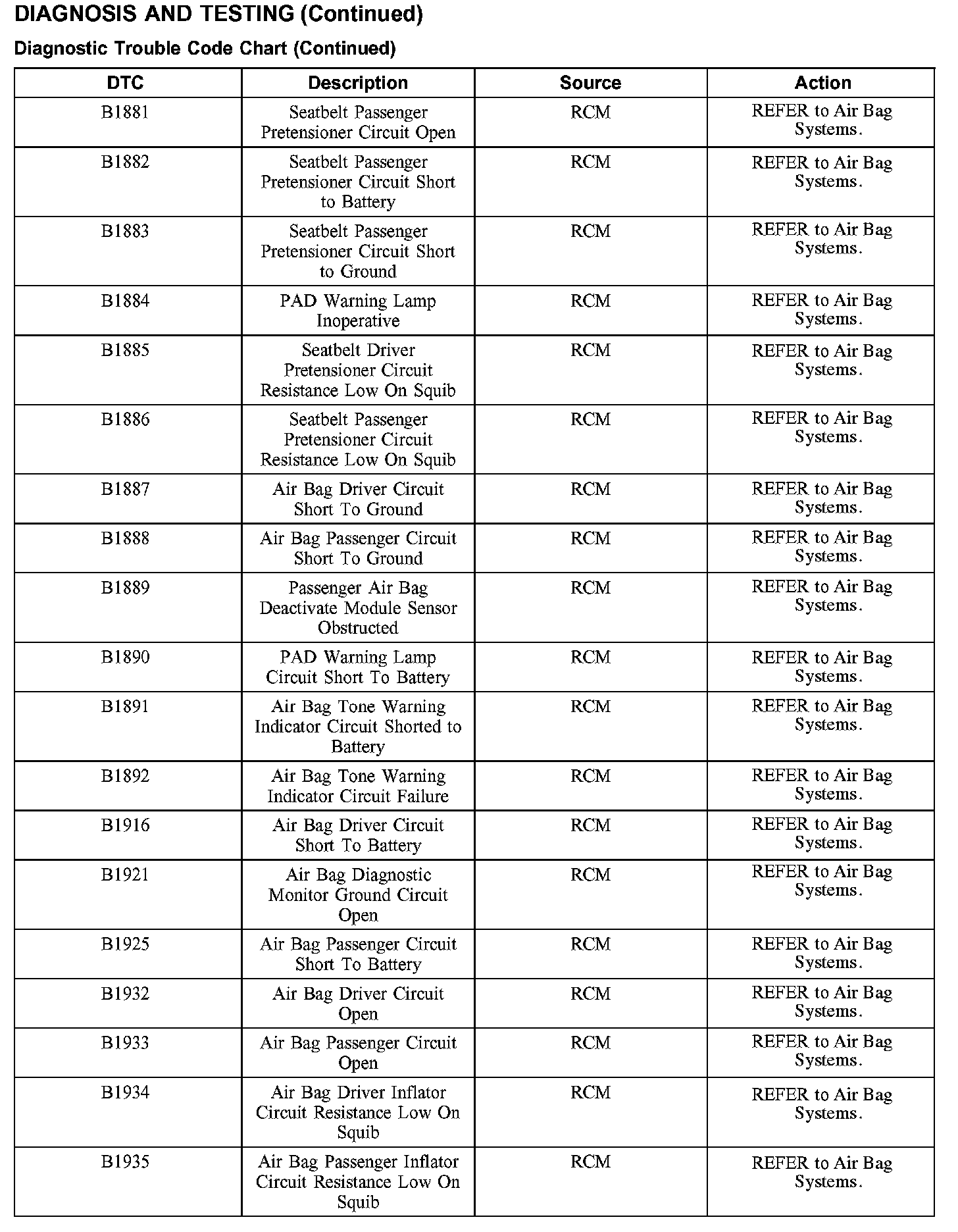

DTC Chart B1881 - B1935:

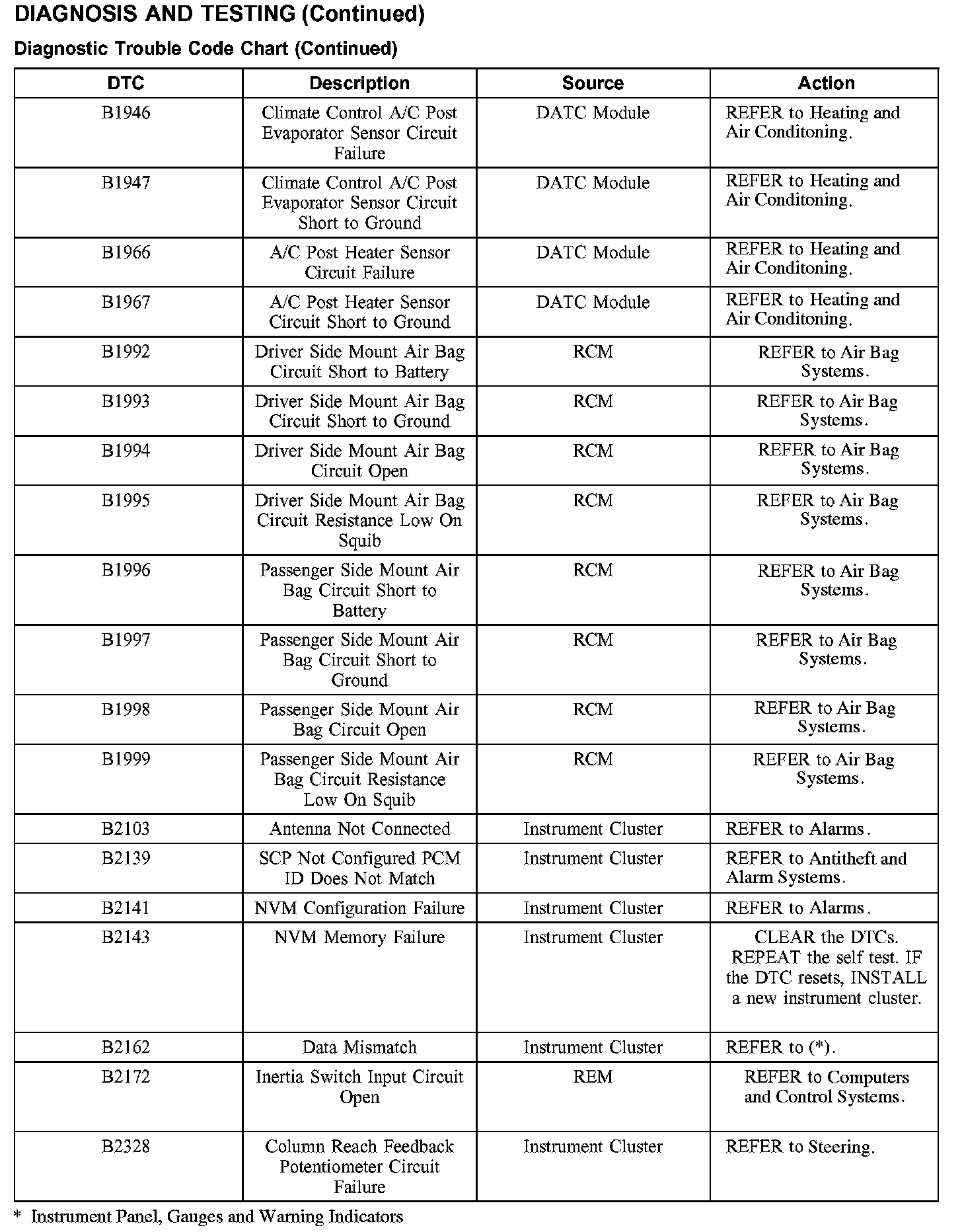

DTC Chart B1946 - B2328:

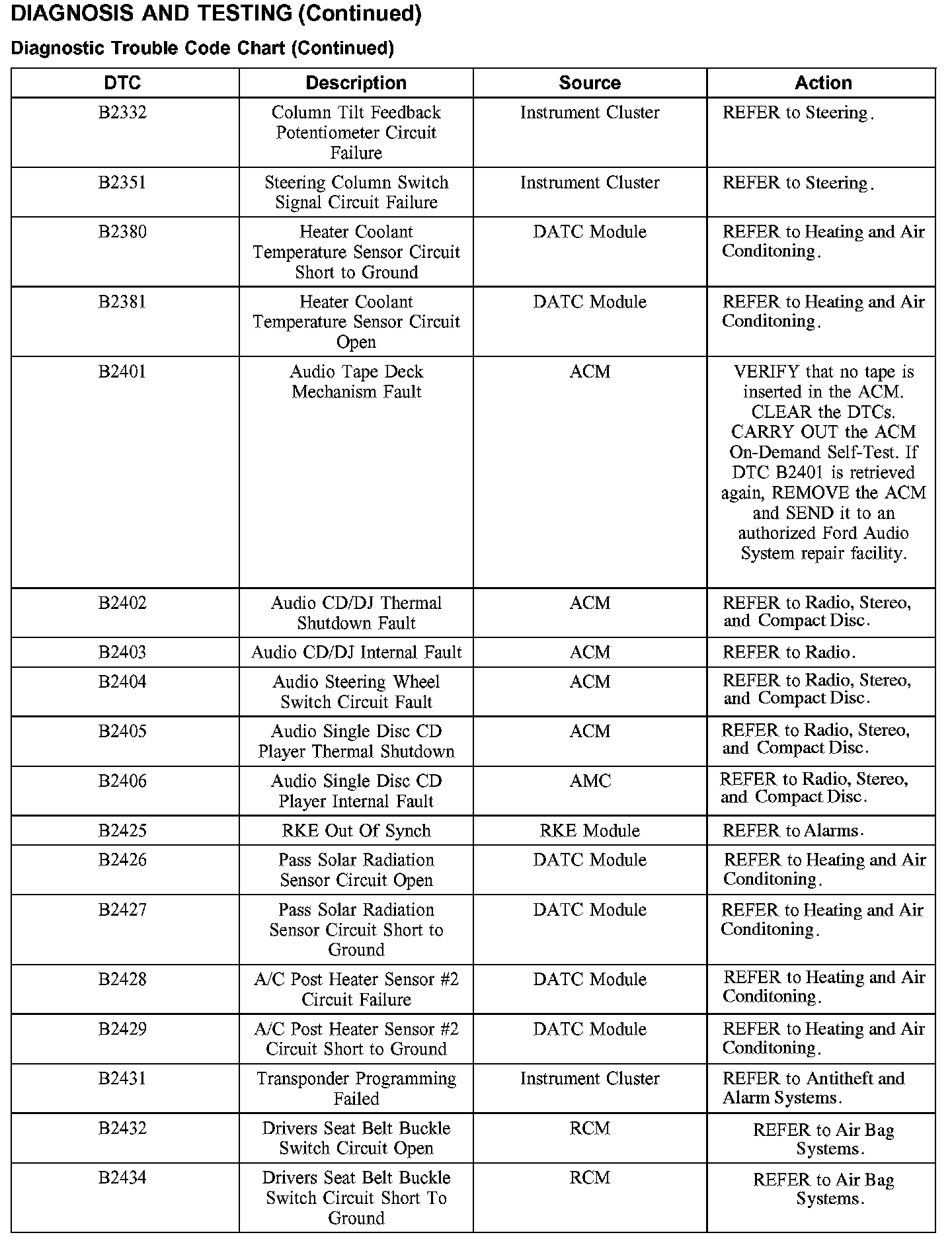

DTC Chart B2332 - B2434:

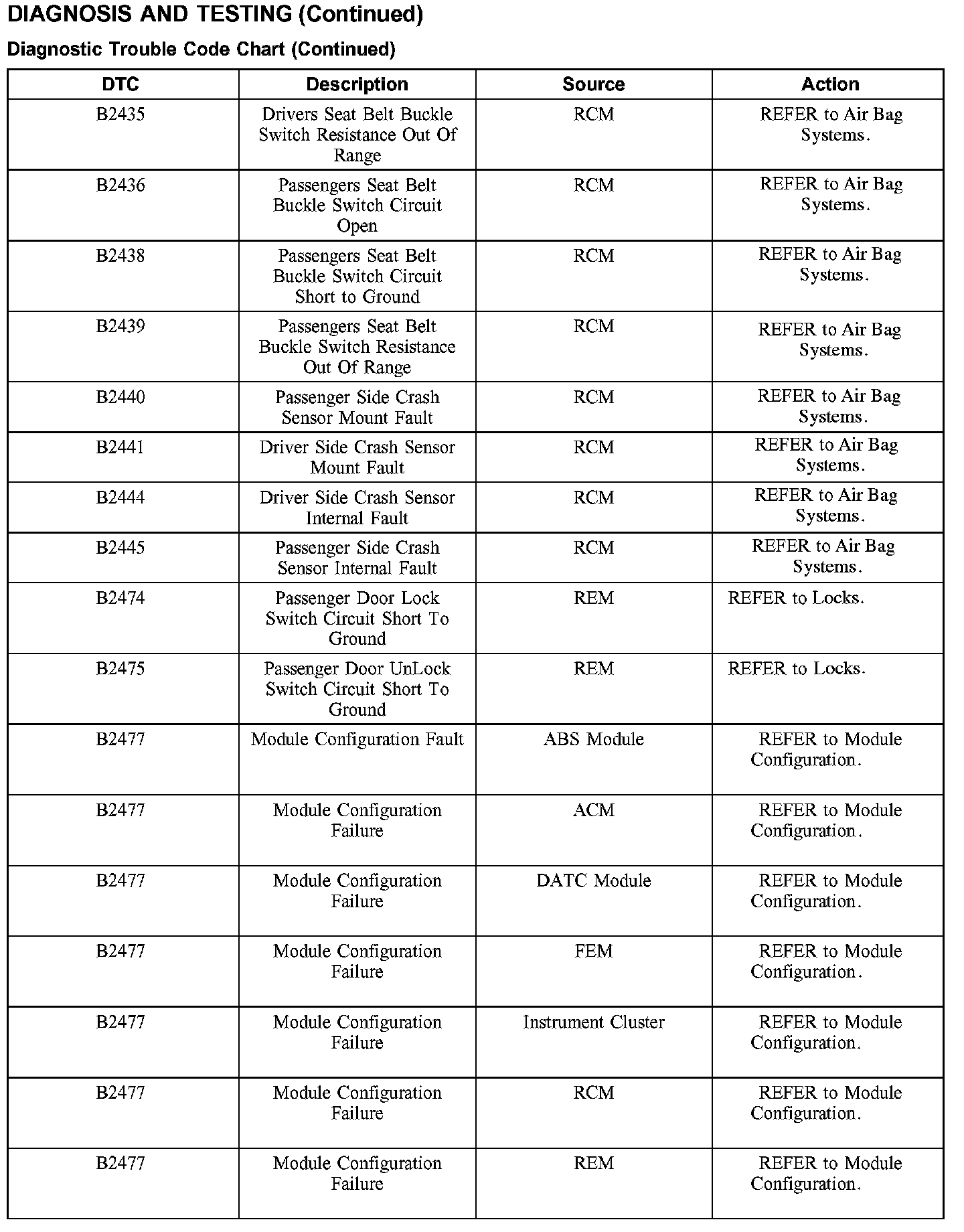

DTC Chart B2435 - B2477:

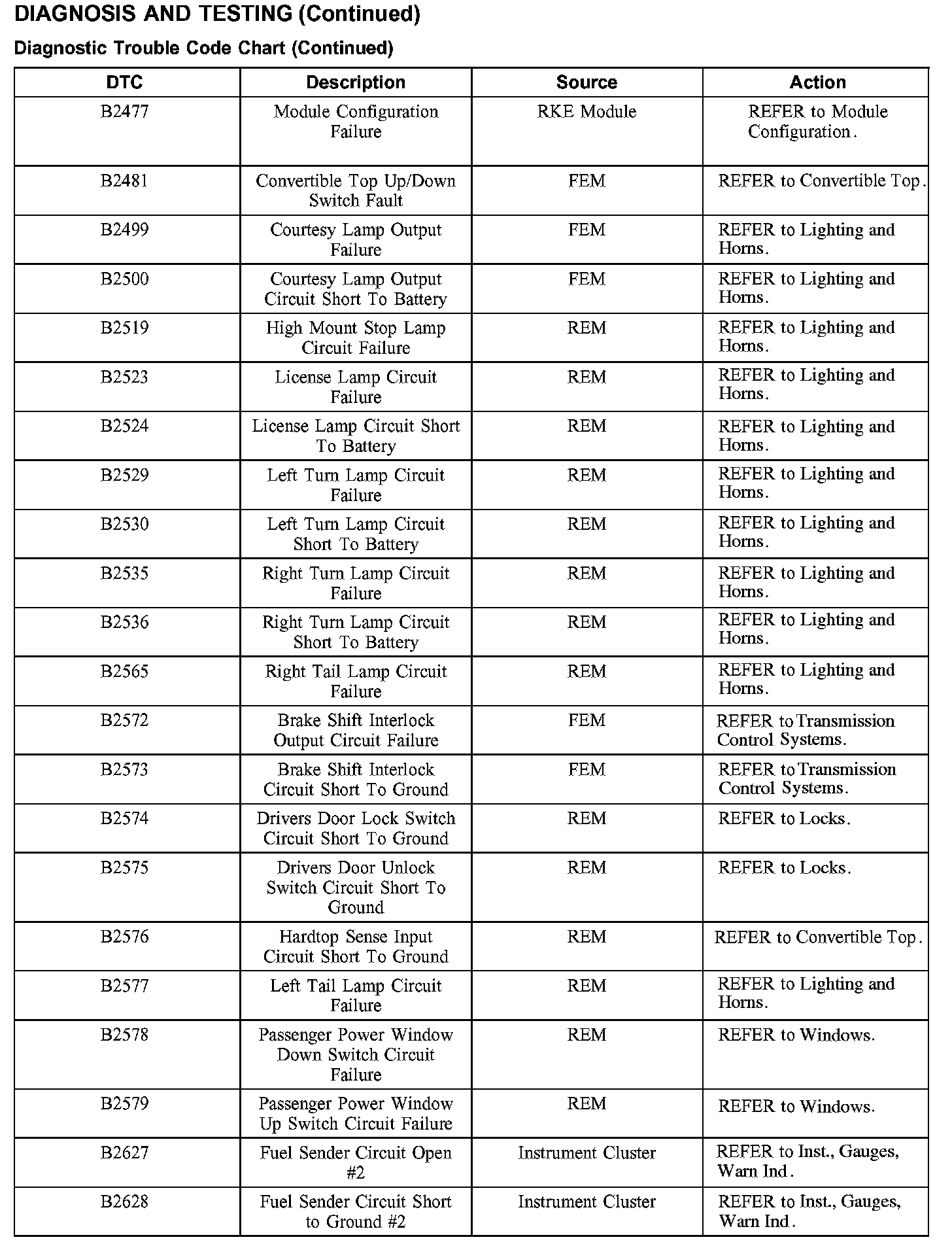

DTC Chart B2477 - B2628:

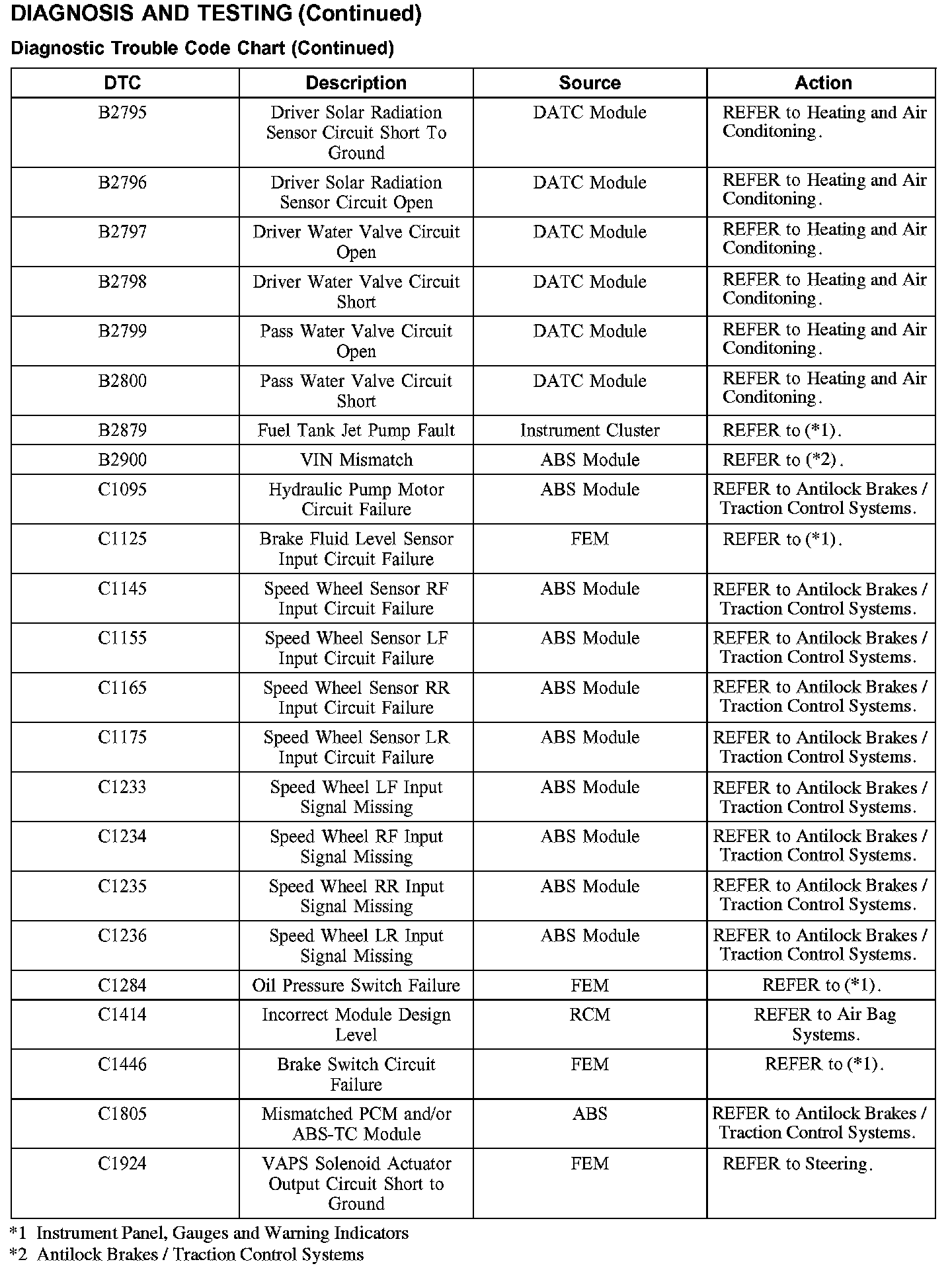

DTC Chart B2795 - C1924:

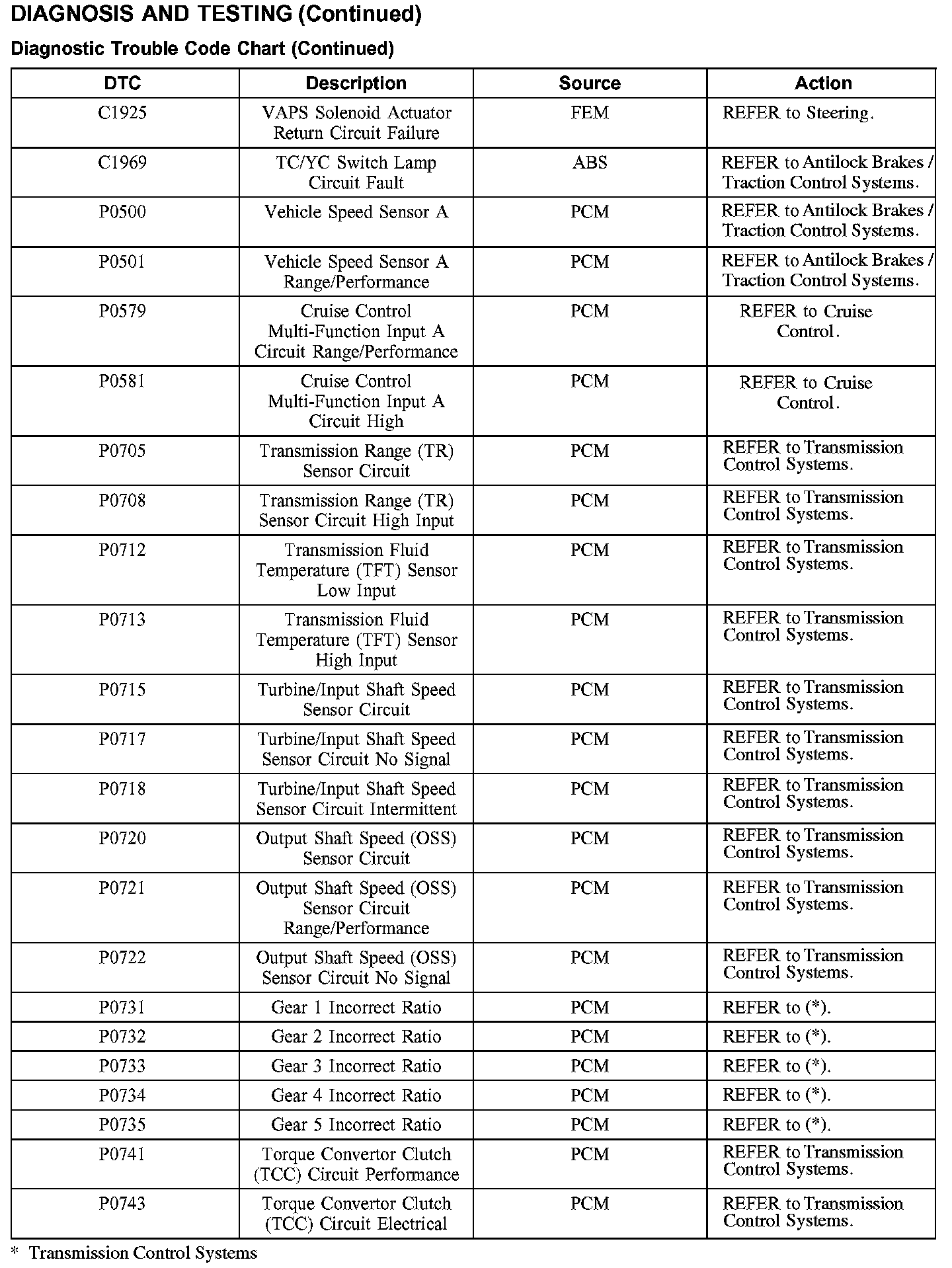

DTC Chart C1925 - P0743:

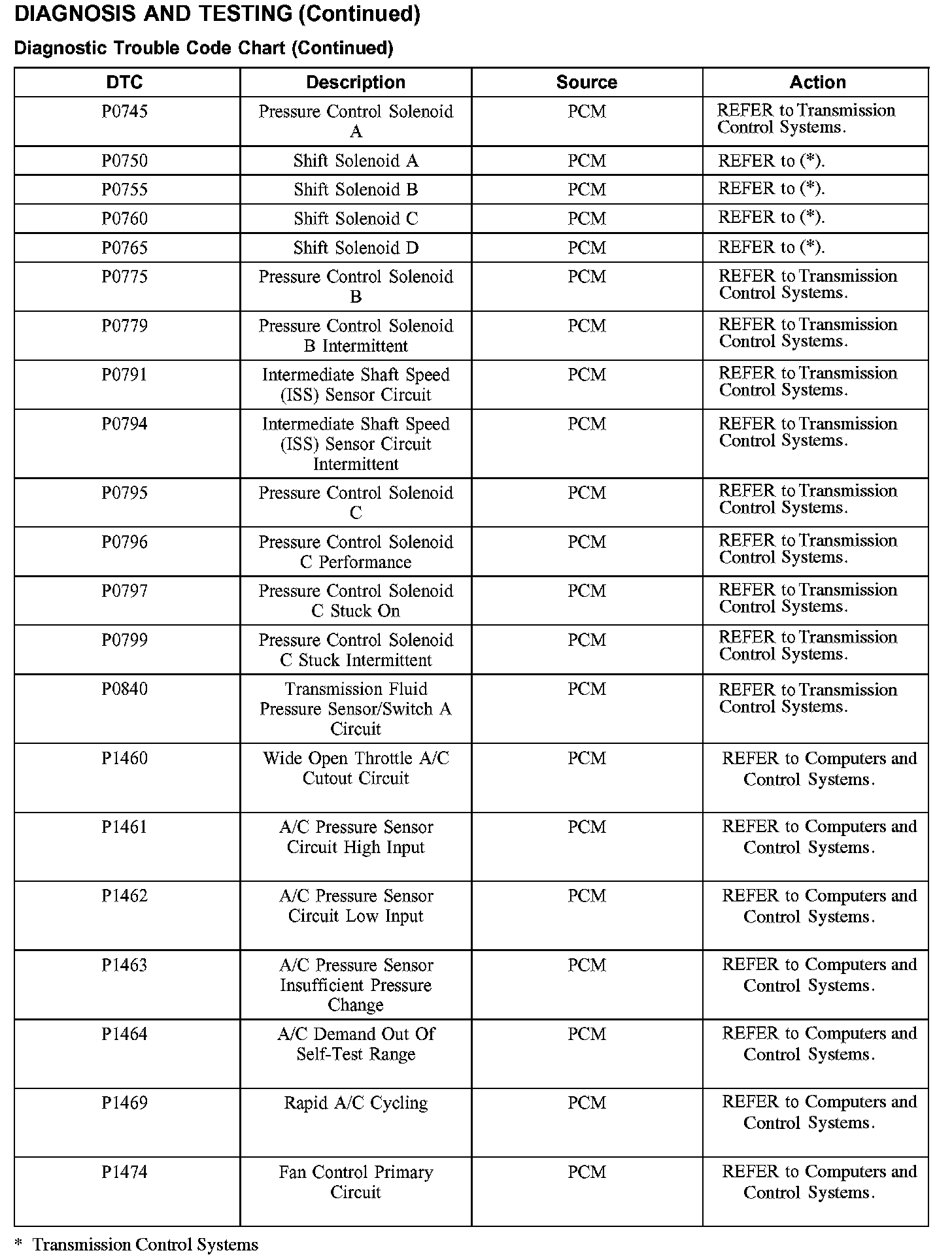

DTC Chart P0745 - P1474:

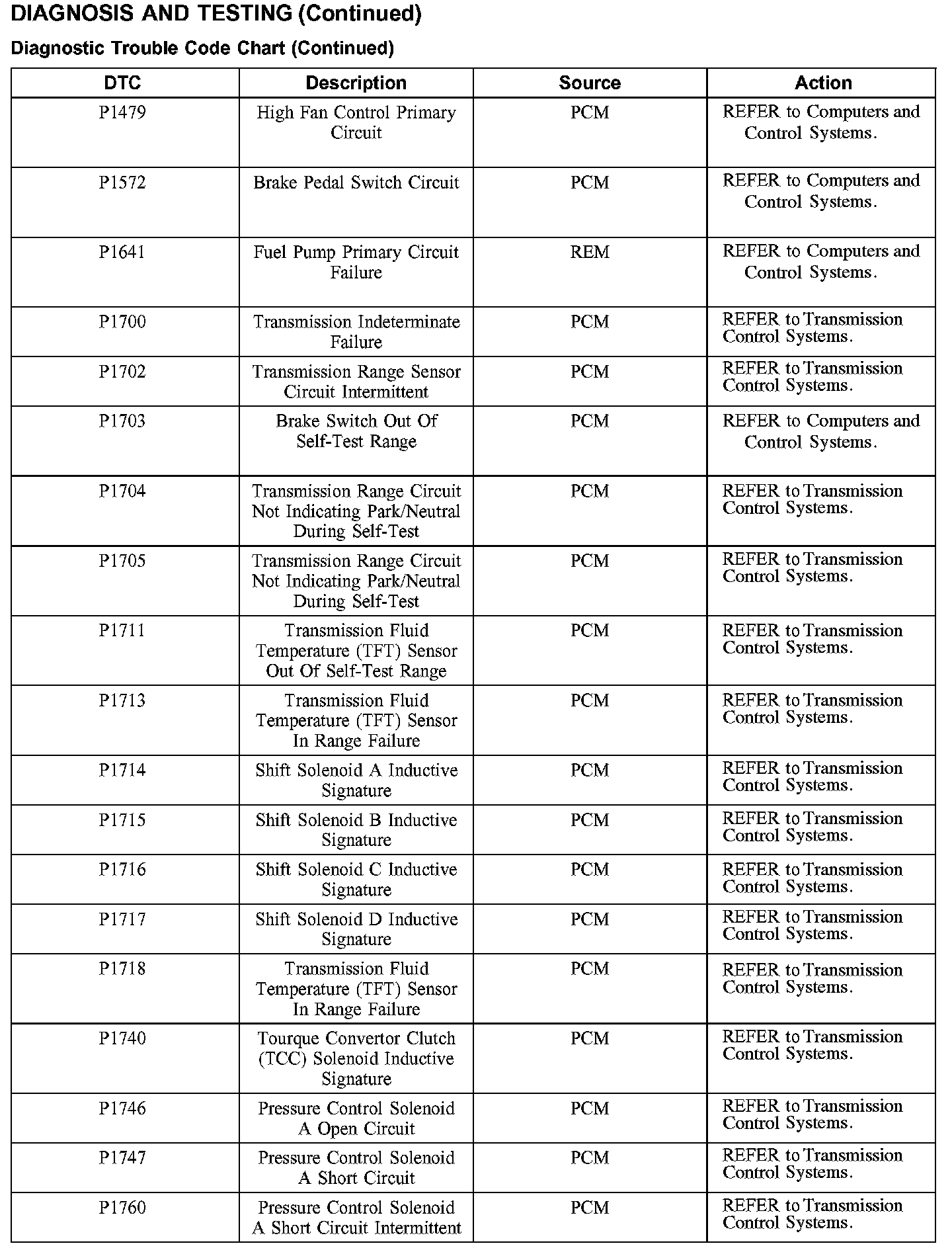

DTC Chart P1479 - P1760:

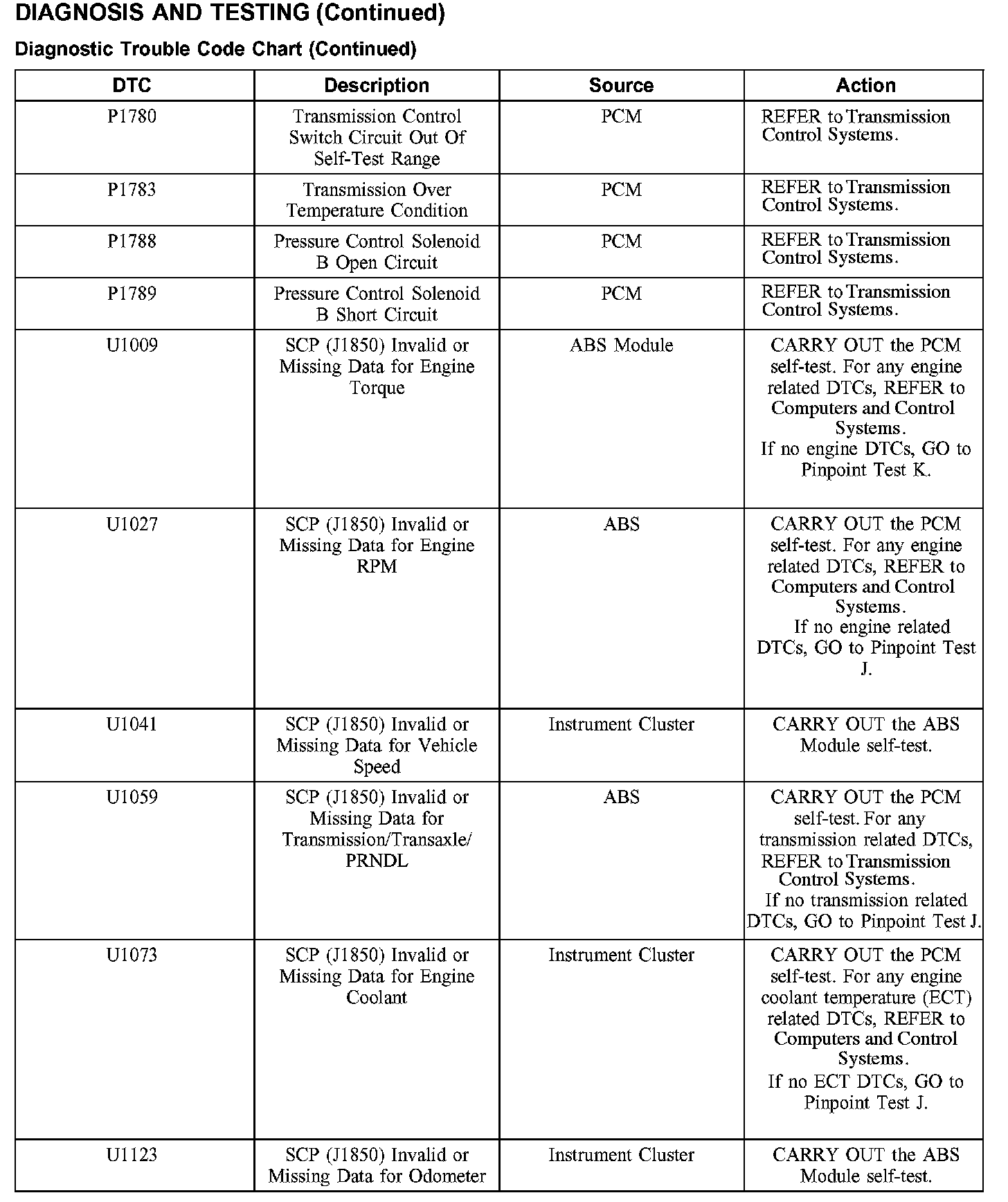

DTC Chart P1780 - U1123:

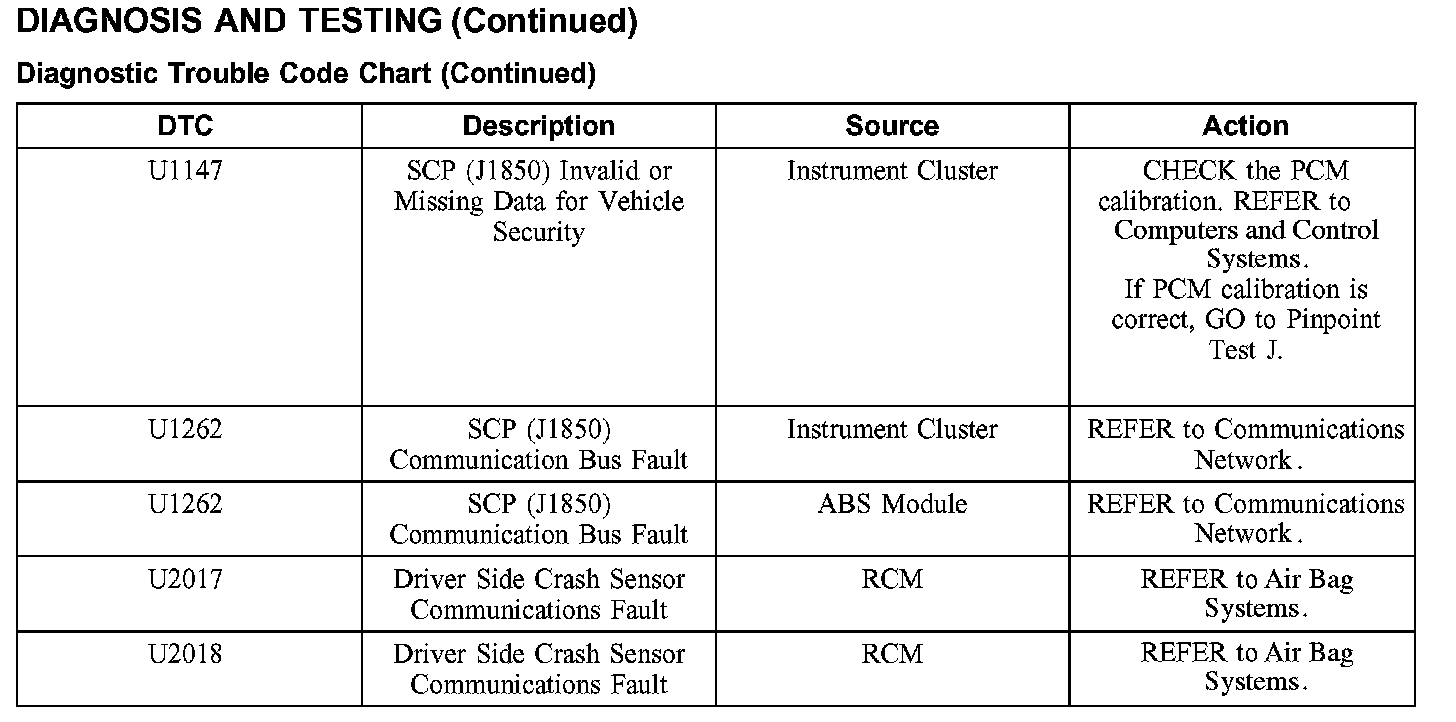

DTC Chart U1147 - U2018:
