Manual A/C





Climate Control Assembly - Manual A/C

Removal and Installation

1. Depower the supplemental restraint system (SRS). Refer to Restraint Systems, Air Bag Systems, Air Bag(s) Arming and Disarming Air Bag Systems

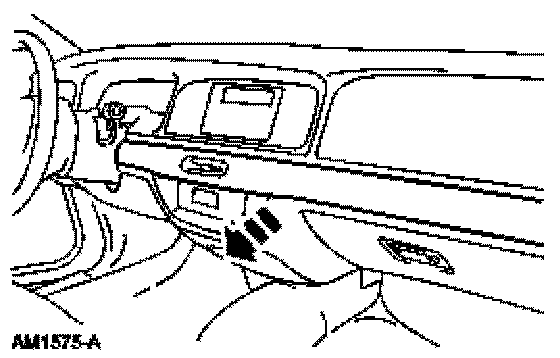

2. Remove the finish panel.

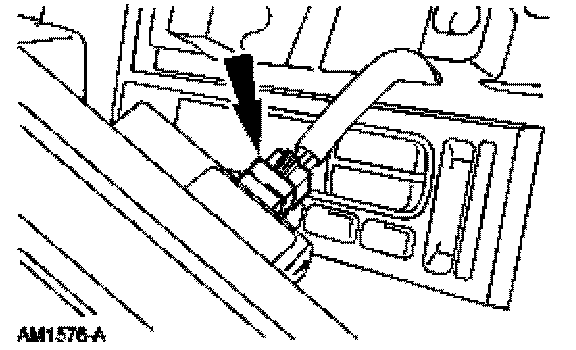

3. Disconnect the connector.






4. Remove the climate control head.

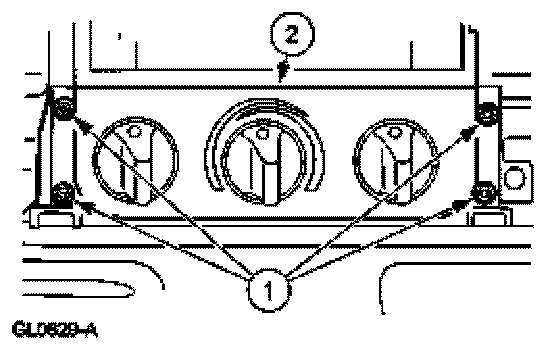

1. Remove the screws.
2. Remove the climate control head.






5. Disconnect the climate control assembly.

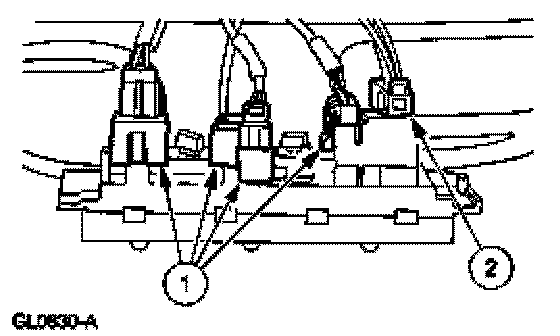

1. Disconnect the electrical connectors.
2. Disconnect the vacuum line connector.
6. To install, reverse the removal procedure.
