Connecting Rod, Engine
Connecting rod side clearance (standard)
0.015-0.45 mm (0.0006-0.0177 in)
Connecting rod side clearance (maximum)
0.50 min (0.0197 in)

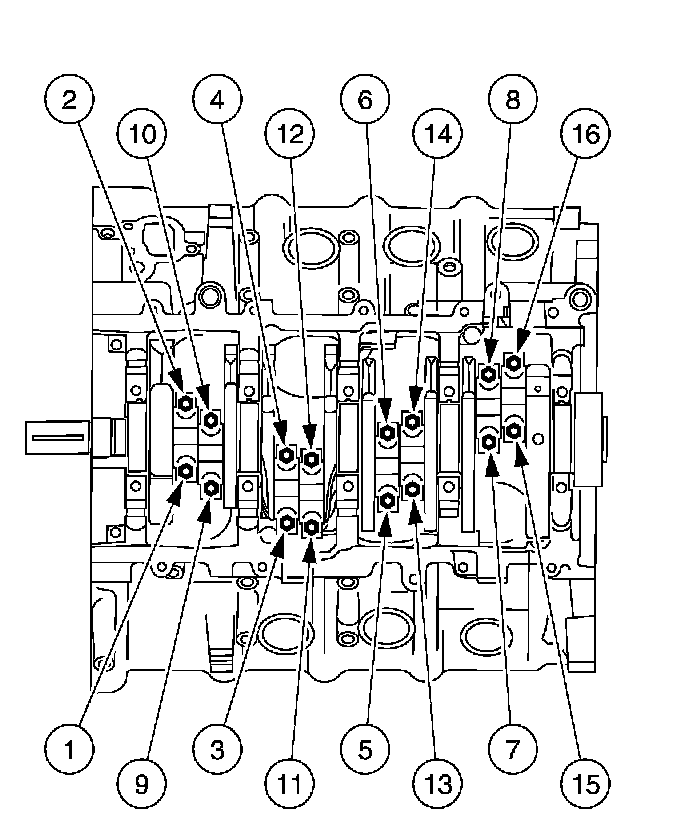

Rod Bearing CapTighten the bolts in two stages:
Stage
43 Nm (32 ft. lbs.)
Stage 2
Rotate an additional 90-120 degrees.
