Cylinder Head Assembly

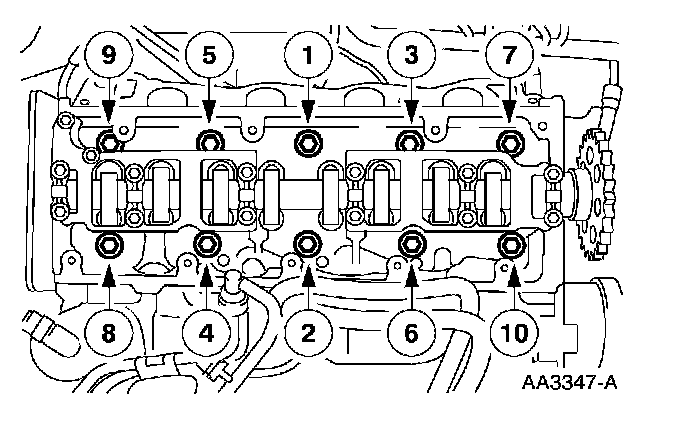

Cylinder head





Tighten the cylinder head bolts in six stages:
Stage 1 40 Nm (30 ft. lbs.)
Stage 2 Tighten bolt an additional 90-degrees (1/4 turn)
Stage 3 Loosen the bolts a minimum of one full turn (360 degrees)
Stage 4 40 Nm (30 ft. lbs.)
Stage 5 Tighten bolts an additional 90-degrees (1/4 turn)
Stage 6 Tighten bolts an additional 90-degrees (1/4 turn)
Use New Bolts

Intake Manifold





Intake Manifold bolts 25 Nm (18 ft. lbs.)

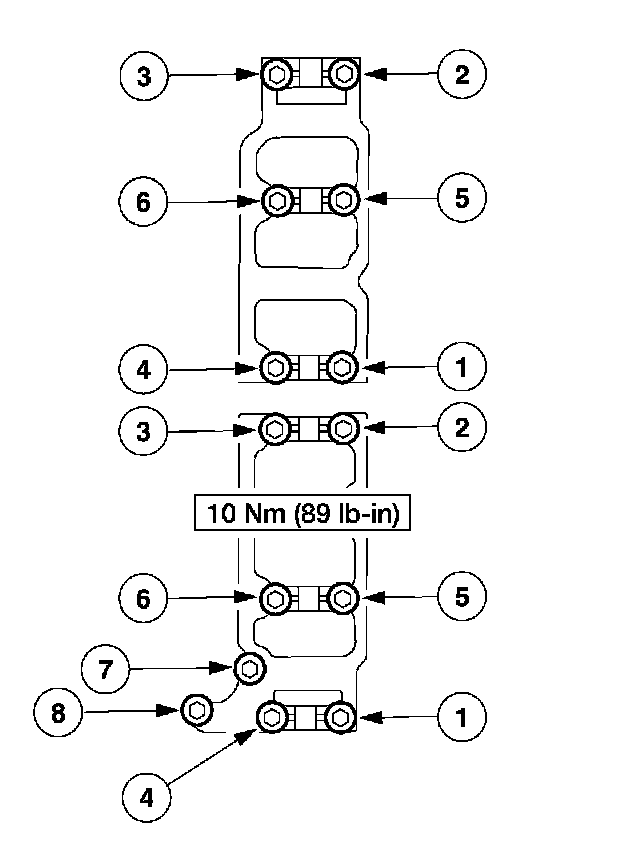

Camshaft Bearing Cap





Camshaft Bearing Cap bolts 10 Nm (89 inch lbs.)

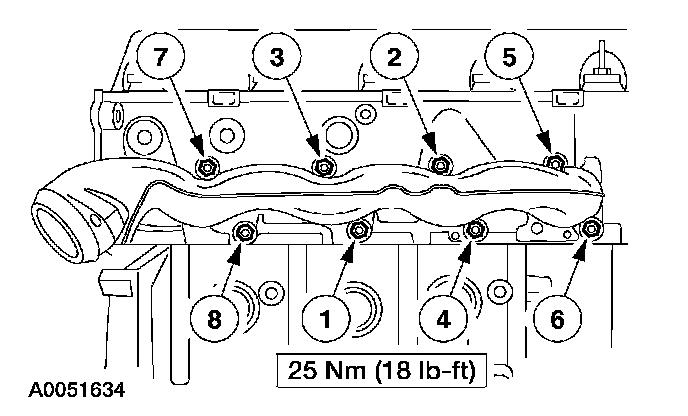

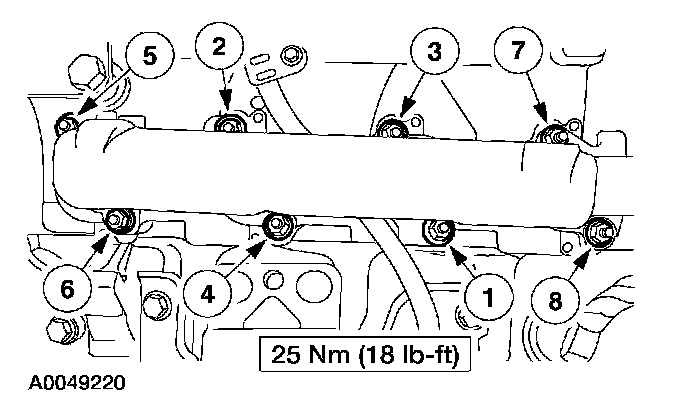

Exhaust Manifold






LH





RH

Exhaust Manifold Bolts 25 Nm (18 ft. lbs.)

Camshaft Sprocket 120 Nm (89 ft. lbs.)
