Radiator: Service and Repair

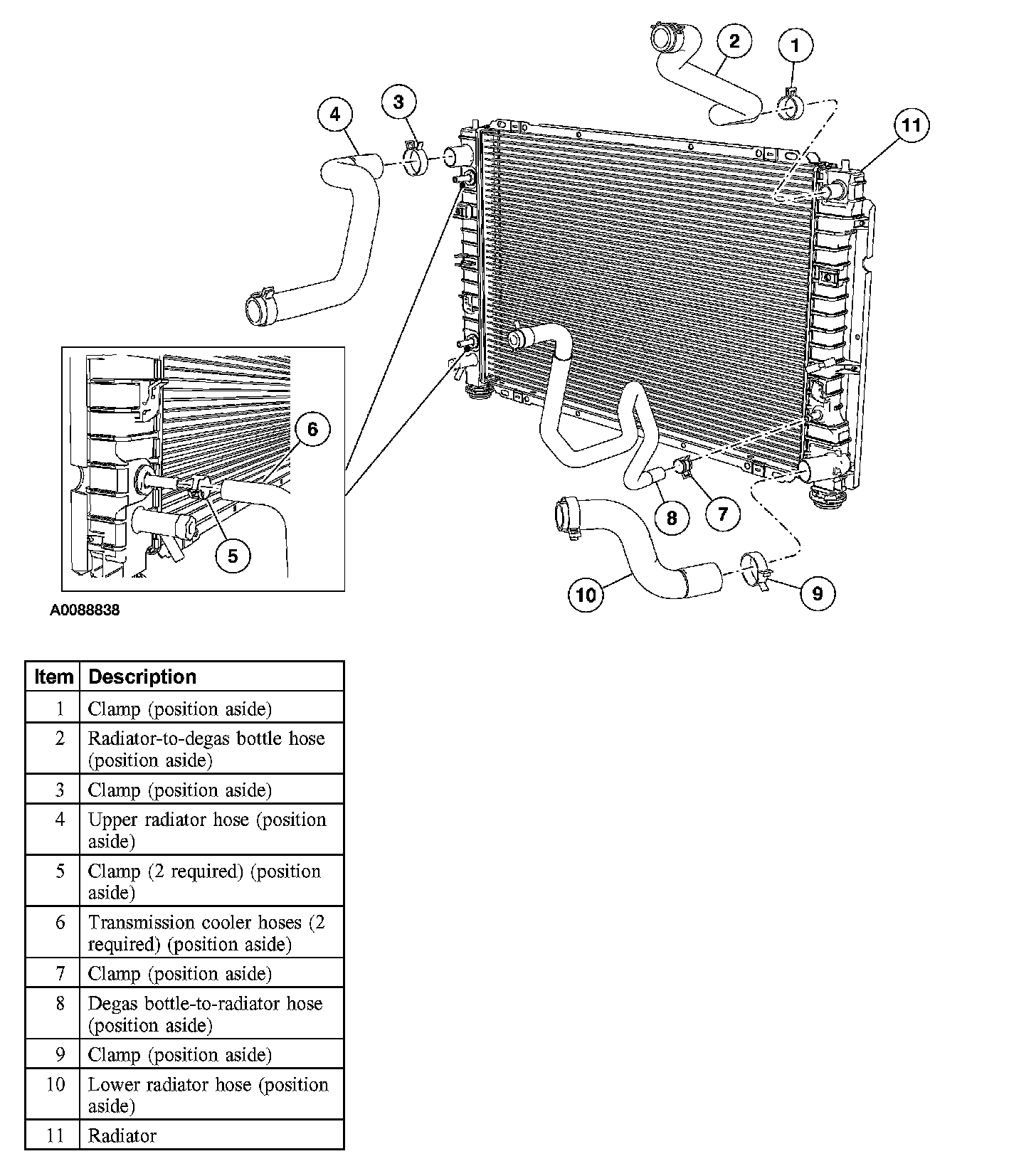

Radiator-2.3L





Removal and Installation
1. With vehicle in NEUTRAL, position it on a hoist.
2. Drain the cooling system.
3. Remove the cooling fan motor and shroud.
4. Disconnect the upper radiator-to-degas bottle hose from the radiator.
5. Disconnect the upper radiator hose from the radiator.
6. Disconnect the lower degas bottle-to-radiator hose from the radiator.
7. Disconnect the lower radiator hose from the radiator.
8. Disconnect the 2 transaxle cooling hoses from the radiator.
9. Remove the radiator.
10. To install, reverse the removal procedure.
11. Fill and bleed the cooling system.
