Oil Separator: Service and Repair

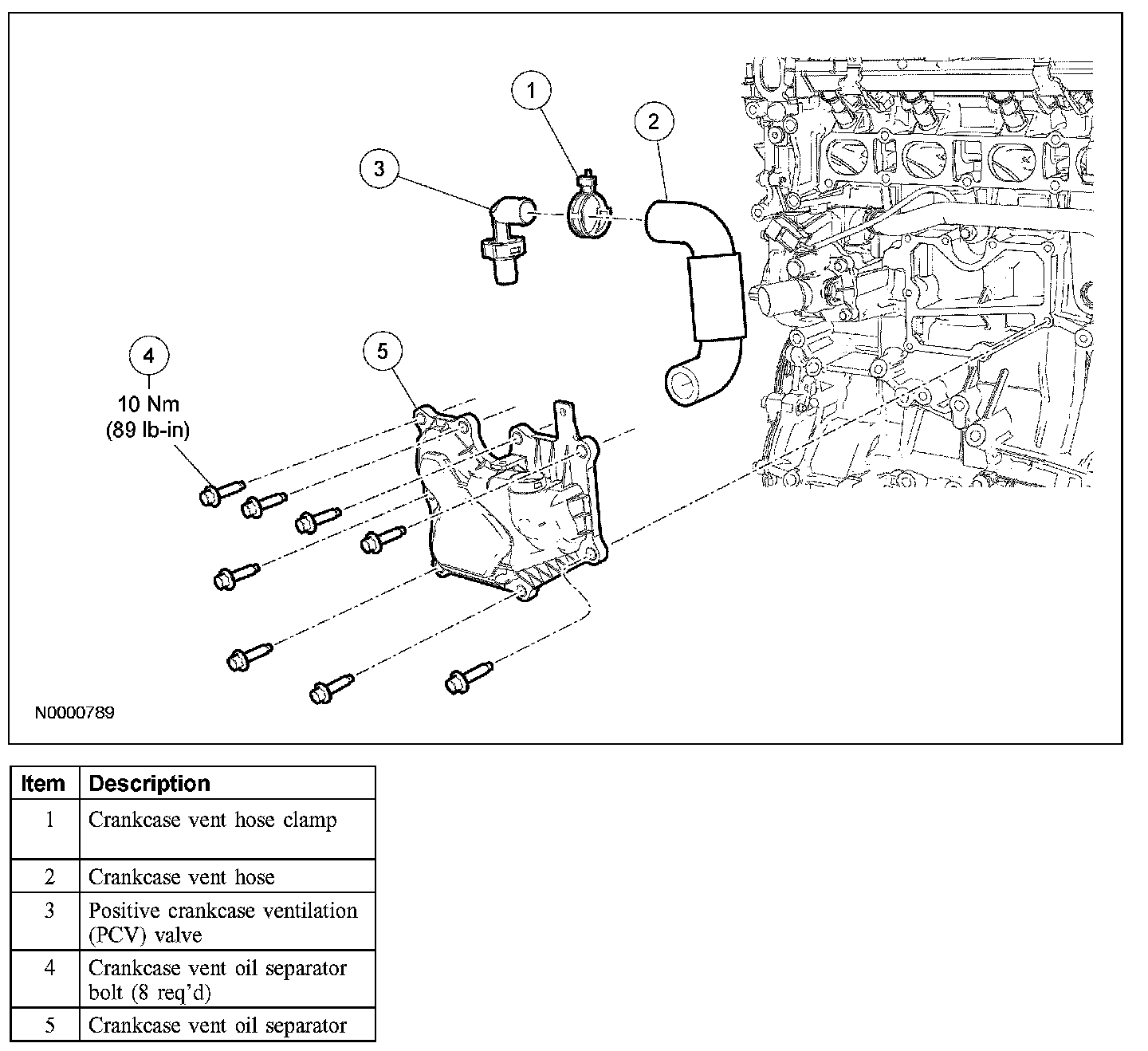

CRANKCASE VENT OIL SEPARATORExploded ViewRemoval and Installation 1.
With the vehicle in NEUTRAL, position it on a hoist.
2.
Remove the intake manifold.
3.
Remove the 8 bolts and the crankcase vent oil separator.
-
To install, tighten to
10 Nm (89 lb-in).
4.
To install, reverse the removal procedure.
-
Clean the engine block mating surface.
