Camshaft Bearing
Camshafts and bearing caps.

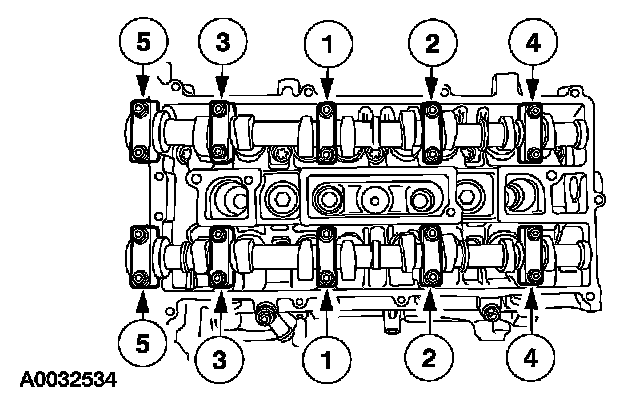

Tighten the bolts in the sequence shown in 3 stages:
Stage 1: Tighten the
camshaft bearing cap bolts one at a time until finger tight.
Stage 2: Tighten to
7 Nm (62 inch lbs.).
Stage 3: Tighten to
16 Nm (12 ft. lbs.).
