LH

Transaxle Support Insulator-LH





Special Tool(s)

Removal and Installation

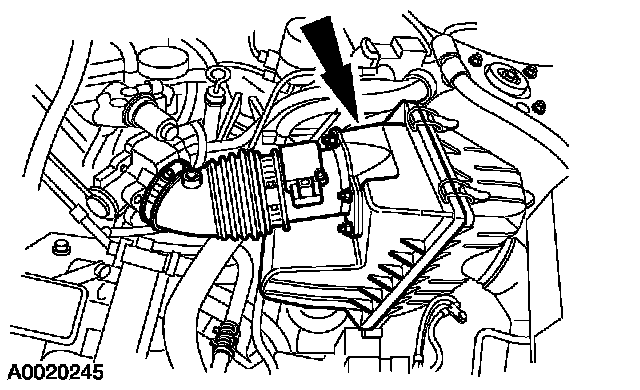

1. Disconnect the breather tube and Mass Air Flow (MAF) sensor.





2. Remove the intake tube and air cleaner cover.





3. Remove the air cleaner as an assembly.





4. Install the special tools.





5. Install the special tools.





6. Remove the upper transaxle mount through bolt.
^ To install, tighten to 103 Nm (76 ft. lbs.).





7. Remove the 4 upper transaxle mount bolts and remove the mount.
^ To install, tighten to 55 Nm (41 ft. lbs.).
8. To install, reverse the removal procedure.
