Lower, Front

Transaxle Support Insulator-Lower, Front





Removal
1. With the vehicle in NEUTRAL, position it on a hoist.

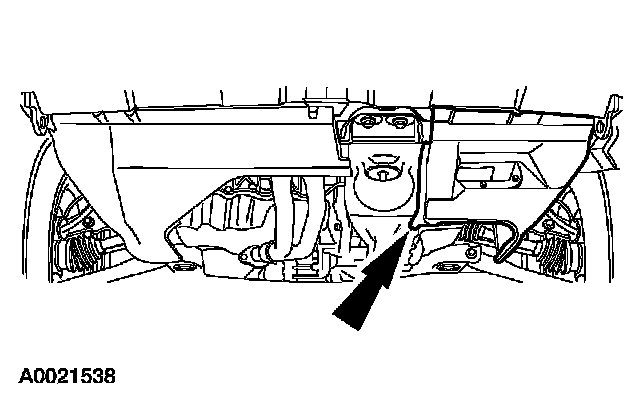

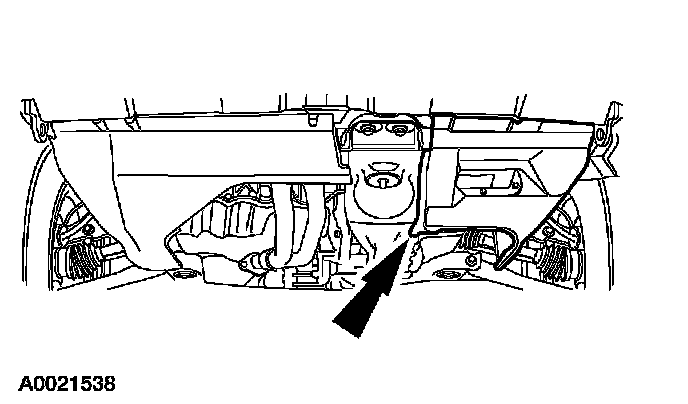

2. Remove the LH splash shield.

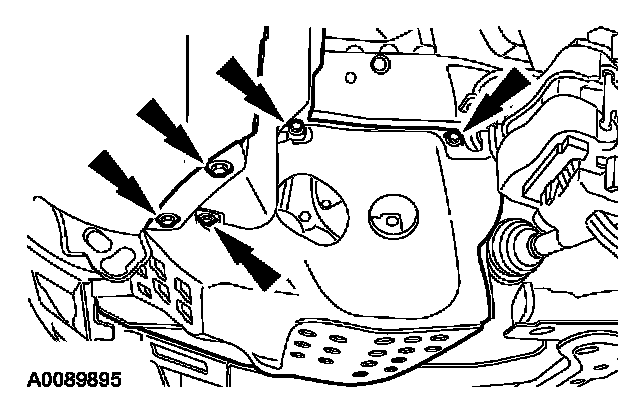

3. Remove the 7 retainers and the LH splash shield.

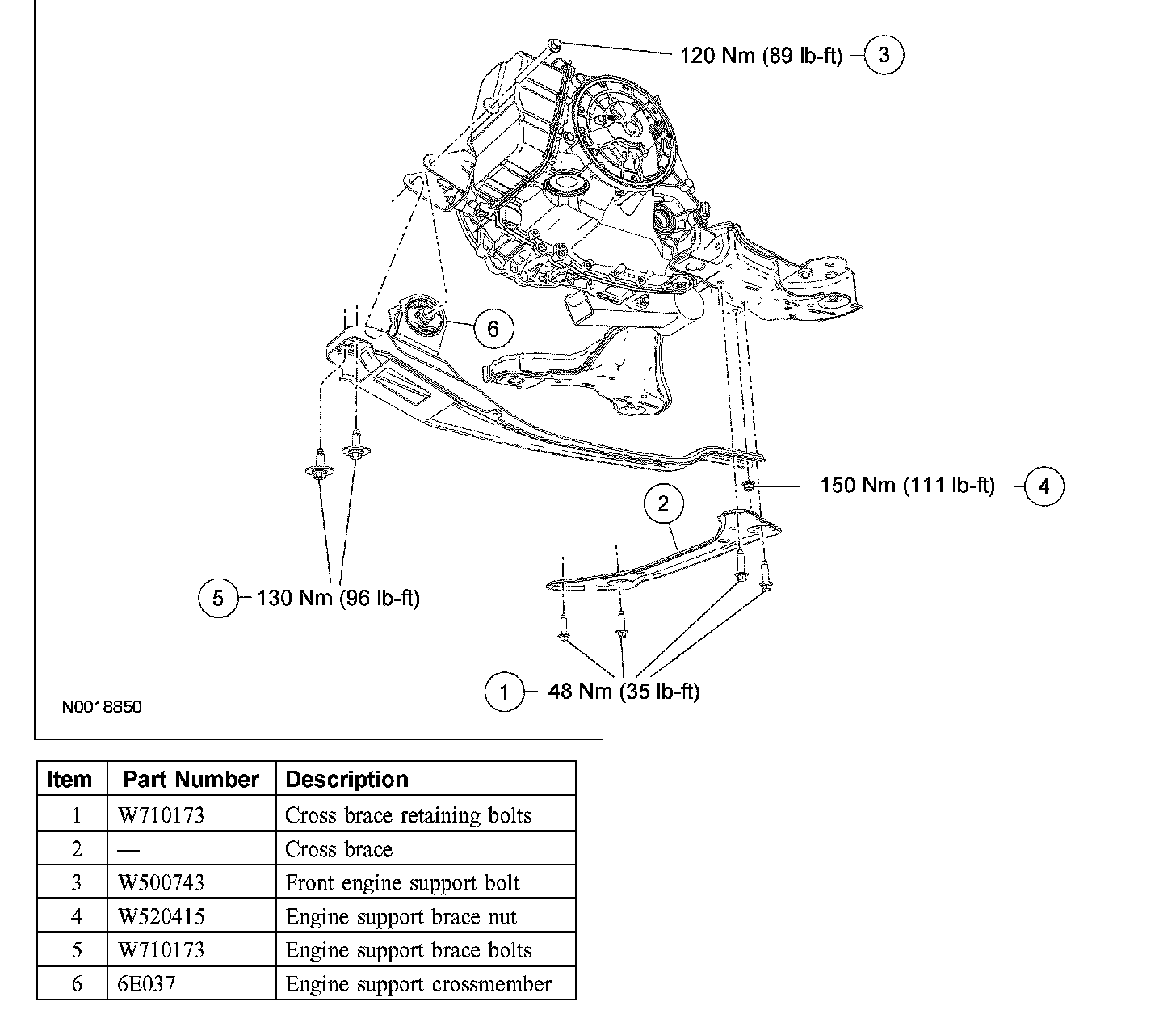

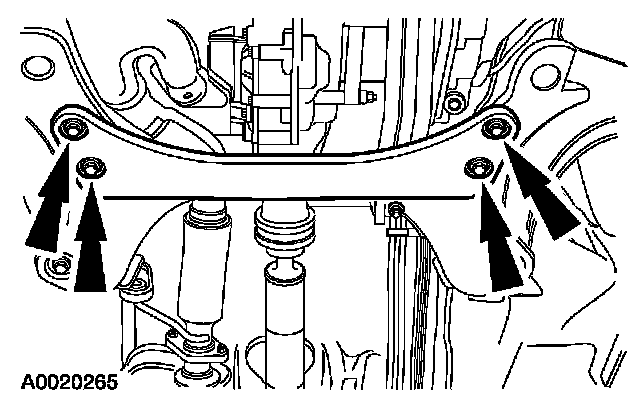

4. Remove the 4 bolts and the cross brace.

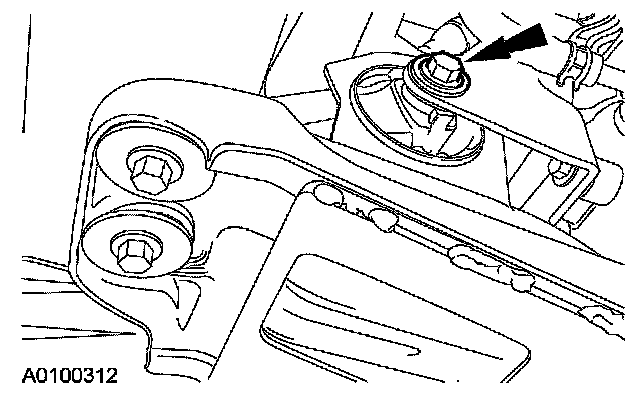

5. Remove the bolt for the mount and the 2 bolts for the brace.





6. Remove the rear bolt and remove the brace.

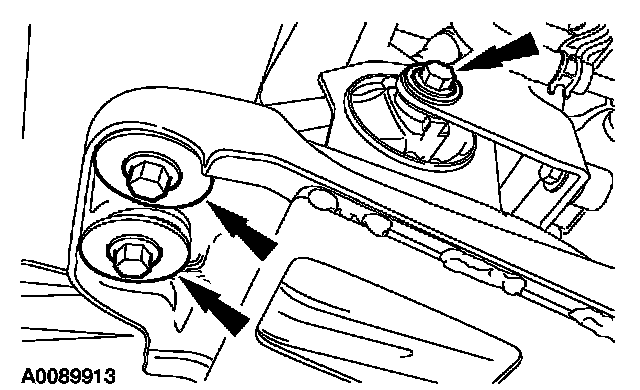

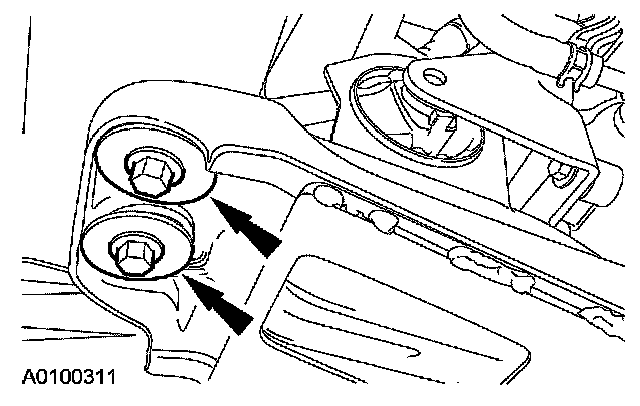

7. Remove the 2 bolts from the mount and remove the mount.

Installation
1. Install a new mount onto the brace and install the bolts.
^ Tighten to 40 Nm (30 ft. lbs.).





2. Position the brace in place and install the nut.
^ Tighten to 150 Nm (111 ft. lbs.).





3. Install the 2 bolts for the brace.
^ Tighten to 90 Nm (66 ft. lbs.).





4. Install the bolt for the mount.
^ Tighten to 115 Nm (85 ft. lbs.).

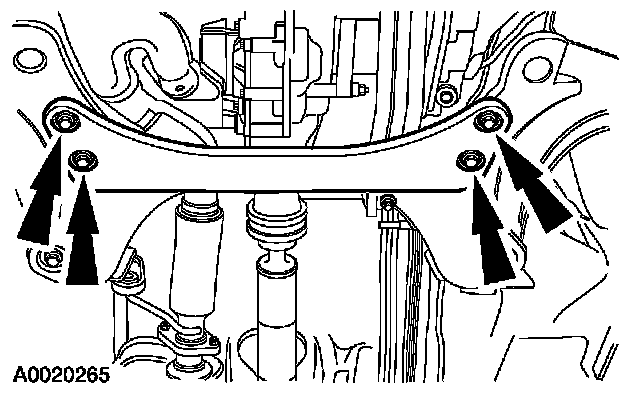

5. Install the cross brace and the 4 bolts.
^ Tighten to 48 Nm (35 ft. lbs.).





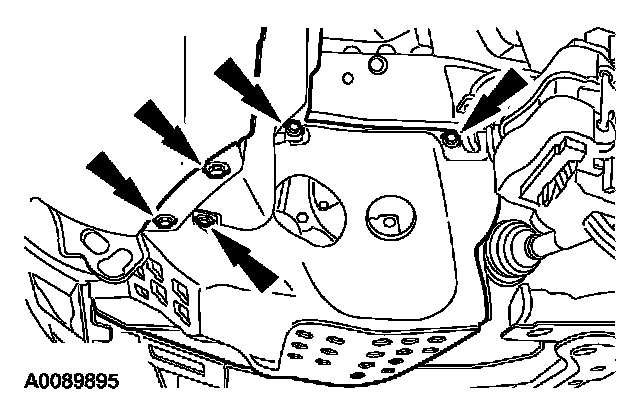

6. Install the LH splash shield and the 7 retainers.
^ Tighten to 10 Nm (89 inch lbs.).





7. Install the LH splash shield.
