Driver Side/Center/Passenger Side Registers

DRIVER SIDE AND CENTER REGISTERS

Removal and Installation
1. Remove the instrument cluster finish panel.

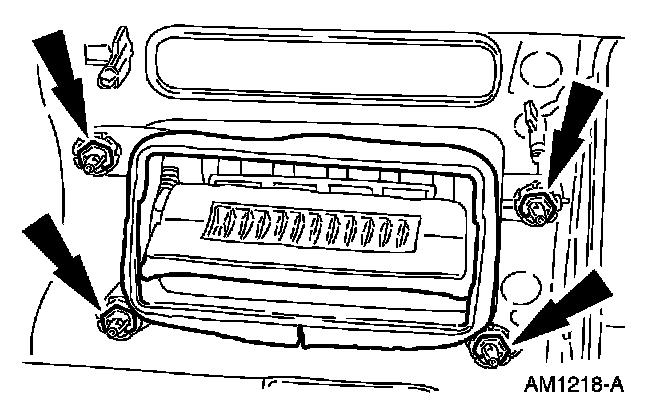

2. Remove the screws and remove the A/C register.
3. To install, reverse the removal procedure.

PASSENGER SIDE REGISTER

Removal and Installation
1. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation

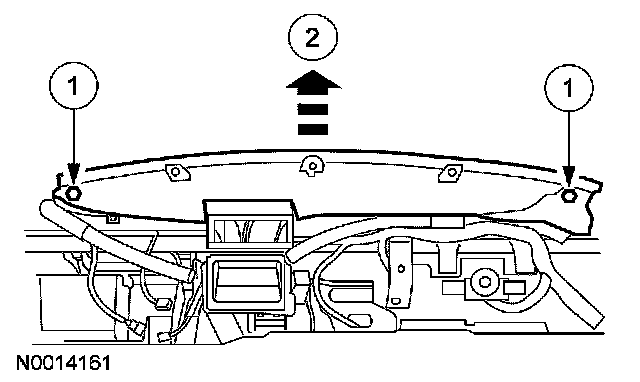

2. Remove the defroster duct.
1 Remove the two screws.
2 Remove the defroster duct.

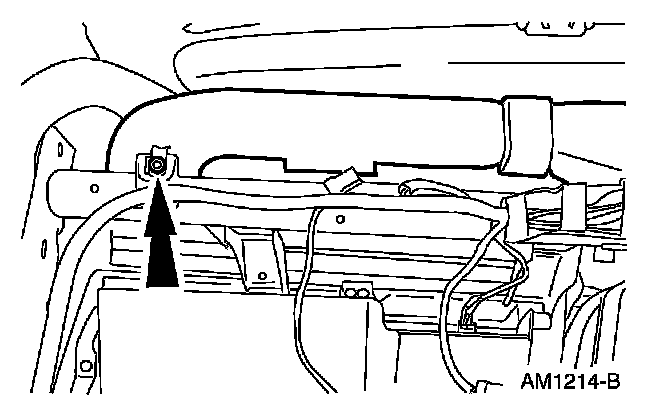

3. Remove the screws and the RH panel duct.

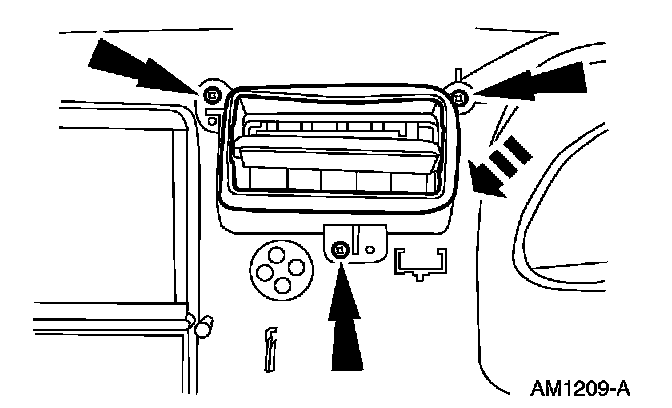

4. Remove the nuts and the RH demister.

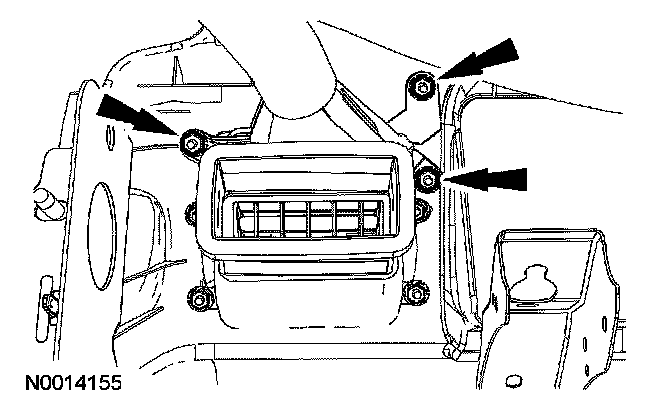

5. Remove the nuts and the passenger side register.
6. To install, reverse the removal procedure.
