Test P: No Medium Speed Controller Area Network (CAN) Communication

PINPOINT TEST P: NO MEDIUM SPEED CONTROLLER AREA NETWORK (CAN) COMMUNICATION

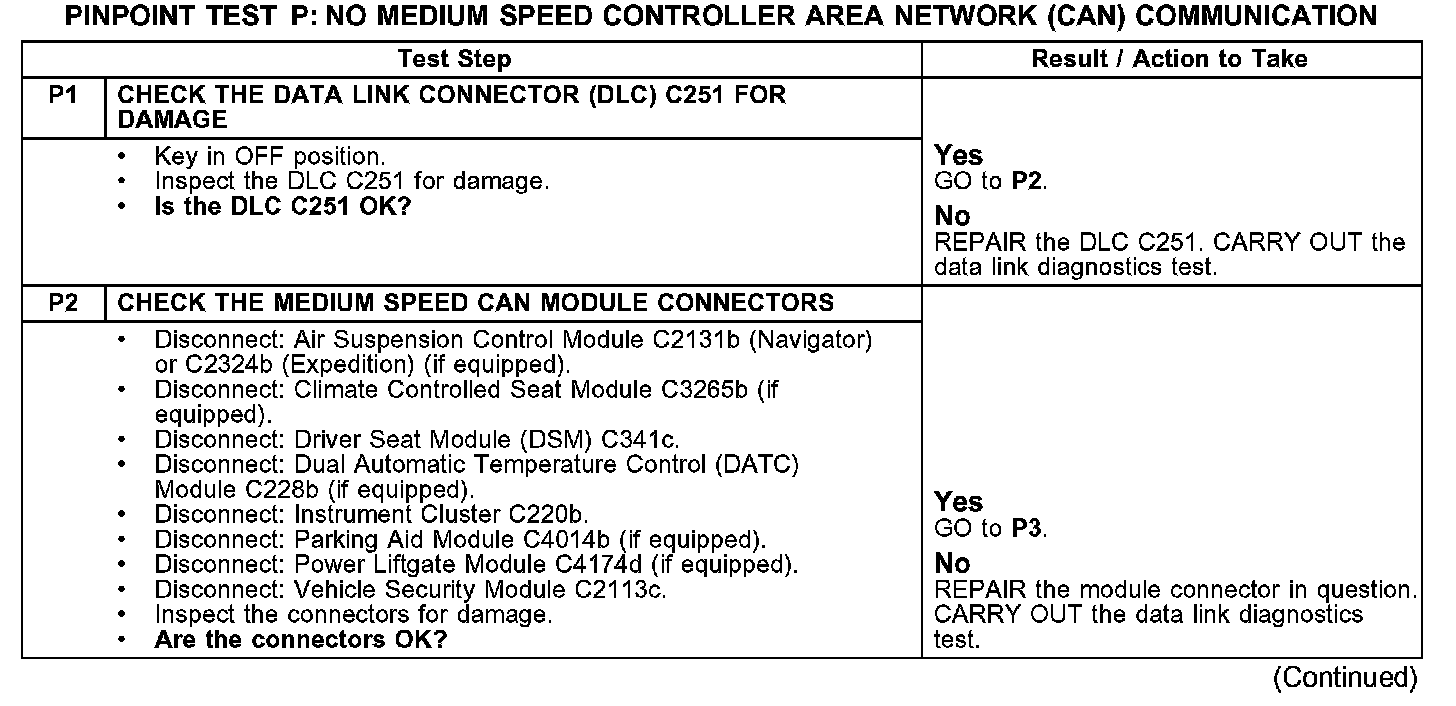

P1-P2:

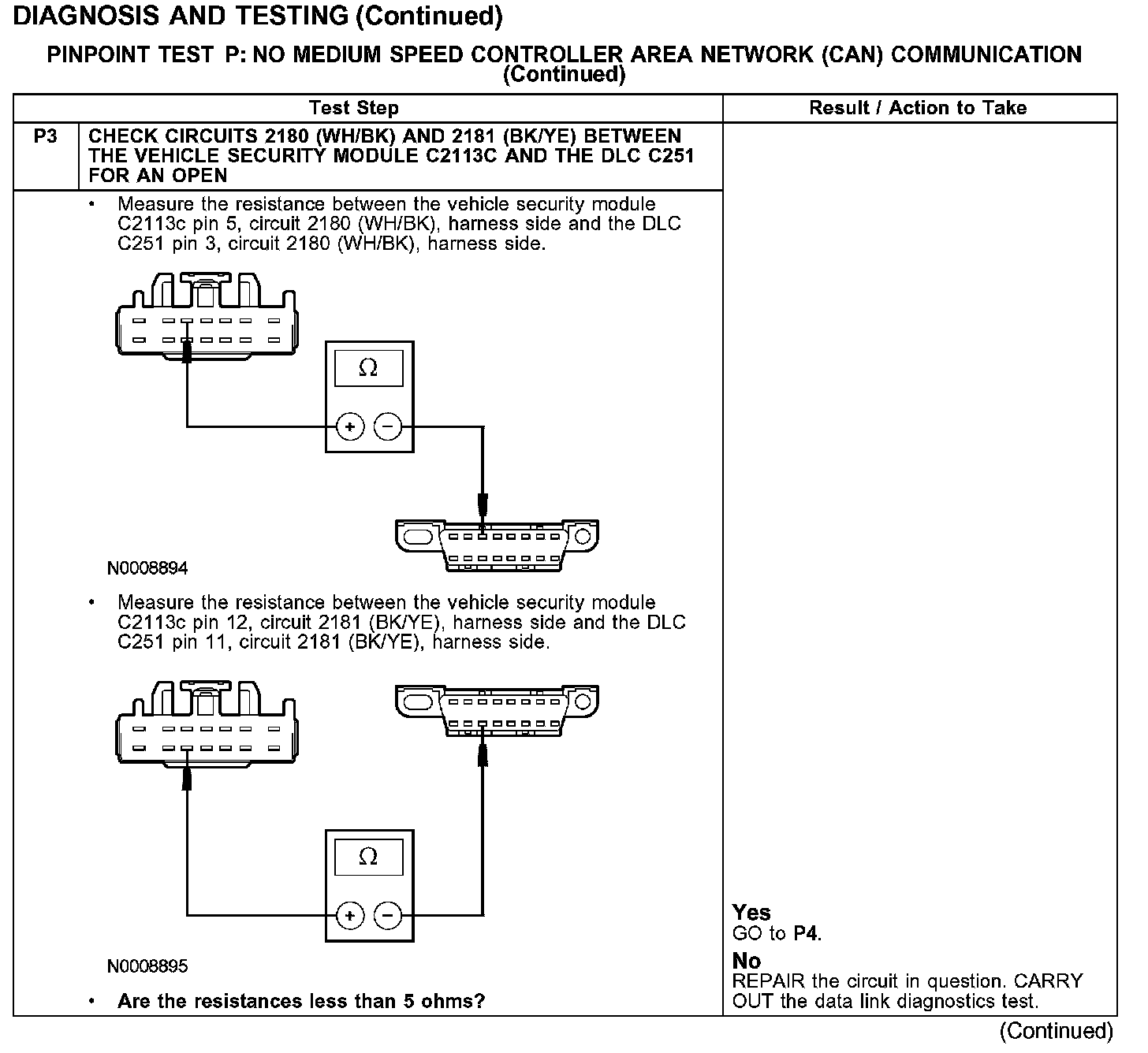

P3:

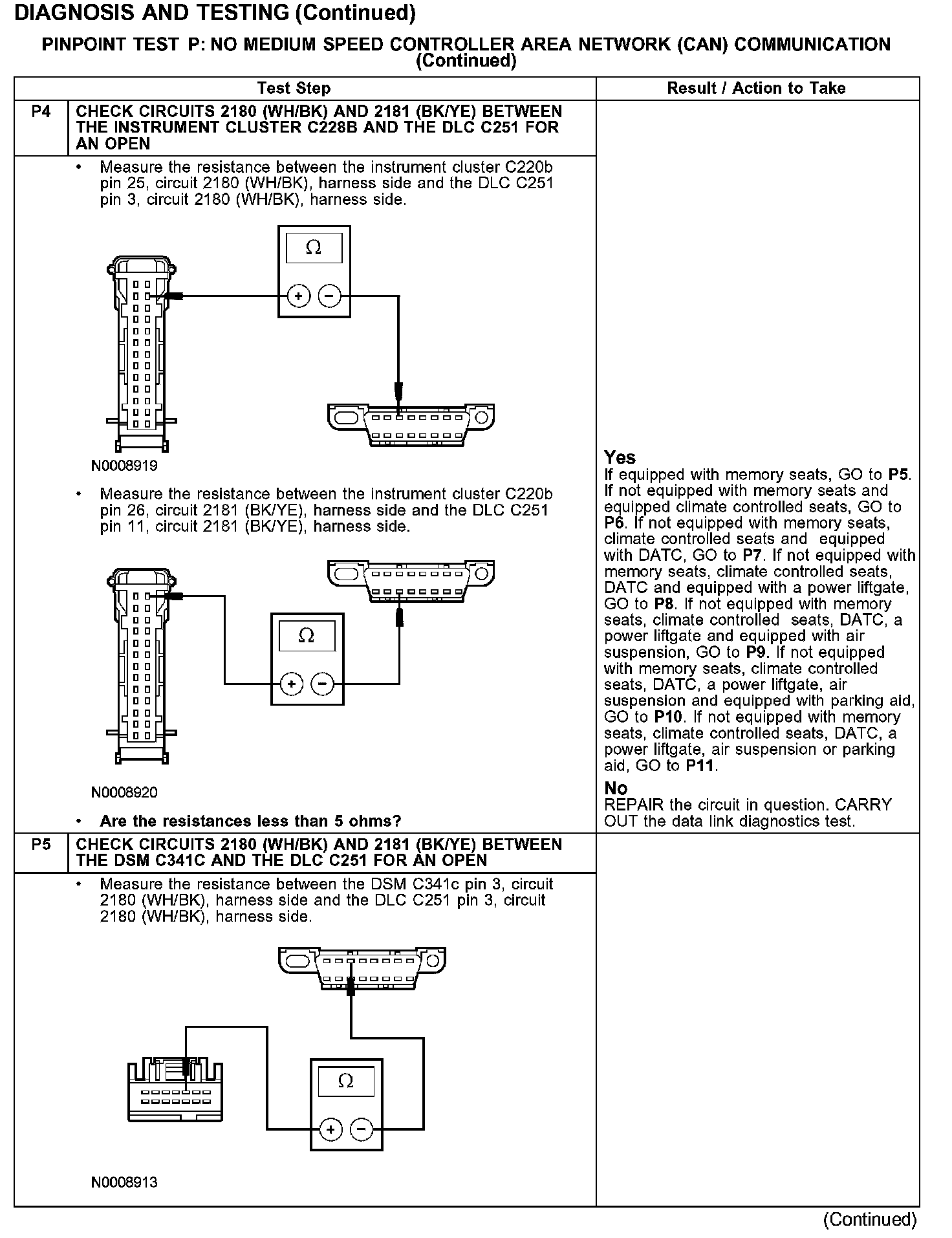

P4-P5:

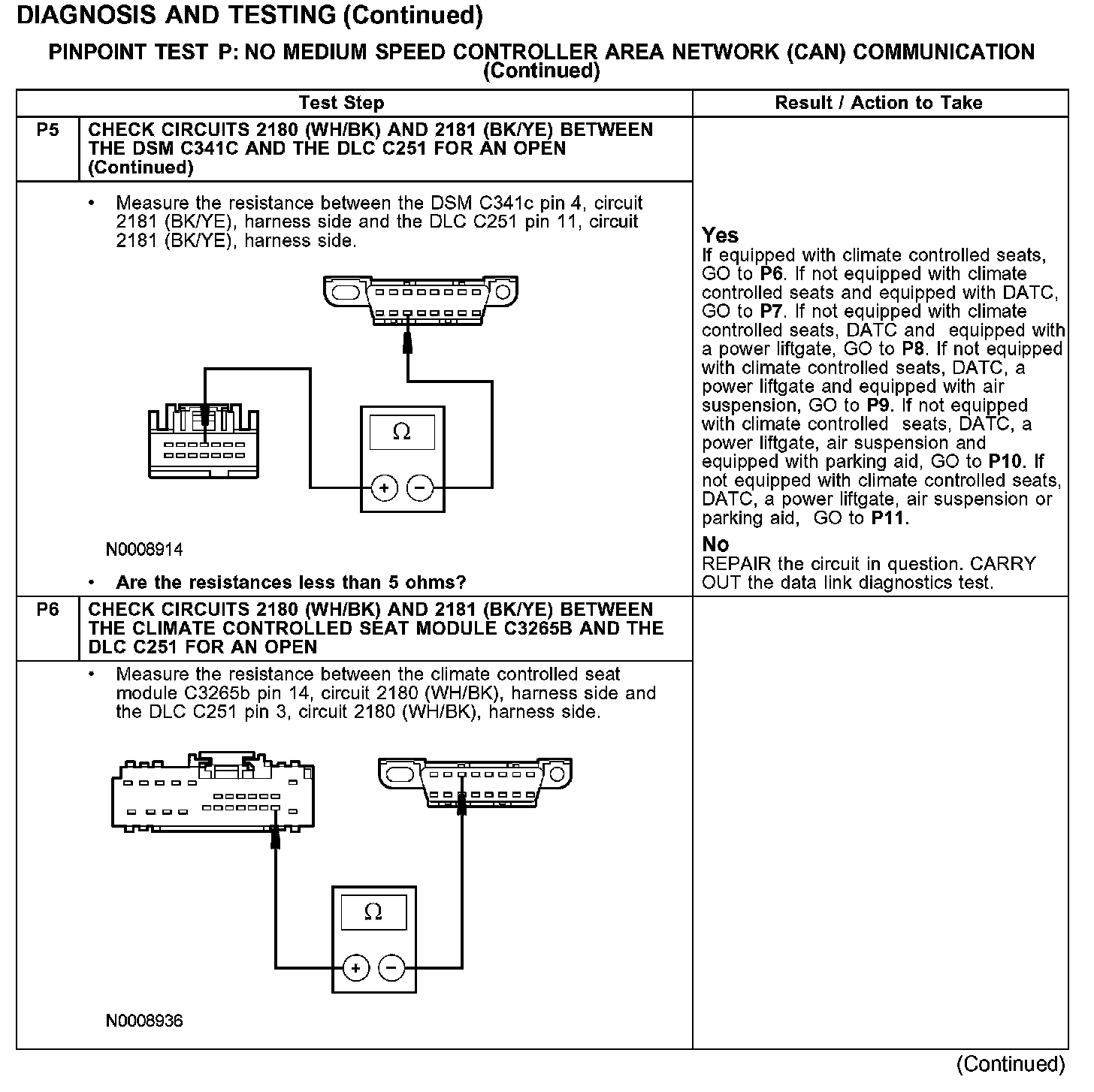

P5-P6:

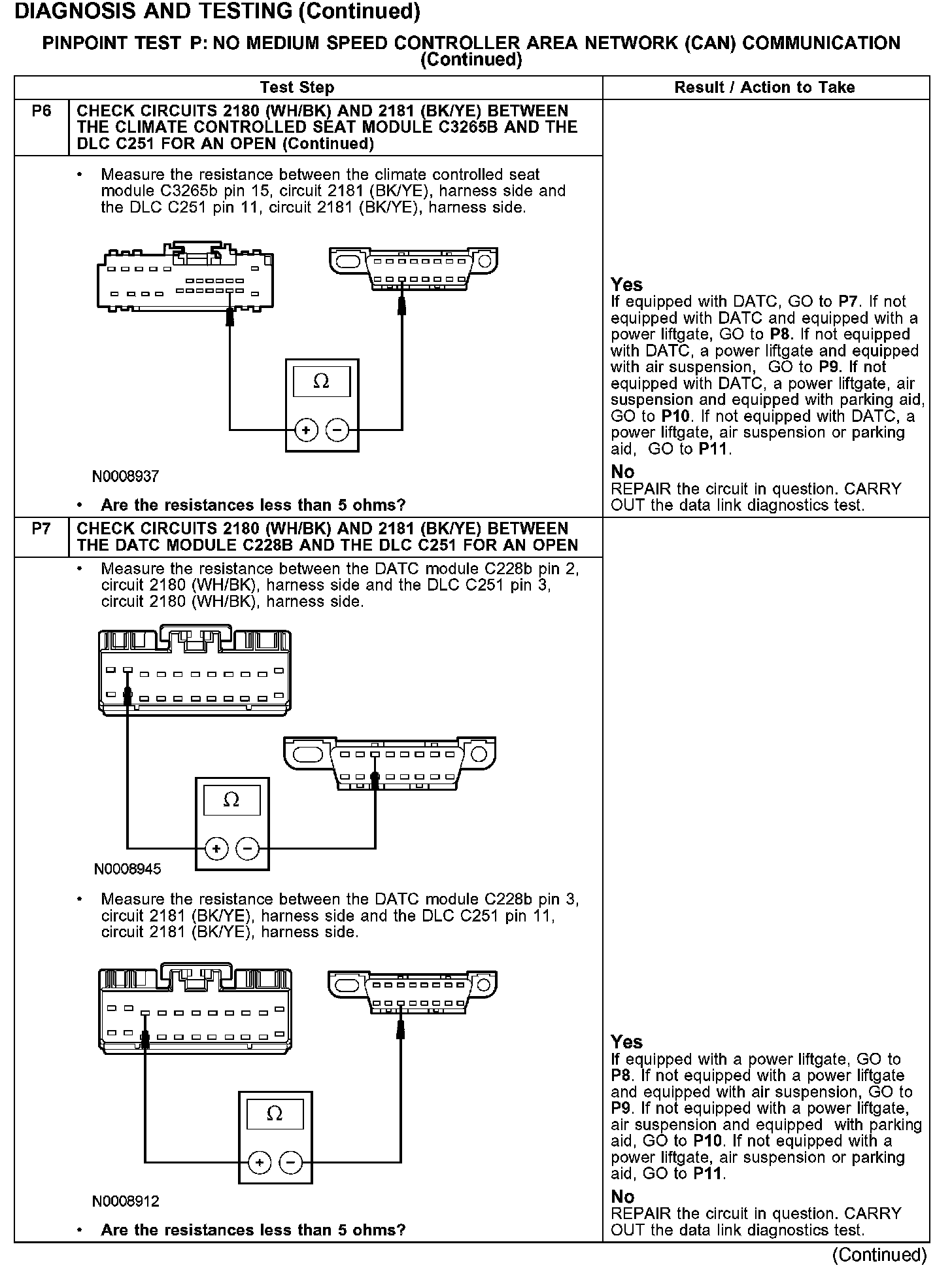

P6-P7:

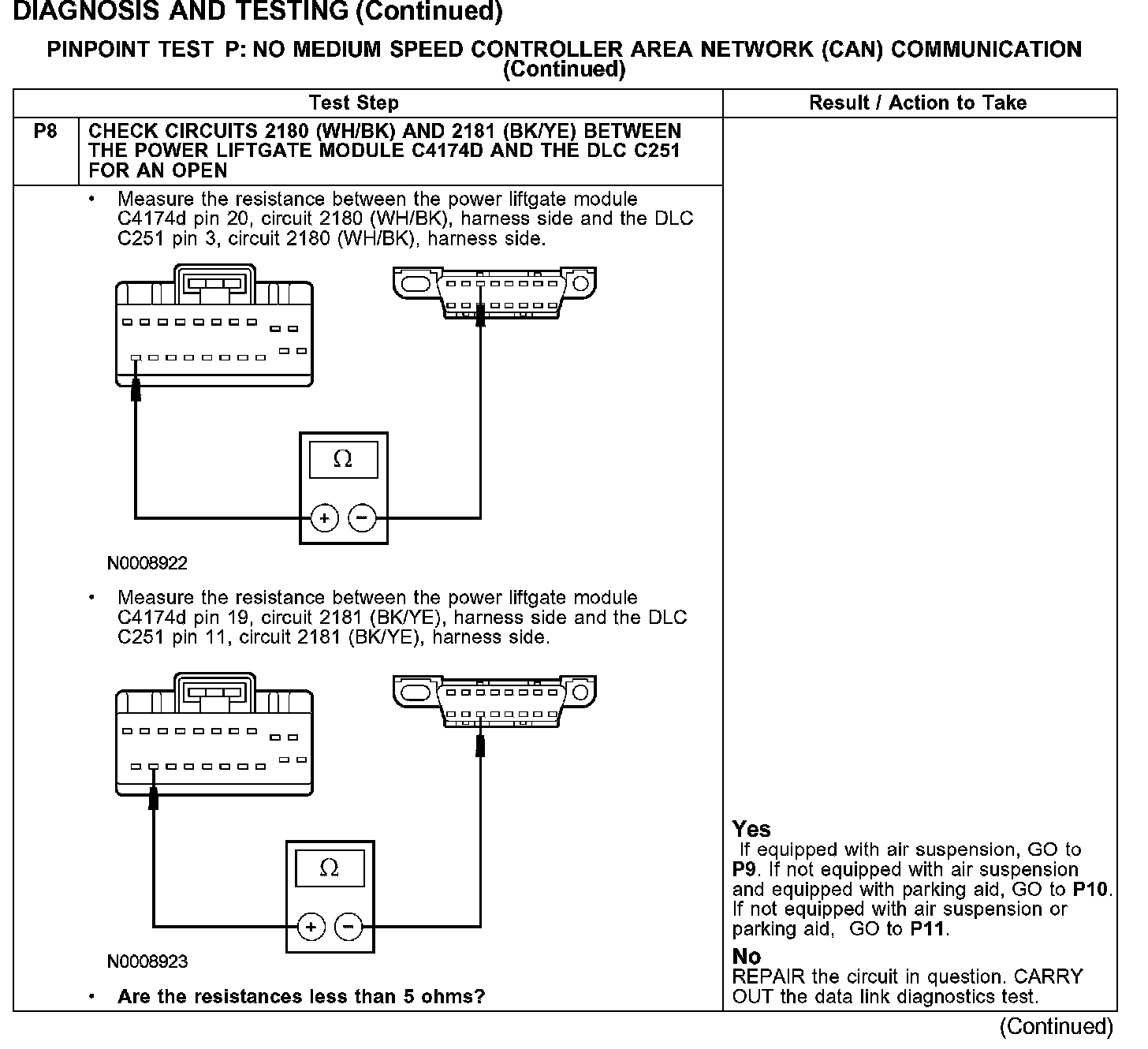

P8:

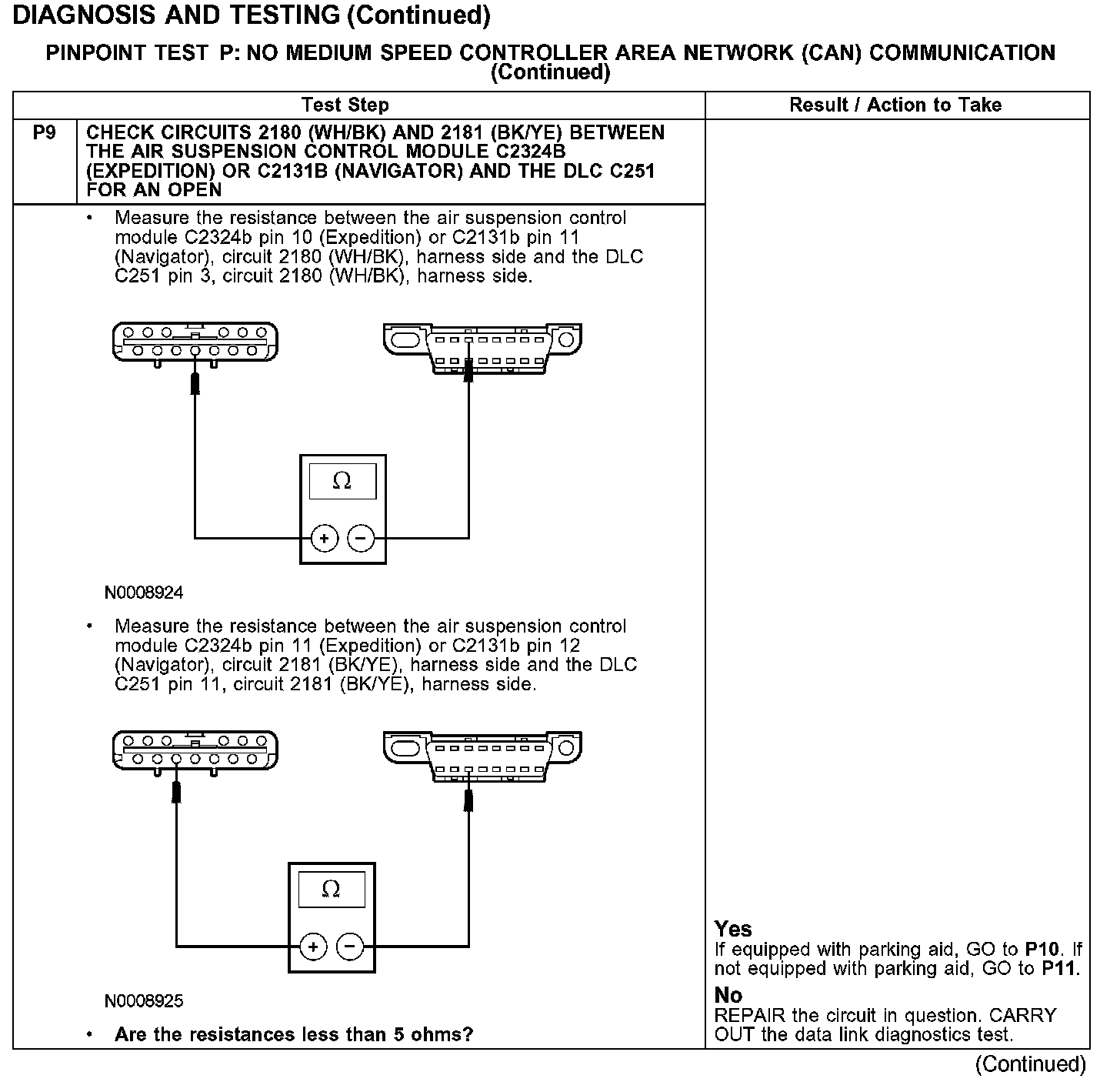

P9:

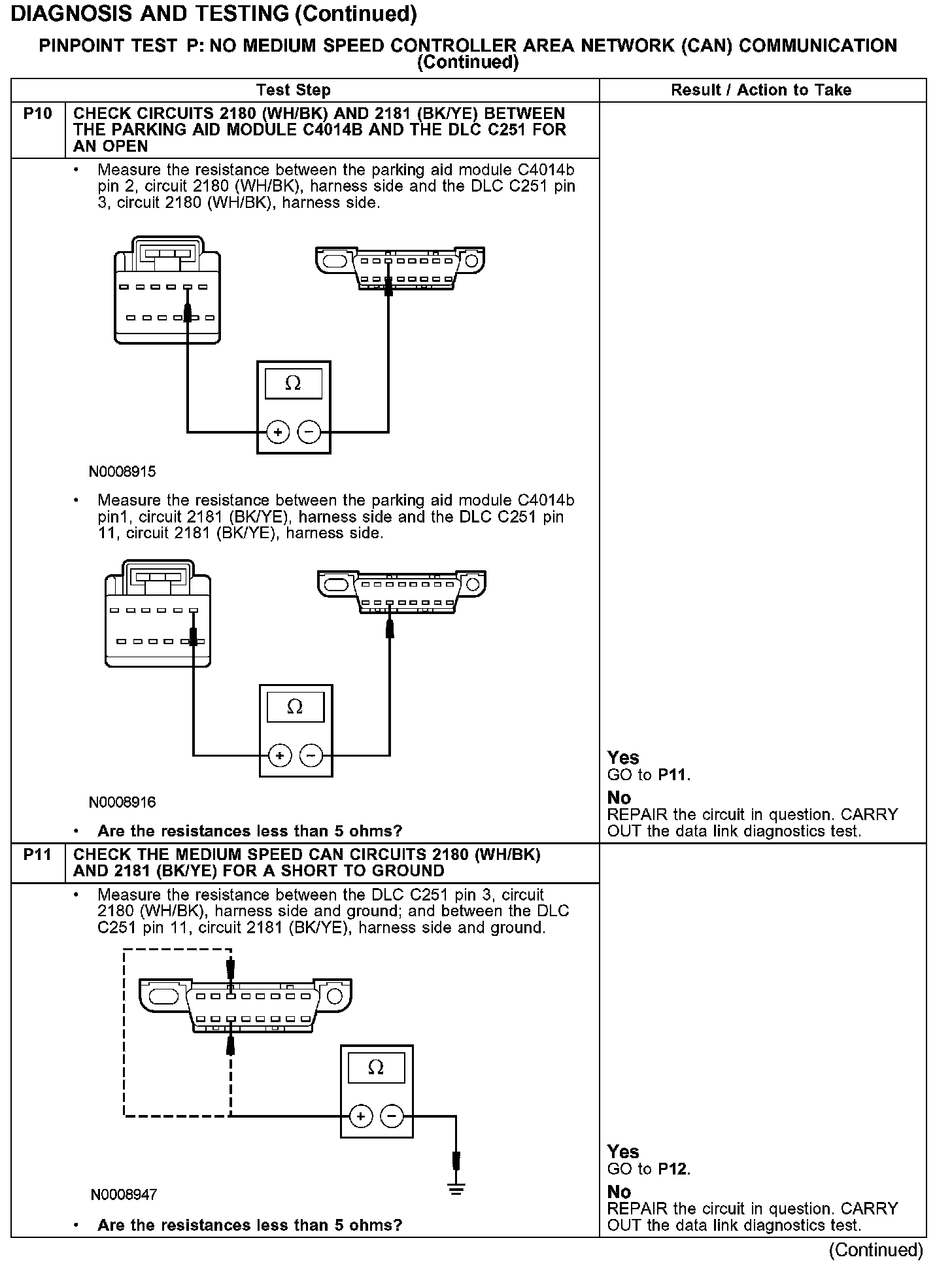

P10-P11:

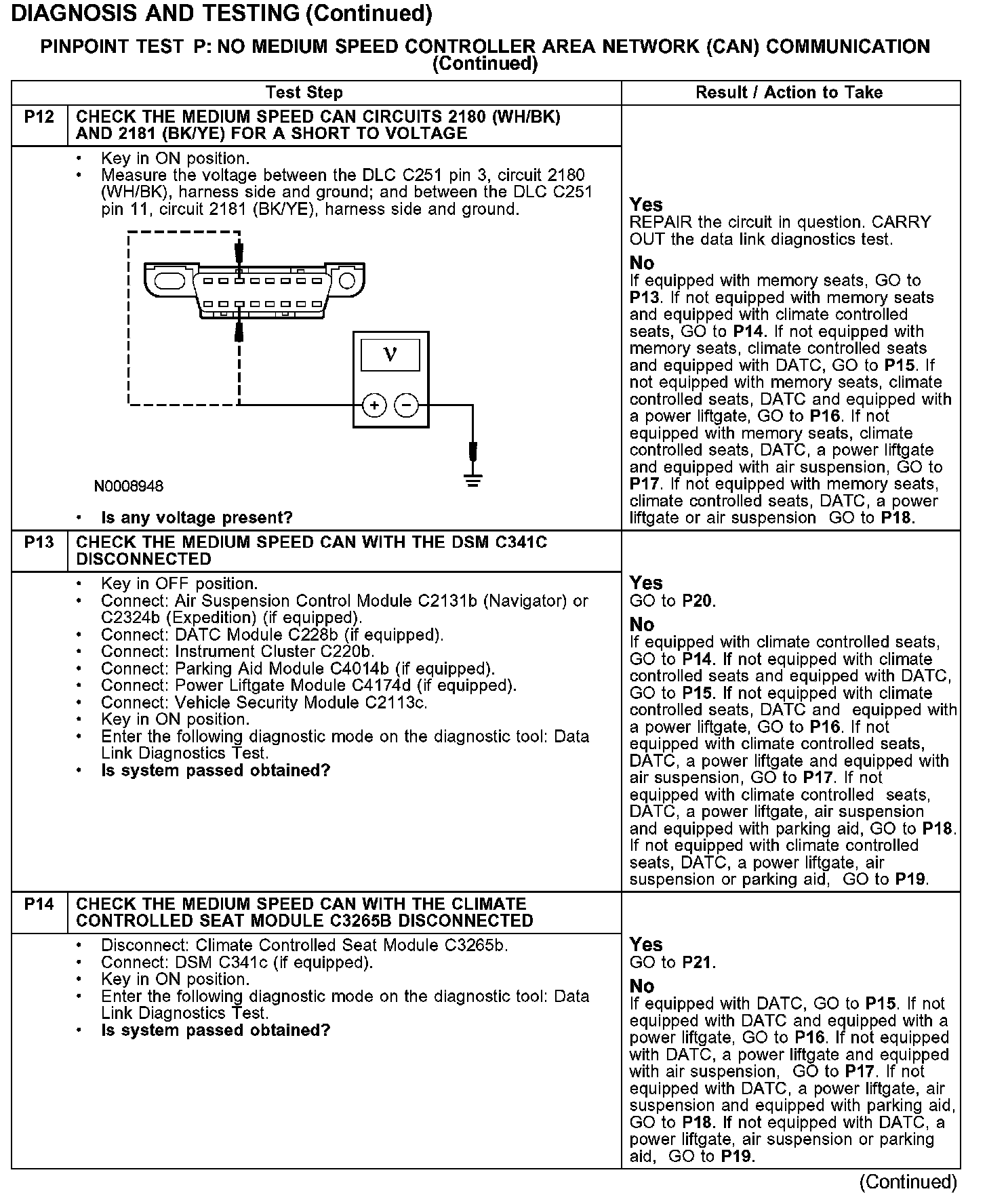

P12-P14:

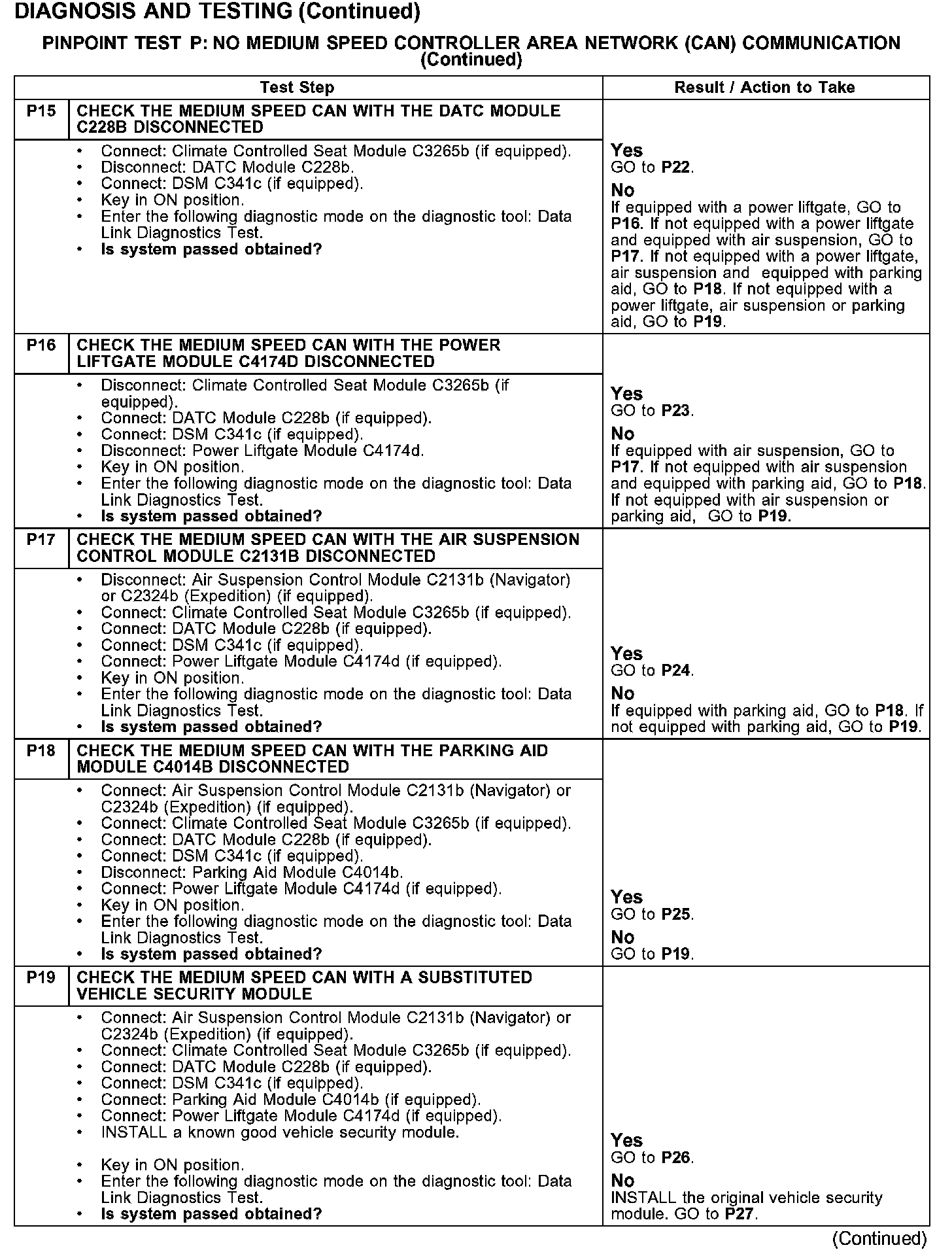

P15-P19:

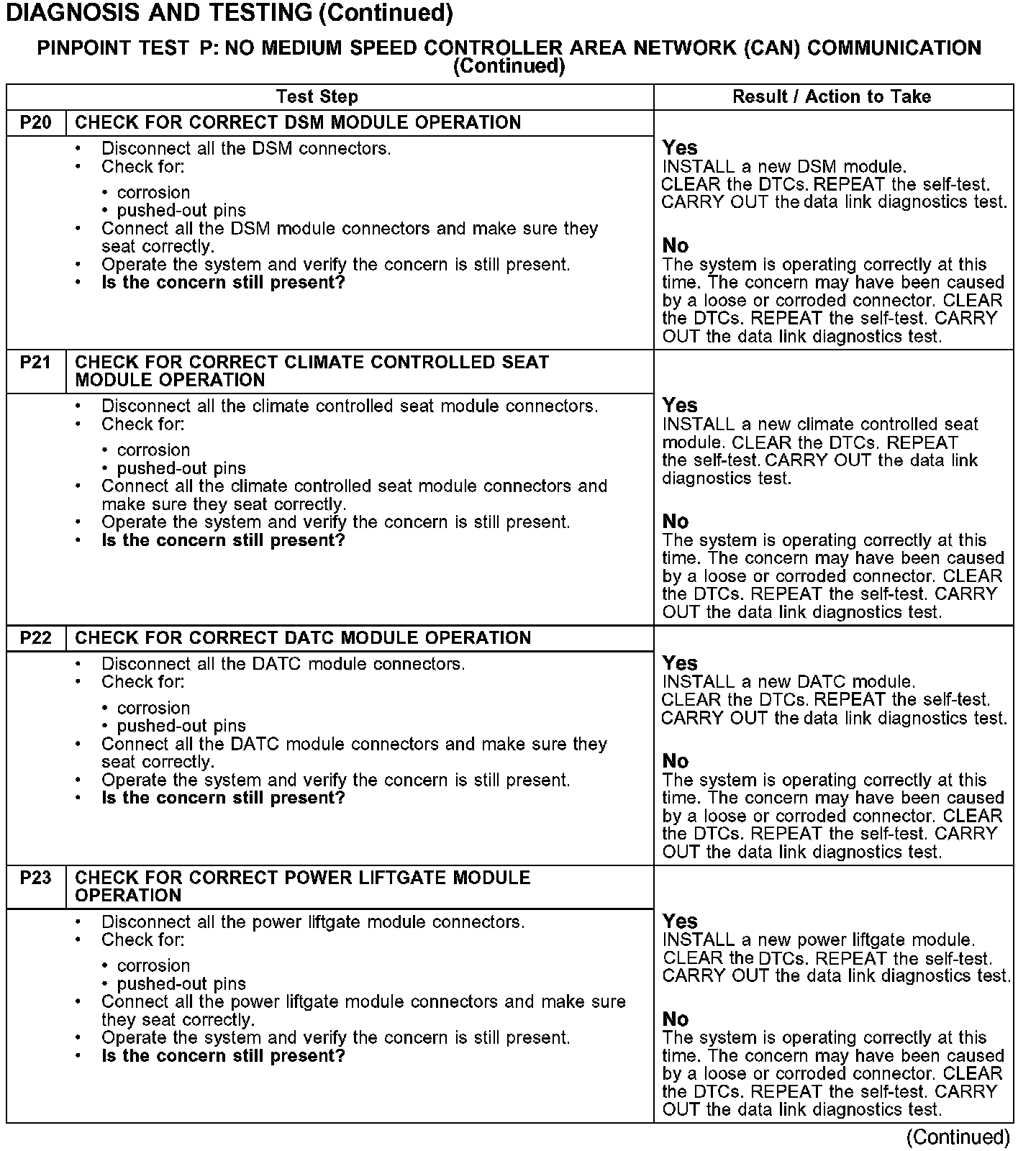

P20-P23:

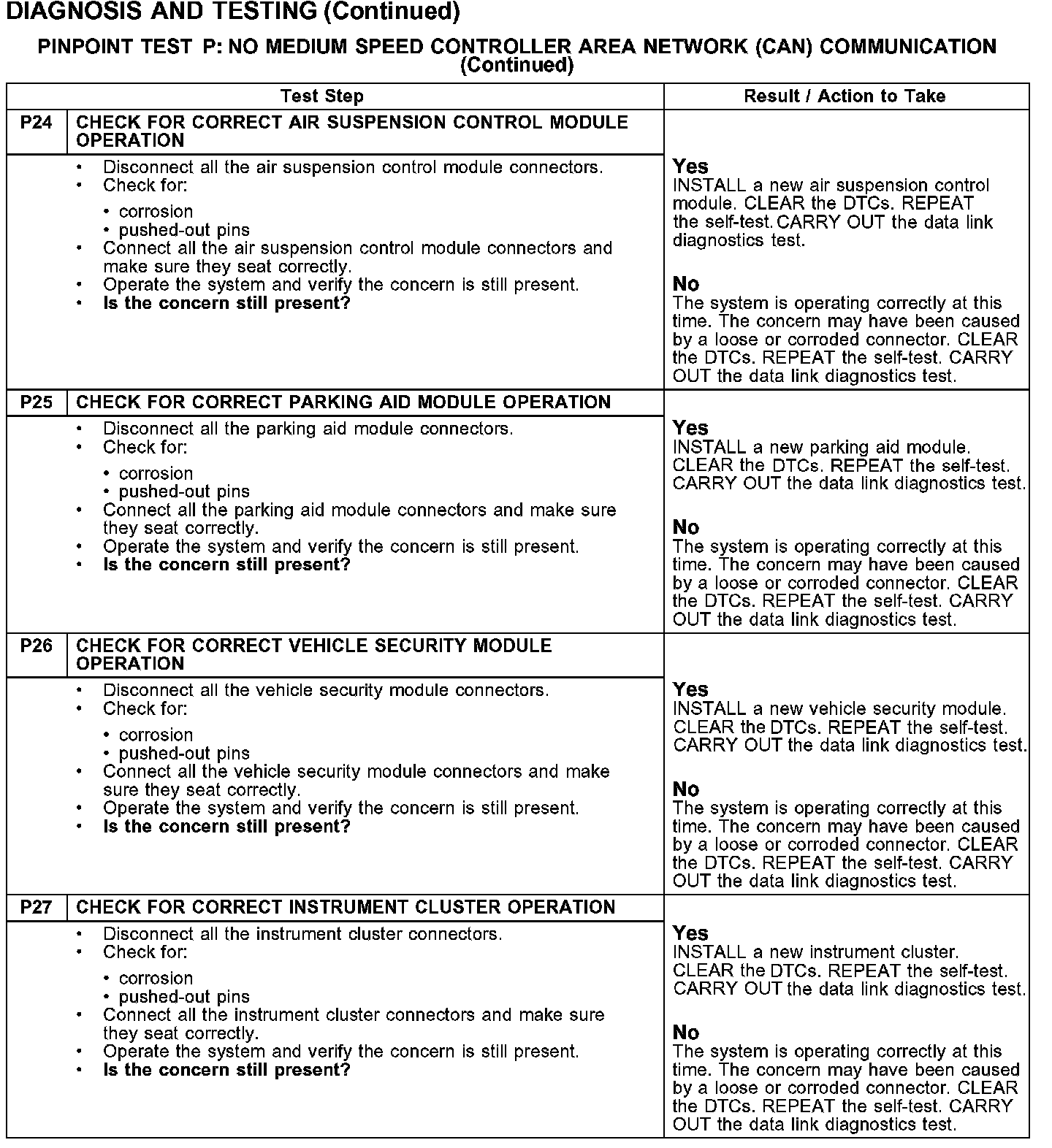

P24-P27:
