Test G: Panic Feature Is Inoperative/Does Not Operate Correctly

PINPOINT TEST G: PANIC FEATURE IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

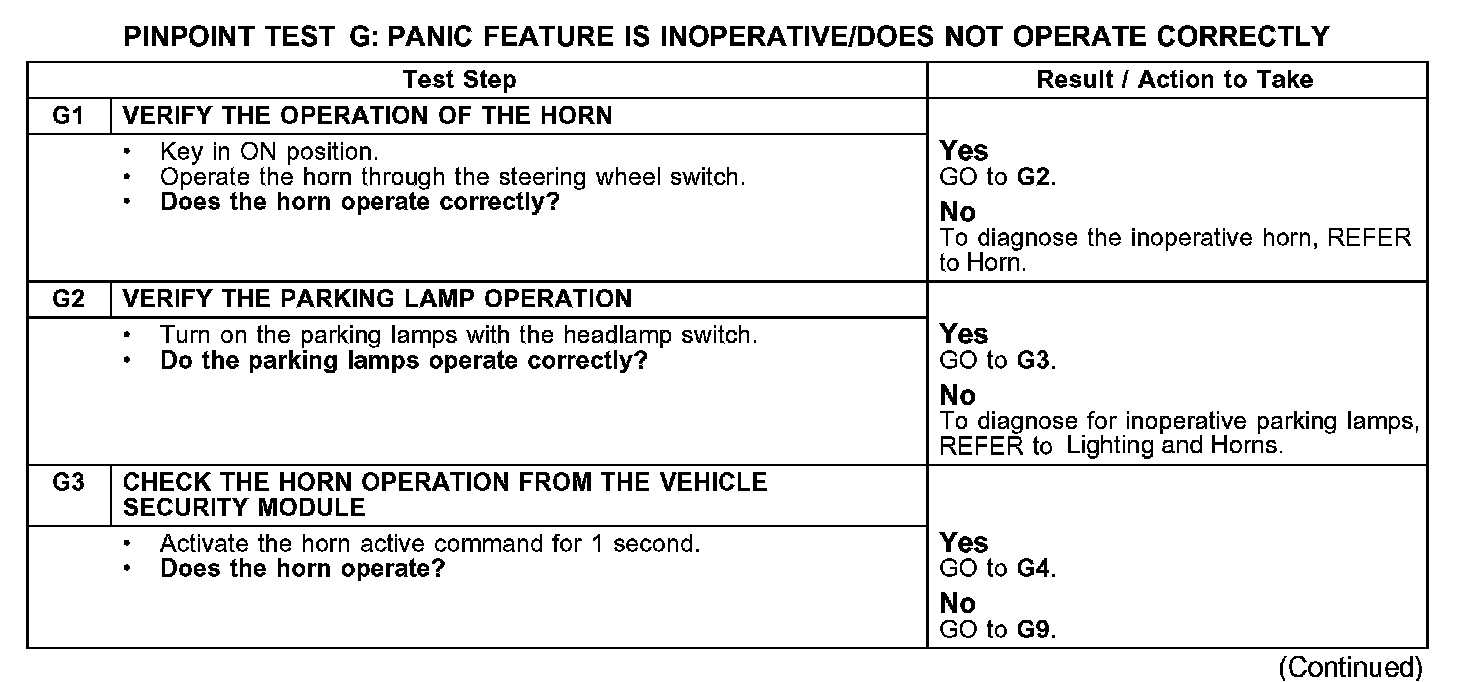

G1-G3:

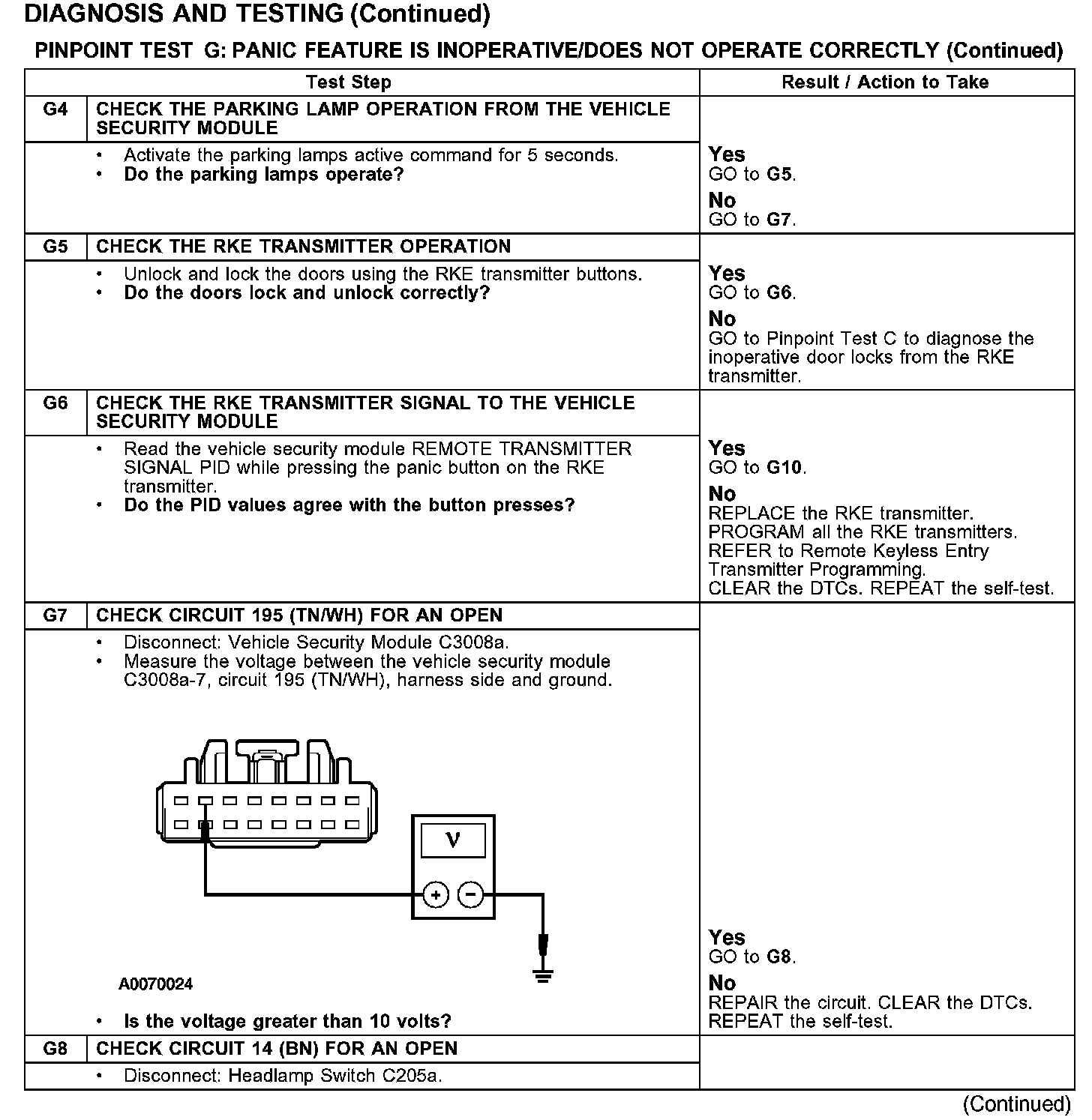

G4-G8:

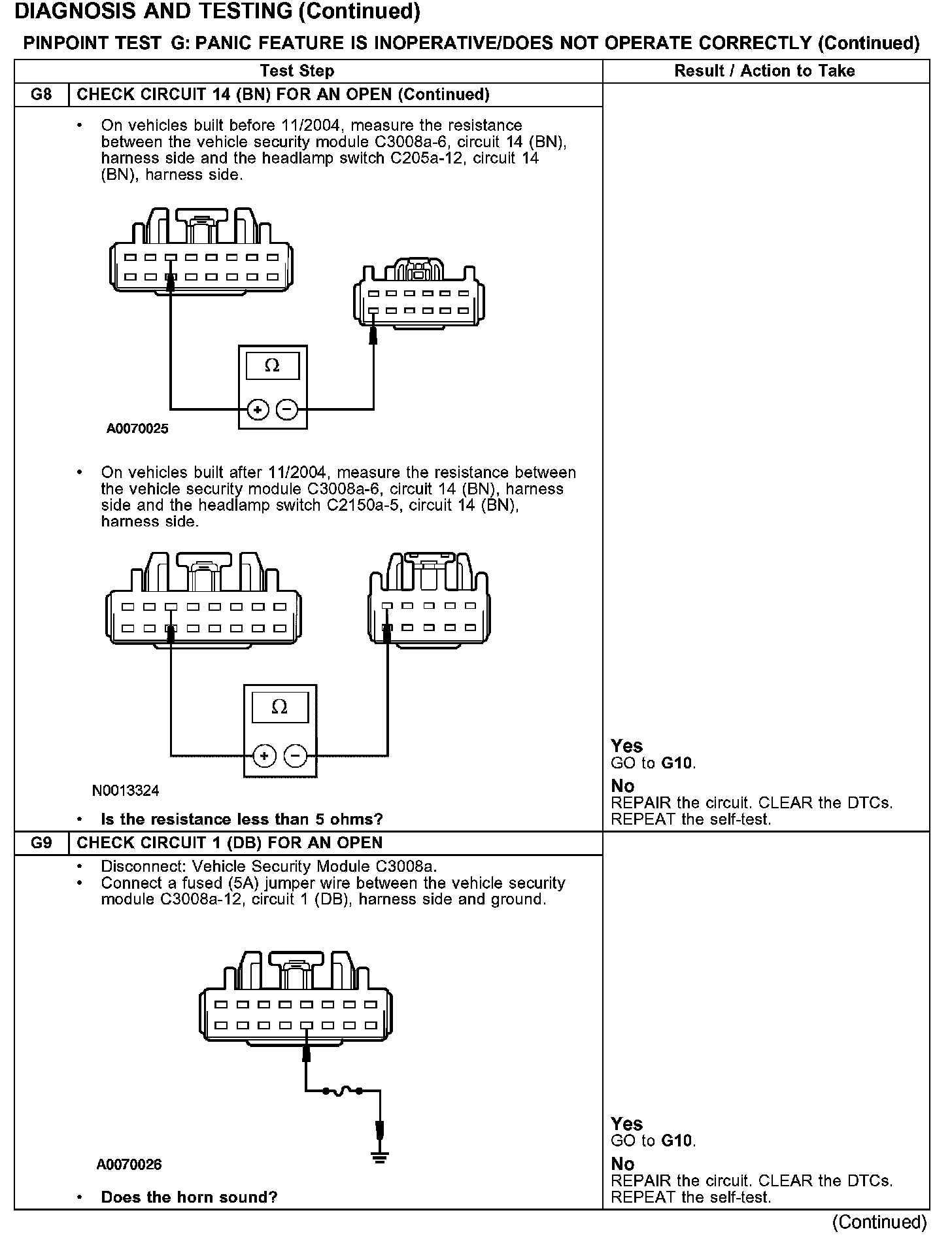

G8-G9:

G10:

Normal Operation
Once the panic feature is activated, the vehicle security module supplies ground to circuit 1 (DB), energizing the horn relay which supplies voltage to circuit 6 (YE/LG). This activates the horn and circuit 14 (BN) to activate the parking lamps.

Possible Causes
- circuit 1 (DB) open
- circuit 14 (BN) open
- circuit 195 (TN/WH) open
- remote keyless entry (RKE) transmitter
- vehicle security module
