System Specifications

Crankshaft Pulley

Using the special tool to hold the crankshaft pulley, tighten the bolt in 4 stages:
Stage 1 90 Nm (66 ft. lbs.)
Stage 2 Loosen the bolt one full turn.
Stage 3 50 Nm (37 ft. lbs.)
Stage 4 Tighten the bolt an additional 90 degrees without exceeding 200 Nm (148 ft. lbs.)

Engine Front Cover

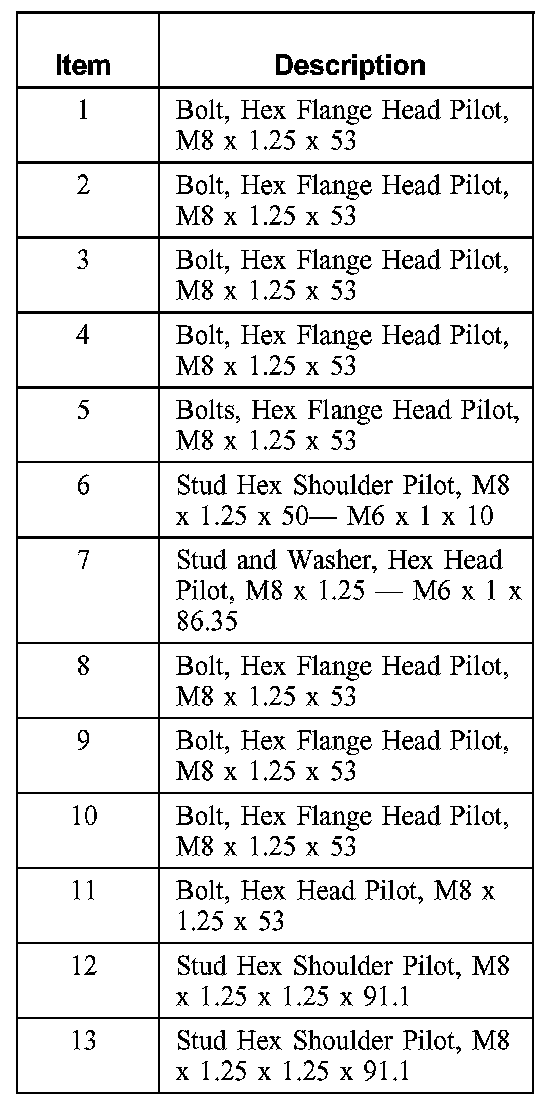

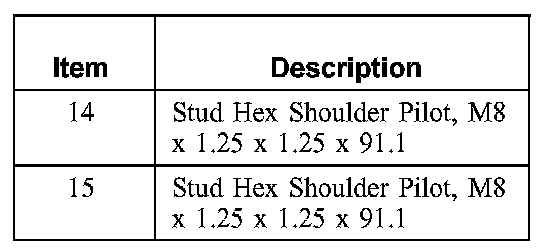

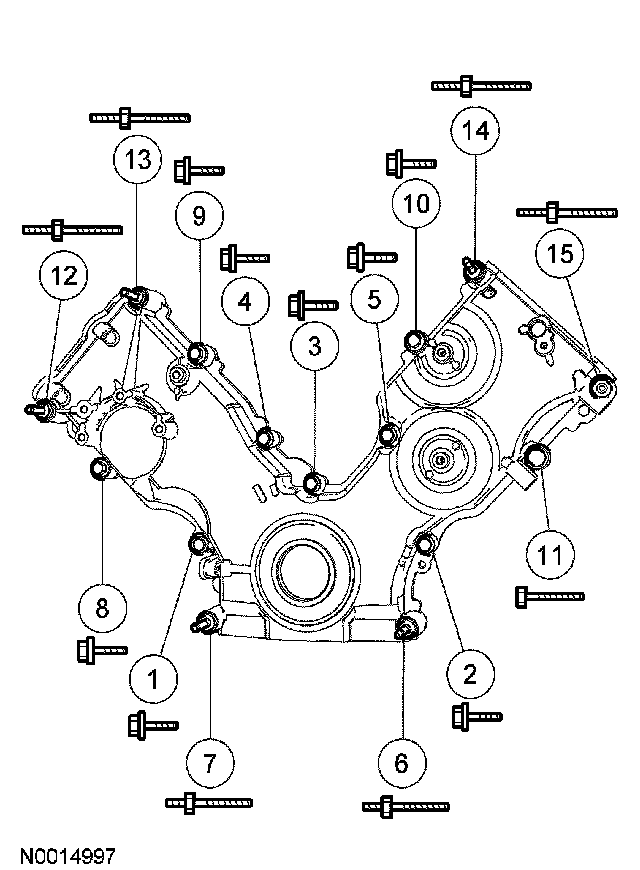

Tighten the engine front cover fasteners in the sequence shown.






Loosely install the bolts, then tighten the bolts in 2 stages, in the sequence shown.
^ Stage 1: Tighten to 20 Nm (15 ft. lbs.).
^ Stage 2: Tighten an additional 60 degrees.
