Timing Cover

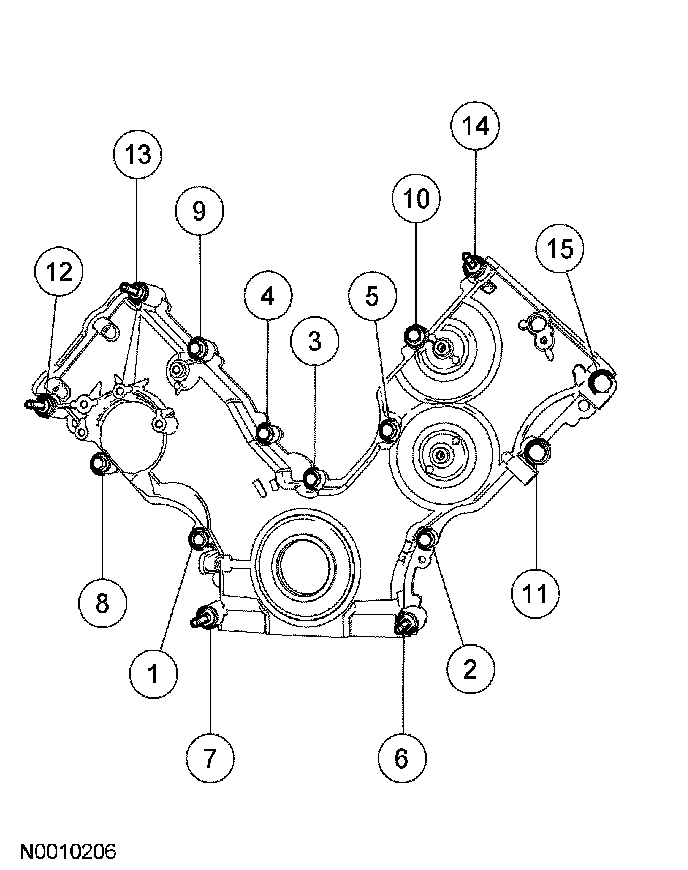

Engine Front Cover Tighten the engine front cover fasteners in sequence in 2 stages:
^
Stage 1: Tighten fasteners 1 through 15 to
25 Nm (18 lb-ft).
^
Stage 2: Tighten fasteners 6 and 7 to
48 Nm (35 lb-ft).

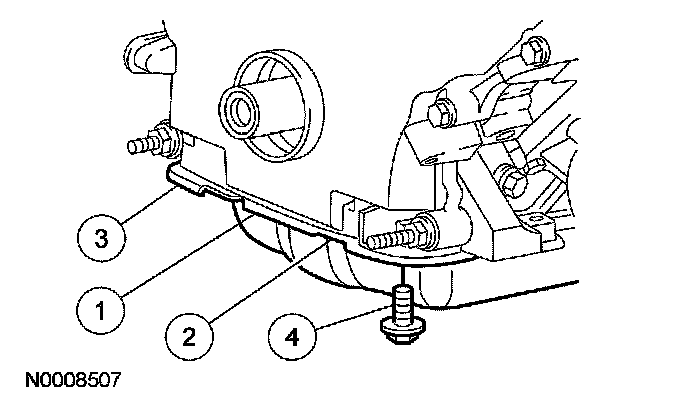

Tighten the bolts in 2 stages:
Stage 1
20 Nm (15 ft. lbs.)
Stage 2
Tighten an additional 60 degrees
