Torque Specifications

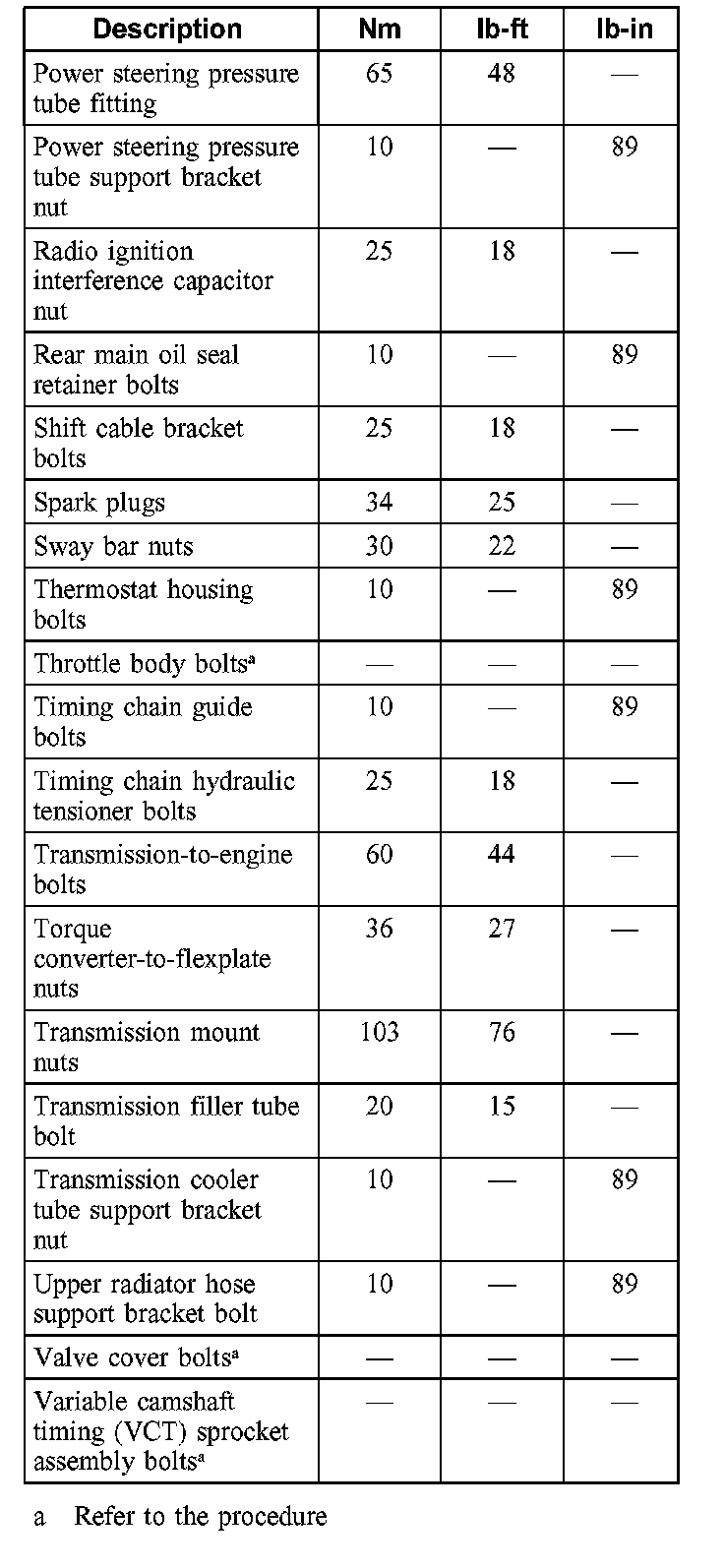

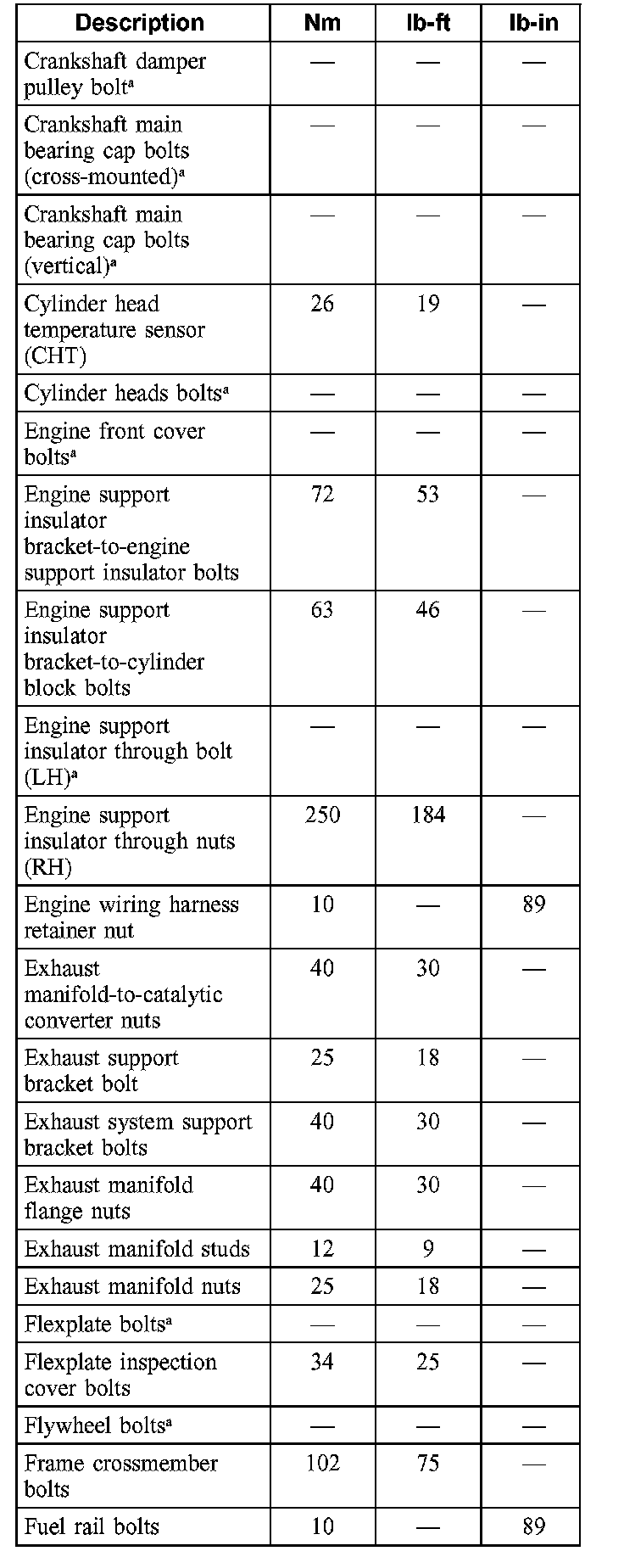

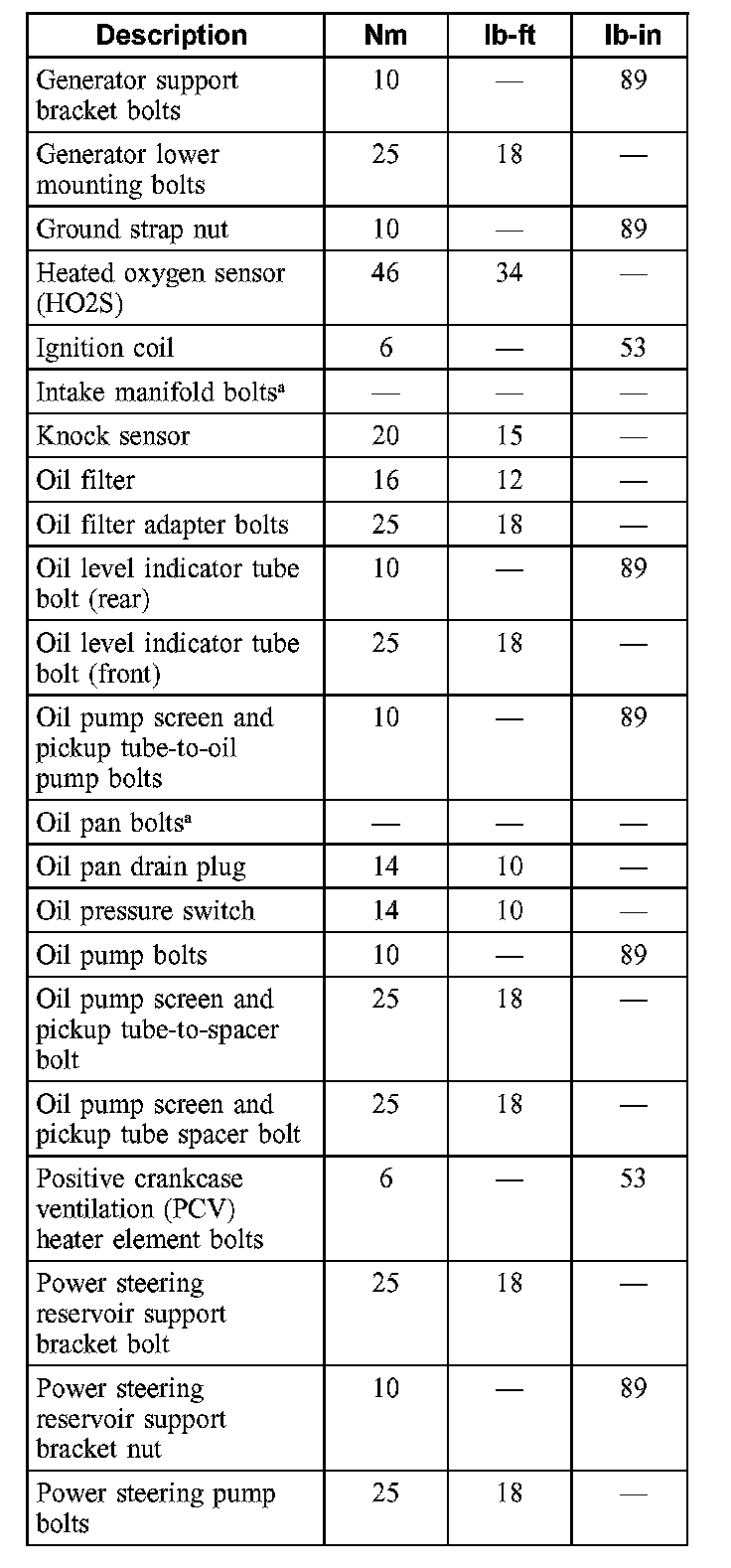

Torque Specifications


Cylinder head
Tighten the bolts in 3 stages RH shown, LH similar.






Stage 1 40 Nm (30 ft. lbs.)
Stage 2 Tighten an additional 90 degrees
Stage 3 Tighten an additional 90 degrees
Use New Bolts


Intake Manifold





Tighten in 2 stages:
Stage 1 2 Nm (18 inch lbs.)
Stage 2 Tighten to 10 Nm (89 inch lbs.)

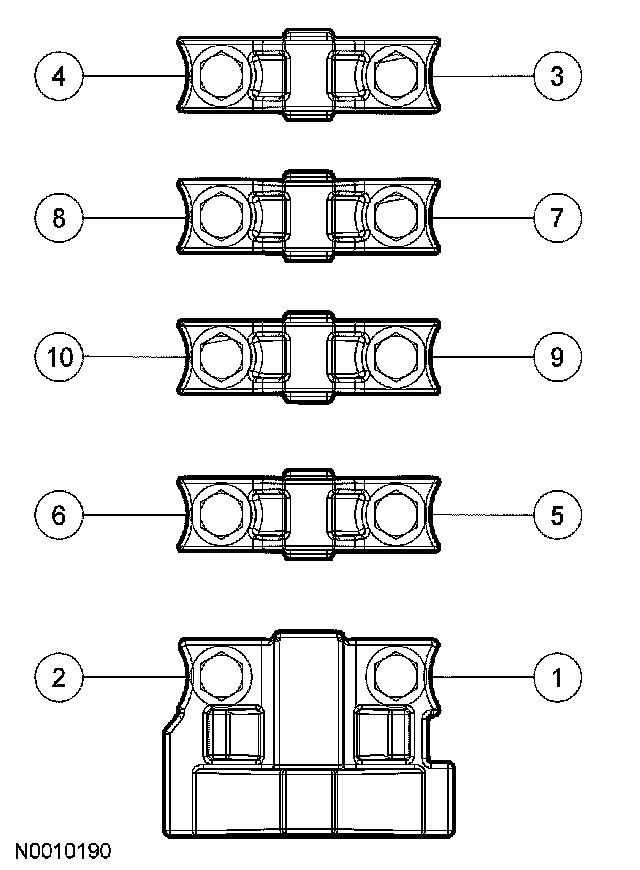

Camshaft Bearing Cap





LH and RH camshaft bearing caps
Install the bolts loosely.
Tighten 10 Nm (89 inch lbs.)


Main bearing Cap

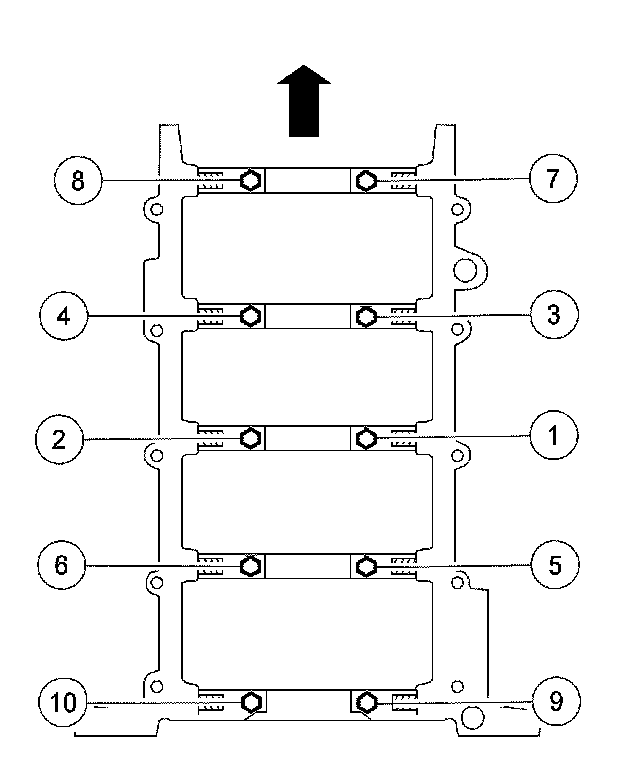

Install the vertical main bearing cap fasteners and tighten in the sequence shown:






^ Tighten 40 Nm (30 ft. lbs.).
^ Tighten additional 90 degrees.

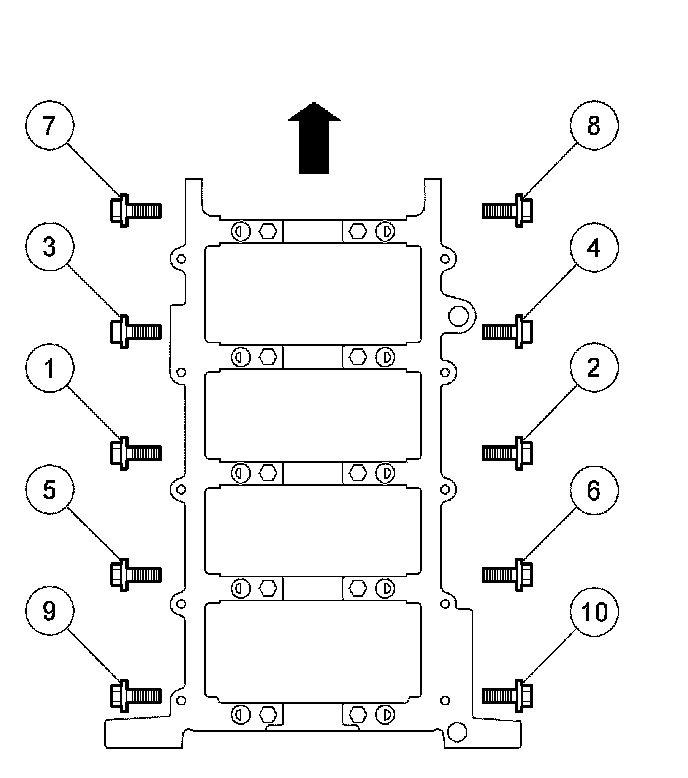

Install the side bolts and tighten them in the sequence shown:






^ Tighten 30 Nm (22 ft. lbs.).
^ Tighten additional 90 degrees.

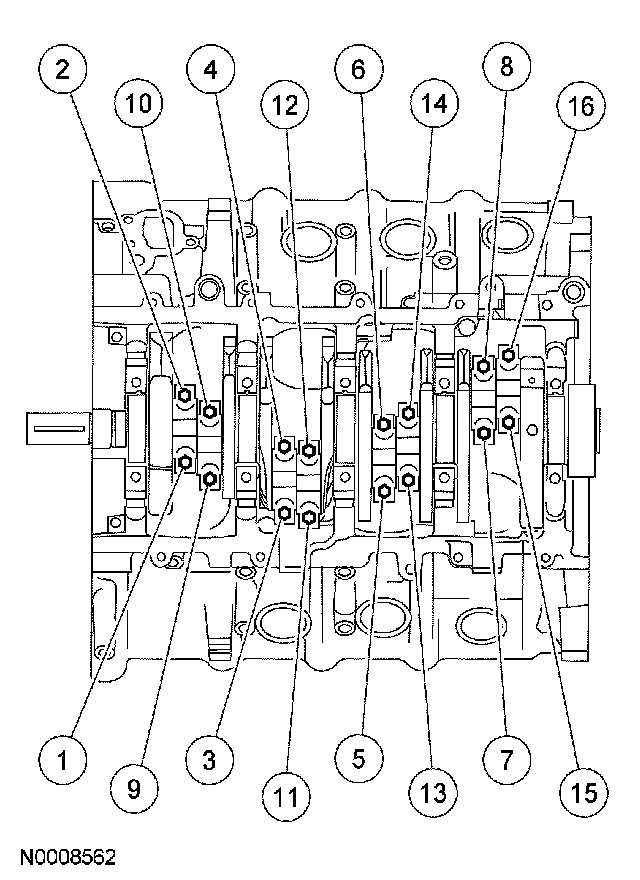

Rod Bearing Cap





Tighten the bolts in 2 stages:
Stage 1 43 Nm (32 ft. lbs.)
Stage 2 Tighten an additional 105 degrees


Crankshaft Pulley

Stage 1 90 Nm (66 ft. lbs.)
Stage 2 Loosen 360 degrees
Stage 3 50 Nm (37 ft. lbs.)
Stage 4 Tighten an additional 90 degrees

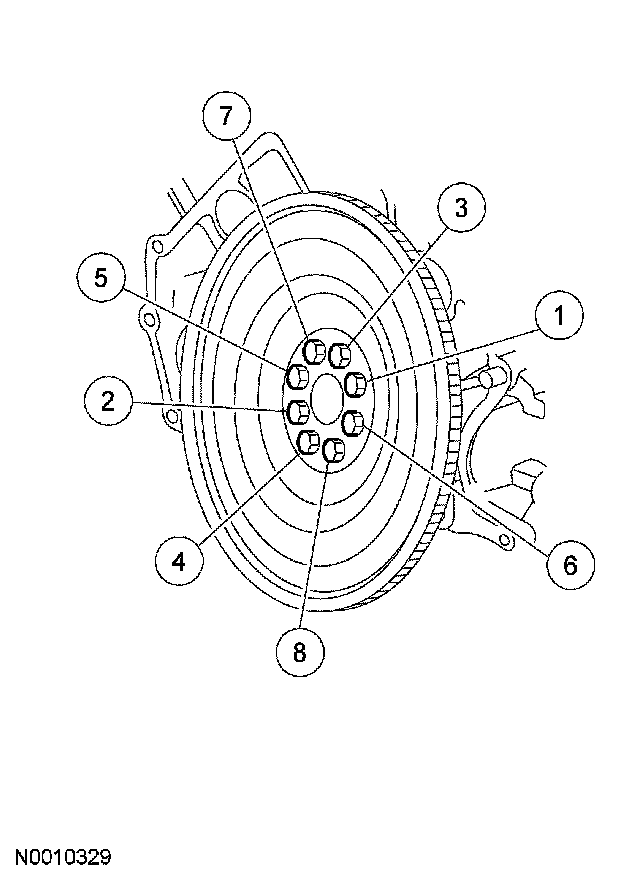

Flexplate





Tighten 80 Nm (59 ft. lbs.)


Flywheel





Tighten 80 Nm (59 ft. lbs.)


Oil pump bolts 10 Nm (89 inch lbs.)

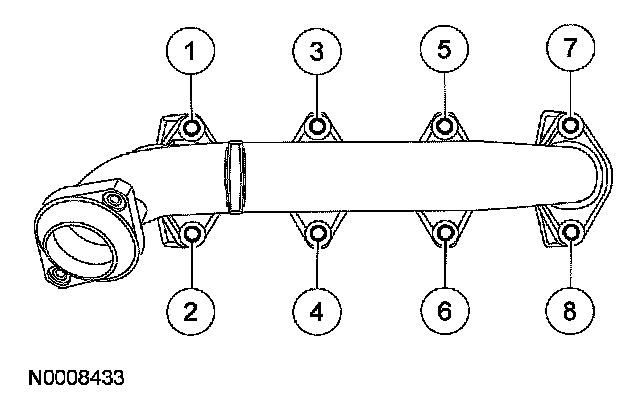

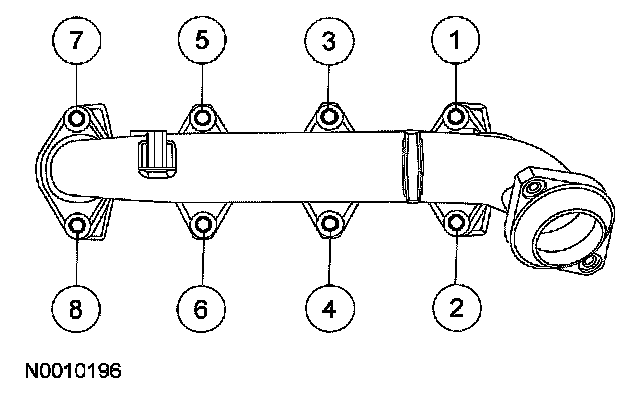

Exhaust Manifold - LH





Tighten 25 Nm (18 ft. lbs.)


Exhaust Manifold - RH





Tighten 25 Nm (18 ft. lbs.)


Coolant Pump 25 Nm (18 ft. lbs.)
