Drive/Propeller Shaft

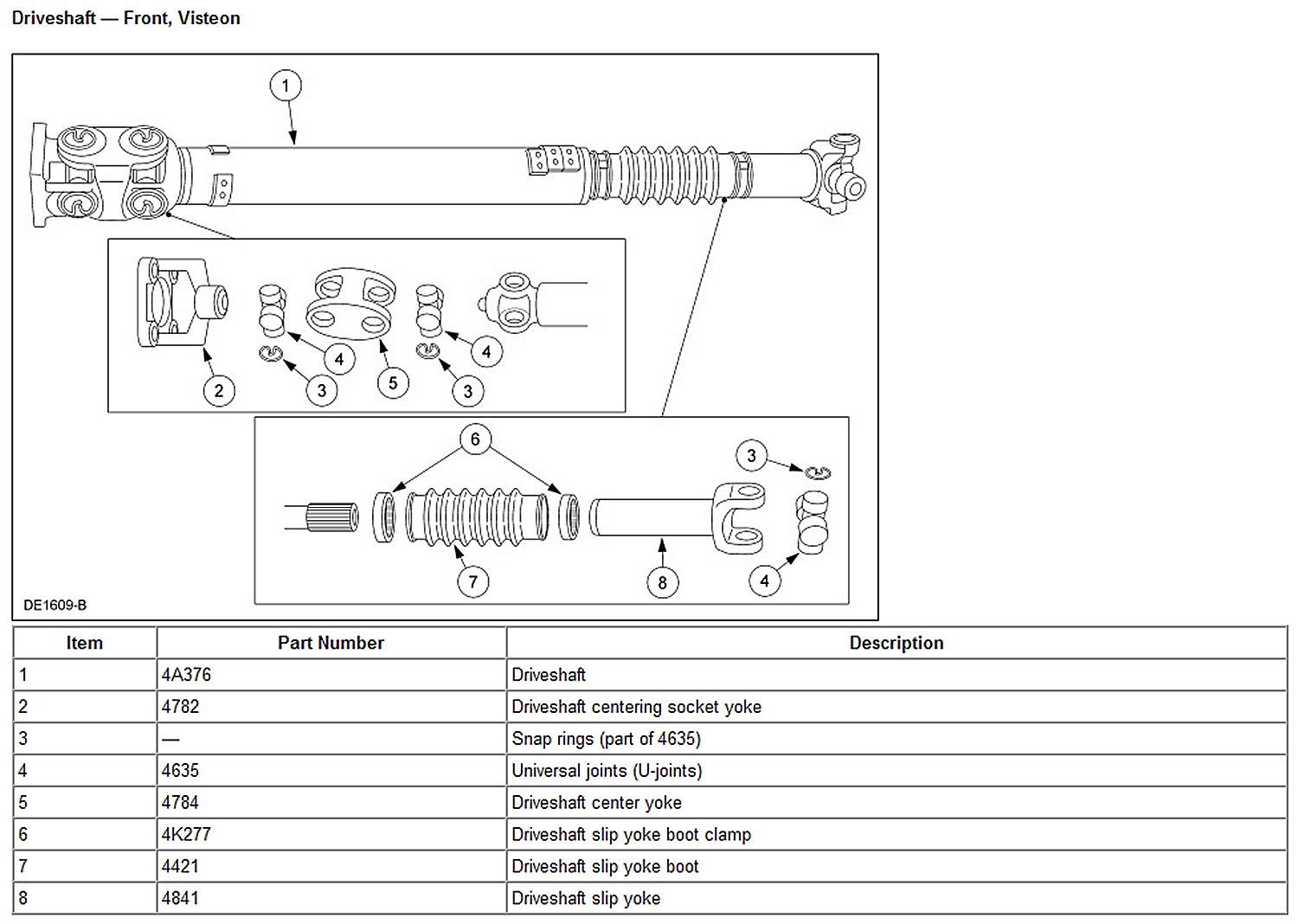

Driveshaft - Front, Visteon:

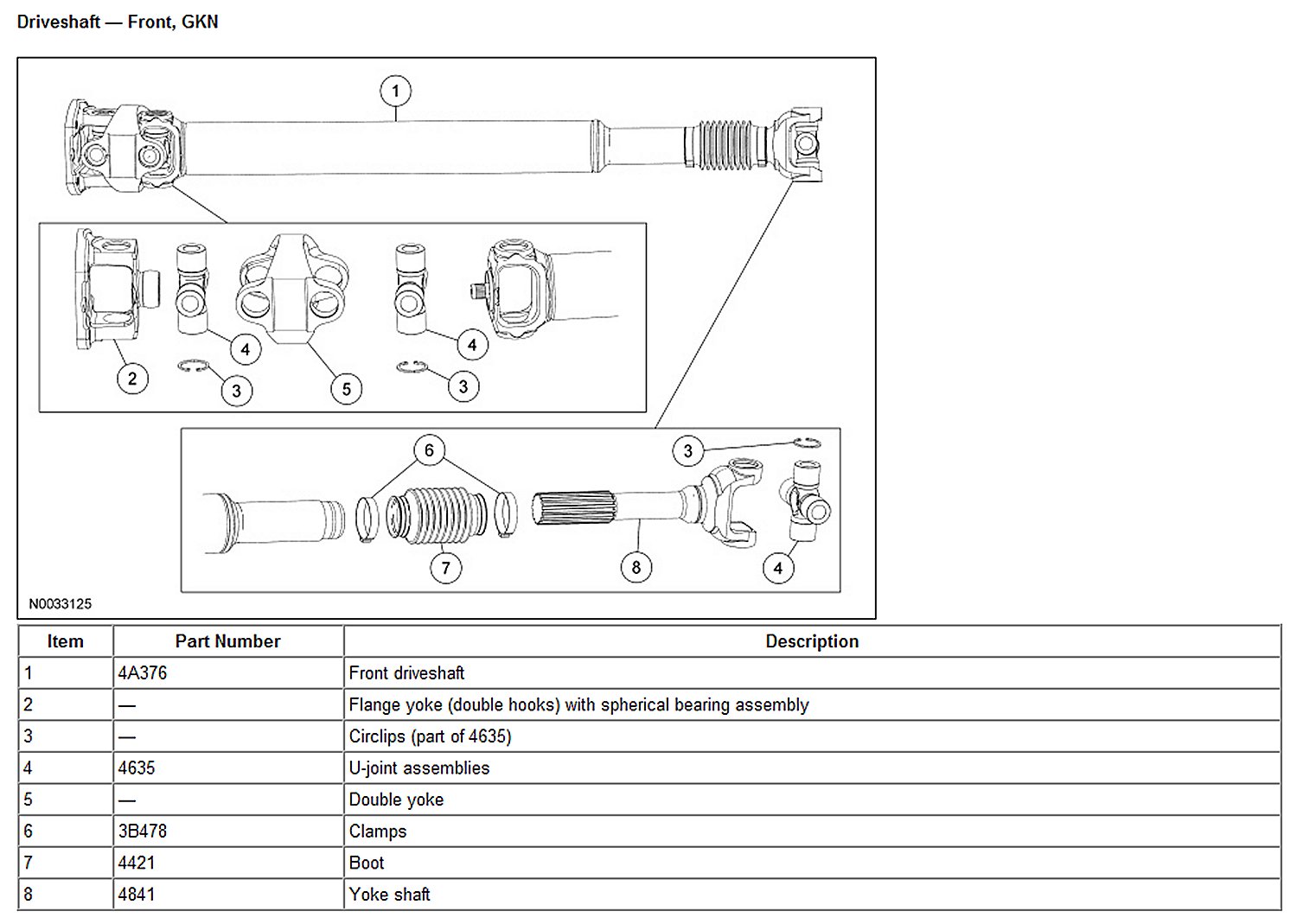

Driveshaft - Front, GKN:

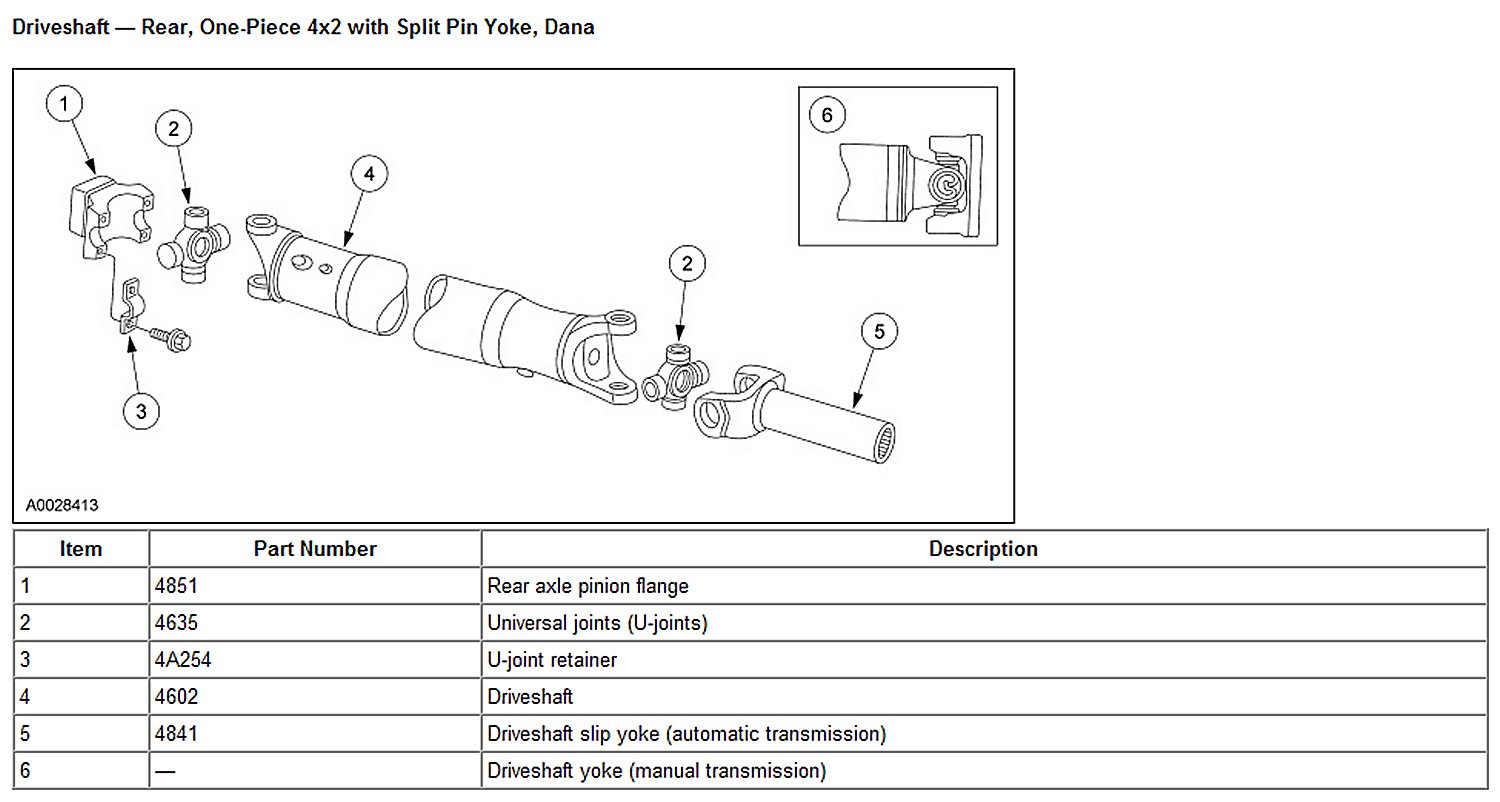

Rear, One-Piece 4X2 With Split Pin Yoke, Dana:

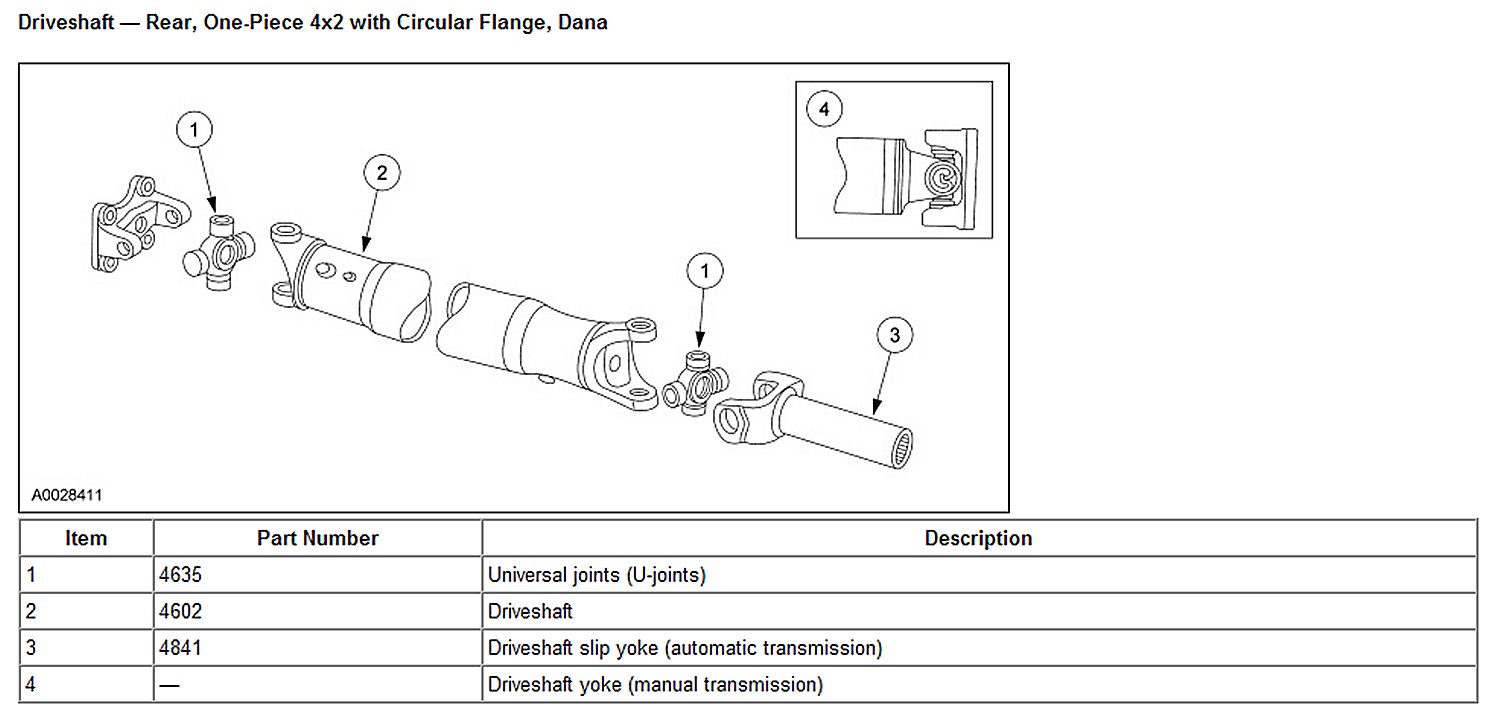

Rear, One-Piece 4X2 With Circular Flange, Dana:

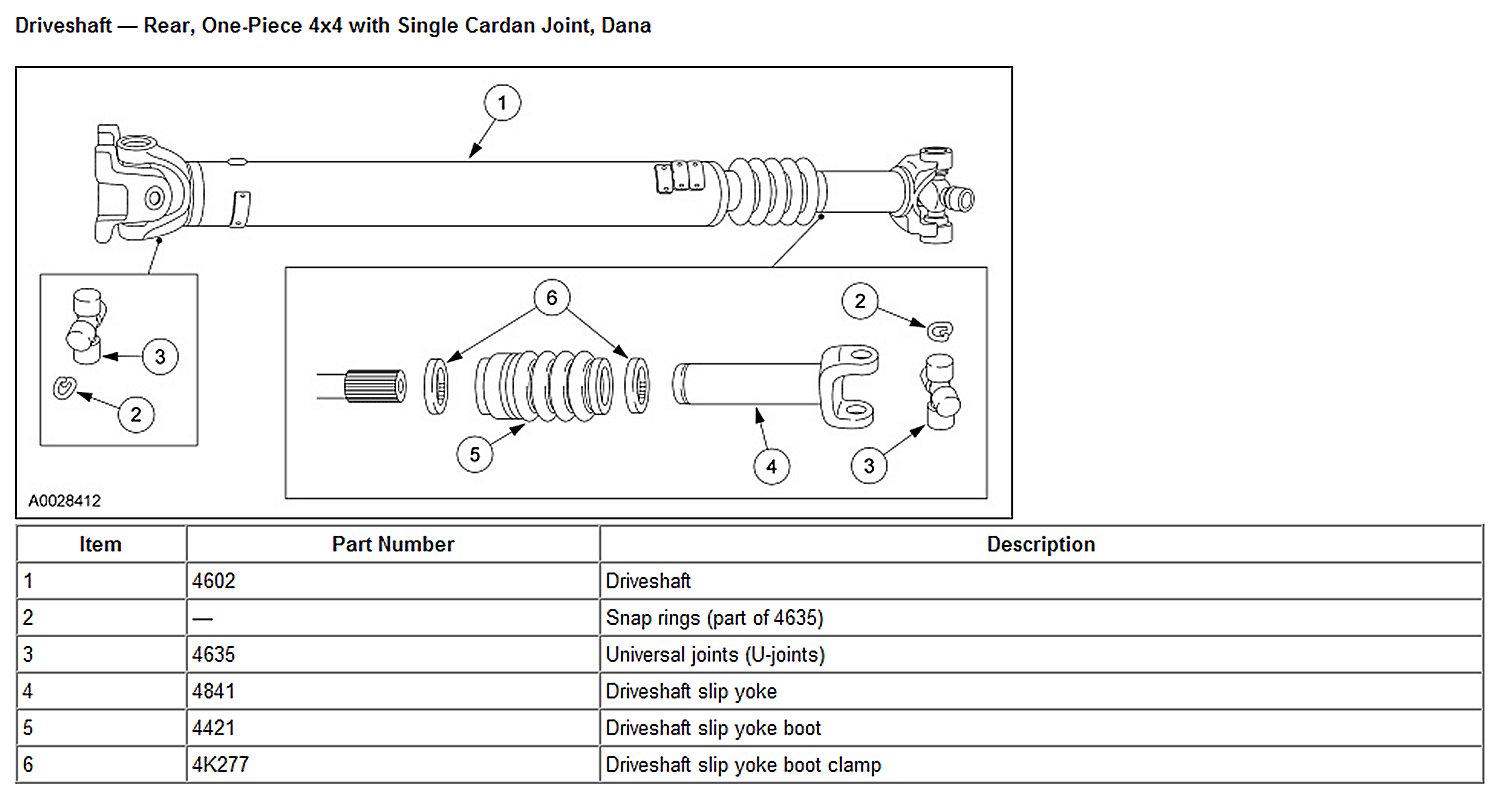

Rear, One-Piece 4X4 With Single Cardan Joint, Dana:

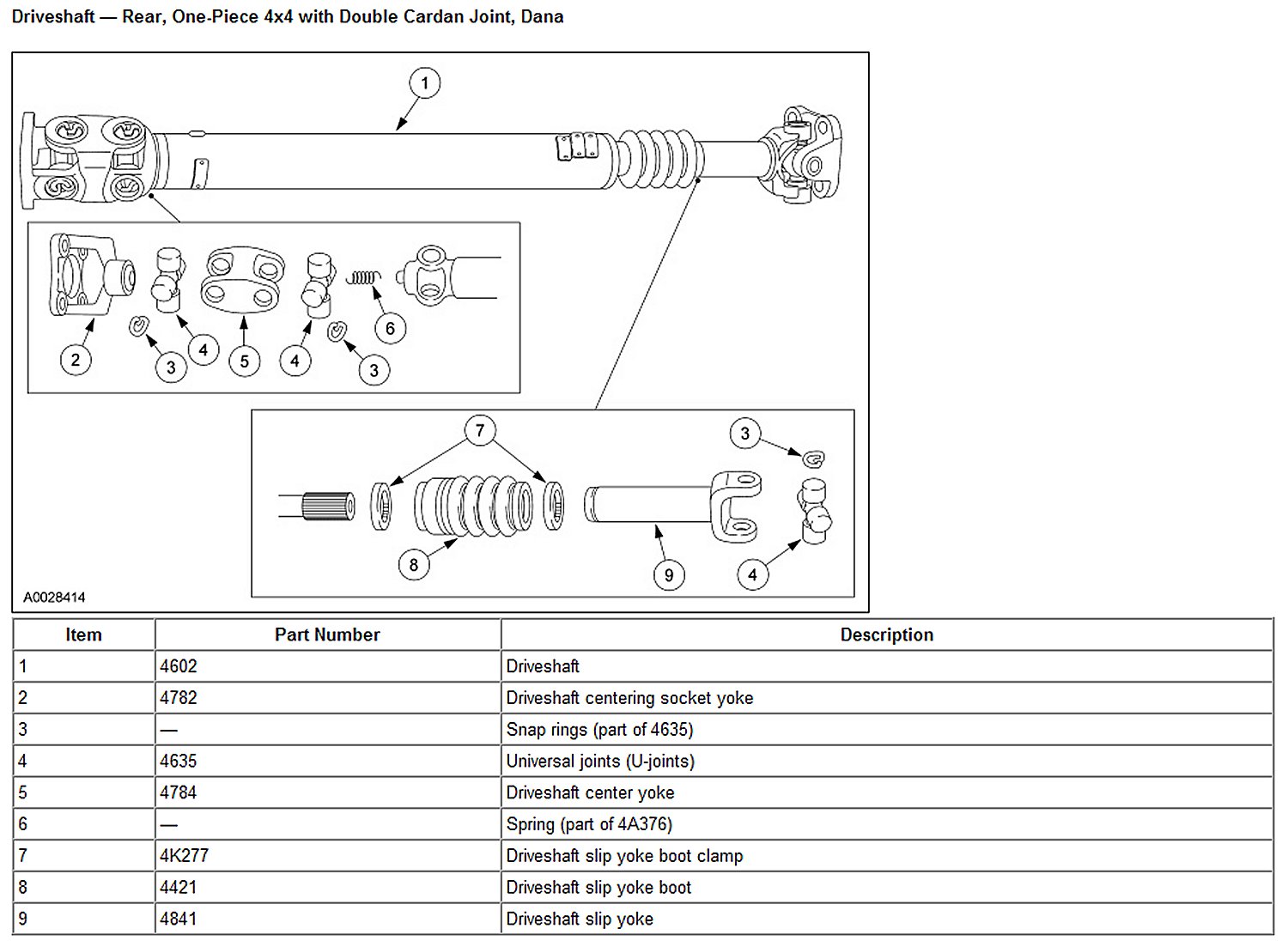

Rear, One-Piece 4X4 With Double Cardan Joint, Dana:

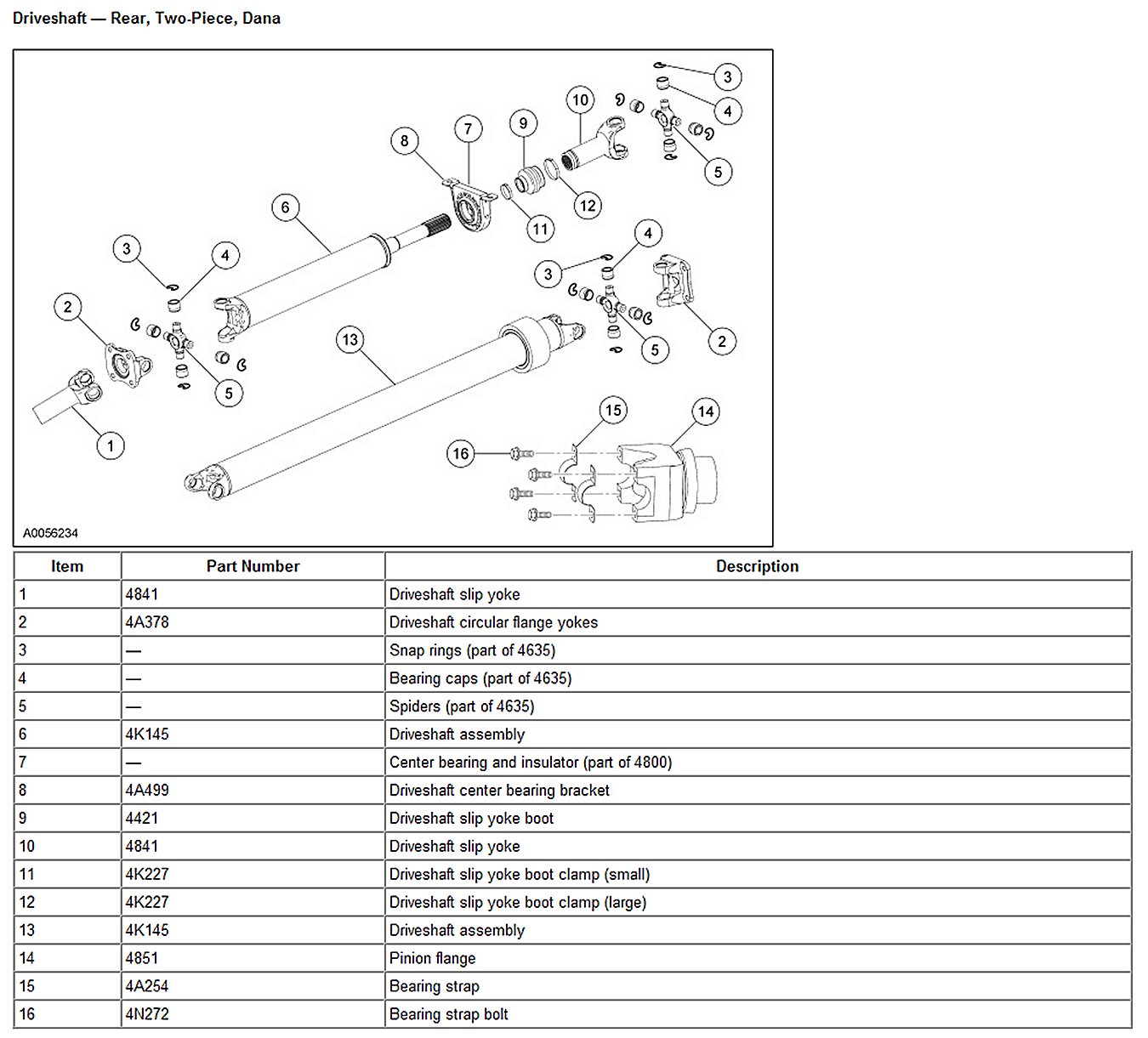

Rear, Two-Piece, Dana:

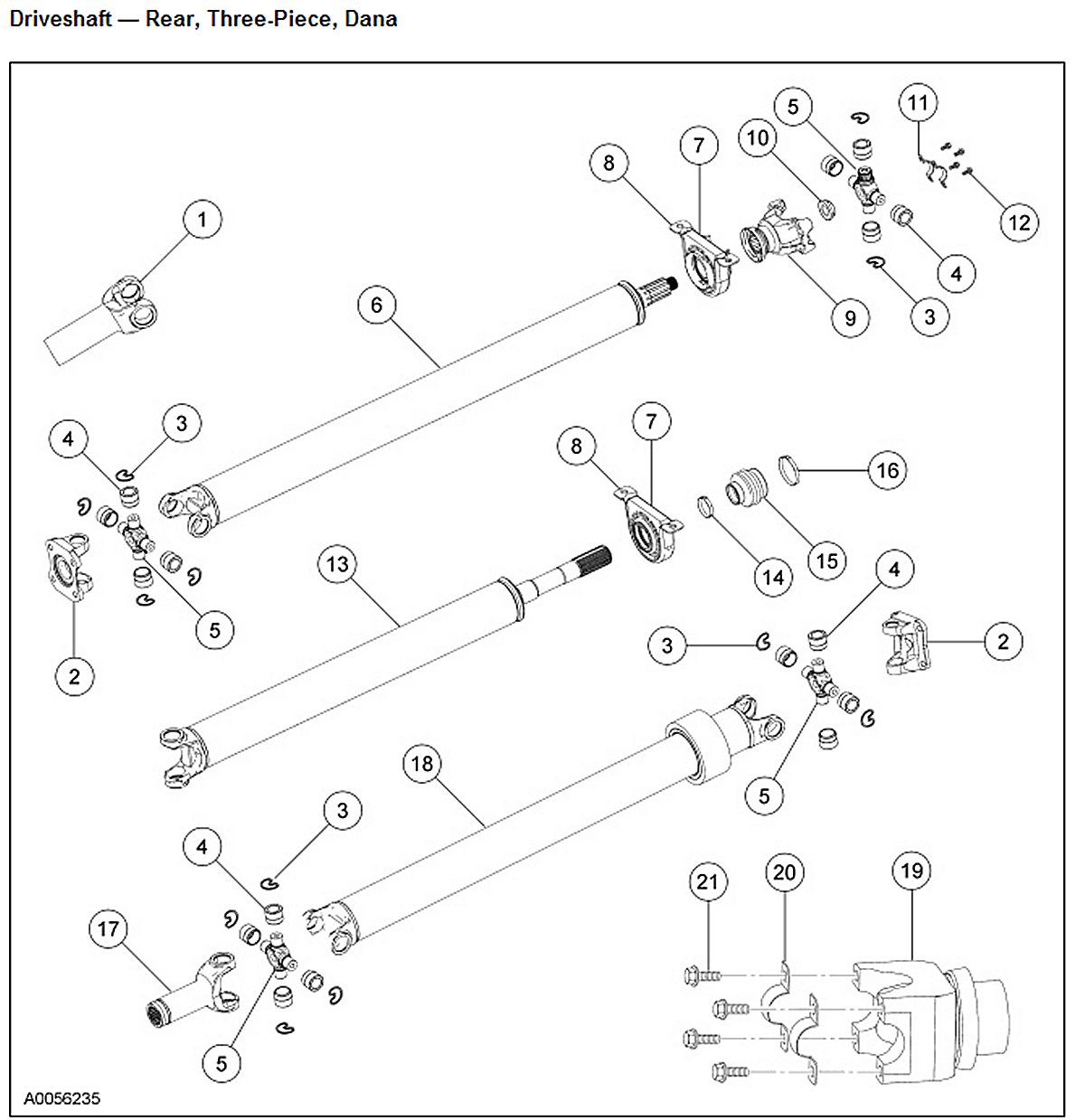

Rear, Three-Piece, Dana (1 Of 2):

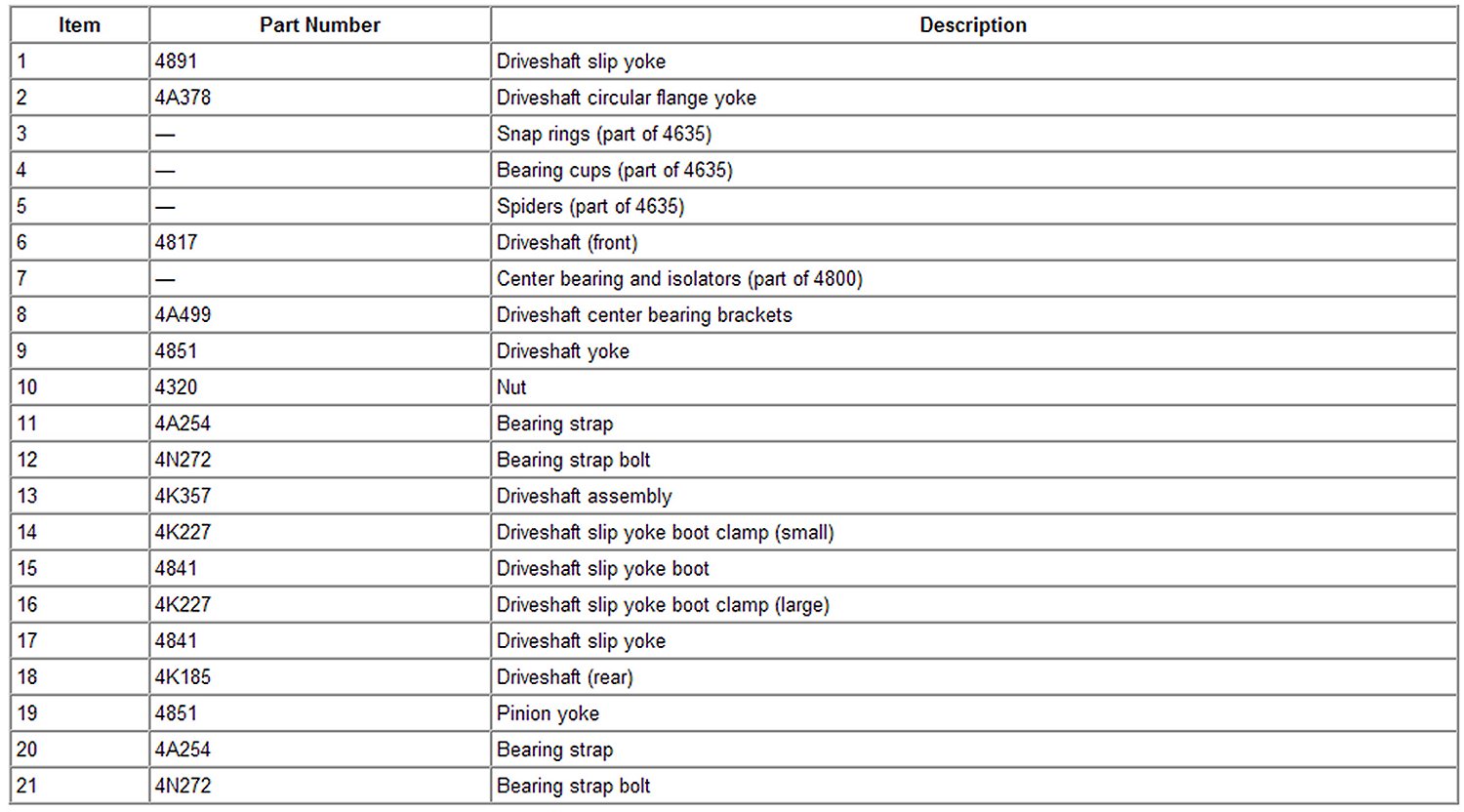

Rear, Three-Piece, Dana (2 Of 2):
