Auxiliary Brake System

REMOVAL AND INSTALLATION
Trailer Brake Module
Removal and Installation
1. Position the instrument panel center finish panel aside.

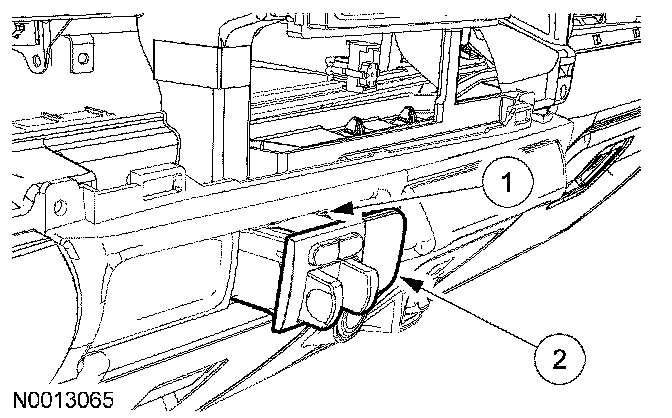

2. Press the tab and position the trailer brake controller module part-way out of the instrument panel.






3. Using a suitable tool, press the retaining tab at the top and remove the trailer brake controller module.
1. Press the retaining tab and disconnect the electrical connectors.
2. Remove the trailer brake controller module
4. To install, reverse the removal procedure.
