System Diagram

Exploded Views

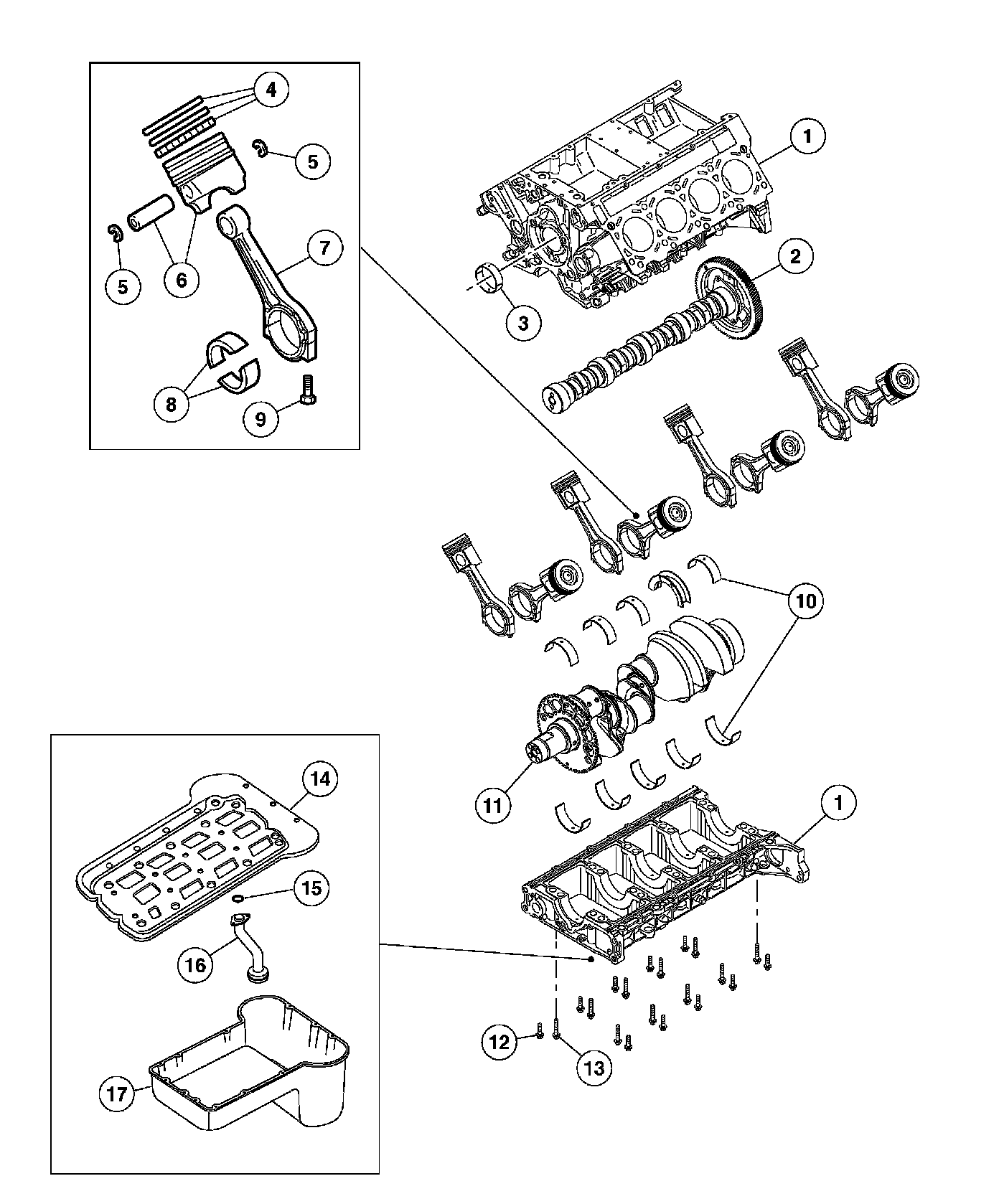

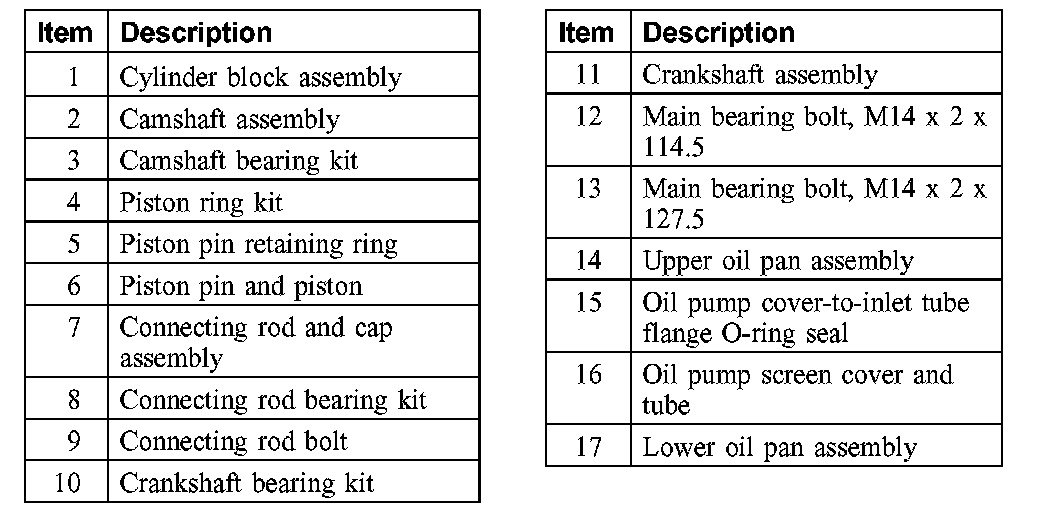

6.0L Crankshaft, Camshaft and Piston

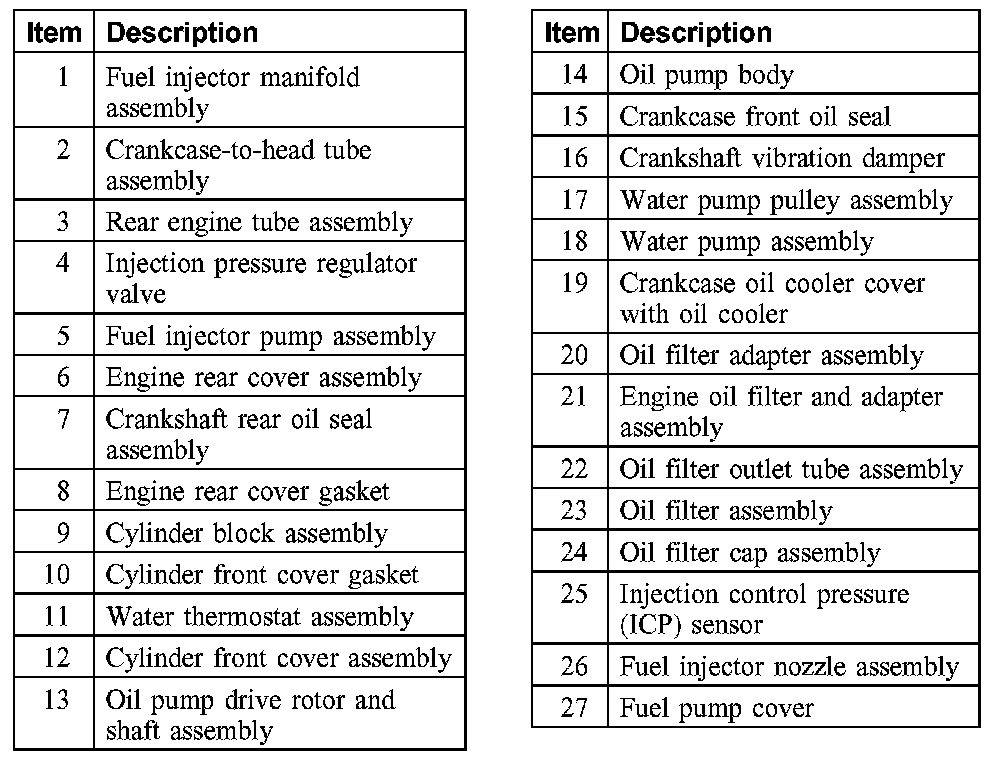

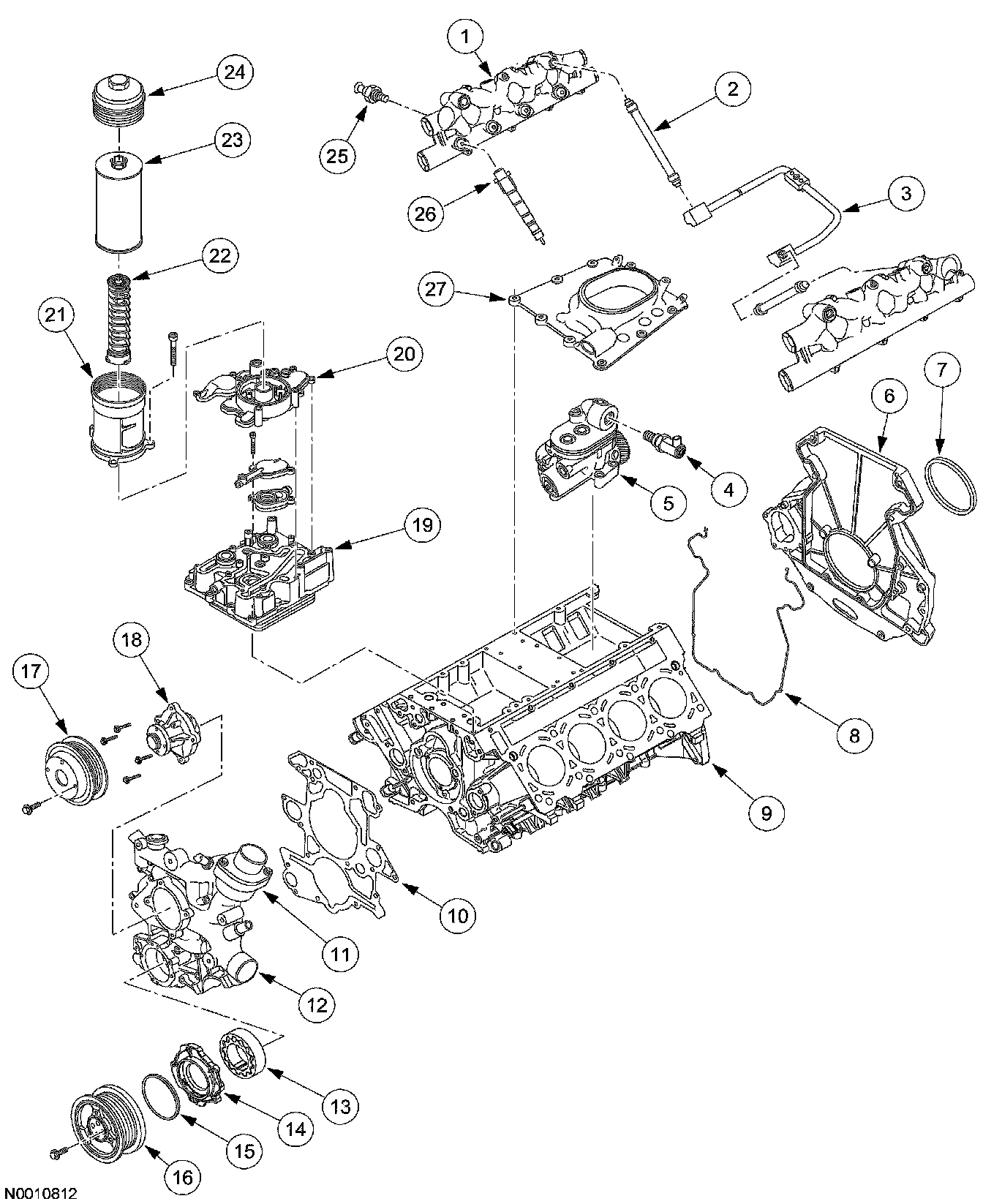

6.0L Front Cover, Rear Cover and Oil Components

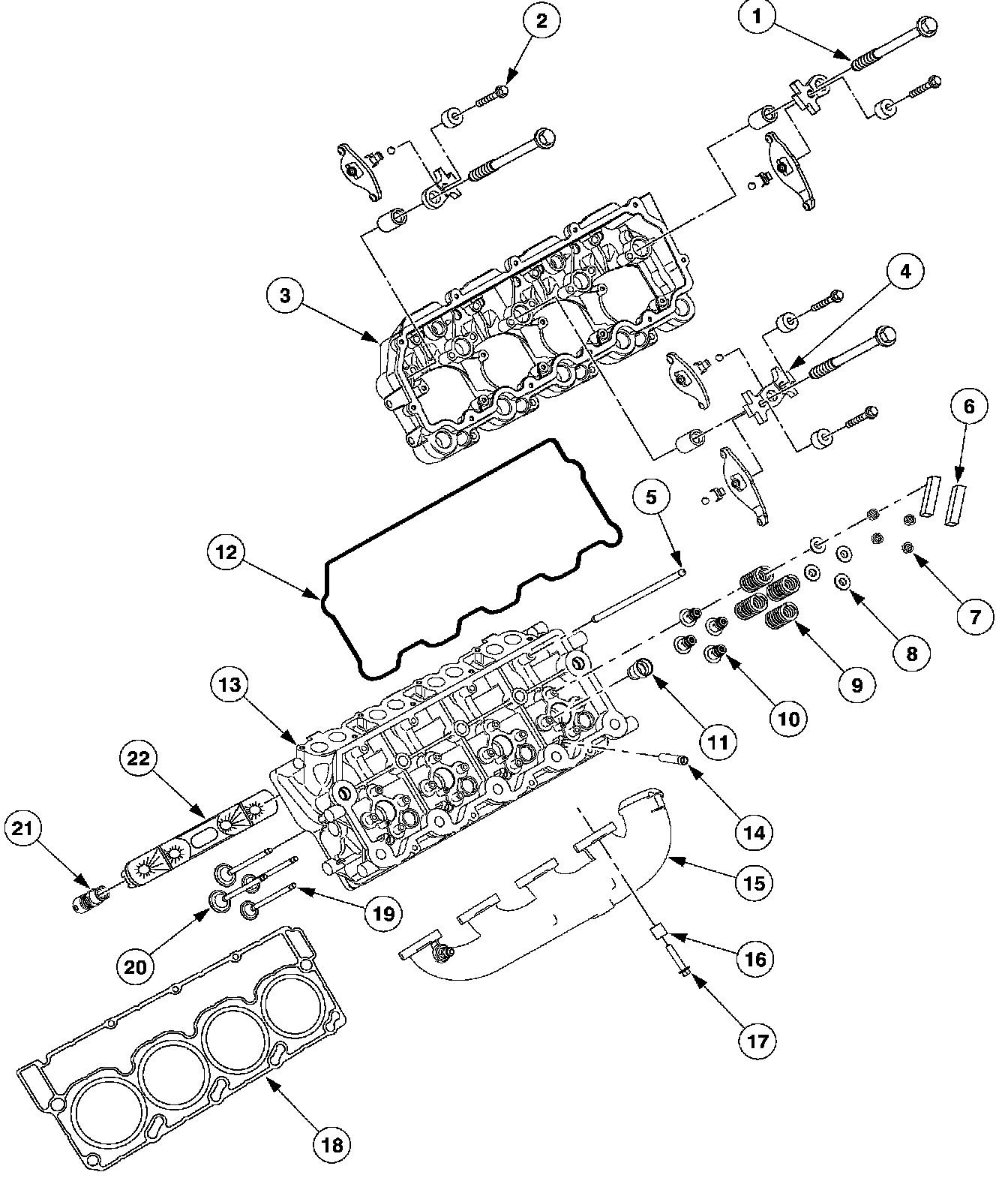

6.0L Front Cylinder Head and Rocker Arm Carrier

6.0L Valve Cover

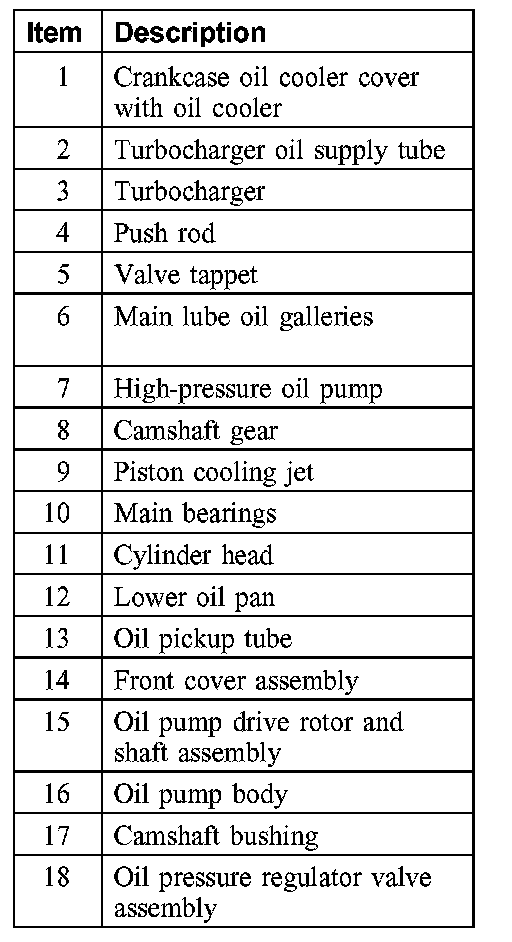

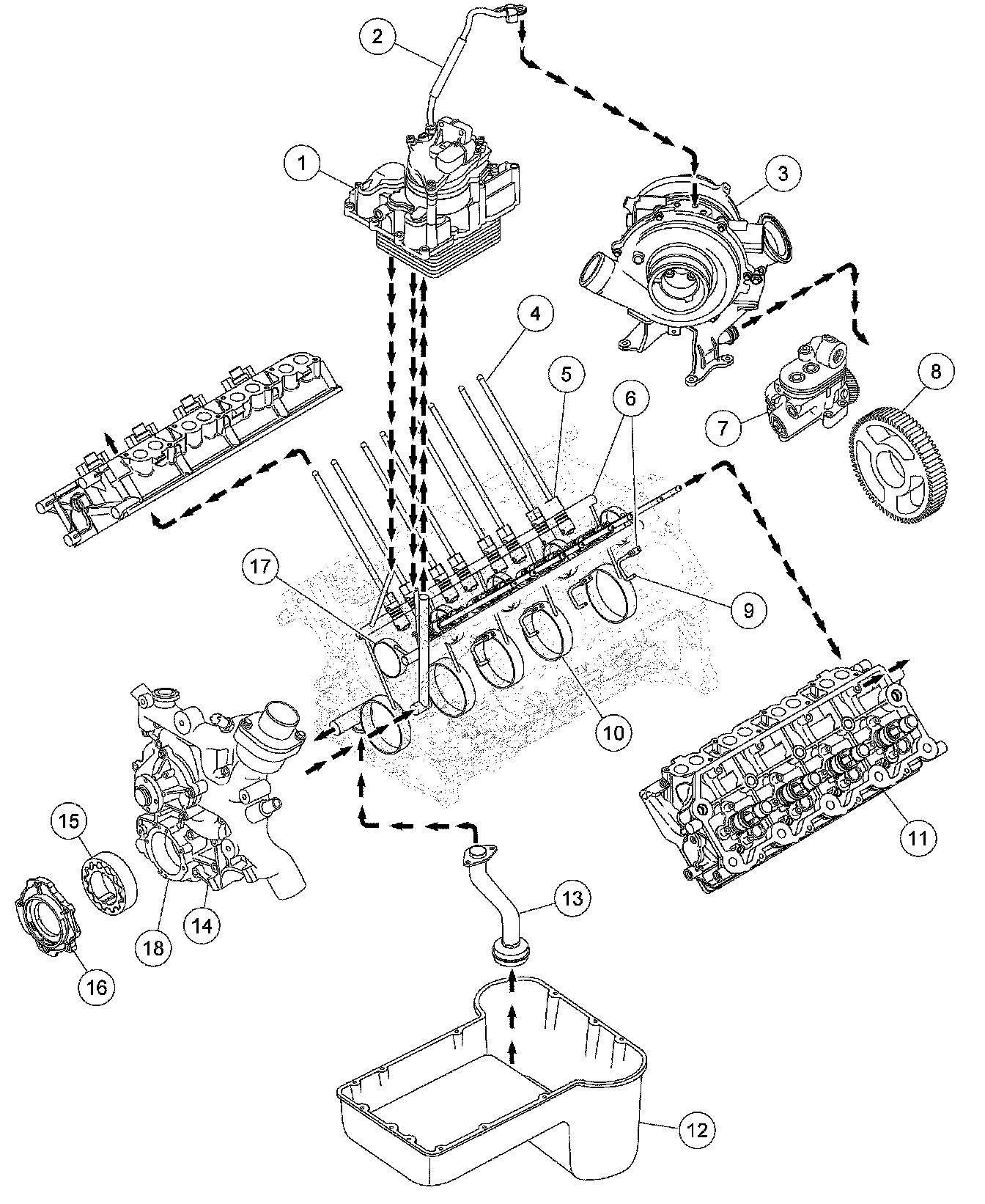

Low-Pressure Oil Flow
